A-BRIGHT
A-BRIGHT INDUSTRIAL CO.,LTD.
Part No.
AL-30-01UWC
Diff No.
7.62 mm
SUPER FLUX WHITE LED
Type LED Lamps
High Power LED
MODEL NO: AL-30-01UWC
Page: 1/4
Package Dimensions:
Notes:
All dimensions are in millimeters.
A-BRIGHT
A-BRIGHT INDUSTRIAL CO.,LTD.
Part No.
AL-30-01UWC
Diff No.
7.62 mm
SUPER FLUX WHITE LED
Type LED Lamps
High Power LED
MODEL NO: AL-30-01UWC
Page: 2/4
Absolute Maximum Ratings
*
Parameter
Forward Current
Pulse Forward Current
*1
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Soldering Temperature
*2
Symbol
I
F
I
FP
V
R
P
D
T
opr
T
stg
T
sol
Rating
30
100
5
120
-30 ~ +80
-40 ~ +100
260
Units
mA
mA
V
mW
℃
℃
℃
*1. I
FP
Conditions--Pulse Width≦10msec and Duty≦1/10
*2. Soldering time≦5 seconds
Electro-Optical Characteristic
Parameter
Forward Voltage
Reverse Current
Brightness
Viewing Angle
Chromaticity
Coordinates
Symbol
V
F
I
R
I
V
2θ1/2
X
y
(Ta=25℃)
Min.
--
250
--
Typ.
3.5
Condition
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
Max.
4.2
Units
V
--
500
70
0.29
0.30
10
--
--
μA
mcd
deg
A-BRIGHT
A-BRIGHT INDUSTRIAL CO.,LTD.
Part No.
AL-30-01UWC
Diff No.
7.62 mm
SUPER FLUX WHITE LED
Type LED Lamps
High Power LED
MODEL NO: AL-30-01UWC
Page: 3/4
Reliability Test Conditions
NO.
1
2
3
4
5
6
7
Condition
Room Temperature
DC Operating Life
Thermal Shock
Temperature Cycle
High Temperature/
High Humidity Test
High Temperature
Storage
Low Temperature
Storage
Solder Heat
Test Condition
Ta=25℃
I
F
=20mA
-10℃(5min) (10sec)
+100℃(5min)
100cycles
80PCS
80PCS
80PCS
80PCS
80PCS
80PCS
0/1
0/1
0/1
0/1
0/1
0/1
Test Hour/ Sample
Cycle
Size
1000hrs
80PCS
Accept/
Reject
0/1
-40℃(30min) (5min) 100cycles
+85℃(30min)
85℃/
85％RH
Ta=100℃
Ta=-40℃
260℃± 5℃
1000hrs
1000hrs
5secs
1000hrs
A-BRIGHT
A-BRIGHT INDUSTRIAL CO.,LTD.
Part No.
AL-30-01UWC
Diff No.
7.62 mm
SUPER FLUX WHITE LED
Type LED Lamps
High Power LED
MODEL NO: AL-30-01UWC
Page: 4/4

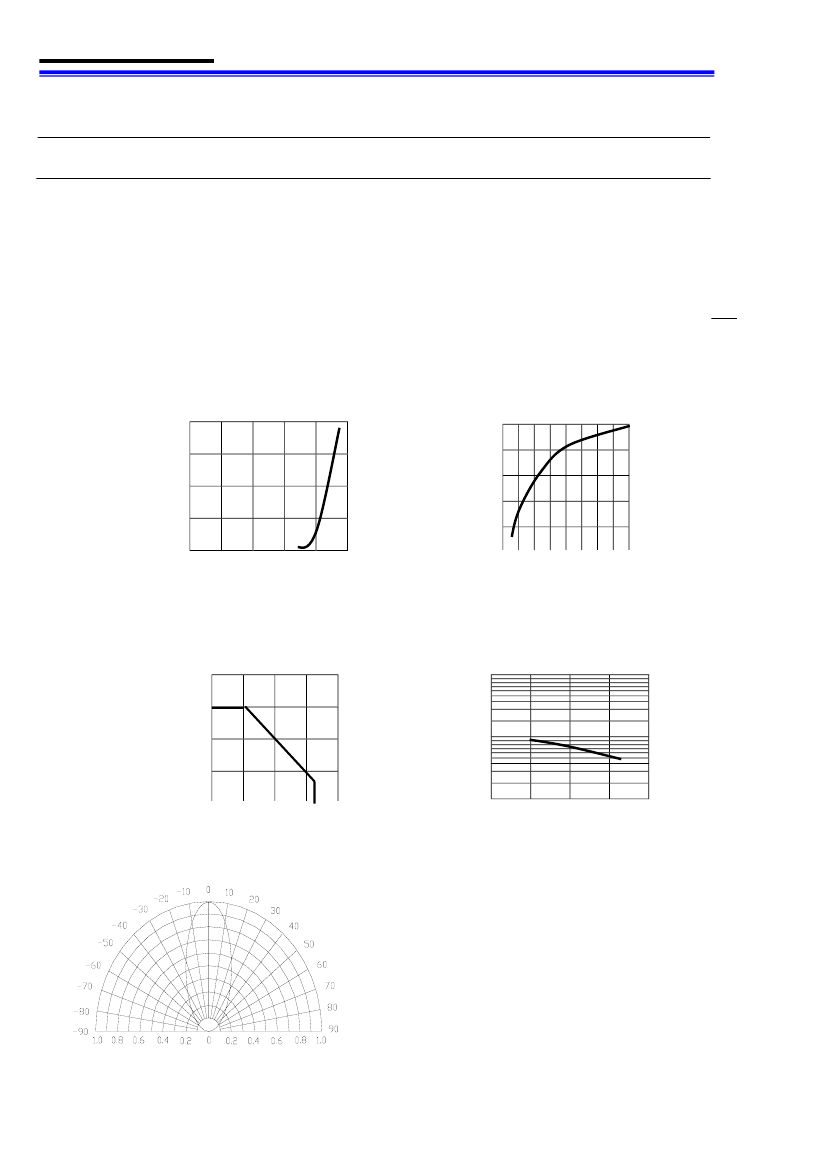

Typical Electro-Optical Characteristics Curves
Forward Current VS. Forward Voltage
40
30
20
10
0
Forward Current –IF(mA)
0
1
2
3
4
Forward Voltage – Vf(V)
5
Forward Current VS. Ambient Temperature
RELATIVE LUMINOUS INTENSITY
10
40
30
20
10
0
Forward Current (mA)
Relative Intensity VS. Forward Current
0
25
50
75
100
Ambient temperature TA(℃)
Relative Intensity VS. Forward Current
125 100
Relative Intensity VS. Ambient Temperature
Relative intensity (%)
1
0
75
50
25 0
0 5 10 15 20 25 30 35 40
Forward Current – IF (mA)
0
25
50
75
100
Ambient temperature TA(℃)
Directivity Radiation Angle: 70 degree (Typ.)
