CMRDM3575TRLEADFREE: DescriptionTransistor; CategoryDiscrete semiconductor The transistor; File Size415KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CMRDM3575TRLEADFREE Overview

Transistor

CMRDM3575TRLEADFREE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
package instruction	,
Reach Compliance Code	compliant
Maximum drain current (Abs) (ID)	0.16 A
FET technology	METAL-OXIDE SEMICONDUCTOR
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Polarity/channel type	N-CHANNEL AND P-CHANNEL
Maximum power dissipation(Abs)	0.125 W
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

CMRDM3575

SURFACE MOUNT

N-CHANNEL AND P-CHANNEL

ENHANCEMENT-MODE

COMPLEMENTARY SILICON MOSFETS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMRDM3575

consists of complementary N-Channel and P-Channel

Enhancement-mode silicon MOSFETs designed for

high speed pulsed amplifier and driver applications.

These MOSFETs offer Low rDS(ON) and Low

Threshold Voltage.

MARKING CODE: CT

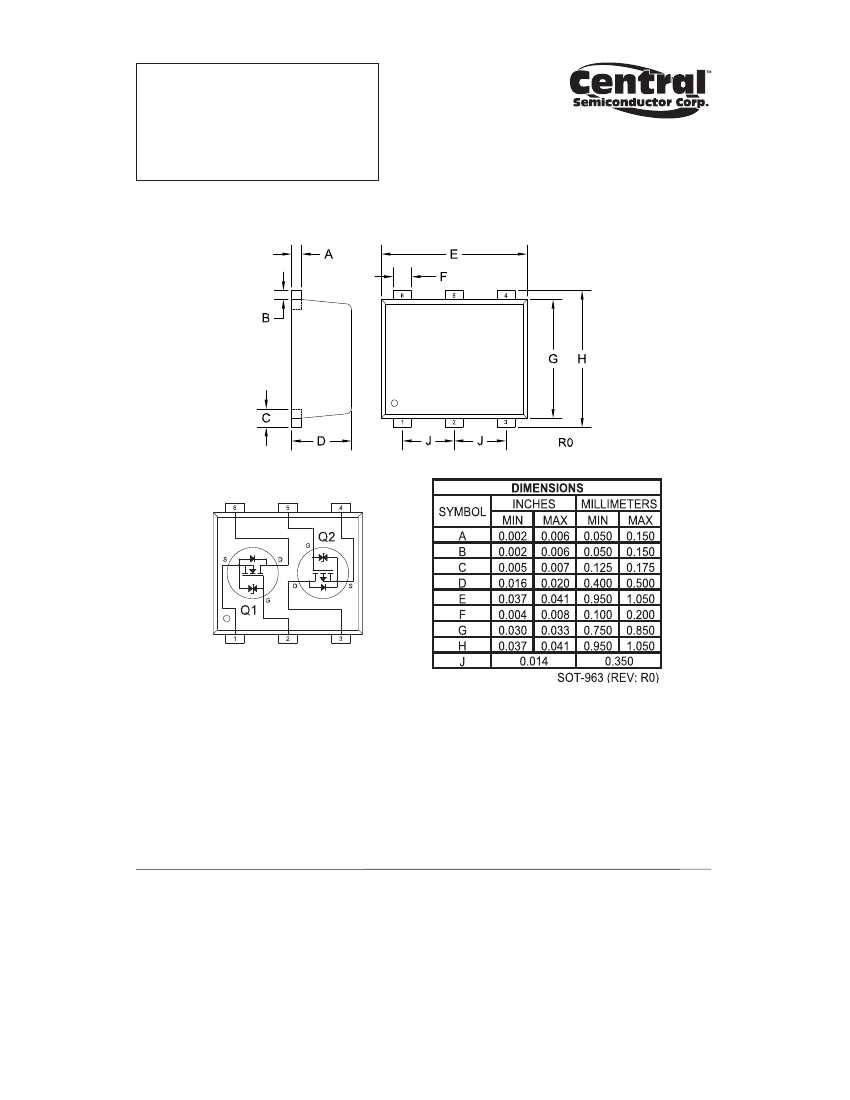

SOT-963 CASE

• Device is

Halogen Free

by design

APPLICATIONS:

• Load/Power Switches

• Power Supply Converter Circuits

• Battery Powered Portable Devices

MAXIMUM RATINGS:

(TA=25°C)

Drain-Source Voltage

Gate-Source Voltage

Continuous Drain Current (Steady State)

Continuous Drain Current, tp < 5.0s

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

FEATURES:

• Power Dissipation: 125mW

• Low Package Profile: 0.5mm (MAX)

• Low rDS(ON)

• Low Threshold Voltage

• Logic Level Compatible

• Small SOT-963 Surface Mount Package

SYMBOL

VDS

VGS

ID

PD

TJ, Tstg

Θ

JA

N-CH (Q1)

P-CH (Q2)

20

8.0

160

140

200

180

125

-65 to +150

1000

P-CH (Q2)

MIN TYP MAX

-

100

-

50

-

100

20

-

0.4

-

1.0

-

4.0

5.0

-

5.5

7.0

-

8.0

10

-

11

17

-

20

-

0.536

-

0.292

-

0.236

-

1.3

-

1.0

-

12

-

2.7

-

60

-

210

-

UNITS

V

mA

mW

°C

°C/W

UNITS

nA

V

Ω

nC

S

pF

ns

ELECTRICAL CHARACTERISTICS:

(TA=25°C)

N-CH (Q1)

SYMBOL

TEST CONDITIONS

MIN TYP MAX

IGSSF, IGSSR VGS=5.0V, VDS=0

-

100

IDSS

VDS=5.0V, VGS=0

-

50

IDSS

VDS=16V, VGS=0

-

100

BVDSS

VGS=0, ID=250μA

20

-

VGS(th)

VDS=VGS, ID=250μA

0.4

-

1.0

rDS(ON)

VGS=4.5V, ID=100mA

-

1.5

3.0

rDS(ON)

VGS=2.5V, ID=50mA

-

2.0

4.0

rDS(ON)

VGS=1.8V, ID=20mA

-

3.0

6.0

rDS(ON)

VGS=1.5V, ID=10mA

-

4.0

10

rDS(ON)

VGS=1.2V, ID=1.0mA

-

7.0

-

Qg(tot)

VDS=10V, VGS=4.5V, ID=100mA

-

0.458

-

Qgs

VDS=10V, VGS=4.5V, ID=100mA

-

0.176

-

Qgd

VDS=10V, VGS=4.5V, ID=100mA

-

0.138

-

gFS

VDS=5.0V, ID=125mA

-

1.3

-

Crss

VDS=15V, VGS=0, f=1.0MHz

-

2.2

-

Ciss

VDS=15V, VGS=0, f=1.0MHz

-

9.0

-

Coss

VDS=15V, VGS=0, f=1.0MHz

-

3.0

-

ton

VDD=10V, VGS=4.5V, ID=200mA -

40

-

toff

VDD=10V, VGS=4.5V, ID=200mA -

150

-

R2 (2-August 2011)
