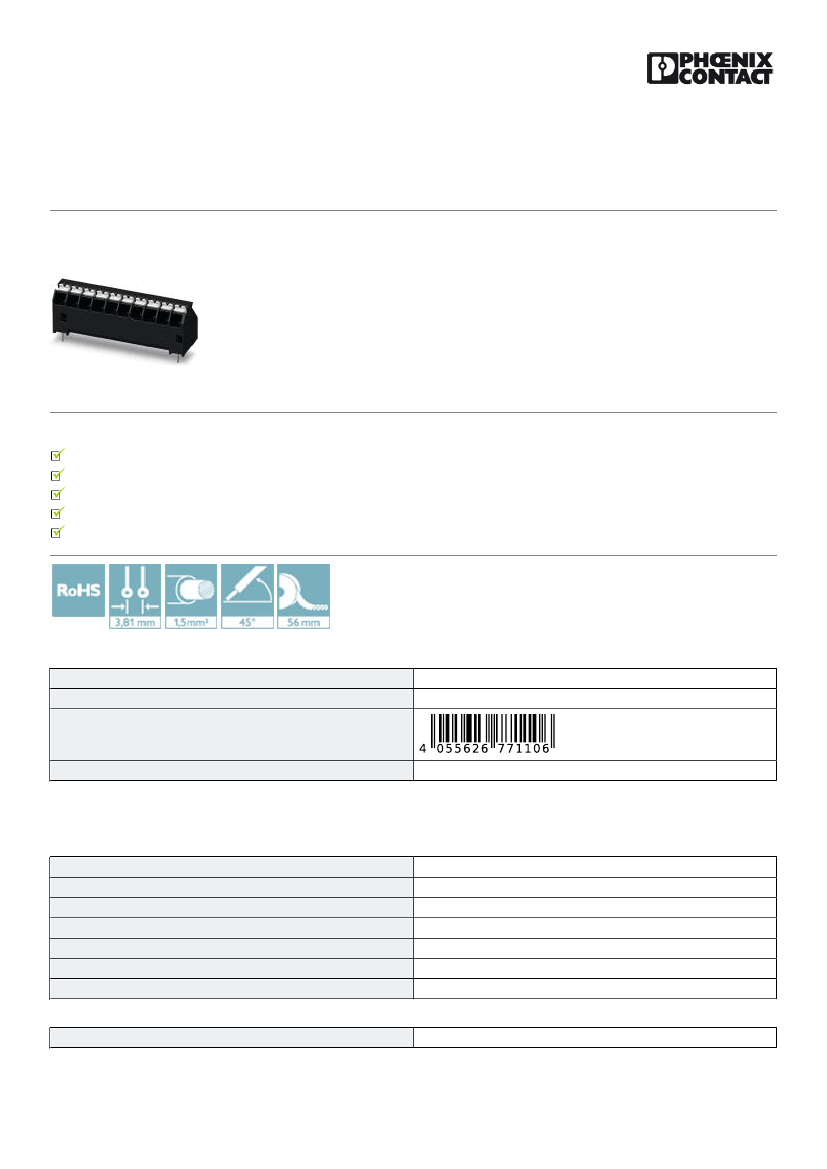

PCB terminal block - SPTA-THR 1,5/10-3,81 R56 - 1071187
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nom. voltage: 160 V, pitch: 3.81 mm, number of positions: 10, color: black
The figure shows the 10-position
version
Your advantages
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Angled connection enables multi-row arrangement on the PCB
Designed for integration into the SMT soldering process
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626771106
145 pc
145 pc
Technical data
Item properties
Brief article description
Range of articles
Pitch
Number of positions
Connection method
Mounting type
Number of levels
PCB terminal block
SPTA 1,5/..-THR
3.81 mm
10
Push-in spring connection
THR soldering
1
Electrical parameters
Rated current
13.5 A
02/11/2019 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1071187
PCB terminal block - SPTA-THR 1,5/10-3,81 R56 - 1071187
Technical data
Electrical parameters
Rated insulation voltage (III/2)
Rated surge voltage (III/2)
160 V
2.5 kV
Connection capacity
Conductor cross section solid
Conductor cross section flexible
Conductor cross section flexible, with ferrule without plastic sleeve
Conductor cross section, flexible, with ferrule, with plastic sleeve
0.2 mm² ... 1.5 mm² (Conductor connection with open terminal point)
0.34 mm² ... 1.5 mm² (Push-in connection)
without
0.25 mm² ... 1.5 mm²
0.25 mm² ... 1.5 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with
0.5 mm² ... 0.75 mm²
plastic sleeve
Stripping length
10 mm
Material data - contact
Note
Contact material
Surface characteristics
WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/
JEDEC JESD 201
Cu alloy
hot-dip tin-plated
Material data - housing
Insulating material
CTI according to IEC 60112
Flammability rating according to UL 94
Glow wire flammability index GWFI according to EN 60695-2-12
Glow wire ignition temperature GWIT according to EN 60695-2-13
Temperature for the ball pressure test according to EN 60695-10-2
LCP GF
175
V0
850
775
125 °C
Dimensions for the product
Length [ l ]
Width [ w ]
Height [ h ]
Pitch
Height (without solder pin)
Solder pin [P]
11.6 mm
38.89 mm
15.07 mm
3.81 mm
12.47 mm
2.6 mm
Dimensions for PCB design
Hole diameter
1.1 mm
Packaging information
Type of packaging
Pieces per package
Denomination packing units
[W] tape width
[A] coil diameter
[W2] coil overall dimension
56 mm wide tape
145
Pcs.
56 mm
330 mm
60.4 mm
02/11/2019 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1071187
PCB terminal block - SPTA-THR 1,5/10-3,81 R56 - 1071187
Technical data
Packaging information
Outer packaging type
ESD level
Specification
Transparent-Bag
(D) electrostatically conductive
DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07
Processing notes
Process
Specification
Reflow/wave soldering
Following IPC/JEDEC J-STD-020E:2014-12
Following IEC 61760-1:2006-04
Follwing IEC 60068-2-58:2015-03
Moisture Sensitive Level
Classification temperature T
c
Solder cycles in the reflow
MSL 1
260 °C
3
Ambient conditions
Ambient temperature (storage/transport)
Ambient temperature (assembly)
Ambient temperature (operation)
-40 °C ... 70 °C
-5 °C ... 100 °C
-40 °C
Termination and connection method
Test for conductor damage and slackening
IEC 60999-1:1999-11
Test passed
Pull-out test
Pull-out test
Conductor cross section / conductor type / tensile force
IEC 60999-1:1999-11
Test passed
0.2 mm² / solid / > 10 N
1.5 mm² / solid / > 40 N
Electrical tests
Rated current
Rated insulation voltage (III/2)
Rated surge voltage (III/2)
13.5 A
160 V
2.5 kV
Air clearances and creepage distances
Specification
Insulating material group
Rated insulation voltage (III/3)
Rated insulation voltage (III/2)
Rated insulation voltage (II/2)
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
IEC 60947-7-4:2013-08
III
160 V
160 V
250 V
2.5 kV
2.5 kV
2.5 kV
02/11/2019 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1071187
PCB terminal block - SPTA-THR 1,5/10-3,81 R56 - 1071187
Approvals
Approvals
Approvals
cULus Recognized
Ex Approvals
Approval details
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20061129
B
300 V
10 A
24-16
300 V
10 A
24-16
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
02/11/2019 Page 4 / 4
