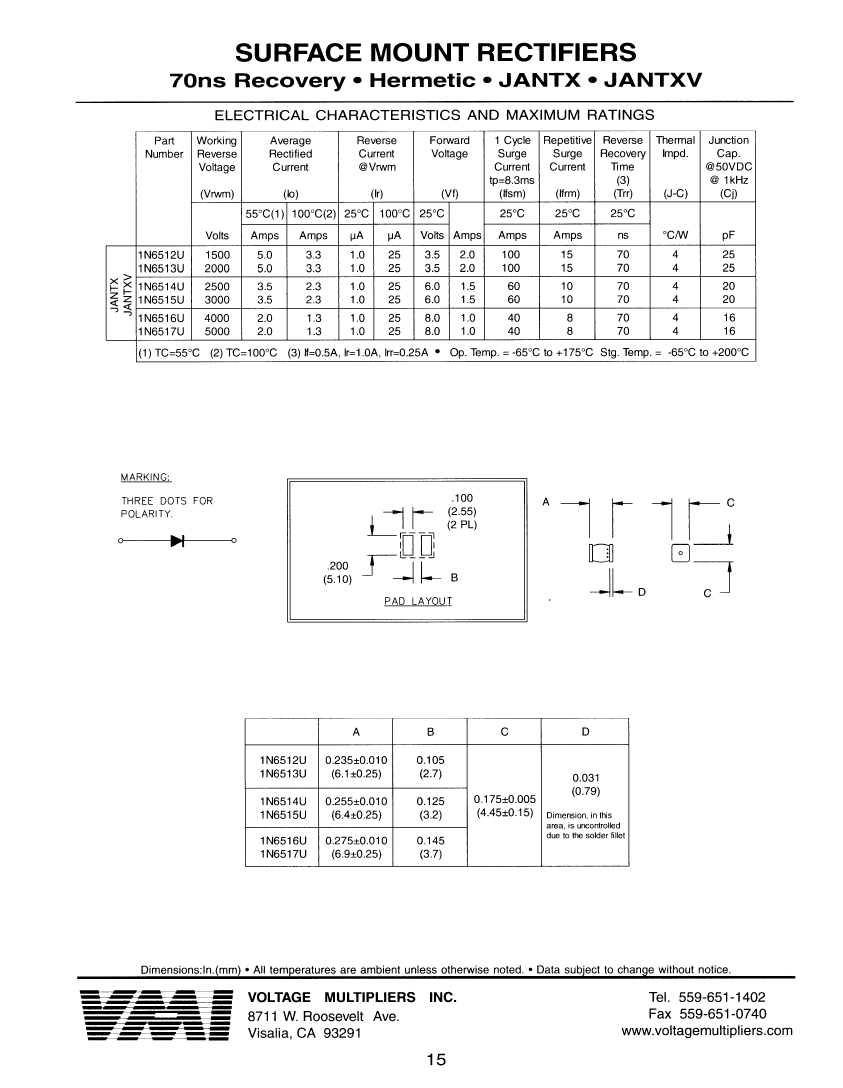

Rectifier Diode, 1 Phase, 1 Element, 5A, 1500V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | E-XELF-R2 |
| Contacts | 2 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| application | GENERAL PURPOSE |
| Shell connection | ISOLATED |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 3.5 V |
| JESD-30 code | E-XELF-R2 |
| JESD-609 code | e0 |
| Maximum non-repetitive peak forward current | 100 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 175 °C |
| Maximum output current | 5 A |
| Package body material | UNSPECIFIED |
| Package shape | ELLIPTICAL |
| Package form | LONG FORM |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Guideline | MIL |
| Maximum repetitive peak reverse voltage | 1500 V |
| Maximum reverse recovery time | 0.07 µs |
| surface mount | YES |
| Terminal surface | TIN LEAD |
| Terminal form | WRAP AROUND |
| Terminal location | END |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| JANTX1N6512U | JANTXV1N6512U | JANTX1N6514U | JANTXV1N6516U | JANTXV1N6514U | JANTX1N6516U | |
|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 5A, 1500V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2 | Rectifier Diode, 1 Phase, 1 Element, 5A, 1500V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2 | Rectifier Diode, 1 Phase, 1 Element, 3.5A, 2500V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2 | Rectifier Diode, 1 Phase, 1 Element, 2A, 4000V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2 | Rectifier Diode, 1 Phase, 1 Element, 3.5A, 2500V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2 | Rectifier Diode, 1 Phase, 1 Element, 2A, 4000V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | E-XELF-R2 | E-XELF-R2 | E-XELF-R2 | E-XELF-R2 | E-XELF-R2 | E-XELF-R2 |
| Contacts | 2 | 2 | 2 | 2 | 2 | 2 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 3.5 V | 3.5 V | 6 V | 8 V | 6 V | 8 V |
| JESD-30 code | E-XELF-R2 | E-XELF-R2 | E-XELF-R2 | E-XELF-R2 | E-XELF-R2 | E-XELF-R2 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Maximum non-repetitive peak forward current | 100 A | 100 A | 60 A | 40 A | 60 A | 40 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C |
| Maximum output current | 5 A | 5 A | 3.5 A | 2 A | 3.5 A | 2 A |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Package shape | ELLIPTICAL | ELLIPTICAL | ELLIPTICAL | ELLIPTICAL | ELLIPTICAL | ELLIPTICAL |
| Package form | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Guideline | MIL | MIL | MIL | MIL | MIL | MIL |
| Maximum repetitive peak reverse voltage | 1500 V | 1500 V | 2500 V | 4000 V | 2500 V | 4000 V |
| Maximum reverse recovery time | 0.07 µs | 0.07 µs | 0.07 µs | 0.07 µs | 0.07 µs | 0.07 µs |
| surface mount | YES | YES | YES | YES | YES | YES |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | WRAP AROUND | WRAP AROUND | WRAP AROUND | WRAP AROUND | WRAP AROUND | WRAP AROUND |
| Terminal location | END | END | END | END | END | END |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
