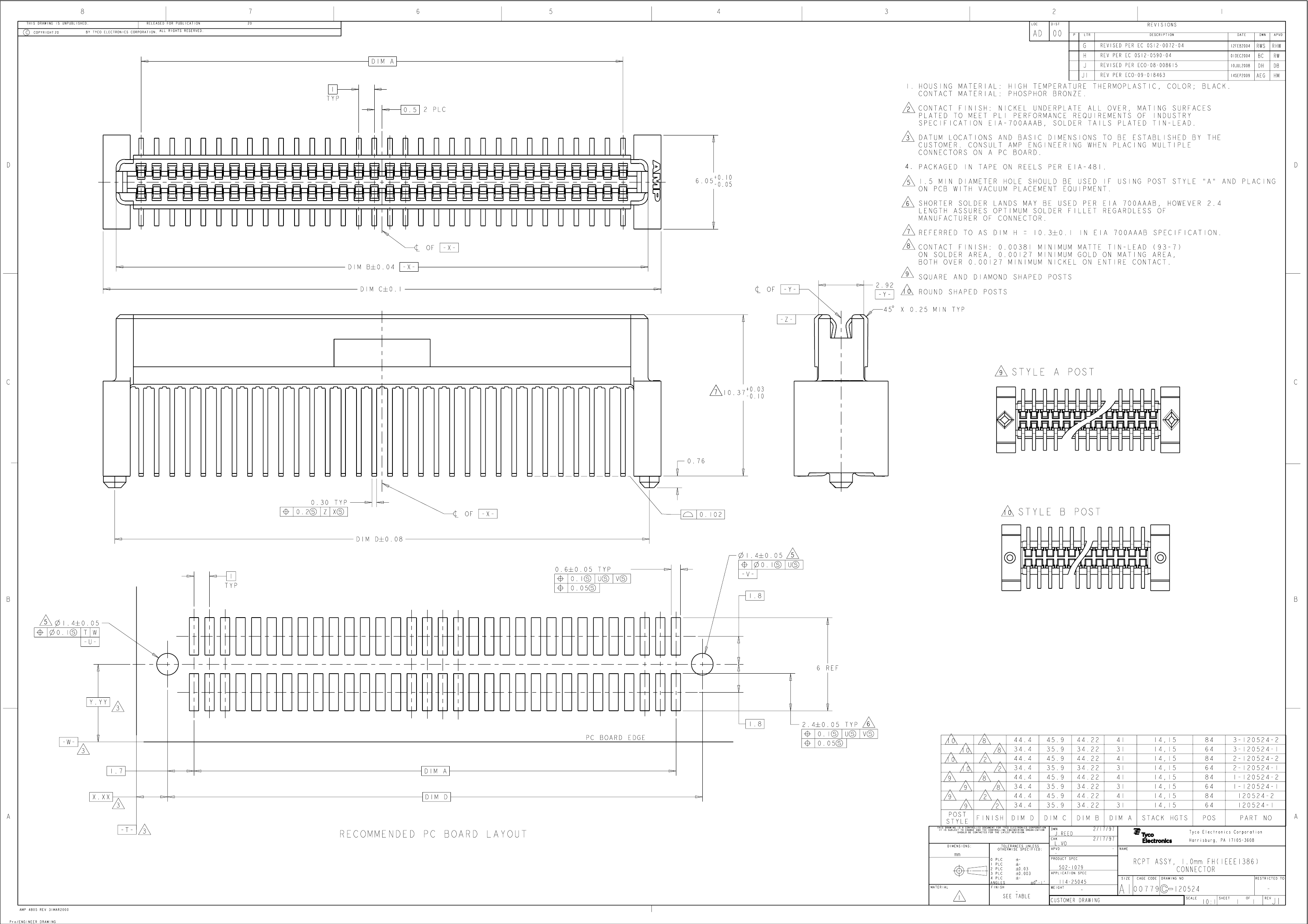

84 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Board mount options | PEG |
| body width | 0.238 inch |
| subject depth | 0.408 inch |
| body length | 1.807 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | GOLD (50) OVER NICKEL |
| Contact completed and terminated | MATTE TIN LEAD (150) OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 24 mΩ |
| DIN compliance | NO |
| Durability | 100 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 120524 |
| Plug contact pitch | 0.039 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 110 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 3.6068 mm |
| Plating thickness | 50u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 0.8 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal pitch | 1 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 84 |
| Base Number Matches | 1 |
| 3-120524-2 | 3-120524-1 | 2-120524-1 | 2-120524-2 | |
|---|---|---|---|---|
| Description | 84 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE | 64 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE | 64 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE | 84 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE |
| Reach Compliance Code | unknown | compliant | compliant | unknown |
| Board mount options | PEG | PEG | PEG | PEG |
| body width | 0.238 inch | 0.238 inch | 0.238 inch | 0.238 inch |
| subject depth | 0.408 inch | 0.408 inch | 0.408 inch | 0.408 inch |
| body length | 1.807 inch | 1.413 inch | 1.413 inch | 1.807 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | GOLD (50) OVER NICKEL | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | NOT SPECIFIED | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 24 mΩ | 24 mΩ | 24 mΩ | 24 mΩ |
| DIN compliance | NO | NO | NO | NO |
| Durability | 100 Cycles | 100 Cycles | 100 Cycles | 100 Cycles |
| Filter function | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK |
| insulator material | THERMOPLASTIC | POLYETHYLENE | THERMOPLASTIC | THERMOPLASTIC |
| MIL compliance | NO | NO | NO | NO |
| Plug contact pitch | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch |
| Mixed contacts | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 110 °C | 110 °C | 110 °C | 110 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 3.6068 mm | 3.6068 mm | 3.6068 mm | 3.6068 mm |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 0.8 A | 0.8 A | 0.8 A | 0.8 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 1 mm | 1 mm | 1 mm | 1 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 84 | 64 | 64 | 84 |
| ECCN code | EAR99 | - | EAR99 | EAR99 |
| Contact completed and terminated | MATTE TIN LEAD (150) OVER NICKEL | - | TIN LEAD OVER NICKEL | TIN LEAD OVER NICKEL |
| JESD-609 code | e0 | - | e0 | e0 |
| Base Number Matches | 1 | - | 1 | 1 |
