HIF6B-52DA-1.27DS datasheet, PDF

Datasheet> All Categories > The connector> The connector> HIF6B-52DA-1.27DS

HIF6B-52DA-1.27DS: Description52 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size1022KB，18 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

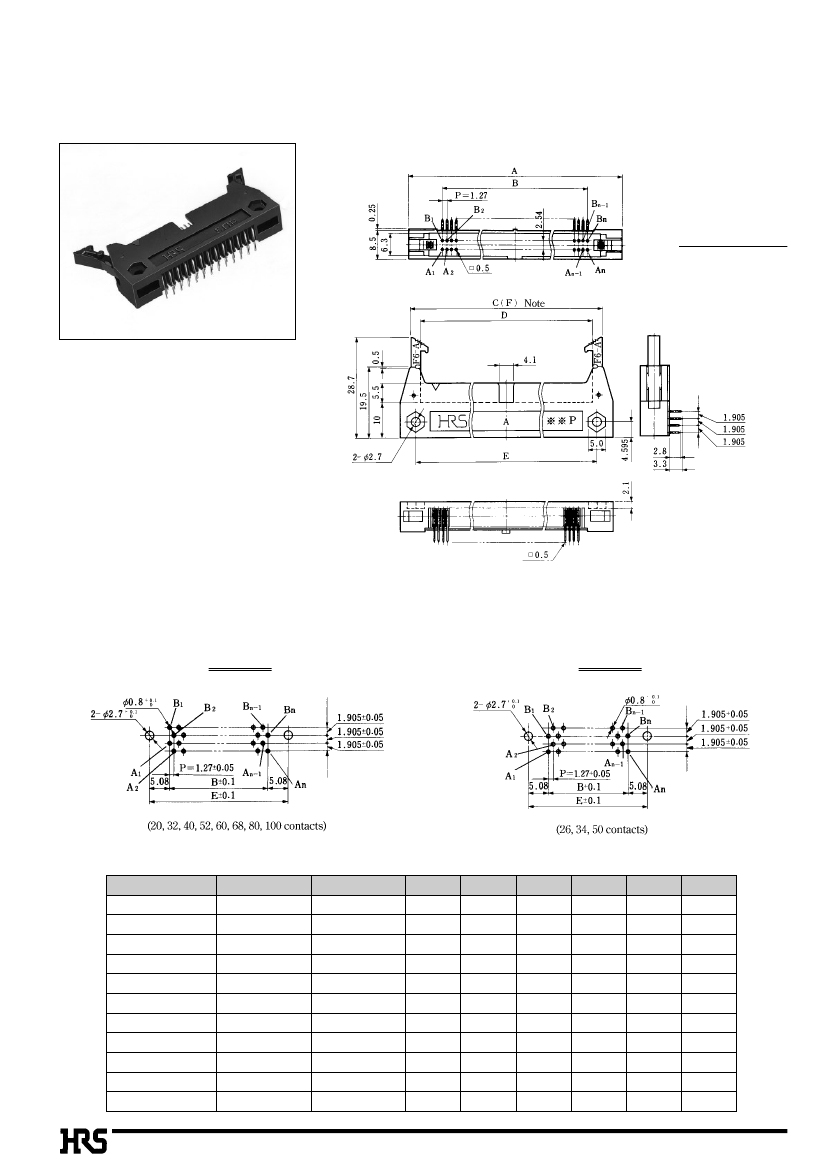

HIF6B-52DA-1.27DS Overview

52 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

HIF6B-52DA-1.27DS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hirose
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
Board mount options	HOLE .086-.098
body width	0.335 inch
subject depth	0.65 inch
body length	2.019 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	300VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HIF6
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
polarization key	GUIDE SLOT(S)
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	52
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

1.27mm Pitch Two-Piece Connector

HIF6 Series

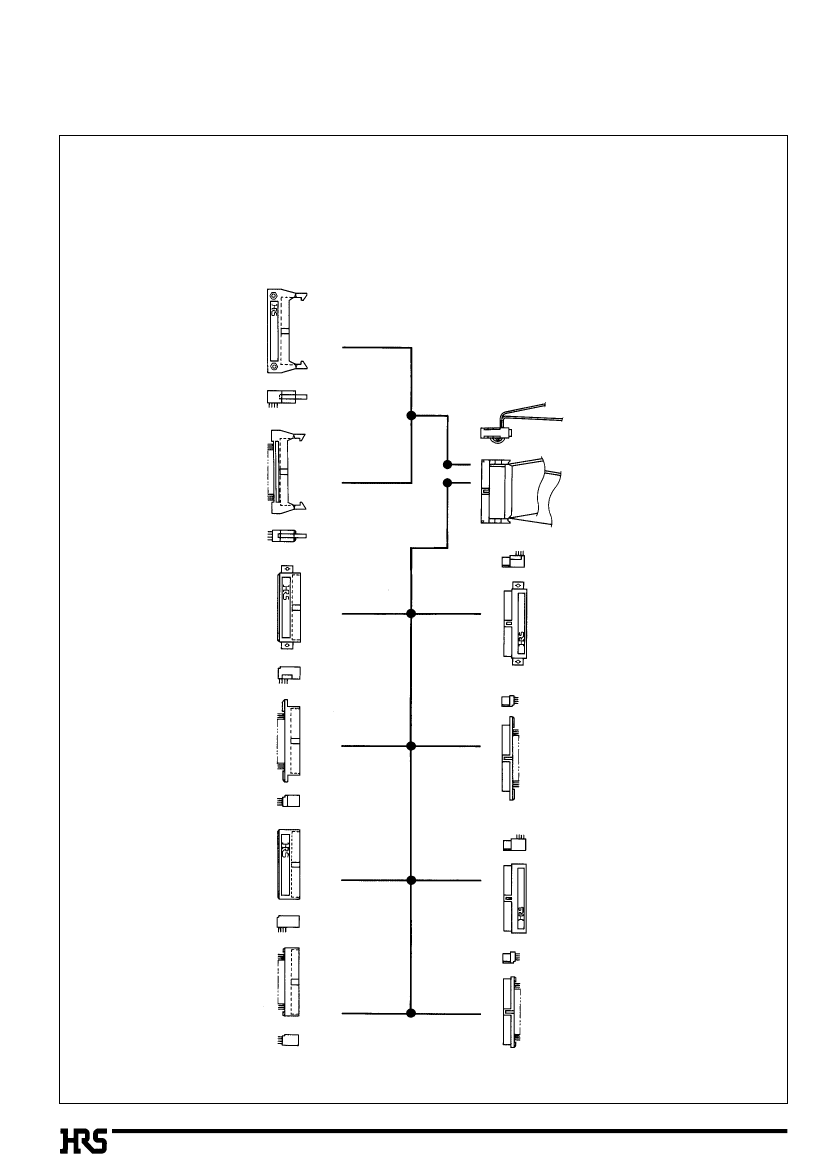

Connector in combination with the HIF6 series connection type

qHIF3B

Series

(MIL-C-83503)

qHIF2

Series

(Board direct mount type)

qHIF5

Series

(Card edge type)

sFeatures

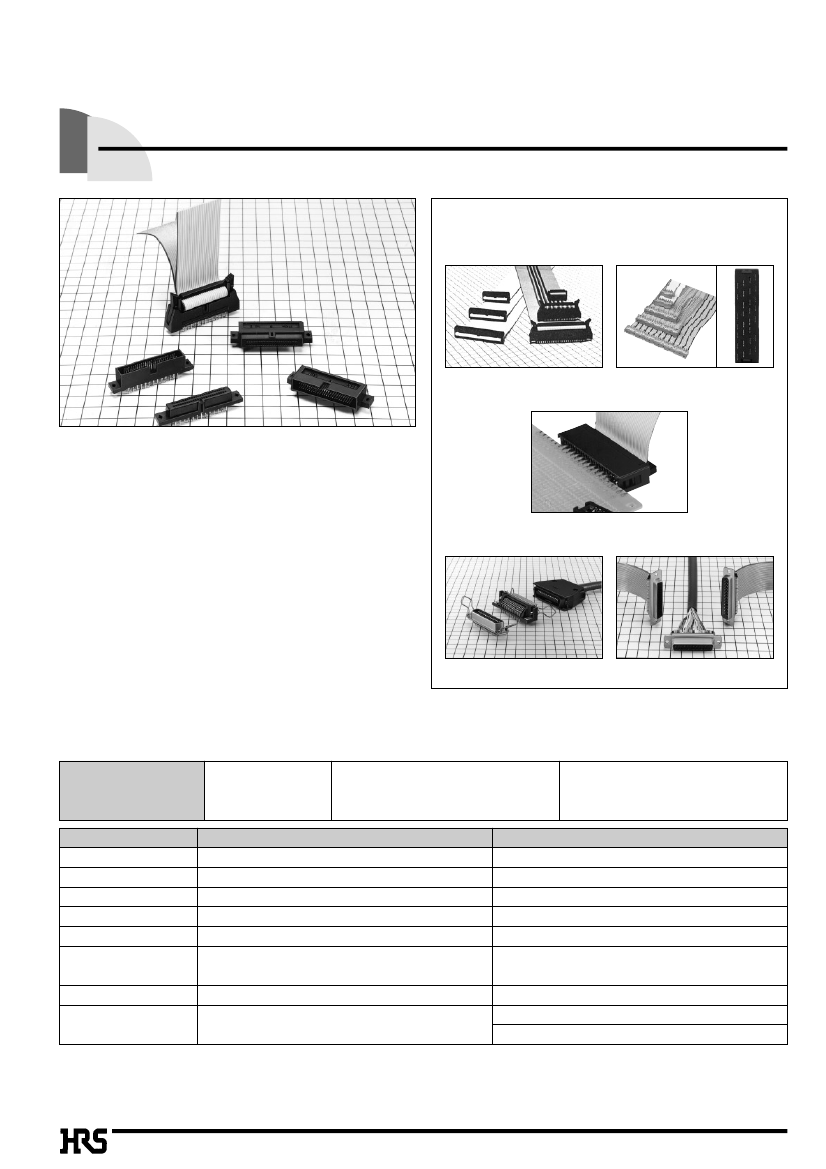

1. Product Variation

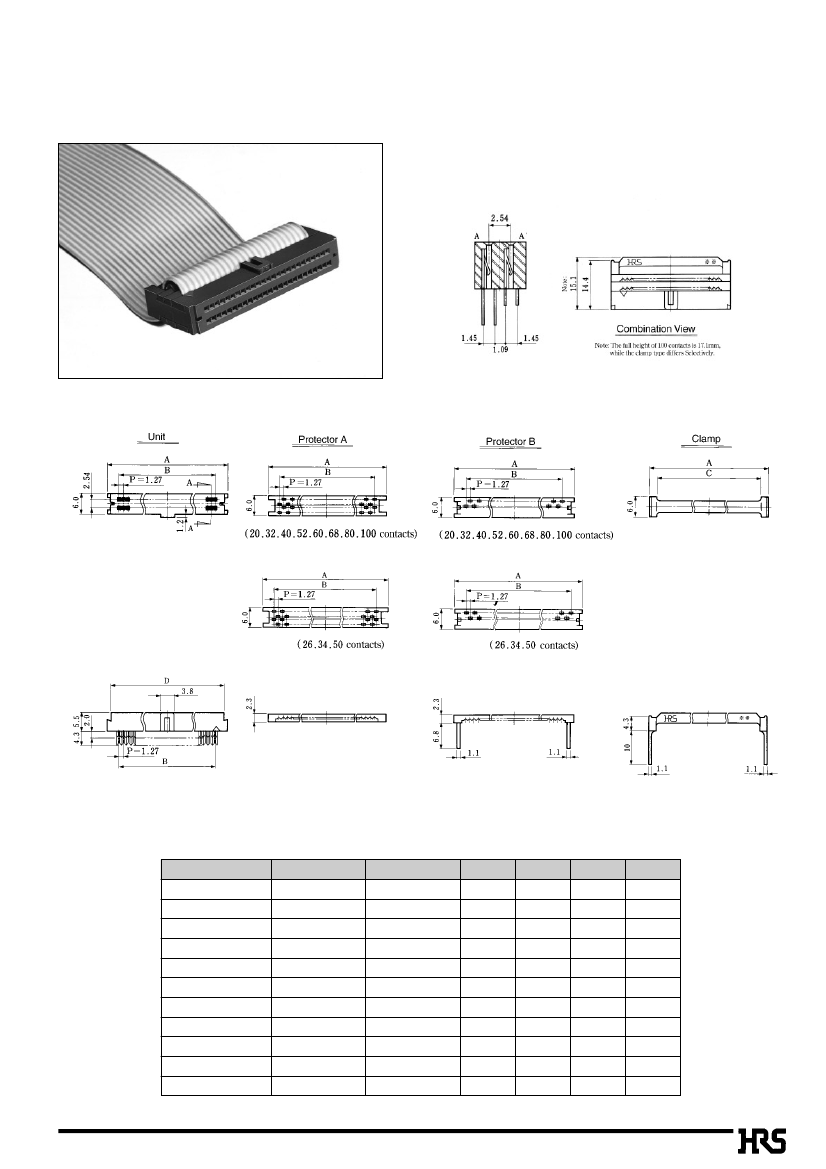

The connection method is available with the board to

board type and insulation displacement type.

2. Broad applications

HIF2E, HIF3B and HIF5 can be combined one other,

because the 1.27mm pitch flat cable is used.

qRC

Series

(Micro ribbon connector)

qFD

Series

(D sub-ribbon connector)

3. Applicable Cables

The applicable cable is a (UL2651) AWG #28 flat cable

(7cores: 0.127mm, outer jacket diameter: 0.8 to1.0mm)

4. Mis-insertion Preventive Structure

The mis-insertion preventive guide prevents mis-

insertion.

Photo1 (For further information, refer to catalog page A133.)

sApplications

Computers, peripheral and terminal equipment, PPC, various kinds of electronic equipment, Office Automation machines

sProduct

Specifications

Rating

Current rating: 0.5A

Operating Temperature Range: -55

+85

(Note 1) Storage Temperature Range: -10

+60ç (Note 2)

Operating Humidity Range: 40

70%

(Note 2)

Voltage rating: 125V AC Operating Humidity Range: 40

80%

Item

1.Insulation Resistance

1000M ohms min.

Specification

250V DC

300V AC/1 minute.

0.1A

Condition

2.Withstanding Voltage

No flashover or insulation breakdown.

3.Contact Resistance

4.Vibration

30m ohms max.

No electrical discontinuity of 1µs or more

Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.

96 hours at temperature of 40ç and humidity of 90% to 95%

(-65ç: 30 minutes¡15

35ç: 5 minutes max.¡

125ç: 30 minutes¡15

35ç: 5 minutes max.) 5 cycles

500 cycles

Flow: 260ç for 10 seconds

Manual soldering: 300ç for 3 seconds

5.Humidity

(Steady state)

Insulation resistance: 1000M

ohms min.

6.Temperature Cycle

No damage, cracks, or parts looseness.

7.Durability (Mating/un-mating) Contact resistance: 30m

ohms

max.

8.Resistance to Soldering heat

No deformation of components affecting performance.

Note 1: Includes temperature rise caused by current flow.

Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and

Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
