7101MD9AV2QE: DescriptionToggle Switch, SPDT, On-on, Latched, 5A, 28VDC, 5 PCB Hole Cnt, Solder Terminal, Toggle Bat Actuator, Through Hole-right Angle, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size866KB，14 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

7101MD9AV2QE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7101MD9AV2QE	-	-	View	Buy Now

7101MD9AV2QE Overview

Toggle Switch, SPDT, On-on, Latched, 5A, 28VDC, 5 PCB Hole Cnt, Solder Terminal, Toggle Bat Actuator, Through Hole-right Angle, ROHS COMPLIANT

7101MD9AV2QE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle	25 deg
Executor completed	BRIGHT CHROME
Actuator length	0.27 inch
Actuator material	BRASS
Actuator type	TOGGLE BAT
body width	6.86 mm
body height	12.7 mm
Body length or diameter	12.7 mm
Casing diameter	0.25 inch
Nozzle length	0.28 inch
Casing type	UNTHREADED
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	5A@120VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Contact function	ON-ON
Contact resistance	0.01 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	100000 Cycle(s)
End contact material	SILVER
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
JESD-609 code	e4
Manufacturer's serial number	7000
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	5
seal	EPOXY TERMINAL SEALED
Solderability	MIL-STD
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.125 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

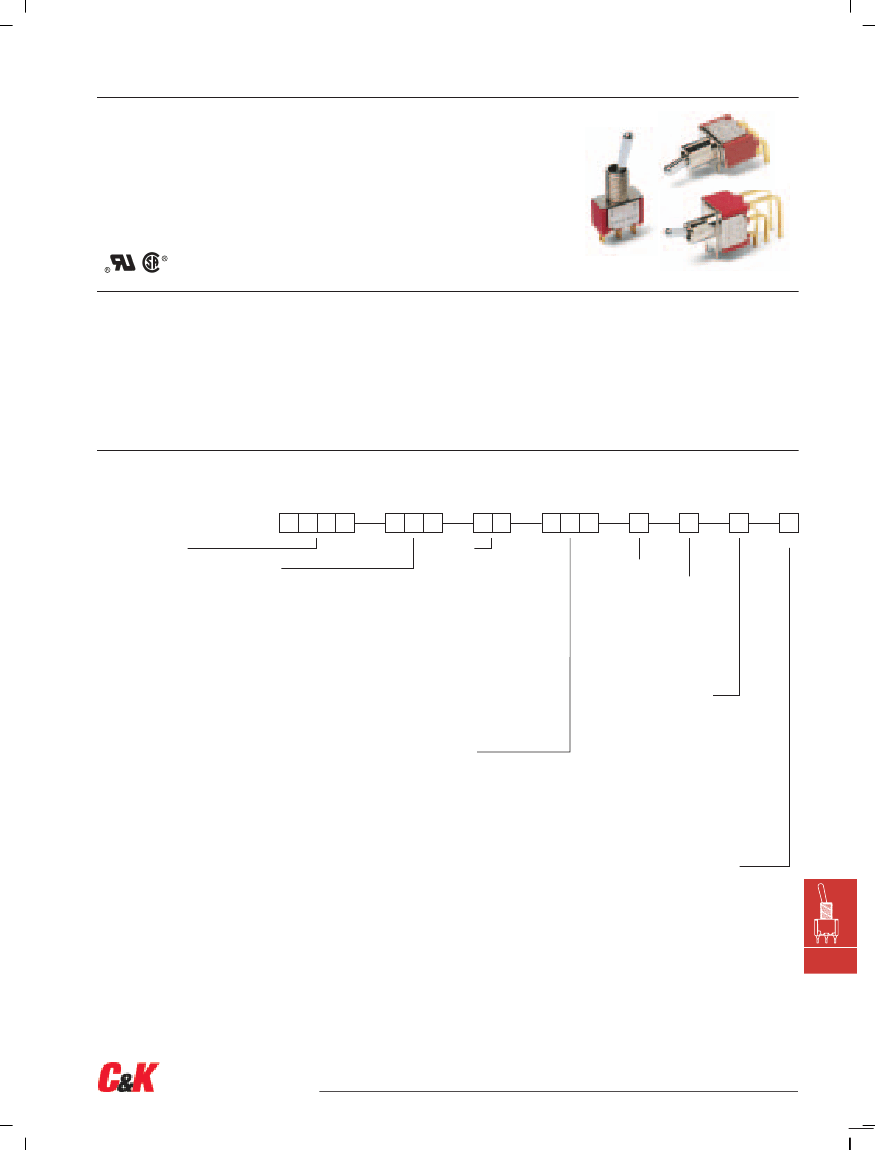

7000 Series

Miniature Toggle Switches

Features/Benefits

•

Multi-pole and multi-position

•

Wide variety of actuator and

termination options

Typical Applications

•

Telecommunications

•

Instrumentation

•

Medical equipment

•

Epoxy terminal-seal compatible

with bottom wash cleaning

•

RoHS complaint models available

Models Available

Specifications

CONTACT RATING: B contact material: 0.4 VA max. @ 20 V AC or

DC max. Q contact material: 5 AMPS @ 120 V AC or 28 V DC;

2 AMPS @ 250 V AC. See page G-16 for additional ratings.

ELECTRICAL LIFE: 7X01 and UX1 models: 100,000 make-and-break

cycles at full load. All other models: 40,000 cycles.

CONTACT RESISTANCE: Below 10 m

Ω

typ. initial @ 2-4 V DC,

100 mA, for both silver and gold plated contacts.

INSULATION RESISTANCE: 109

Ω

min.

DIELECTRIC STRENGTH: 1000 Vrms min. @ sea level.

OPERATING TEMPERATURE: –30ºC to 85ºC.

SOLDERABILITY: Per MIL-STD-202F method 208D, or EIA RS-186E

method 9 (1 hour steam aging).

For materials see page G-4.

NOTE:

Any models supplied with P, S R, Q, B or G contact material are RoHS compliant

and compatible.

NOTE:

Specifications listed above are for switches with standard options. For information

on specific and custom switches, consult Customer Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages G–4 thru G–16. For additional options not shown in catalog, consult our Customer Service Center.

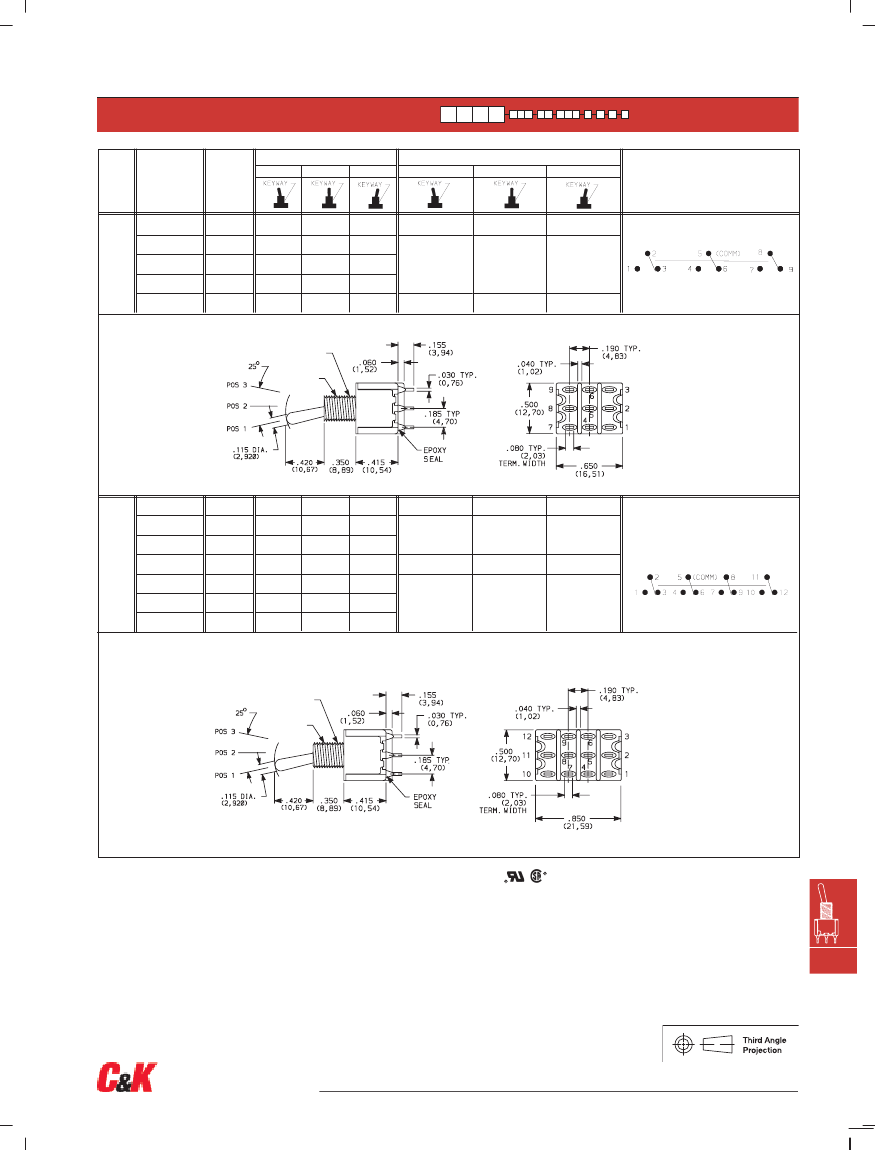

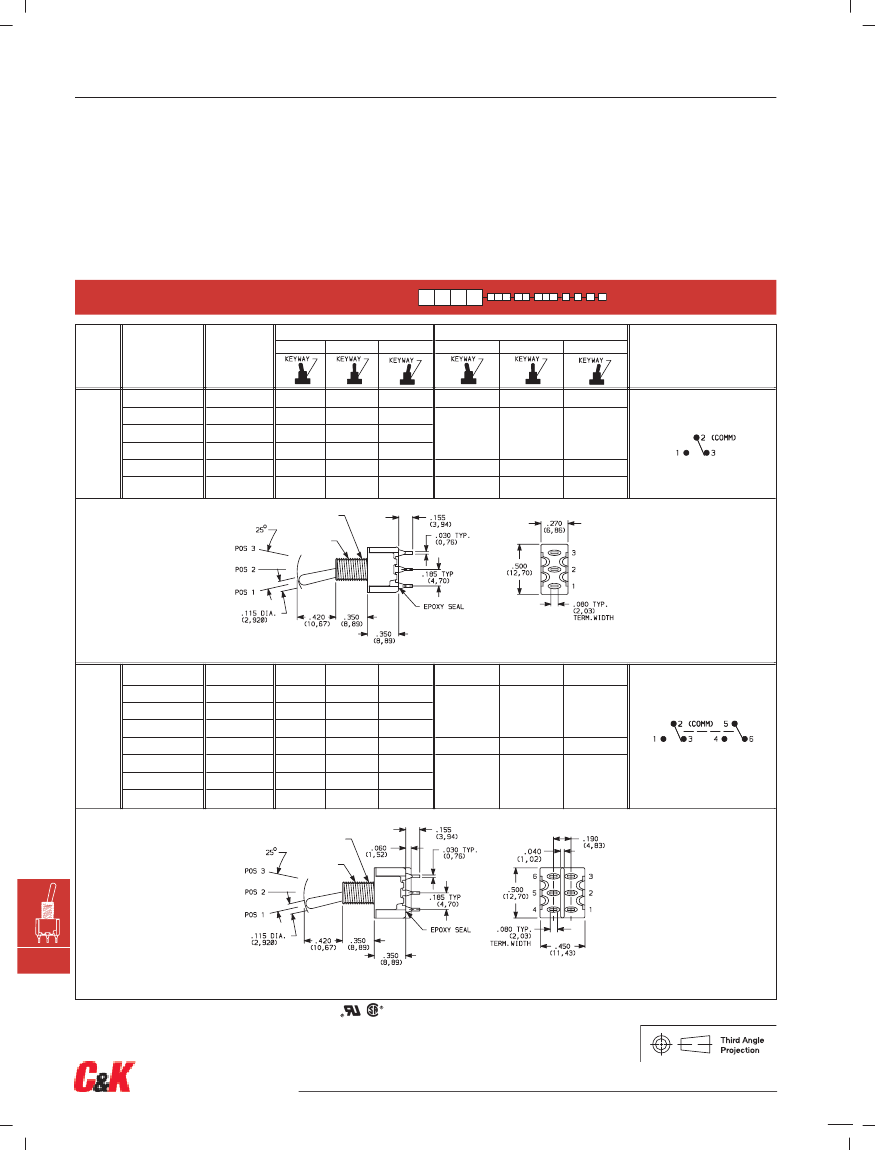

Switch Function

7101

SP On-None-On

7103

SP On-Off-On

7105

SP Mom.-Off-Mom.

7107

SP On-Off-Mom.

7108

SP On-None-Mom.

7109

SP None-On-Mom.

7201

DP On-None-On

7203

DP On-Off-On

7205

DP Mom.-Off-Mom.

7207

DP On-Off-Mom.

7208

DP On-None-Mom.

7211

DP On-On-On

7213

DP On-On-Mom.

7215

DP Mom.-On-Mom.

7301

3P On-None-On

7303

3P On-Off-On

7305

3P Mom.-Off-Mom.

7308

3P On-None-Mom.

7401

4P On-None-On

7403

4P On-Off-On

7405

4P Mom.-Off-Mom.

7408

4P On-None-Mom.

7411

4P On-On-On

7413

4P On-On-Mom.

7415

4P Mom.-On-Mom.

Note:

UL/CSA models available,

see pages G-4 & G-5.

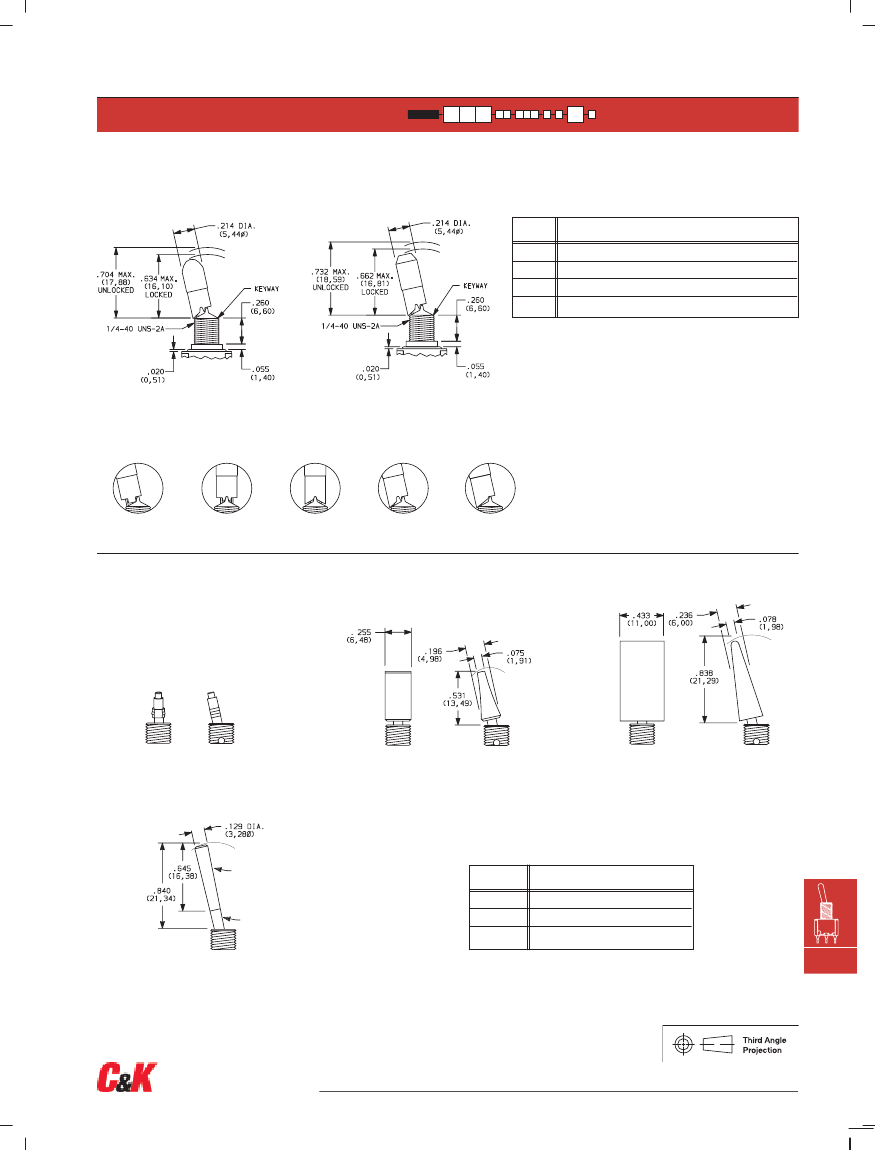

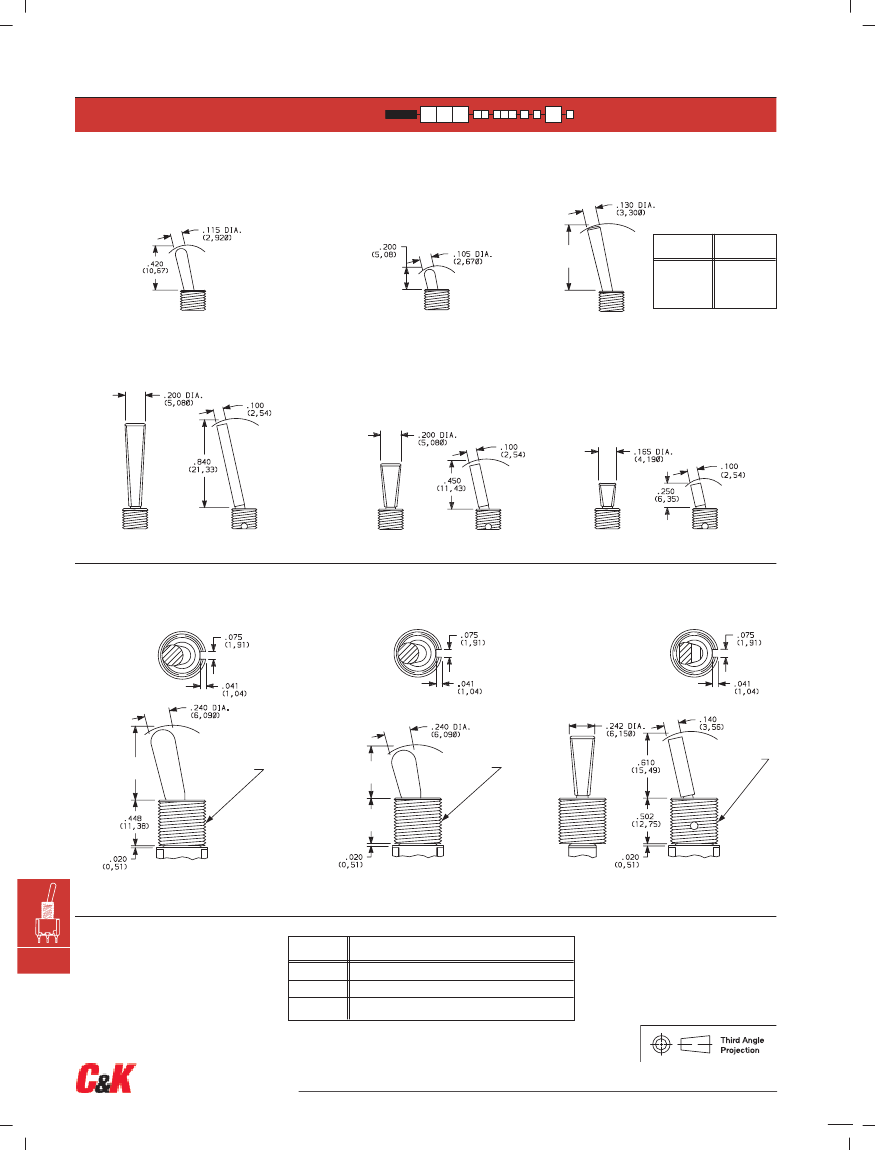

Actuator

.200" high

Flatted, anti-rotation,

.450" high

.420" high

.687" high, 15/32 bushing

Locking lever, .704" high

K12

Locking lever, .732" high

K19

Locking lever, .732" high

.840" high

.640" high

L1P

Anti-rotation, .640" high

.550" high

L2P

Anti-rotation, .550" high

Plastic .940” inch

L40

Lever handle without cap

L41

.531" high lever handle with cap

L42

.838" high lever handle with cap

Anti-rotation, .200" high

Flatted, anti-rotation,

.840" high

Flatted, anti-rotation,

.250" high

Anti-rotation, .420" high

.487" high, 15/32 bushing

T1P

Anti-rotation, .487" high,

15/32 bushing

T2P

Flatted, anti-rotation,

.610” high, 15/32 bushing,

Anti-rotation, .687" high,

15/32 bushing

Bushing

.280 high, keyway

.296 high, flat

.350 high, keyway

NONE

No bushing

choice required

Splashproof

.280" high, flat

.280" high, keyway

.315" high, keyway

8mm high, keyway

.378" high, keyway

8.9mm high, keyway

.378" high, flat

.350" high, keyway

Contact Material

Gold

Seal

Gold, matte-tin

Epoxy

Silver

Epoxy potted

Silver, matte-tin

base

Gold over silver

Gold over silver, matte-tin

Terminations

Right angle, PC thru-hole

AV2

Vert. right angle, PC thru-hole

PC Thru-hole

.460 high, V-bracket

Solder lug

Right angle, PC thru-hole

AW1

Right angle, extended, PC thru-hole

AW4

Right angle, extended, PC thru-hole

.555" high, V-bracket

.630" high, V-bracket

.460" high, V-bracket

.630" high, V-bracket

.953" high, V-bracket

1.150" high, V-bracket

V21

.555" high, snap-in V-bracket

V31

.460" high, snap-in V-bracket

V41

.630" high, snap-in V-bracket

V71

.630" high, snap-in V-bracket

V81

.953" high, snap-in V-bracket

Actuator Color/Finish

NONE

Bright chrome

Black

Red

Satin chrome

KXX Actuator Color/Finish

NONE

Natural aluminum

Black anodized aluminum

Red anodized aluminum

Blue anodized aluminum

Bushing Finish

NONE

Nickel on all

bushings (except D8,

satin chrome)

Black

.750" long, wire wrap

.964" long, wire wrap

.425" long, wire wrap

1.062" long, wire wrap

1.305" long, wire wrap

Quick connect

Toggle

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

G–3

www.ck-components.com
