BSM300GA170DN2S

Description
Insulated Gate Bipolar Transistor, 440A I(C), 1700V V(BR)CES, N-Channel
CategoryDiscrete semiconductor    The transistor
File Size49KB,1 Pages
ManufacturerSIEMENS
Websitehttp://www.infineon.com/
Download Datasheet Parametric View All

BSM300GA170DN2S Online Shopping

Suppliers Part Number Price MOQ In stock
BSM300GA170DN2S - - View Buy Now

BSM300GA170DN2S Overview

Insulated Gate Bipolar Transistor, 440A I(C), 1700V V(BR)CES, N-Channel

BSM300GA170DN2S Parametric

Parameter NameAttribute value
package instructionFLANGE MOUNT, R-XUFM-X5
Reach Compliance Codeunknown
Shell connectionISOLATED
Maximum collector current (IC)440 A
Collector-emitter maximum voltage1700 V
ConfigurationSINGLE WITH BUILT-IN DIODE
Maximum landing time (tf)160 ns
Gate emitter threshold voltage maximum6.2 V
Gate-emitter maximum voltage20 V
JESD-30 codeR-XUFM-X5
Number of components1
Number of terminals5
Maximum operating temperature150 °C
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Polarity/channel typeN-CHANNEL
Maximum power consumption environment2500 W
Certification statusNot Qualified
Maximum rise time (tr)400 ns
surface mountNO
Terminal formUNSPECIFIED
Terminal locationUPPER
transistor applicationsGENERAL PURPOSE
Transistor component materialsSILICON
Maximum off time (toff)1900 ns
Nominal off time (toff)1280 ns
Maximum opening time (tons)1200 ns
Nominal on time (ton)600 ns
VCEsat-Max3.9 V
Base Number Matches1

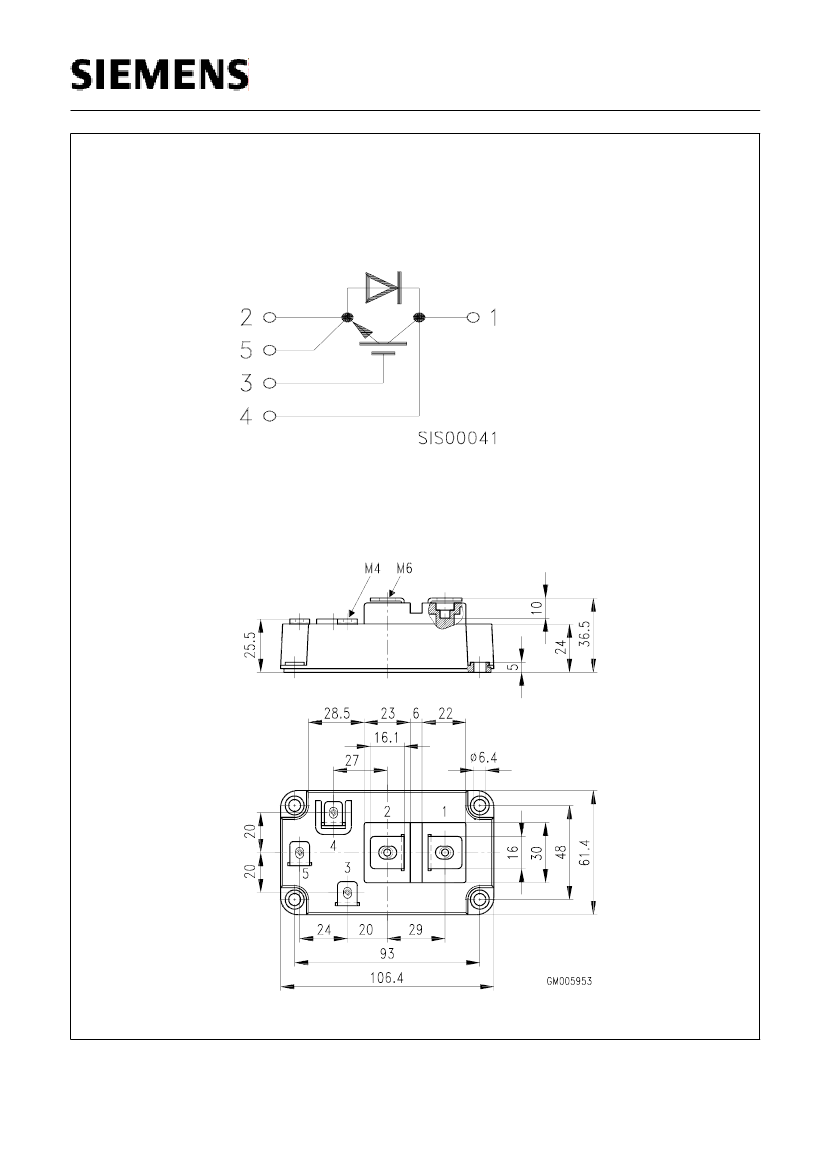

BSM 300 GA 170 DN2 S
Circuit Diagram
Package Outlines
Dimensions in mm
Weight: 420 g
Semiconductor Group
1
Jan-09-1997
