803-99-0002-10-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 803-99-0002-10-001000

803-99-0002-10-001000: DescriptionBoard Connector, 2 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket; CategoryThe connector The connector; File Size295KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

803-99-0002-10-001000 Overview

Board Connector, 2 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket

803-99-0002-10-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (200)
Contact completed and terminated	TIN LEAD (200)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	803
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

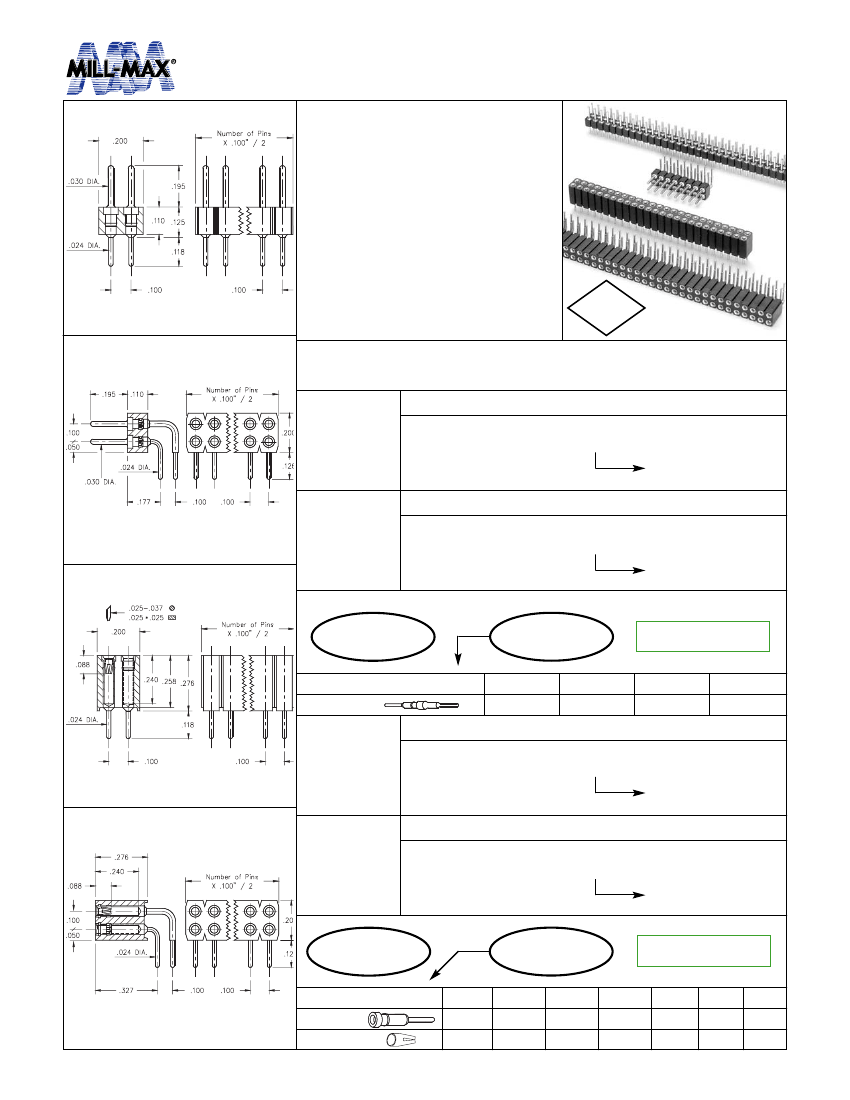

INTERCONNECTS

.100” Grid (.030” dia.) Pins, Straight and Right Angle

Double Row

•

Pin interconnects available with straight

MM #7007 or right angle MM #5005/5107

solder tails. See page 182 for details.

•

Sockets are available with straight MM

#1304 or right angle MM #1305/1306 solder

tails. See pages 148 & 149 for details.

•

MM #1304, #1305 & #1306 receptacles use

use Hi-Rel, 6-finger BeCu #47 contacts

rated at 4.5 amps. Receptacles accept .030”

diameter and .025” square pins. See page

221 for details.

Series 802, 803

Fig. 1

•

Insulators are high temp. thermoplastic.

2002/95/EC

RoHS

Ordering Information

Series 802...10-001

Straight Pin Header

Fig. 1

802-XX-0_ _-10-001000

Specify # of pins

Series 802...20-001

02-64

Right Angle Pin Header

Fig. 2

802-XX-0 _ _-20-001000

Specify # of pins

02-64

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

For RoHS compliance

select

plating code.

SPECIFY PLATING CODE XX=

10μ” Au

200μ” Sn/Pb

200μ” Sn

Pin Plating

Series 803...10-001

Straight Socket

Fig. 3

803-XX-_ _ _-10-001000

Specify # of pins

Series 803...20-001

002-100

Right Angle Socket

Fig. 4

803-XX-_ _ _-20-001000

Specify # of pins

002-100

For RoHS compliance

select

plating code.

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

SPECIFY PLATING CODE XX=

10µ” Au

30µ” Au

10µ” Au

30µ” Au

200µ”Sn/Pb

10µ” Au

Fig. 4

Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb

200µ” Sn/Pb 200µ”Sn/Pb

200µ”Sn

30µ” Au

200µ”Sn

w w w. m i l l - m a x . c o m

516-922-6000

803-99-0002-10-001000 Related Products

	803-99-0002-10-001000	803-93-0002-10-001000	803-43-0002-10-001000
Description	Board Connector, 2 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket	Board Connector, 2 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket	Board Connector, 2 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket
Is it lead-free?	Contains lead	Contains lead	Lead free
Is it Rohs certified?	incompatible	incompatible	conform to
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Body/casing type	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (200)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	TIN LEAD (200)	TIN LEAD (200)	TIN (200)
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e0	e0	e3
MIL compliance	NO	NO	NO
Manufacturer's serial number	803	803	803
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	2	2	2
Maker	Mill-Max	-	Mill-Max
Base Number Matches	1	1	-
