CR6AF1BK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CR6AF1BK

CR6AF1BK: DescriptionRectifier Diode, 1 Phase, 1 Element, 6A, 100V V(RRM), Silicon, PLASTIC, CASE 106, 2 PIN; CategoryDiscrete semiconductor diode; File Size81KB，1 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CR6AF1BK Overview

Rectifier Diode, 1 Phase, 1 Element, 6A, 100V V(RRM), Silicon, PLASTIC, CASE 106, 2 PIN

CR6AF1BK Parametric

Parameter Name	Attribute value
Maker	Central Semiconductor
package instruction	O-PALF-W2
Contacts	2
Manufacturer packaging code	CASE 106
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-PALF-W2
JESD-609 code	e0
Maximum non-repetitive peak forward current	300 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	6 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.2 µs
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

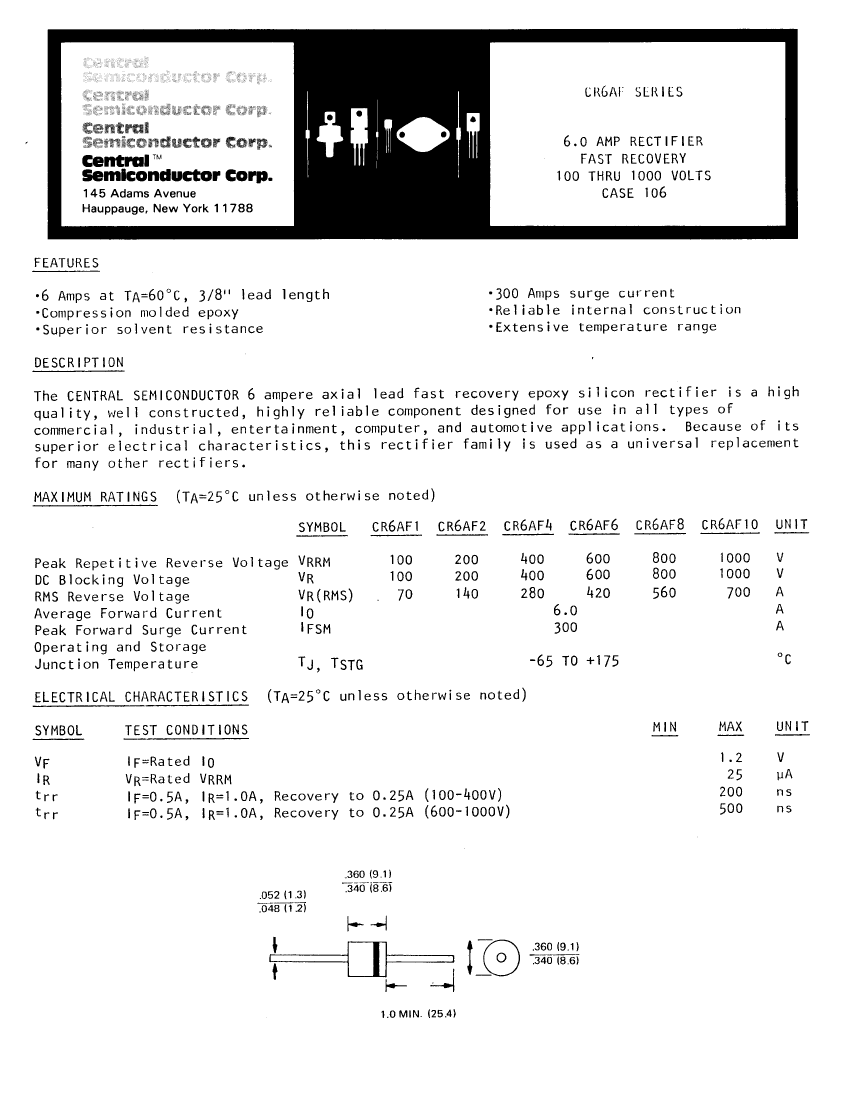

Preview

Download Datasheet

View All

145 Adams Avenue, Hauppauge, NY 11788 USA

Tel: (631) 435-1110 • Fax: (631) 435-1824

CR6AF1BK Related Products

	CR6AF1BK	CR6AF10LEADFREE	CR6AF1LEADFREE	CR6AF2LEADFREE	CR6AF4BK	CR6AF6LEADFREE	CR6AF4LEADFREE	CR6AF8LEADFREE	CR6AF6BK	CR6AF2BK
Description	Rectifier Diode, 1 Phase, 1 Element, 6A, 100V V(RRM), Silicon, PLASTIC, CASE 106, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 6A, 1000V V(RRM), Silicon, PLASTIC, CASE 106, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 6A, 100V V(RRM), Silicon, PLASTIC, CASE 106, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 6A, 200V V(RRM), Silicon, PLASTIC, CASE 106, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 6A, 400V V(RRM), Silicon, PLASTIC, CASE 106, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 6A, 600V V(RRM), Silicon, PLASTIC, CASE 106, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 6A, 400V V(RRM), Silicon, PLASTIC, CASE 106, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, PLASTIC, CASE 106, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 6A, 600V V(RRM), Silicon, PLASTIC, CASE 106, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 6A, 200V V(RRM), Silicon, PLASTIC, CASE 106, 2 PIN
package instruction	O-PALF-W2	O-PALF-W2	PLASTIC, CASE 106, 2 PIN	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Contacts	2	2	2	2	2	2	2	2	2	2
Manufacturer packaging code	CASE 106	CASE 106	CASE 106	CASE 106	CASE 106	CASE 106	CASE 106	CASE 106	CASE 106	CASE 106
Reach Compliance Code	unknown	compliant	not_compliant	compliant	unknown	compliant	compliant	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
JESD-609 code	e0	e3	e3	e3	e0	e3	e3	e3	e0	e0
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A
Number of components	1	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	6 A	6 A	6 A	6 A	6 A	6 A	6 A	6 A	6 A	6 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	1000 V	100 V	200 V	400 V	600 V	400 V	800 V	600 V	200 V
Maximum reverse recovery time	0.2 µs	0.5 µs	0.2 µs	0.2 µs	0.2 µs	0.5 µs	0.2 µs	0.5 µs	0.5 µs	0.2 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	MATTE TIN (315)	MATTE TIN (315)	MATTE TIN (315)	TIN LEAD	MATTE TIN (315)	MATTE TIN (315)	MATTE TIN (315)	TIN LEAD	TIN LEAD
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maker	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	-	-	-	Central Semiconductor	Central Semiconductor	Central Semiconductor
Base Number Matches	1	1	1	1	1	1	1	-	-	-
Is it lead-free?	-	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free	-	-
Is it Rohs certified?	-	conform to	conform to	conform to	-	conform to	conform to	conform to	-	-
Peak Reflow Temperature (Celsius)	-	260	260	260	-	260	260	260	-	-
Maximum time at peak reflow temperature	-	10	10	10	-	10	10	10	-	-
