M2.5 JACK SCREW
4
3
2
1
DRAWING REVISIONS
DOCUMENT
APP DATE
08 - 1093
VS
9/18/08
LABEL INCLUDES CINCH: PART NUMBER, REVISION LEVEL
DESCRIPTION, DATE CODE, RoHS COMPLIANT AND COUNTRY
REV
OF ORIGIN
S16
D
24.00
.95
S15
29.79
1.17
S16
S15
A
D
S2
P1
S1
"L"
S2
P2
S1
C
NOTES:
CABLE SPECIFICATIONS:
TWINAX; FULLY SHIELDED DIFFERENTIAL PAIRS, 26 AWG; UL STYLE CL2 OR CM.
CHARACTERISTIC IMPEDANCE: 100. +/- 5 OHMS.
PLUG MATERIALS:
CONTACTS - COPPER ALLOY; GOLD PLATED OVER NICKEL.
SHELL - ZINC DIE CAST; NICKEL PLATED OVER COPPER.
LATCH MECHANISM - THERMOPLASTIC AND NICKEL ALLOY.
CONNECTOR HOUSING - HIGH TEMPERATURE THERMOPLASTIC UL94V-0.
MECHANICAL PERFORMANCE:
LATCH RETENTION FORCE: - 75 N (16.9 LBS) MIN.
DURABILITY - 250 CYCLES.
ENVIRONMENT:
OPERATING TEMPERATURE RANGE: -20°C to 75°C.
C
A
B
B
STANDARD PART NUMBERS
CONSULT FACTORY FOR CUSTOM
CONFIGURATIONS AND LENGTH
26 AWG CABLE
"L" Meters
Part Number
1
717 01 00 031
2
717 01 00 032
3
717 01 00 033
5
717 01 00 034
7
717 01 00 035
10
717 01 00 036
PERFORMANCE:
DIRECT ATTACH CABLE ASSEMBLY MEETS InfiniBand™ REQUIREMENTS FOR HIGH
SPEED DATA TRANSFERS AND SFF 8470.
DIMENSIONS IN [ ] ARE IN INCHES.
S1
DETAIL A
SCALE 4 : 1
UNITS
RoHS COMPLIANT
METRIC
DO NOT SCALE DRAWING
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN MM:
FILLET/RADII
0.50 MAX
TOLERANCES
.X
.3
.13
.XX
.025
.XXX
ANGULAR
0. 5
MODELED BY:
DRAWN BY
SOLIDWORKS
V.SKUZA
A
TOLERANCE TABLE
"L" LENGHT
UP TO 1M
1M TO 10M
GREATER THAN 10M
TOLERANCE
40.0mm
70.0mm OF "L"
100mm OF "L"
6/19/08
DATE
TITLE
DESIGN ENGINEER
DESIGN ENGINEERING MFR.
MFG. ENGINEERING
QUALITY ASSURANCE
MATERIAL

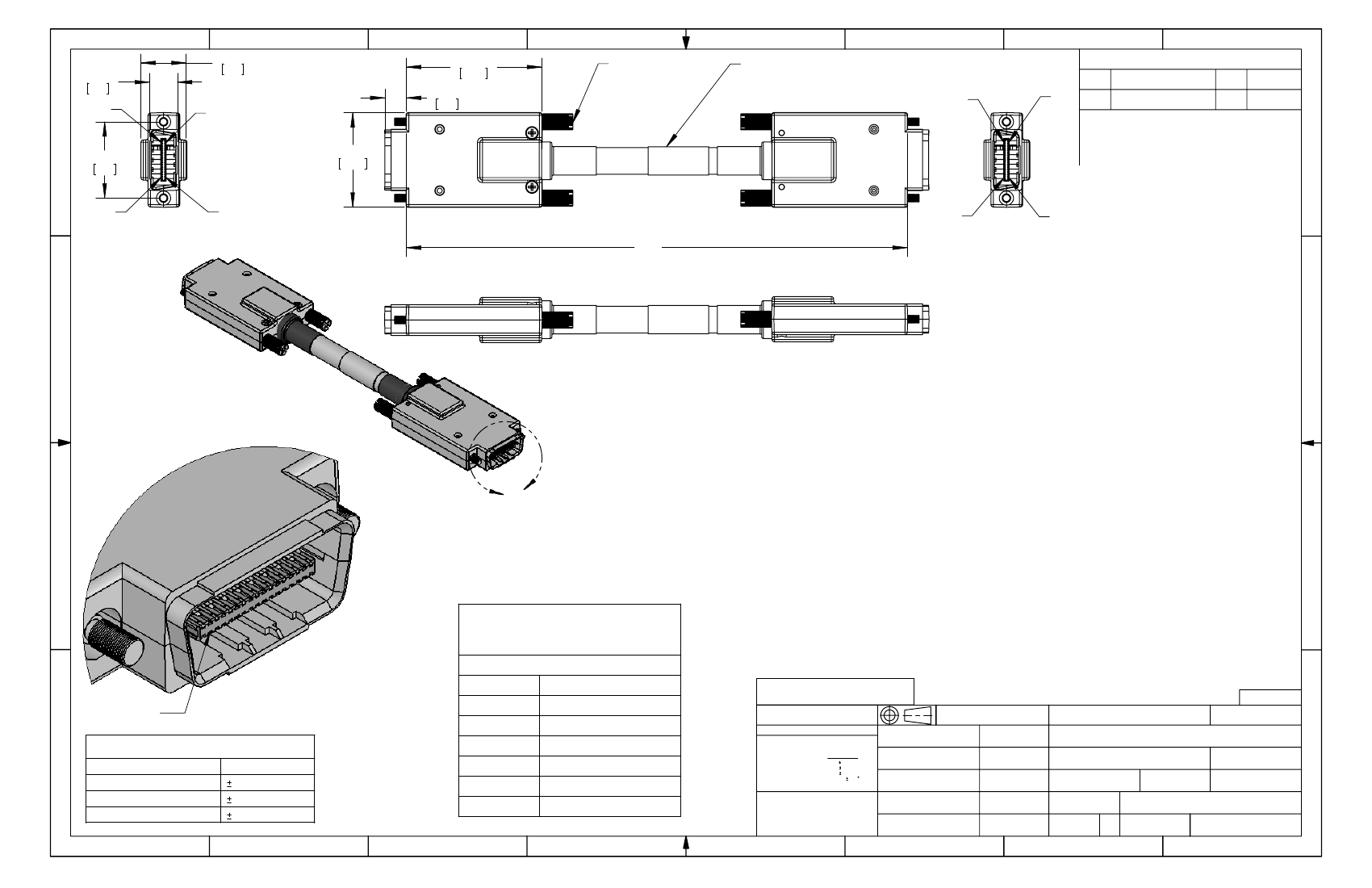

STANDARD 4X STRAIGHT 26 AWG
DIRECT ATTACH PASSIVE CABLE WITH JACK SCREWS
CONTROL SPEC NUMBER
PROJECT NUMBER
FINISH
Cinch
1700 FINLEY RD
LOMARD, IL. 60148
A
MATERIAL SPEC NUMBER
CAD FILE NUMBER
THIS DOCUMENT IS THE PROPERTY
OF CINCH. NEITHER THIS DOCUMENT
NOR ANY OF THE INFORMATION
CONTAINED IN IT MAY BE DUPLICATED
OR DISCLOSED WITHOUT PRIOR
WRITTEN CONSENT OF CINCH.
DRAWING NUMBER
CAGE IDENT NO.
SIZE SCALE:
717 01 00 031 S
SHEET 1 OF 1
