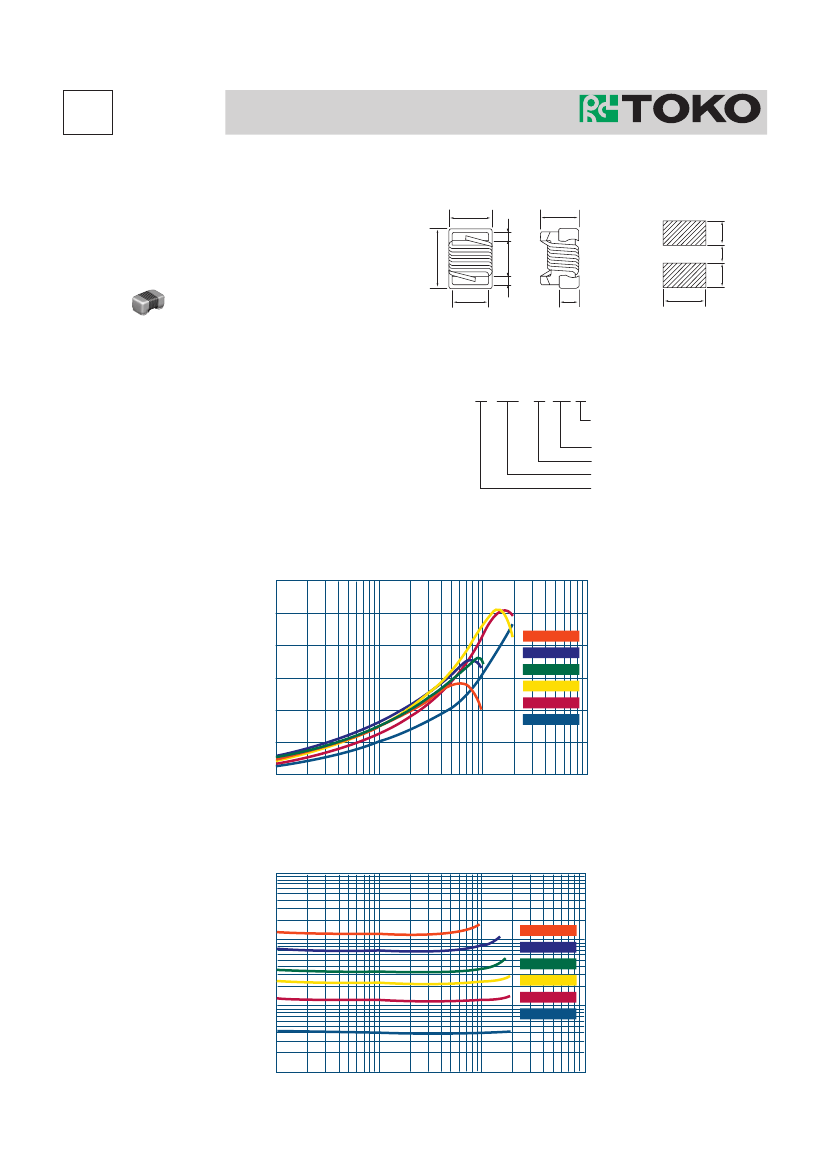

LLQ1608
Wirewound Chip Inductors
Meeting Your Needs
1.8 max.
0.86
0.33
0.76
0.38
1.02
Unit: mm
Tolerance:
±0.1mm
Features
• Inductance tolerance:
±2%, ±5%, ±10%
• EIA standard 0603 footprint (1.6mm x 0.8mm)
• Lead-free terminations
• High Q
• High self-resonant frequency
• Operating temperature: –40°C to +125°C
• Packaged on tape and reel in 3,000 piece quantity
• Reflow solderable
Part Numbering
LLQ 1608 - F 1N6 J
Tolerance
(G=±2%, J=±5%, K=±10%)
Inductance
Material
Dimensions (LxW)
Type Name
ELECTRICAL CHARACTERISTICS
Q vs Frequency
120
100
R12 (120 nH)
80
60
40
20
0
10
100
1000
Frequency (MHz)
68N (68 nH)
33N (33 nH)
22N (22 nH)
12N (12 nH)
3N9 (3.9 nH)
Q
10000
Inductance vs Frequency
1000
Inductance (nH)
R12 (120 nH)
100
68N (68 nH)
33N (33 nH)
22N (22 nH)
10
12N (12 nH)
3N9 (3.9 nH)
1
10
100
1000
Frequency (MHz)
10000
1.800.PIK.TOKO
www.tokoam.com
1.847.297.0070
R-LOG1104A
0.64
0.64
0.64
The TOKO LLQ1608 Series is a wirewound ceramic chip inductor
that conforms to the EIA standard 0603 footprint and delivers
superb Q and SRF performance with high inductance tolerance.
Dimensions
1.12 max.
1.02 max.
Recommended
Footprint
0.33
Wirewound Chip Inductors
Meeting Your Needs
TYPE
LLQ1608
23
STANDARD PARTS SELECTION GUIDE
TYPE LLQ1608
TOKO
Part Number
LLQ1608-F1N6_*
LLQ1608-F1N8_*
LLQ1608-F3N6_*
LLQ1608-F3N9_*
LLQ1608-F4N3_*
LLQ1608-F4N7_*
LLQ1608-F5N1_*
LLQ1608-F6N8_*
LLQ1608-F7N5_*
LLQ1608-F8N7_*
LLQ1608-F9N5_*
LLQ1608-F10N_*
LLQ1608-F11N_*
LLQ1608-F12N_*
LLQ1608-F15N_*
LLQ1608-F16N_*
LLQ1608-F18N_*
LLQ1608-F22N_*
LLQ1608-F24N_*
LLQ1608-F27N_*
LLQ1608-F30N_*
LLQ1608-F33N_*
LLQ1608-F36N_*
LLQ1608-F39N_*
LLQ1608-F43N_*
LLQ1608-F47N_*
LLQ1608-F56N_*
LLQ1608-F68N_*
LLQ1608-F72N_*
LLQ1608-F82N_*
LLQ1608-FR10_*
LLQ1608-FR11_*
LLQ1608-FR12_*
LLQ1608-FR15_*
LLQ1608-FR18_*
LLQ1608-FR22_*
LLQ1608-FR27_*
Inductance
Q (min.)
Lo (nH)
1.6
1.8
3.6
3.9
4.3
4.7
5.1
6.8
7.5
8.7
9.5
10
11
12
15
16
18
22
24
27
30
33
36
39
43
47
56
68
72
82
100
110
120
150
180
220
270
Tolerance
J, K
J, K
J, K
J, K
J, K
J, K
J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
G, J, K
24
16
22
22
22
20
20
27
28
28
28
31
33
35
35
34
35
38
37
40
37
40
38
40
39
38
38
37
34
34
34
32
32
28
25
25
24
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
200
200
200
150
150
150
150
150
150
100
100
100
Test Frequency
MHz
Self Resonant
Frequency (MHz)
min.
12500
12500
5900
6900
5900
5800
5700
5800
4800
4600
5400
4800
4000
4000
4000
3300
3100
3000
2650
2800
2250
2300
2080
2200
2000
2000
1900
1700
1700
1700
1400
1350
1300
990
990
900
900
DC
Resistance
(
Ω
) max.
0.030
0.045
0.063
0.080
0.063
0.116
0.140
0.110
0.106
0.109
0.135
0.130
0.107
0.130
0.170
0.134
0.170
0.190
0.161
0.220
0.187
0.220
0.250
0.250
0.280
0.280
0.310
0.340
0.490
0.540
0.580
0.610
0.720
0.920
1.25
2.10
2.30
IDC
(mA)
max.
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
600
600
600
600
600
600
600
600
600
400
400
400
300
300
280
240
200
170
* Add tolerance to part number: G =
±2%,
J =
±5%,
K =
±10%
Testing Conditions: L,Q: Agilent 4287A (Test fixture Agilent 16193A).
R-LOG1104A
SRF: Agilent 8720ES.
RDC: Agilent 34420A.
IDC: Agilent 34401A.
1.847.297.0070
1.800.PIK.TOKO
www.tokoam.com
