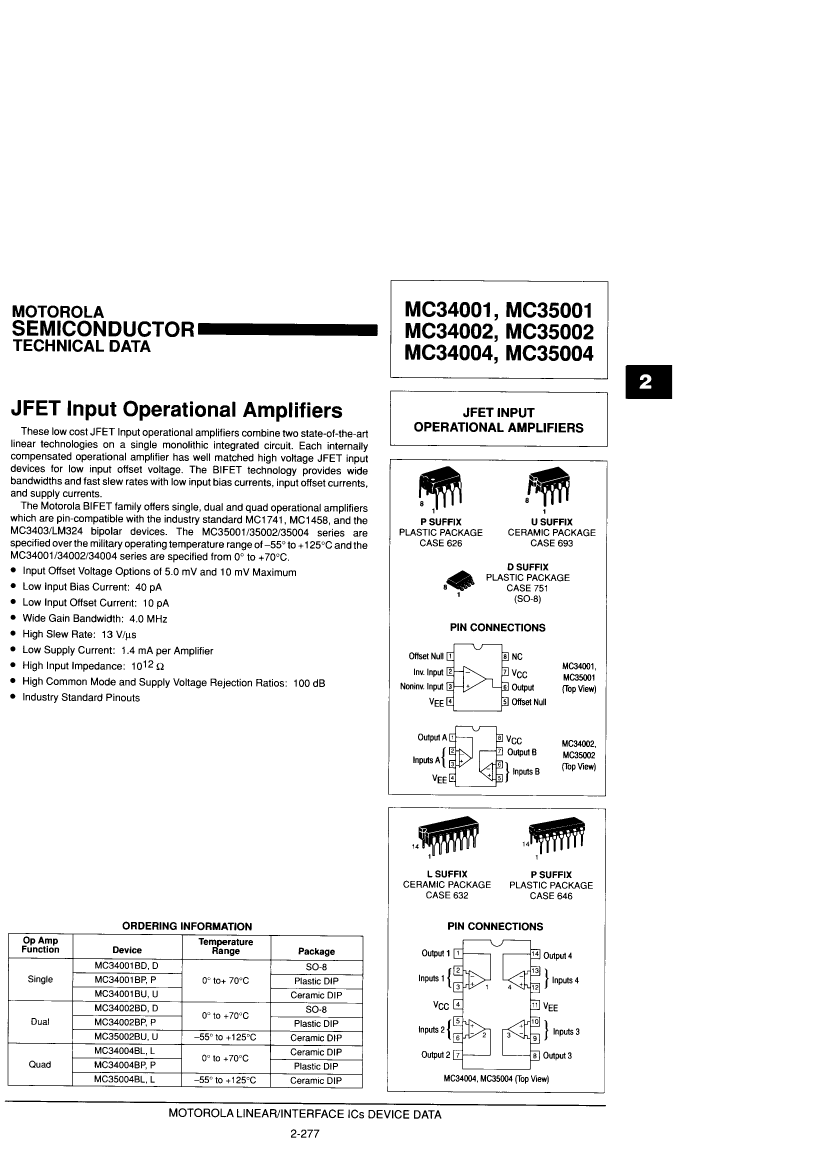

QUAD OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP14

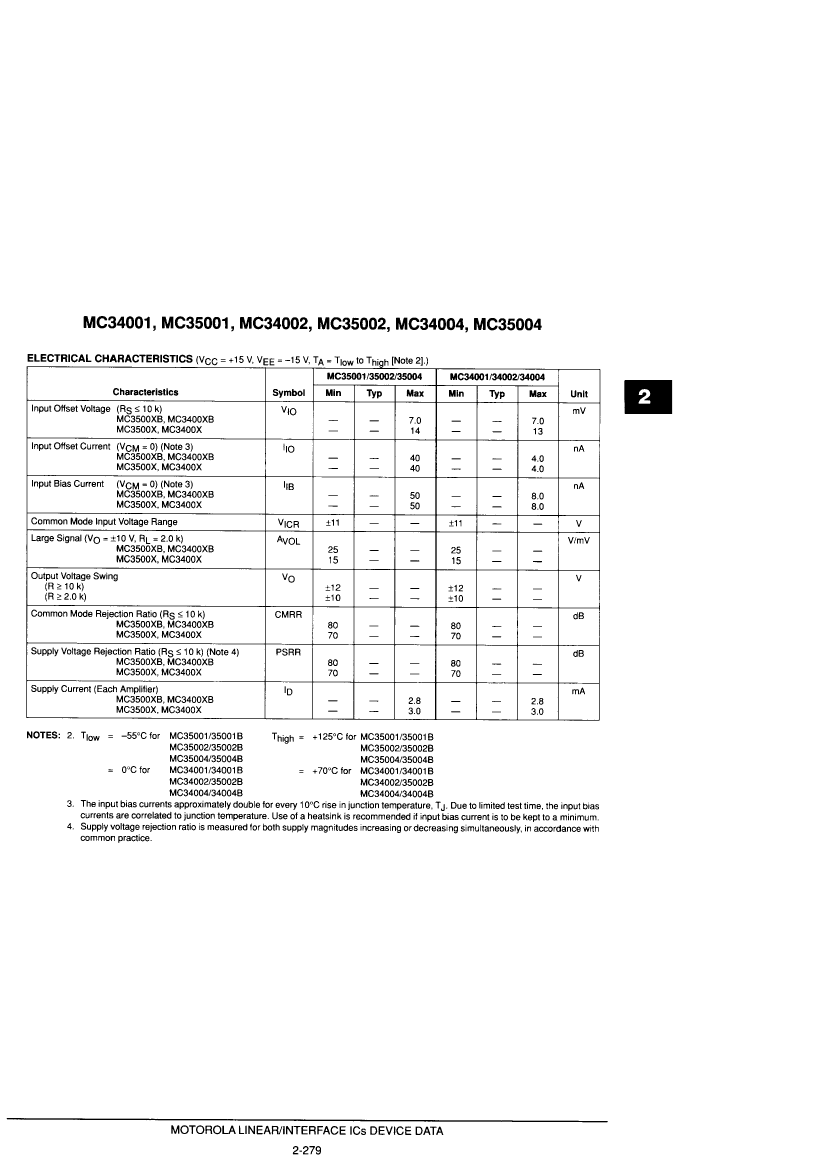

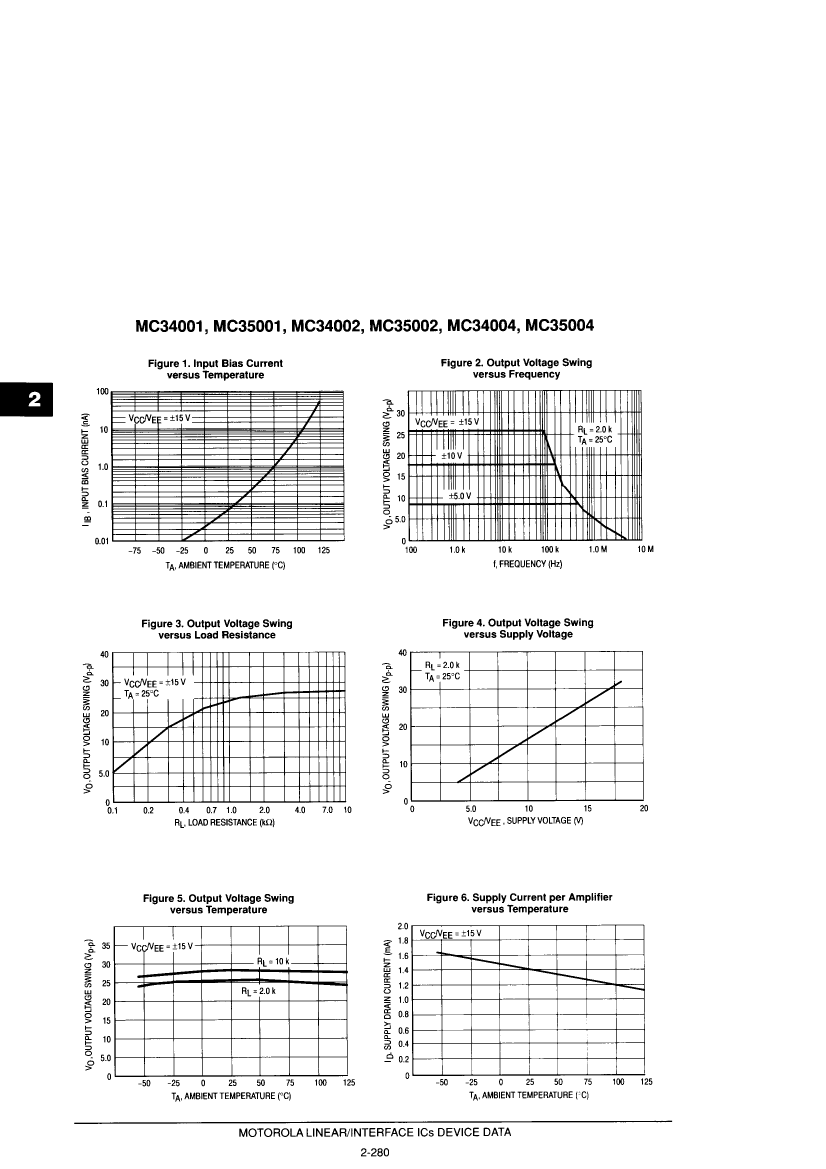

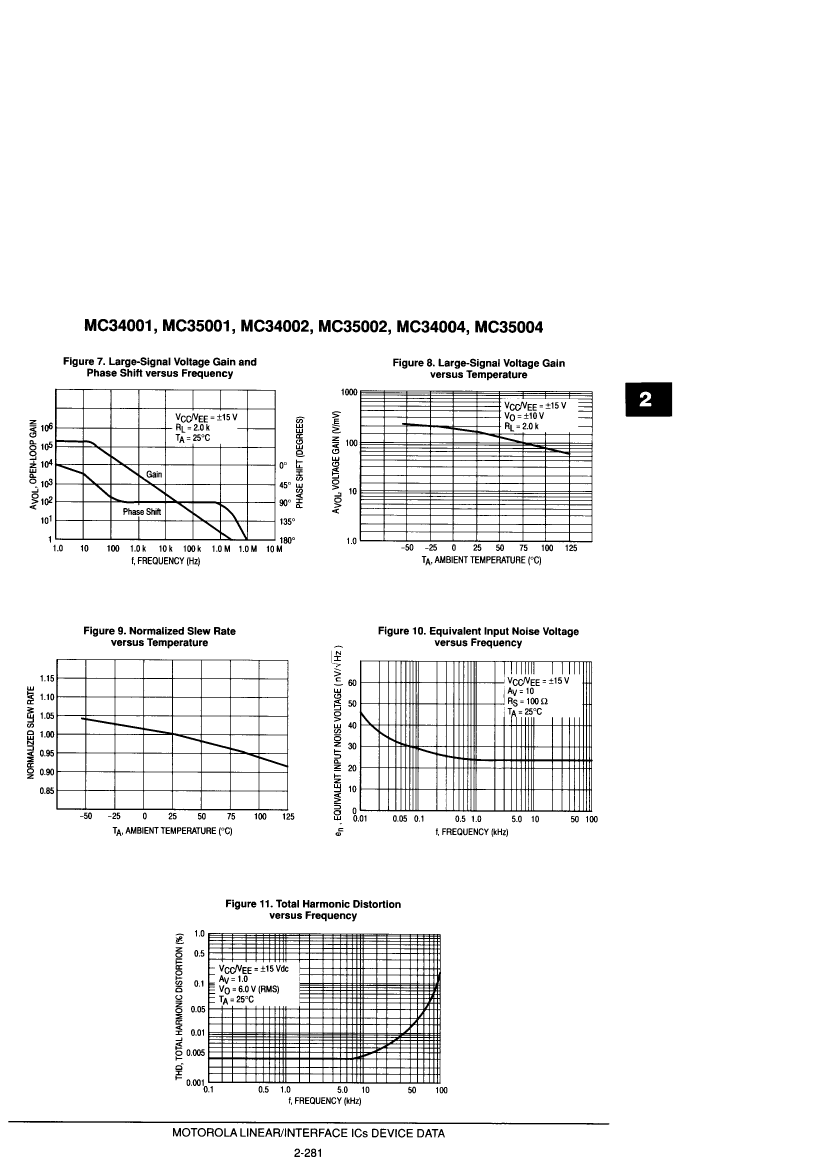

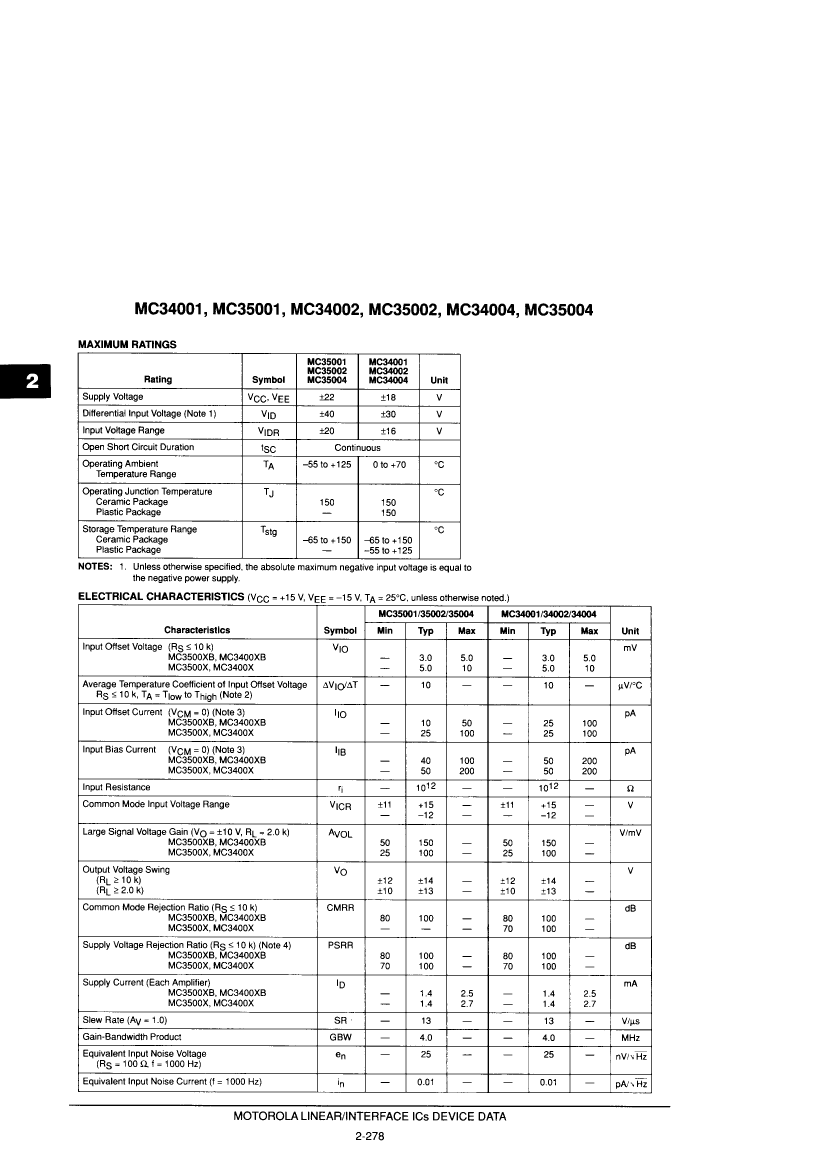

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| package instruction | DIP, DIP8,.3 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.0002 µA |
| Maximum bias current (IIB) at 25C | 0.0001 µA |
| Minimum Common Mode Rejection Ratio | 80 dB |
| Nominal Common Mode Rejection Ratio | 100 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 5000 µV |
| JESD-30 code | R-GDIP-T8 |
| JESD-609 code | e0 |
| length | 10.415 mm |
| low-bias | YES |
| low-dissonance | NO |
| Negative supply voltage upper limit | -22 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 2 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP8,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Nominal slew rate | 13 V/us |
| Maximum slew rate | 5 mA |
| Supply voltage upper limit | 22 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 4000 kHz |
| Minimum voltage gain | 50000 |
| width | 7.62 mm |
| MC35002BU | MC35001 | MC35004 | MC35002 | MC35002U | MC35004L | MC35004BL | |
|---|---|---|---|---|---|---|---|
| Description | QUAD OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP14 | QUAD OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP14 | QUAD OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP14 | QUAD OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP14 | QUAD OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP14 | QUAD OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP14 | QUAD OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP14 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Minimum Common Mode Rejection Ratio | 80 dB | 70 dB | 70 dB | 70 dB | 70 dB | 70 dB | 80 dB |
| Maximum input offset voltage | 5000 µV | 13000 µV | 13000 µV | 13000 µV | 10000 µV | 10000 µV | 5000 µV |
| length | 10.415 mm | 18.86 mm | 18.86 mm | 18.86 mm | 10.415 mm | 19.495 mm | 19.495 mm |
| Number of functions | 2 | 4 | 4 | 4 | 2 | 4 | 4 |
| Number of terminals | 8 | 14 | 14 | 14 | 8 | 14 | 14 |
| Maximum operating temperature | 125 °C | 70 Cel | 70 Cel | 70 Cel | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | 0.0 Cel | 0.0 Cel | 0.0 Cel | -55 °C | -55 °C | -55 °C |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| Temperature level | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Minimum voltage gain | 50000 | 25000 | 25000 | 25000 | 25000 | 25000 | 50000 |
| width | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm |
| Is it Rohs certified? | incompatible | - | - | - | incompatible | incompatible | incompatible |
| Maker | Motorola ( NXP ) | - | - | - | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | DIP, DIP8,.3 | - | - | - | DIP, DIP8,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 |
| Reach Compliance Code | unknow | - | - | - | unknow | unknow | unknow |
| ECCN code | EAR99 | - | - | - | EAR99 | EAR99 | EAR99 |
| Architecture | VOLTAGE-FEEDBACK | - | - | - | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.0002 µA | - | - | - | 0.0001 µA | 0.0001 µA | 0.0002 µA |
| Maximum bias current (IIB) at 25C | 0.0001 µA | - | - | - | 0.0002 µA | 0.0002 µA | 0.0001 µA |
| Nominal Common Mode Rejection Ratio | 100 dB | - | - | - | 100 dB | 100 dB | 100 dB |
| frequency compensation | YES | - | - | - | YES | YES | YES |
| JESD-30 code | R-GDIP-T8 | - | - | - | R-GDIP-T8 | R-GDIP-T14 | R-GDIP-T14 |
| JESD-609 code | e0 | - | - | - | e0 | e0 | e0 |
| low-bias | YES | - | - | - | YES | YES | YES |
| low-dissonance | NO | - | - | - | NO | NO | NO |
| Negative supply voltage upper limit | -22 V | - | - | - | -22 V | -22 V | -22 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | - | - | - | -15 V | -15 V | -15 V |
| Package body material | CERAMIC, GLASS-SEALED | - | - | - | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | - | - | - | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP8,.3 | - | - | - | DIP8,.3 | DIP14,.3 | DIP14,.3 |
| Package shape | RECTANGULAR | - | - | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | - | - | - | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | +-15 V | - | - | - | +-15 V | +-15 V | +-15 V |
| Certification status | Not Qualified | - | - | - | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | - | - | - | 5.08 mm | 5.08 mm | 5.08 mm |
| Nominal slew rate | 13 V/us | - | - | - | 13 V/us | 13 V/us | 13 V/us |
| Maximum slew rate | 5 mA | - | - | - | 5.4 mA | 10.8 mA | 10 mA |
| Supply voltage upper limit | 22 V | - | - | - | 22 V | 22 V | 22 V |
| Nominal supply voltage (Vsup) | 15 V | - | - | - | 15 V | 15 V | 15 V |
| Terminal surface | Tin/Lead (Sn/Pb) | - | - | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal pitch | 2.54 mm | - | - | - | 2.54 mm | 2.54 mm | 2.54 mm |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 4000 kHz | - | - | - | 4000 kHz | 4000 kHz | 4000 kHz |
