UPC812C datasheet, PDF - EEWORLD Datasheet

UPC812C: DescriptionOperational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDIP8, 0.300 INCH, PLASTIC, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size193KB，8 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

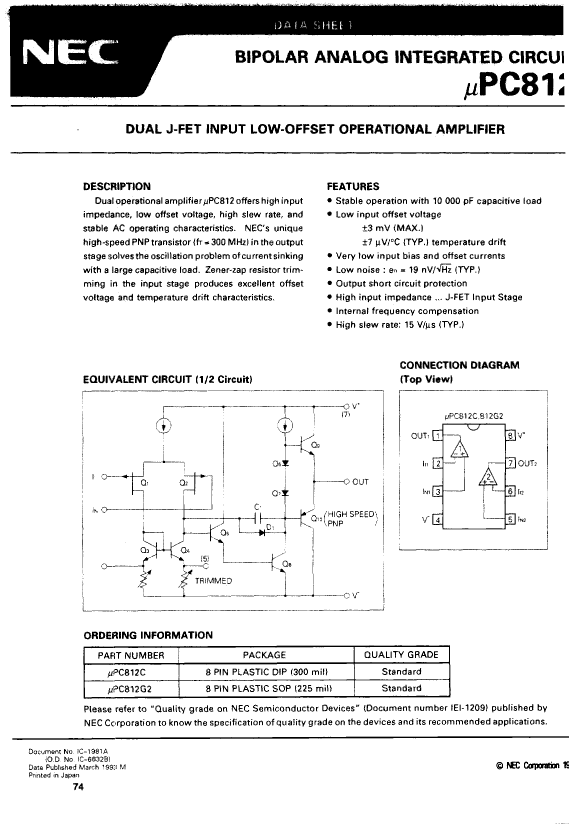

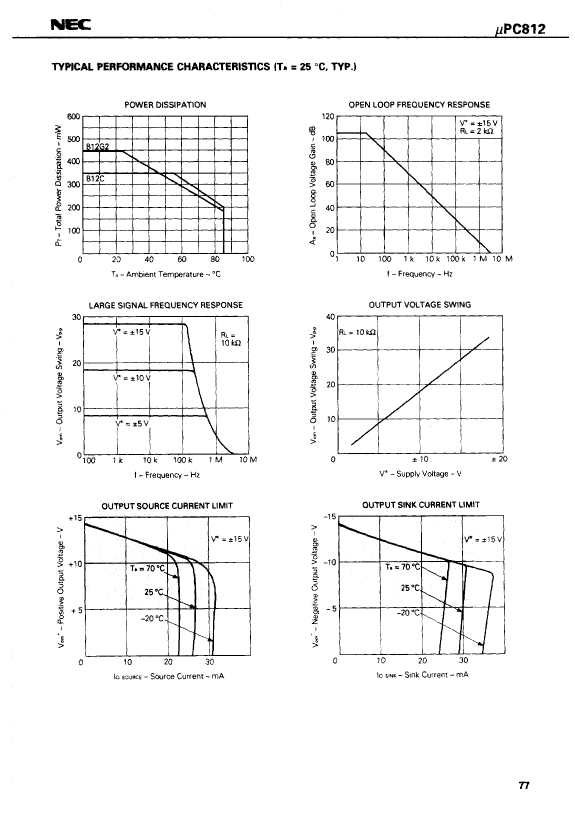

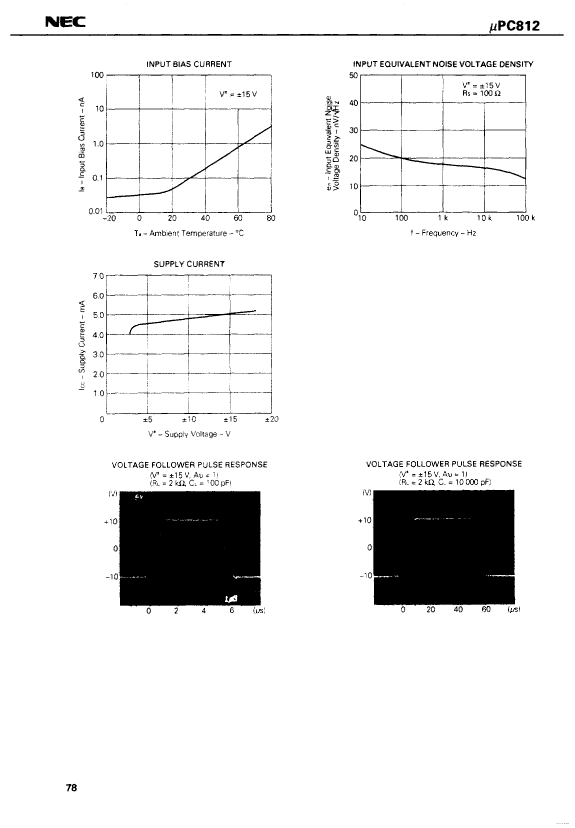

UPC812C Overview

Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDIP8, 0.300 INCH, PLASTIC, DIP-8

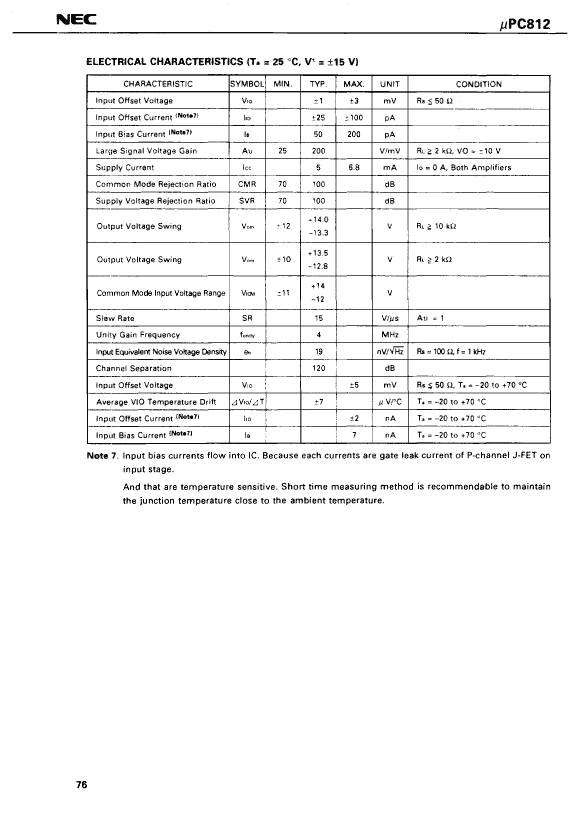

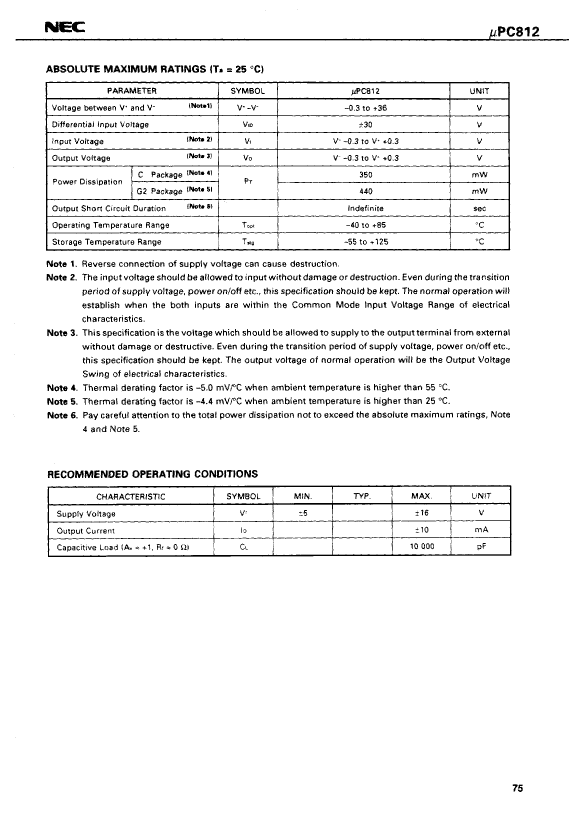

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	0.300 INCH, PLASTIC, DIP-8
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.007 µA
Nominal Common Mode Rejection Ratio	100 dB
Maximum input offset voltage	5000 µV
JESD-30 code	R-PDIP-T8
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal slew rate	15 V/us
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	4000 kHz
width	7.62 mm

	UPC812C	UPC812G2
Description	Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDIP8, 0.300 INCH, PLASTIC, DIP-8	Operational Amplifier, 2 Func, 5000uV Offset-Max, BIPolar, PDSO8, 0.225 INCH, PLASTIC, SOP-8
Maker	NEC Electronics	NEC Electronics
package instruction	0.300 INCH, PLASTIC, DIP-8	0.225 INCH, PLASTIC, SOP-8
Reach Compliance Code	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.007 µA	0.007 µA
Nominal Common Mode Rejection Ratio	100 dB	100 dB
Maximum input offset voltage	5000 µV	5000 µV
JESD-30 code	R-PDIP-T8	R-PDSO-G8
Negative supply voltage upper limit	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	2	2
Number of terminals	8	8
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	1.8 mm
Nominal slew rate	15 V/us	15 V/us
Supply voltage upper limit	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	YES
technology	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Nominal Uniform Gain Bandwidth	4000 kHz	4000 kHz
width	7.62 mm	4.4 mm
