BA178020T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BA178020T

BA178020T: DescriptionFixed Positive Standard Regulator, 20VBIPolar, PSFM3, TO-220FP, 3 PIN; CategoryPower/power management The power supply circuit; File Size288KB，10 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BA178020T Overview

Fixed Positive Standard Regulator, 20VBIPolar, PSFM3, TO-220FP, 3 PIN

BA178020T Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Parts packaging code	TO-220FP
package instruction	TO-220FP, 3 PIN
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum input voltage	33 V
Minimum input voltage	23 V
JESD-30 code	R-PSFM-T3
Number of functions	1
Number of terminals	3
Maximum output voltage 1	21 V
Minimum output voltage 1	19 V
Nominal output voltage 1	20 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-220
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

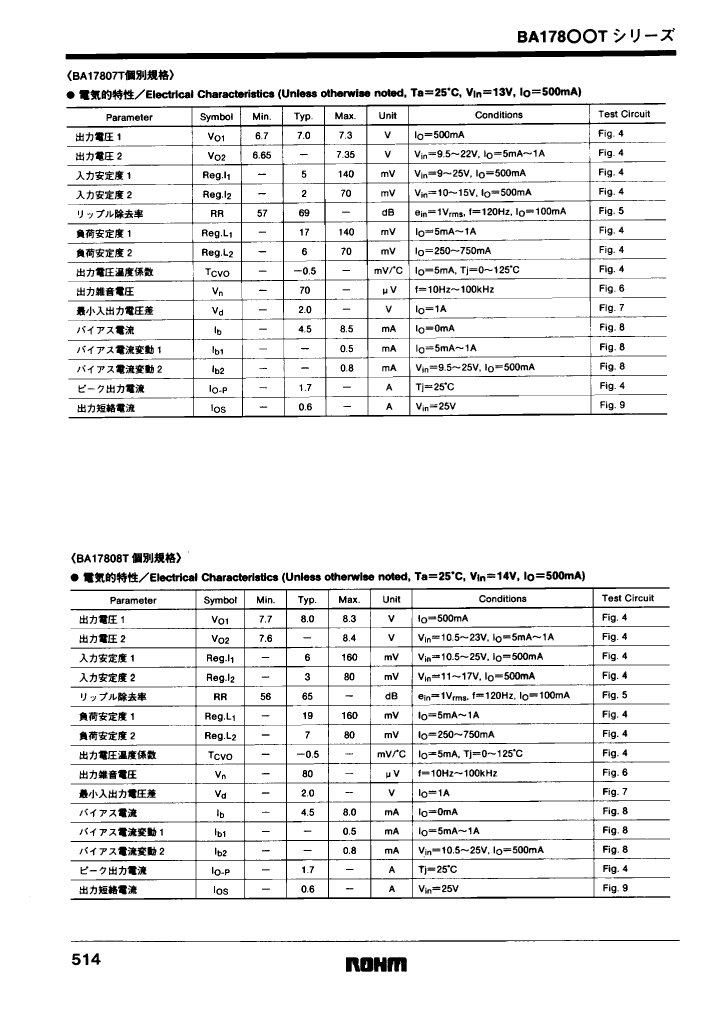

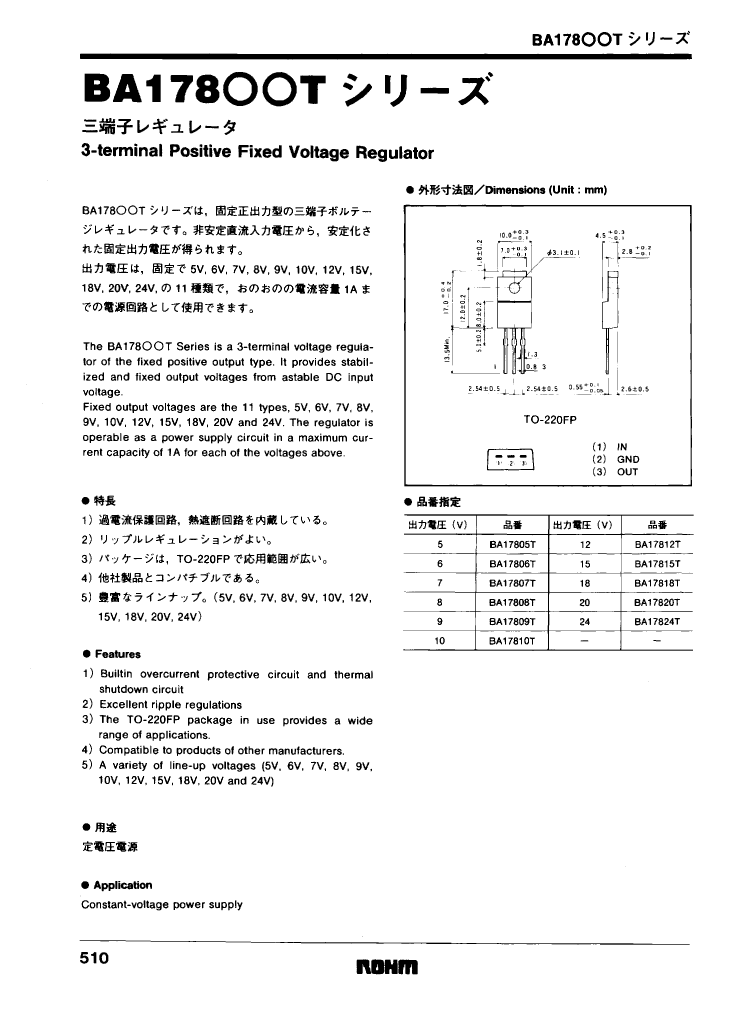

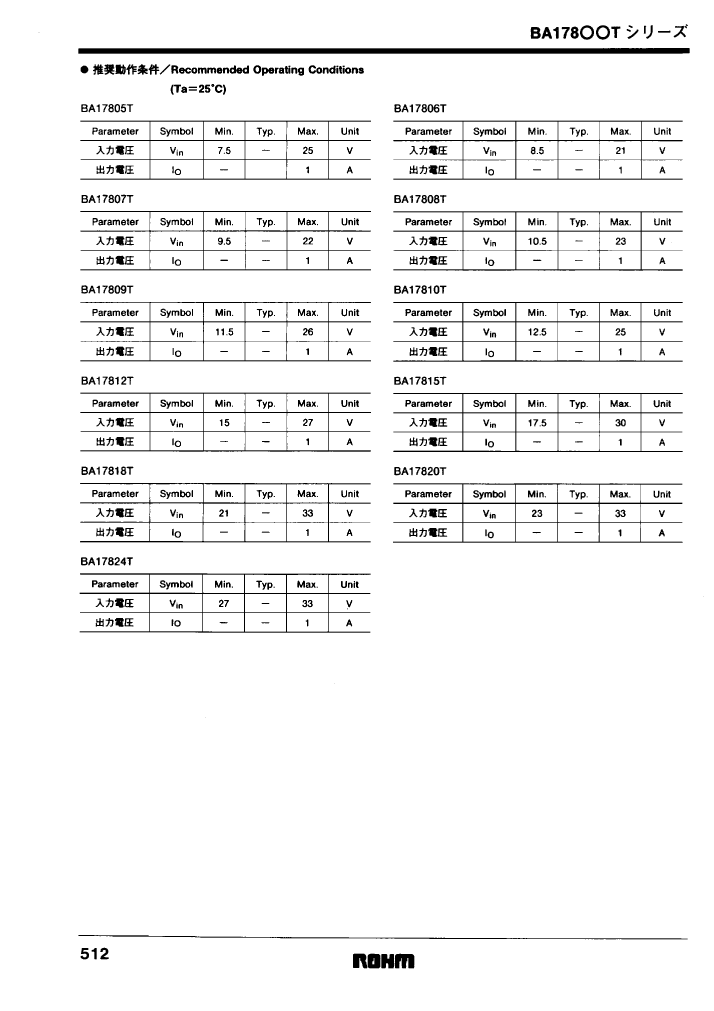

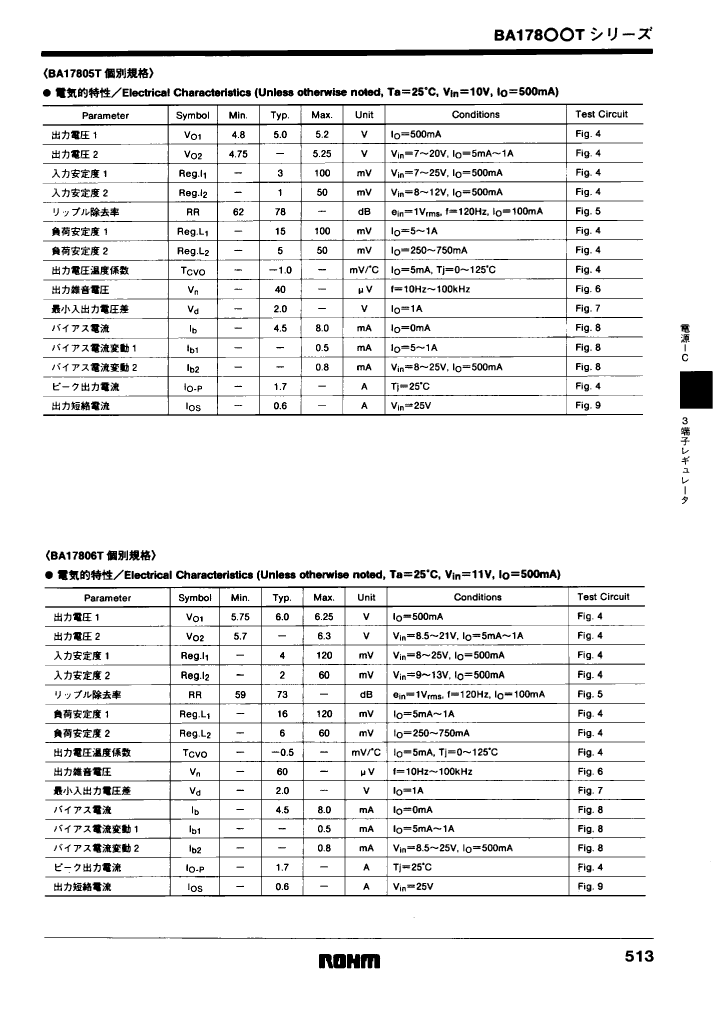

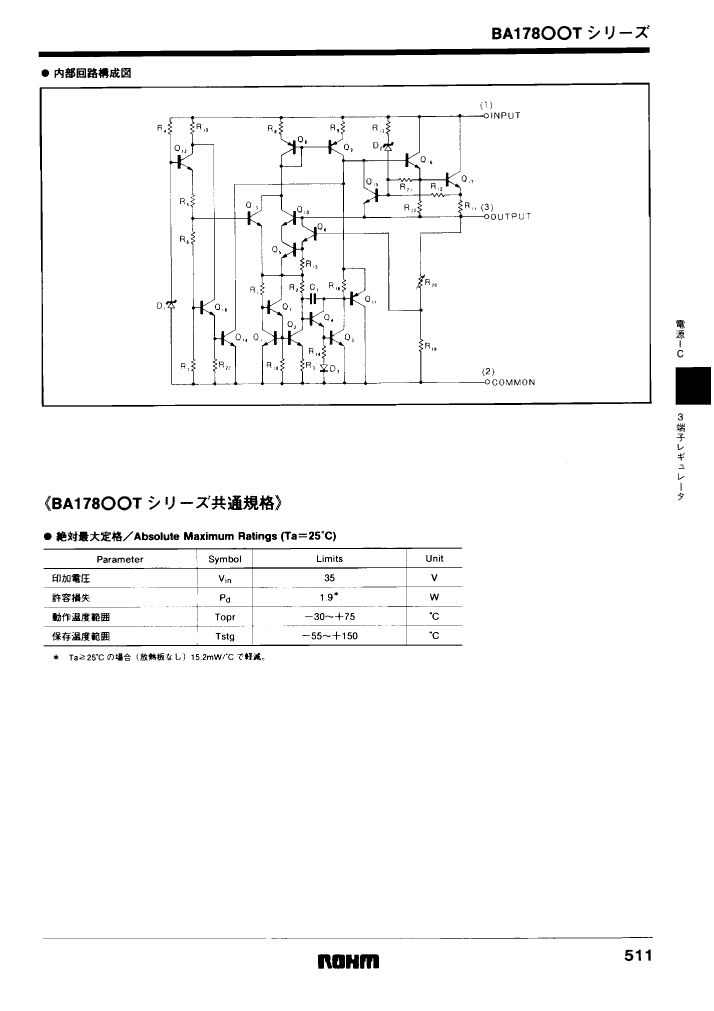

Preview

Download Datasheet

View All

BA178020T Related Products

	BA178020T	BA178012T	BA178015T	BA178010T	BA178024T	BA178018T
Description	Fixed Positive Standard Regulator, 20VBIPolar, PSFM3, TO-220FP, 3 PIN	Fixed Positive Standard Regulator, 12VBIPolar, PSFM3, TO-220FP, 3 PIN	Fixed Positive Standard Regulator, 15VBIPolar, PSFM3, TO-220FP, 3 PIN	Fixed Positive Standard Regulator, 10VBIPolar, PSFM3, TO-220FP, 3 PIN	Fixed Positive Standard Regulator, 24VBIPolar, PSFM3, TO-220FP, 3 PIN	Fixed Positive Standard Regulator, 18VBIPolar, PSFM3, TO-220FP, 3 PIN
Parts packaging code	TO-220FP	TO-220FP	TO-220FP	TO-220FP	TO-220FP	TO-220FP
package instruction	TO-220FP, 3 PIN	TO-220,	TO-220,	TO-220,	TO-220FP, 3 PIN	TO-220FP, 3 PIN
Contacts	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum input voltage	33 V	27 V	30 V	25 V	33 V	33 V
Minimum input voltage	23 V	15 V	17.5 V	12.5 V	27 V	21 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of functions	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum output voltage 1	21 V	12.6 V	15.75 V	10.5 V	25.2 V	18.9 V
Minimum output voltage 1	19 V	11.4 V	14.25 V	9.5 V	22.8 V	17.1 V
Nominal output voltage 1	20 V	12 V	15 V	10 V	24 V	18 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TO-220	TO-220	TO-220	TO-220	TO-220	TO-220
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	-	ROHM Semiconductor
Base Number Matches	1	1	1	1	1	-
