CA-G212MP-G1B-1532 datasheet, PDF

CA-G212MP-G1B-1532: DescriptionIC Socket, PGA212, 212 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder; CategoryThe connector socket; File Size2MB，25 Pages; ManufacturerCircuit Assembly

Download Datasheet Parametric View All

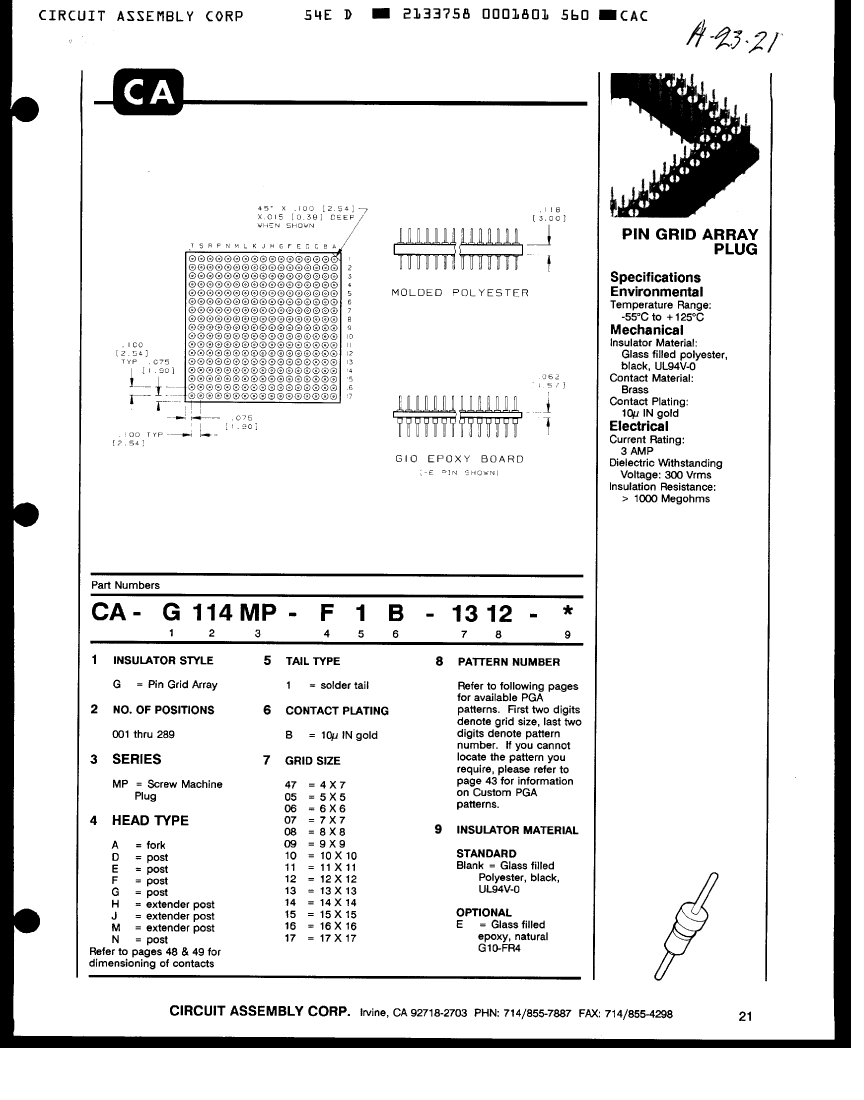

CA-G212MP-G1B-1532 Overview

IC Socket, PGA212, 212 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder

Parameter Name	Attribute value
Maker	Circuit Assembly
Reach Compliance Code	unknown
ECCN code	EAR99
body width	1.5 inch
subject depth	0.15 inch
body length	1.5 inch
Contact structure	15X15
Contact to complete cooperation	AU
Contact material	BRASS
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	PGA212
Dielectric withstand voltage	300VAC V
Shell material	GLASS FILLED POLYESTER
Insulation resistance	1000000000 Ω
Manufacturer's serial number	MP
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	212
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

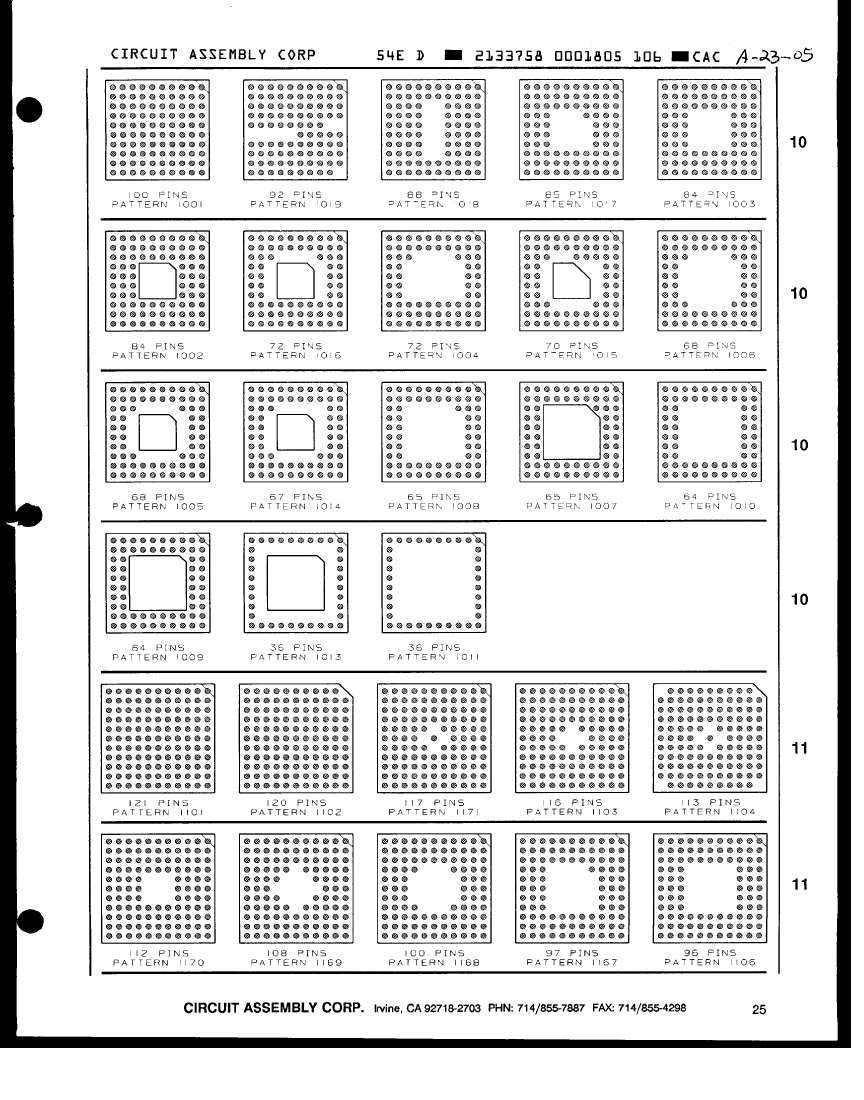

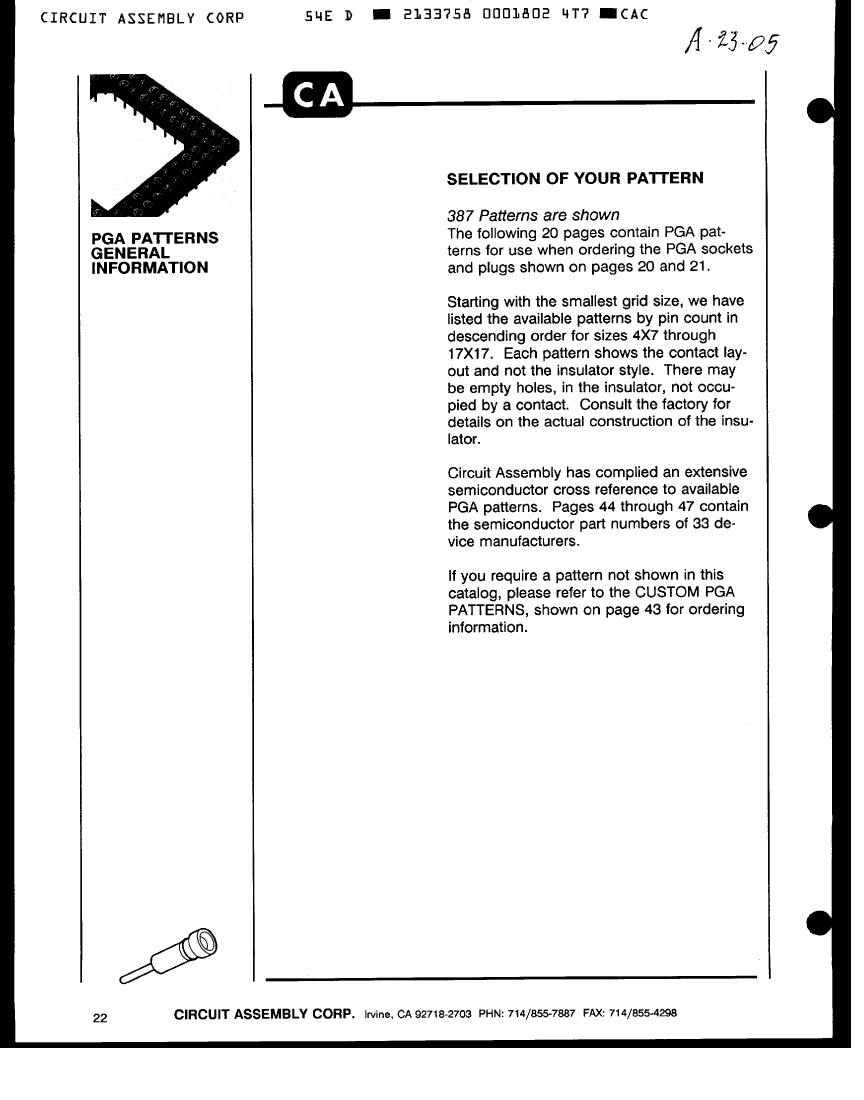

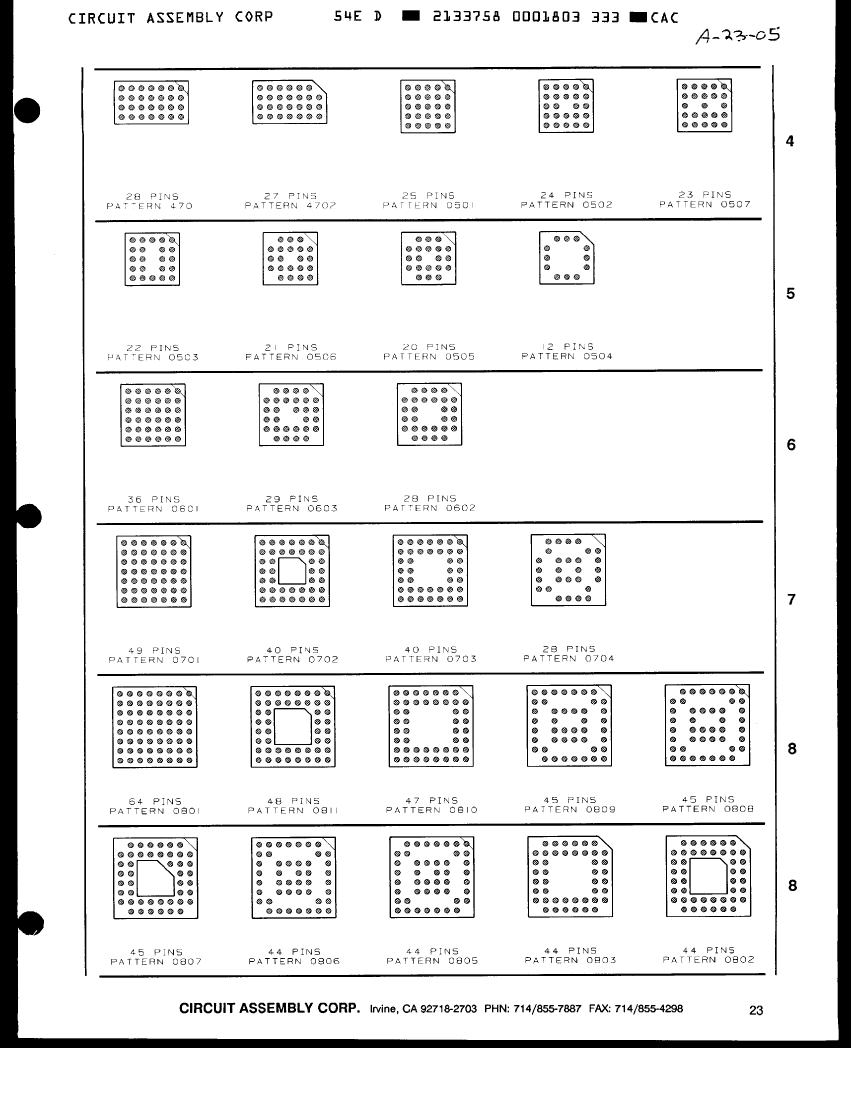

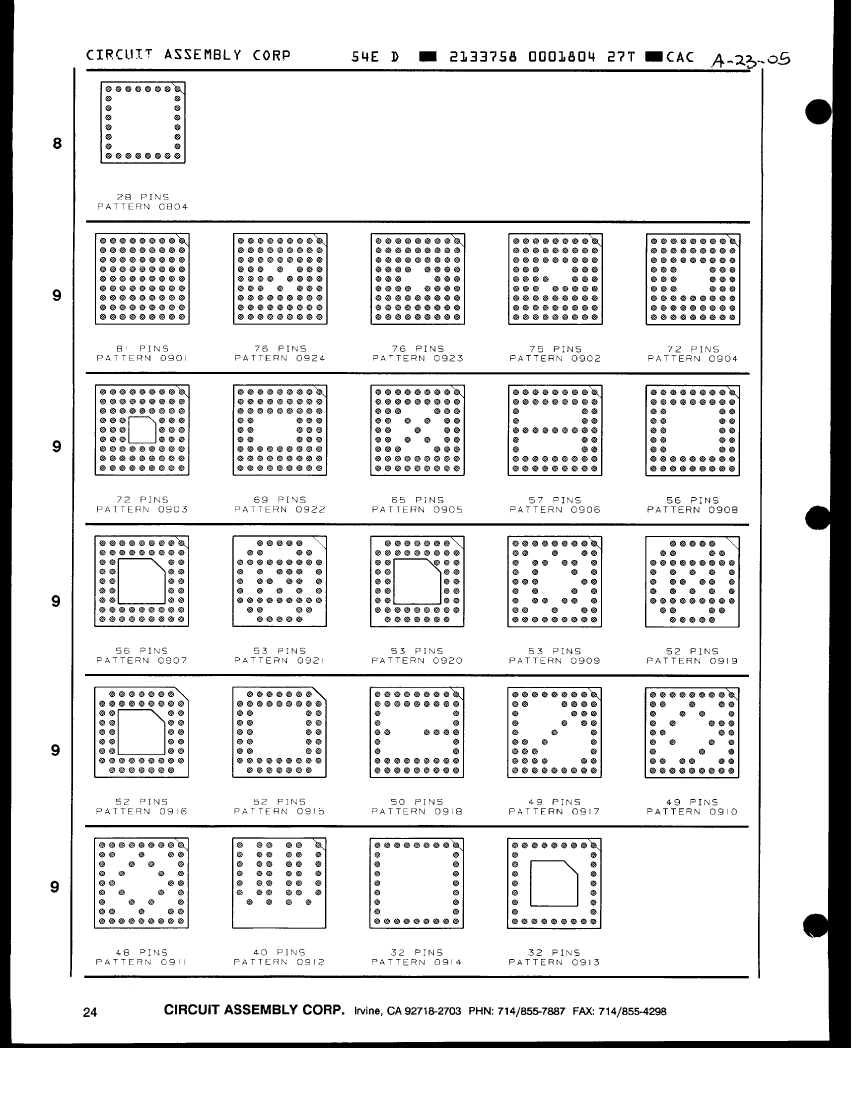

PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Printed from www.freetradezone.com, a service of Partminer, Inc.

This Material Copyrighted By Its Respective Manufacturer
