SOLID STATE LED LAMPS
SUBMINIATURE T-1 3/4 (1.9mm)

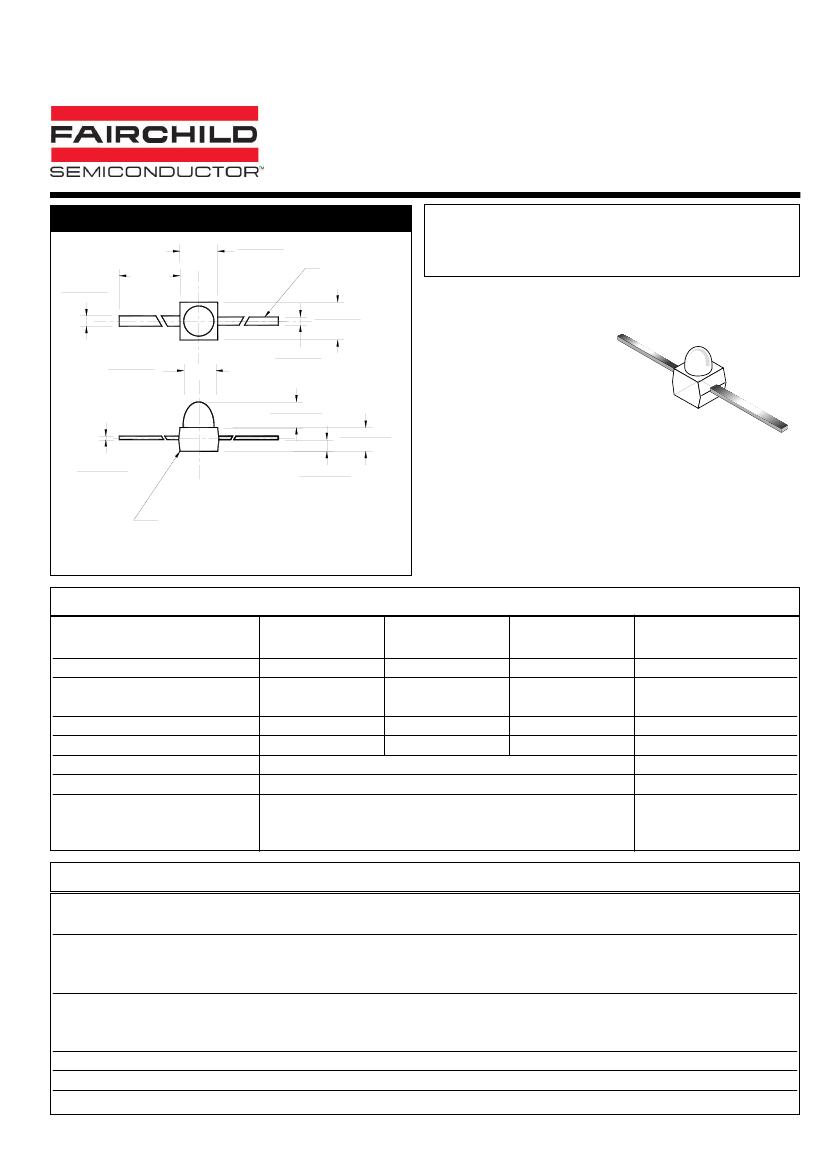

PACKAGE DIMENSIONS
0.087 (2.2)
0.079 (2.0)
0.024 (0.6)
0.016 (0.4)
0.276 (7.0)
MIN
ANODE
EMITTER
AlGaAs RED
AllnGaP ORANGE
AllnGaP YELLOW
FEATURES
• Subminiature package
• Low profile package
HLMP-Q106A
HLMA-QH00A
HLMA-QL00A
Clear
Clear
Clear
0.091 (2.3)
0.083 (2.1)
0.020 (0.5)
0.012 (0.3)
0.075 (1.9)
0.063 (1.6)
• Three lead bend options for
0.058 (1.40)
0.050 (1.28)
0.056 (1.44)
0.048 (1.24)
surface mounting
• Available in tape and reel
0.010 (0.26)
0.002 (0.06)
0.031 (0.78)
0.023 (0.58)
DESCRIPTION
CATHODE MARK
(COLOR STRIPE ON SIDE OF PACKAGE)
NOTE:
Dimensions are in inches (mm).
These subminiature LED lamps are intended for high volume,
low cost status indication on PCBs, as well as for backlighting
keyboards and switches. Choices of “Yoke”, “Z-Bend” or “Gull-
Wing” lead bends are available.
ABSOLUTE MAXIMUM RATINGS
Parameter
Continuous Forward Current - I
F
Peak Forward Current - I
F
(f = 1.0 KHz, Duty Factor = 1/10)
Reverse Voltage - V
R
(I
R
= 10 µA)
Power Dissipation - P
D
Operating Temperature - T
OPR
Storage Temperature - T
STG
Lead Soldering Time - T
SOL
Wave
Reflow
(T
A
= 25°C unless otherwise specified)
AllnGaP Orange
HLMA-QH00A
50
100
5
120
-40 to +100
-40 to +100
260 for 5 sec
260 for 10 sec
(T
A
=25°C)
AllnGaP Orange
HLMA-QH00A
150
500
2.4
1.9
620
18
25
AllnGaP Yellow
HLMA-QL00A
150
500
I
F
= 20mA
2.4
1.9
660
20
25
2.4
1.9
590
15
25
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
Condition
I
F
= 20mA
50
500
AllnGaP Yellow
HLMA-QL00A
50
100
5
120
Units
mA
mA
V
mW
°C
°C
°C
AlGaAs Red
HLMP-Q106A
50
200
5
100
ELECTRICAL / OPTICAL CHARACTERISTICS
Part Number
Luminous Intensity (mcd)
Minimum
Typical
Forward Voltage (V)
Maximum
Typical
Peak Wavelength (nm)
Spectral Line Half Width (nm)
Viewing Angle (°)
AlGaAs Red
HLMP-Q106A
1 of 4
4/4/00
300049A
SOLID STATE LED LAMPS
SUBMINIATURE T-1 3/4 (1.9mm)
AlGaAs RED
AllnGaP ORANGE
AllnGaP YELLOW

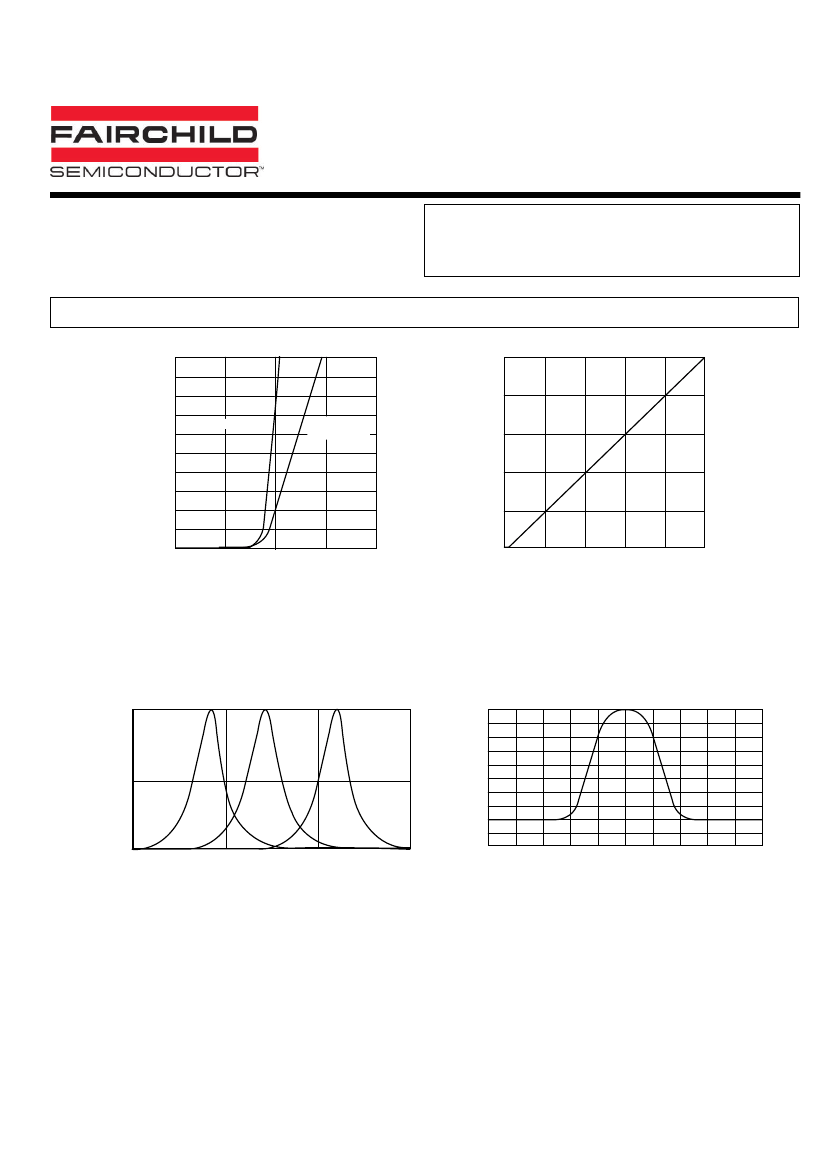

TYPICAL PERFORMANCE CURVES
100
2.5
HLMP-Q106A
HLMA-QH00A
HLMA-QL00A
Clear
Clear
Clear
RELATIVE LUMNOUS INTENSITY
(NORMALIZED AT 20 mA)
3.0
90
IF - FORWARD CURRENT (mA)
80
70
AlGaAs Red
60
50
40
30
20
10
0
1.0
1.5
2.0
2.5
AllnGaP Yellow
AllnGaP Orange
2.0
1.5
1.0
0.5
0.0
0
20
20
30
40
50
V
F
- FORWARD VOLTAGE (V)
I
F
- DC FORWARD CURRENT (mA)
Fig. 1 Forward Current vs. Forward Voltage
Fig. 2 Relative Luminous Intensity
vs. DC Forward Current
1.0
AllnGaP Orange
1.0
NORMALIZED INTENSITY
700
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
-50
-40
-30
-20
-10
0
10
20
30
40
50
RELATIVE INTENSITY
AllnGaP Yellow
AlGaAs Red
0.5
0
550
600
650
WAVELENGTH (nm)
ANGULAR DISPLACEMENT - DEGREES
Fig. 3 Relative Intensity vs. Peak Wavelength
Fig. 4 Relative Luminous Intensity
vs. Angular Displacement
2 of 4
4/4/00
300049A
SOLID STATE LED LAMPS
SUBMINIATURE T-1 3/4 (1.9mm)
AlGaAs RED
AllnGaP ORANGE
AllnGaP YELLOW
HLMP-Q106A
HLMA-QH00A
HLMA-QL00A
Clear
Clear
Clear

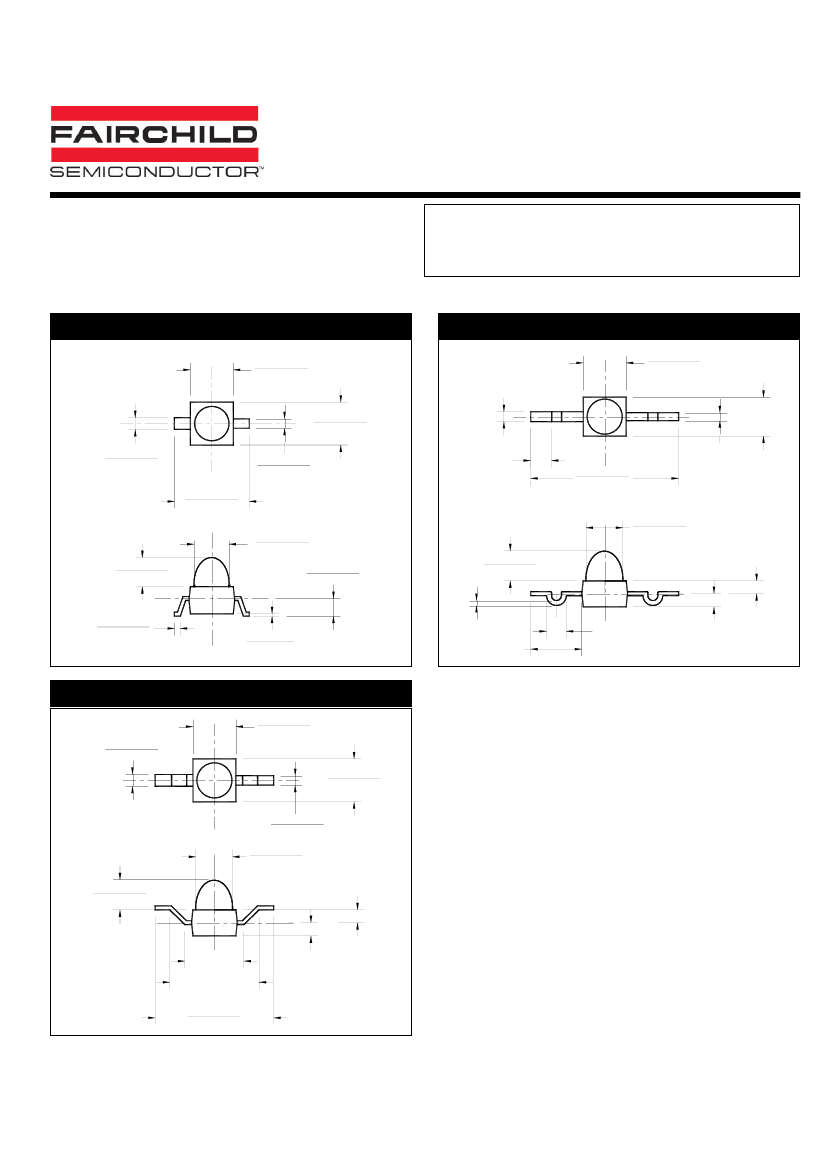

Gull-Wing Lead Option
0.087 (2.21)
0.079 (2.01)
0.020 (0.50)
0.091 (2.31)
0.083 (2.11)
0.024 (0.61)
0.016 (0.41)
0.159 (4.05)
0.148 (3.75)
0.075 (1.91)
0.063 (1.60)
0.058 (1.48)
0.050 (1.28)
0.035 (0.90)
0.028 (0.70)
0.058 (1.48)
0.050 (1.28)
0.020 (0.51)
0.012 (0.30)
0.045 (1.14)
Yoke Lead Option
0.087 (2.21)
0.079 (2.01)
0.079 (2.00)
0.016 (0.4)
0.304 (7.72)
0.296 (7.52)
0.075 (1.90)
0.067 (1.70)
.026 [0.66]
0.027 (0.68)
0.009 (0.23)
0.040 (1.02)
0.109 (2.76)
0.016 (0.40)
0.008 (0.20)
0.007 (0.1)
0.001 (.03)
Z-Bend Lead Option
0.087 (2.21)
0.079 (2.01)
0.024 (0.61)
0.016 (0.41)
0.091 (2.31)
0.083 (2.11)
0.020 (0.51)
0.012 (0.30)
0.075 (1.90)
0.067 (1.70)
0.058 (1.48)
0.050 (1.28)
.026 [0.66]
0.027 (0.68)
0.120 (3.04)
0.181 (4.60)
0.244 (6.20)
0.236 (6.00)
NOTE
All dimensions are in inches (millimeters)
www.qtopto.com
Call QT Optoelectronics for more information or the phone number of your nearest distributor.
United States 800-533-6786 • France 33 [0] 1.45.18.78.78 • Germany 49 [0] 89/96.30.51 • United Kingdom 44 [0] 1296 394499 • Asia/Pacific 603-7352417
3 of 4
4/4/00
300049A
SOLID STATE LED LAMPS
SUBMINIATURE T-1 3/4 (1.9mm)
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO
ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME
ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN;
NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES
OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR
CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the body,
or (b) support or sustain life, and (c) whose failure to
perform when properly used in accordance with
instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury of the
user.
2. A critical component in any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
© 2000 Fairchild Semiconductor Corporation
4 of 4
4/4/00
300049A
