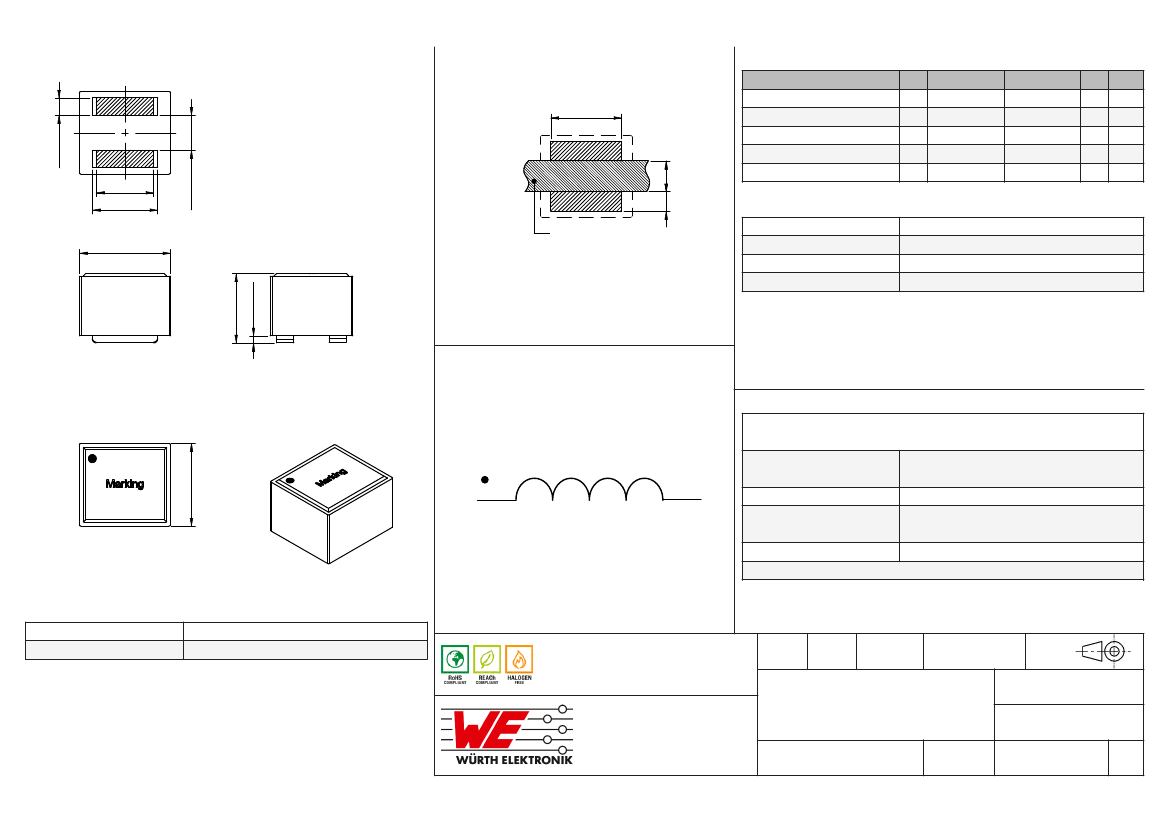

The width dimension of the soldering terminal is specified without
coating
Schematic:
General Properties:
It is recommended that the temperature of the component does not exceed +125 °C under worst
case conditions
10,5 ±0,3
Ambient Temperature (referring
to I
R
)
Operating Temperature
Storage Conditions (in original
packaging)
Moisture Sensitivity Level (MSL)
Scale - 2:1
-40 up to +85 °C
-40 up to +125 °C
< 40 °C ; < 75 % RH
1
Test conditions of Electrical Properties: +20 °C, 33 % RH if not specified differently
Product Marking:
Start of Winding
Marking
•
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
100 (Inductance Code)
PROJECTION
METHOD
EsAg
DESCRIPTION
003.000
2019-05-19
DIN ISO 2768-1m
WE-XHMI SMT Power Inductor
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
74439369100
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
1090
eiSos
Valid
1/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

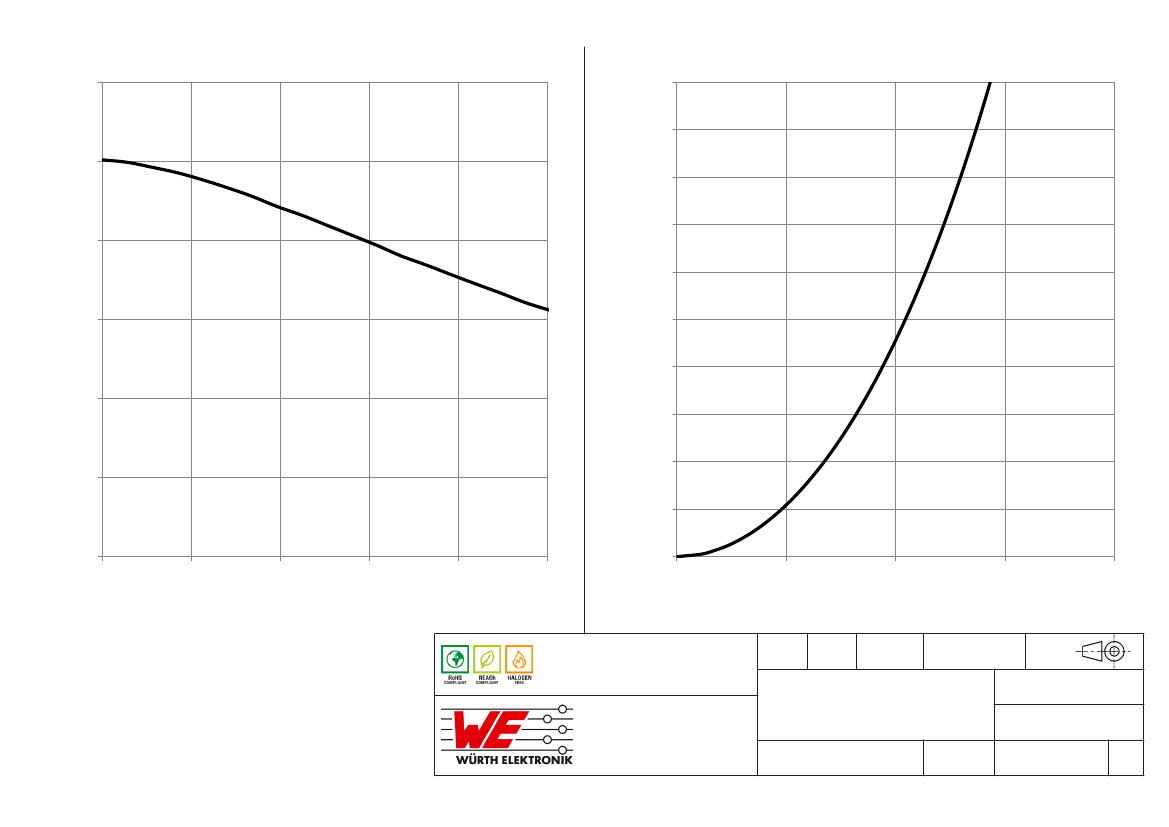

Typical Inductance vs. Current Characteristics:
12.0
Typical Temperature Rise vs. Current Characteristics:
100.0
90.0
10.0
80.0
70.0
8.0
6.0
Temperature Rise [K]
0.0
5.0
10.0
15.0
Current [A]
20.0
25.0
Inductance [µH]
60.0
50.0
40.0
4.0
30.0
20.0
2.0
10.0
0.0
0.0
0.0
5.0
10.0
Current [A]
15.0
20.0
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
EsAg
DESCRIPTION
003.000
2019-05-19
DIN ISO 2768-1m
WE-XHMI SMT Power Inductor
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
74439369100
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
1090
eiSos
Valid
2/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Typical Impedance Characteristics:
10000
Impedance [Ω]
1000
100
10
1
0.01
0.1
1
10
100
Frequency [MHz]
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
EsAg
DESCRIPTION
003.000
2019-05-19
DIN ISO 2768-1m
WE-XHMI SMT Power Inductor
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
74439369100
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
1090
eiSos
Valid
3/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

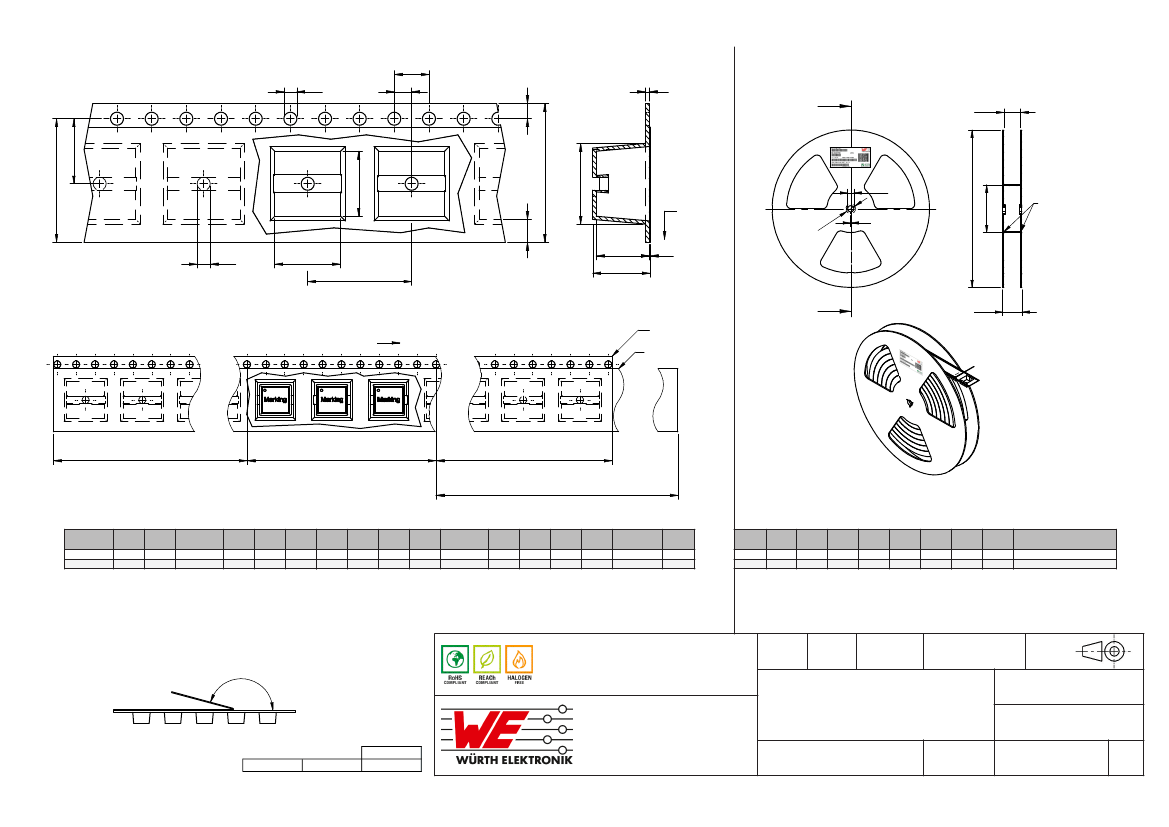

P0
D0
P2
E1
T
B
W3
F
E2
B0
W
B1
O
C
top cover
tape
K0
T1
D1
A0
P1
G
O
D
B
W**
close to center
T2
B
Carrier Tape
End
Feeding direction
Start
Cover tape
No Component
min. 160 mm
Components
No Component
min. 100 mm
Cover Tape
min. 400 mm
P1
(mm)
±0,1
16,00
P2
(mm)
±0,1
2,00
D0
(mm)
+0,1/ -0,0
1,50
D1
(mm)
min.
1,50
E1
(mm)
±0,1
1,75
E2
(mm)
min.
22,25
F
(mm)
±0,1
11,50
Qty.
(pcs.)
300
A
(mm)
± 2,0
330,00
B
(mm)
min.
1,50
C
(mm)
min.
12,80
D
(mm)
min.
20,20
N
(mm)
± 2,0
60,00
W1
(mm)
+ 2,0
24,40
W2
(mm)
max.
30,40
W3
(mm)
min.
23,90
W3
(mm)
max.
27,40
Packaging is referred to the international standard
IEC 60286 -3:2013
Tape Type
2a
A0
(mm)
typ.
12,10
B0
(mm)
typ.
11,00
W
(mm)
+0,3/ -0,1
24,00
T
(mm)
ref.
0,50
T1
(mm)
max.
0,10
T2
(mm)
typ.
9,60
K0
(mm)
typ.
9,40
P0
(mm)
±0,1
4,00
Material
Polystyrene
A
N
W2
Material
Polystyrene/ Polyurethane
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
EsAg
003.000
2019-05-19
DIN ISO 2768-1m
165° - 180°
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
DESCRIPTION
WE-XHMI SMT Power Inductor
ORDER CODE
74439369100
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
Pull-of force
Tape width
24 mm
0,1 N - 1,3 N
1090
eiSos
Valid
4/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

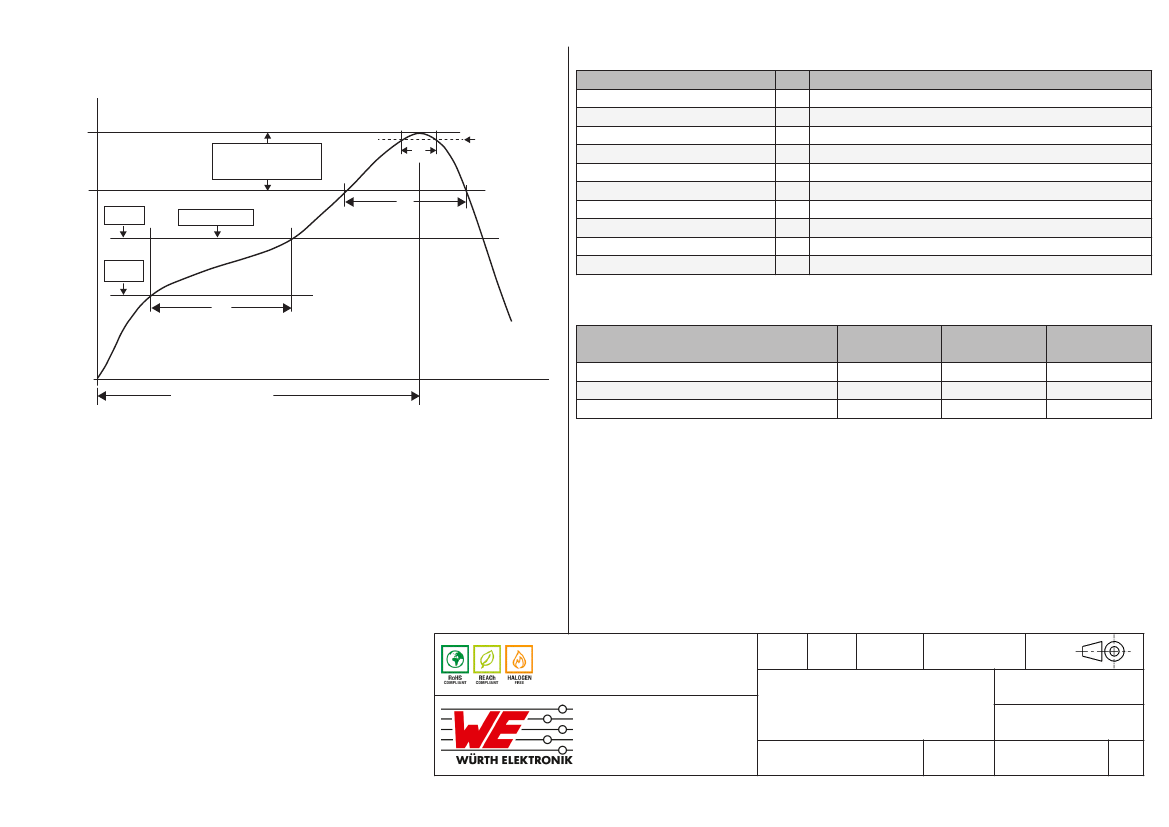

Classification Reflow Profile for SMT components:
Classification Reflow Soldering Profile:
Profile Feature
Preheat Temperature Min
Preheat Temperature Max
Value
T
s min
150 °C
T
s max
200 °C
t
s
T
L
t
L
T
p
t
p
60 - 120 seconds
3 °C/ second max.
217 °C
60 - 150 seconds
see table below
20 - 30 seconds
6 °C/ second max.
8 minutes max.
T
p
Max. Ramp Up Rate
Max. Ramp Down Rate
T
L
T
s max
t
L
t
p
T
C
–5°C
Preheat Time t
s
from T
s min
to T
s max
Ramp-up Rate (T
L
to T
P
)
Liquidous Temperature
Time t
L
maintained above T
L
Peak package body temperature
Time within 5°C of actual peak temperaure
Ramp-down Rate (T
L
to T
P
)
Time 25°C to peak temperature
refer to IPC/ JEDEC J-STD-020E
Temperature
Preheat Area
T
s min
t
S
Package Classification Reflow Temperature:
Properties
Volume mm³
<350
260 °C
250 °C
Volume mm³
350-2000
260 °C
250 °C
245 °C
Volume mm³
>2000
260 °C
245 °C
245 °C
25
Time 25°C to Peak
PB-Free Assembly | Package Thickness < 1.6 mm
PB-Free Assembly | Package Thickness ≥ 2.5 mm
refer to IPC/ JEDEC J-STD-020E
PB-Free Assembly | Package Thickness 1.6 mm - 2.5 mm
260 °C
Time
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
EsAg
DESCRIPTION
003.000
2019-05-19
DIN ISO 2768-1m
WE-XHMI SMT Power Inductor
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
74439369100
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
1090
eiSos
Valid
5/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
