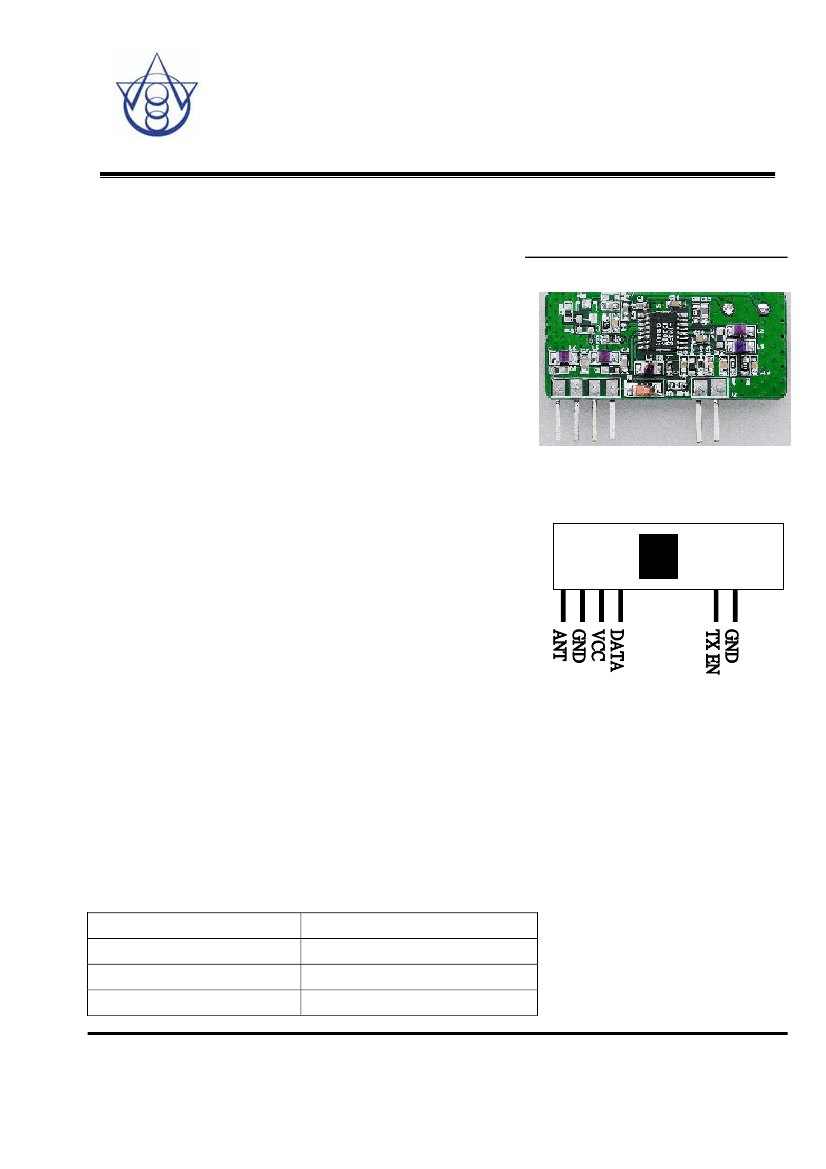

Holy Stone Enterprise Co., Ltd
MO-TX4915-F
FSK TRANSMITTER MODULE
315/434/868/914MHz FSK TRANSMITTER
Description
MO-TX4915-F are FSK transmitter modules. The MO-TX4915-F is
an entire Phase-Locked Loop (PLL) for precise local oscillator generation. It
can use in OOK / HCS / PWM signal and modulate to transmit signal to
receiver device by air .It had a high performance and easily to design your
product. It can be used on wireless security system or specific
remote-control function and others wireless system.
Now we supports 315MHz/433.92MHz/868.35MHz/914.5MHz for ISM
Band modules can be selected
Features
Low power consumption.
Easy for application.
On-Chip VCO with integrated PLL using crystal
oscillator reference.
Operation temperature range :
﹣20℃½＋85℃
Operation voltage :2.4~ 3.6 Volts.
Available frequency at : 315/434/868/914MHz
Applications
Car security system
Remote keyless entry
Garage door controller
Home security
Wireless mouse
Automation system
Product Identif
ication
315MHz
433.92MHz
868.35MHz
914.5MHz
禾伸堂企業股½有限公司
Holy Stone Enterprise CO.,LTD
MO-TX4915-F315M
MO-TX4915-F434M
MO-TX4915-F868M
MO-TX4915-F914M
TEL:886-2-26596722
FAX:886-2-26596720
VER2.0 2004-7-6
MO-TX4915-F
Absolute Maximum Ratings
Parameter
Supply Voltage
Operating Temperature
Rating
3.6
-20 to +85
Units
V DC
℃
Electronical Characteristics
Parameter
Operation Voltage
315MHz
Output power
Psens
Vcc=3.0V,
1Kbps Data Rate
434MHz
868MHz
914MHz
Supply current
Icc
Transmitter
enable/disable voltage
Tune on Time
Data Rate
Ton
Operation ( data rate 1kbps)
Stand-by
TX EN=Hight=Operation
TX EN=Lo=Power down
Tx enable 0ff- turn on
300
3
-
10k
Vcc-0.3
0.3
Symbo
l
Condition
Specification
Min.
2.2
1
0
-2
-2
Typical
3.0
5
3
1
1
20
5
25
Max.
3.6
Unit
V
dBm
dBm
dBm
dBm
mA
uA
V DC
V DC
ms
bps
Pin Dimension
N am e
A
B
C
D im e n s io n
3 5 m m + -0 .5 m m
1 5 m m + -0 .5 m m
1 2 .7 m m + - 0 .3 m m
N am e
D
E
F
D im e n s io n
2 .5 4 m m + -0 .2 m m
5 m m + -0 .5 m m
6 .2 m m ( M a x )
TEL:886-2-26596722
FAX:886-2-26596720
VER2.0 2004-7-6
禾伸堂企業股½有限公司
Holy Stone Enterprise CO.,LTD
MO-TX4915-F
Typical Characteristics
Output power vs Temperature
Output power vs Temp.
8
6
4
2
0
0C
C
C
C
-4
0C
-2
0C
C
10
0C
20
40
60
80
315MHz
434MHz
868MHz
914MHz
power(dBm)
Temp.
禾伸堂企業股½有限公司
Holy Stone Enterprise CO.,LTD
TEL:886-2-26596722
FAX:886-2-26596720
VER2.0 2004-7-6
MO-TX4915-F
Application
VCC
DATA
TX EN
Mark:
1. Antenna length about :23cm for 315MHz
17cm for 434MHz
8.5cm for 868MHz
7.5cm for 914MHz
2. Transmitter range about 100m with MO-RX3930-FS receiver module
(Tested in open space)
禾伸堂企業股½有限公司
Holy Stone Enterprise CO.,LTD
TEL:886-2-26596722
FAX:886-2-26596720
VER2.0 2004-7-6
