NOSB476M002B0500: DescriptionSpecial Capacitor, Niobium, 2.5V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 1411, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size195KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

NOSB476M002B0500 Overview

Special Capacitor, Niobium, 2.5V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 1411, CHIP, ROHS COMPLIANT

NOSB476M002B0500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	47 µF
Capacitor type	SPECIAL CAPACITOR
dielectric materials	NIOBIUM
JESD-609 code	e3
Manufacturer's serial number	NOS
Installation features	SURFACE MOUNT
negative tolerance	20%
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	2.5 V
size code	1411
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	J BEND
Base Number Matches	1

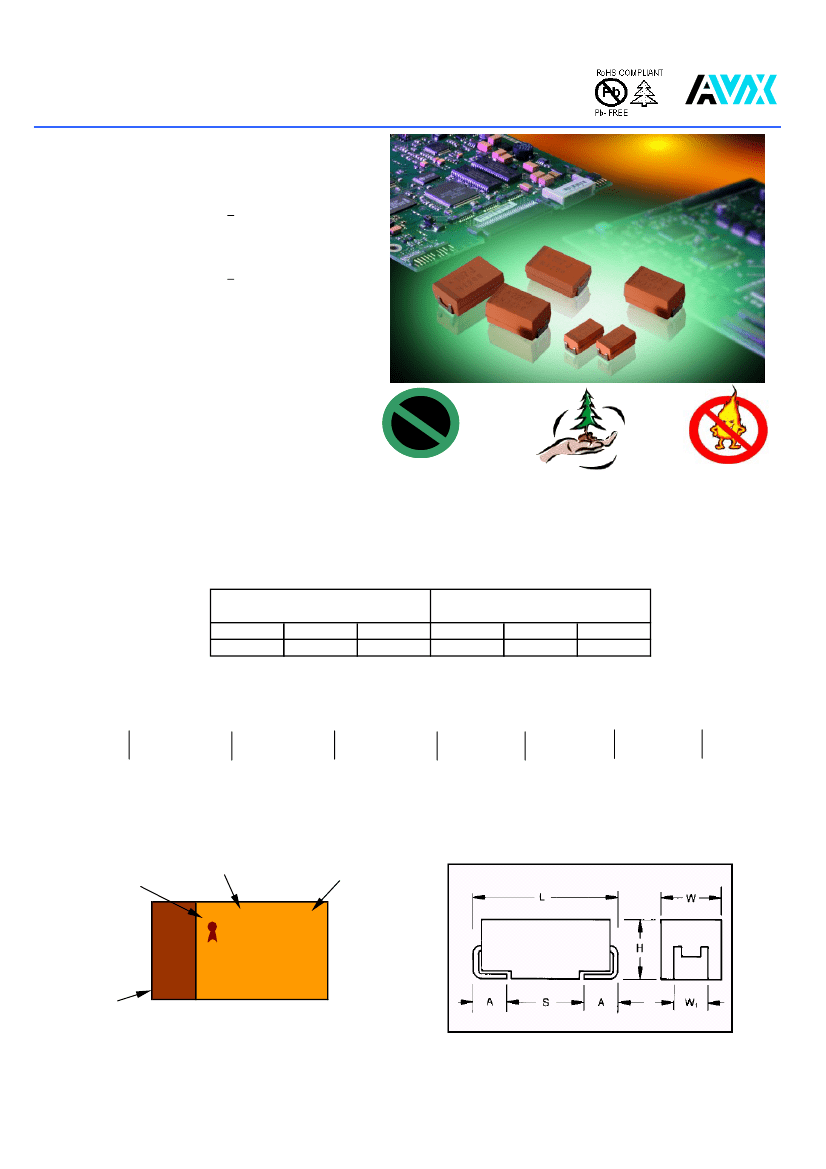

Preview

Download Datasheet

View All

OxiCap

–

NOS

Low ESR NbO Capacitor

47µF

M = ± 20%

< 85 C

< 105 C

A Kyocera Group Company

PRODUCT SPECIFICATIONS :

Nominal Capacitance @ 120Hz

Capacitance Tolerance (*)

Rated Voltage DC (V

)

Category Voltage DC (V

)

Surge Voltage (V

)

2.5V

1.7V

1.3V

3.3V

2.2V

1.7V

< 125 C

< 85 C

< 105 C

< 125

Temperature Range

Direct Leakage Current max. @ V

Disipation Factor max. @ 120Hz

ESR max. @ 100kHz

-55

C to +125

2.4µA

500mΩ

56mg

Typical weight (B case)

Moisture sensitivity level: meets MSL 1

Reflow specification: meets J-STD-020C standard

LE AD -F R E E

NON-BURN

HALOGEN-FREE COMPOUNDS

Meets requirements of AECQ-200

LEAD-FREE COMPATIBLE

NON-SMOKE

ENVIRONMENTAL FRIENDLY

COMPONENT

100% surge current tested

COMPONENT

All technical data relates to an ambient temperature of +25

C, Capacitance and DF are measured at 120Hz, 0.5RMS with DC bias of

2.2V. DCL is measured at rated voltage after 5 minutes

ESR allowed to move up to 1.25 times catalogue limit post mounting

AVX reserves the rights to supply higher voltage rating in the same case size, to the same reliability standards

RMS value of Ripple Current (mA)

@100kHz

RMS value of Ripple Voltage (mV)

@100kHz

25˚C

452

85˚C

406

125˚C

181

25˚C

226

85˚C

203

125˚C

HOW TO ORDER:

NOS

Type

Case code

476

Capacitance

Value

Cap.

Tolerance

002

Rated

Packaging

0500

Packaging

DRAWING AND DIMENSIONS:

OxiCap

Capacitance Value in pF

LOGO

476 = 47µF

Rated Voltage

= 2.5V

476 e

T 1 5 BB

Polarity

Band

Niobium oxide capacitors are manufactured and sold under patent license from Cabot Corporation, Boyertown, Pennsylvania U.S.A.

NOSB476M002B0500 Related Products

	NOSB476M002B0500	NOSB476M002A0500
Description	Special Capacitor, Niobium, 2.5V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 1411, CHIP, ROHS COMPLIANT	Special Capacitor, Niobium, 2.5V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 1411, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	AVX	AVX
package instruction	CHIP, ROHS COMPLIANT	, 1411
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
capacitance	47 µF	47 µF
Capacitor type	SPECIAL CAPACITOR	SPECIAL CAPACITOR
dielectric materials	NIOBIUM	NIOBIUM
JESD-609 code	e3	e3
Manufacturer's serial number	NOS	NOS
Installation features	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	20%	20%
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH	TR, 7 INCH
positive tolerance	20%	20%
Rated (DC) voltage (URdc)	2.5 V	2.5 V
size code	1411	1411
surface mount	YES	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	J BEND	J BEND
