54LS51DMQB datasheet, PDF - EEWORLD Datasheet

54LS51DMQB: DescriptionAND-OR-Invert Gate, LS Series, 2-Func, 6-Input, TTL, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size117KB，3 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

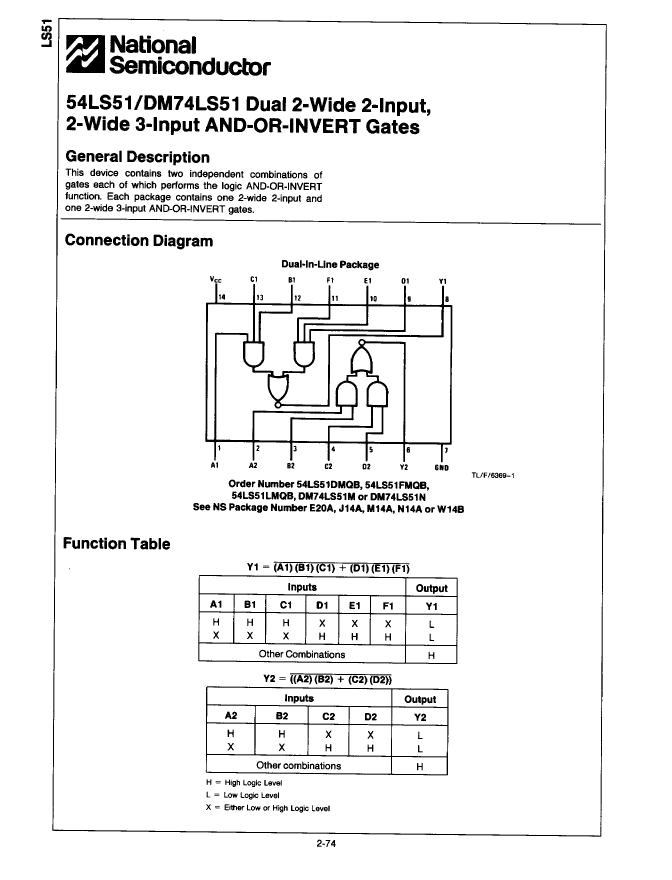

54LS51DMQB Overview

AND-OR-Invert Gate, LS Series, 2-Func, 6-Input, TTL, CDIP14, CERAMIC, DIP-14

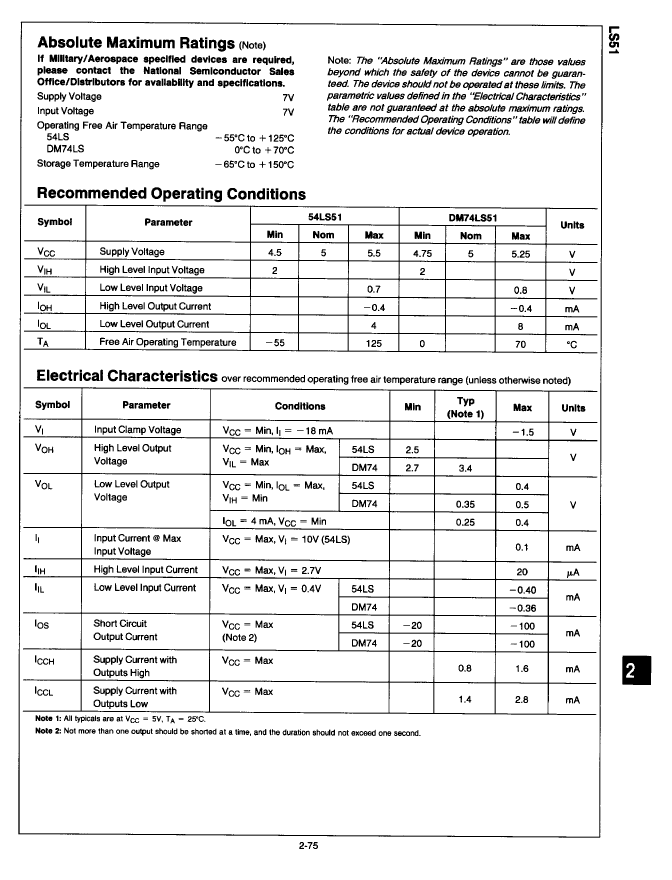

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
Other features	ASYMMETRICAL INPUTS
series	LS
JESD-30 code	R-GDIP-T14
length	19.43 mm
Logic integrated circuit type	AND-OR-INVERT GATE
Number of functions	2
Number of entries	6
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	20 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1
