DG305ACJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG305ACJ

DG305ACJ: Description1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PDIP14, 0.300 INCH, PLASTIC, DIP-14; CategoryAnalog mixed-signal IC The signal circuit; File Size2MB，10 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

DG305ACJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG305ACJ	-	-	View	Buy Now

DG305ACJ Overview

1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PDIP14, 0.300 INCH, PLASTIC, DIP-14

DG305ACJ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPDT
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
length	19.05 mm
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	1
Number of terminals	14
Nominal off-state isolation	62 dB
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240
Maximum seat height	4.572 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	150 ns
Maximum connection time	250 ns
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	7.62 mm
Base Number Matches	1

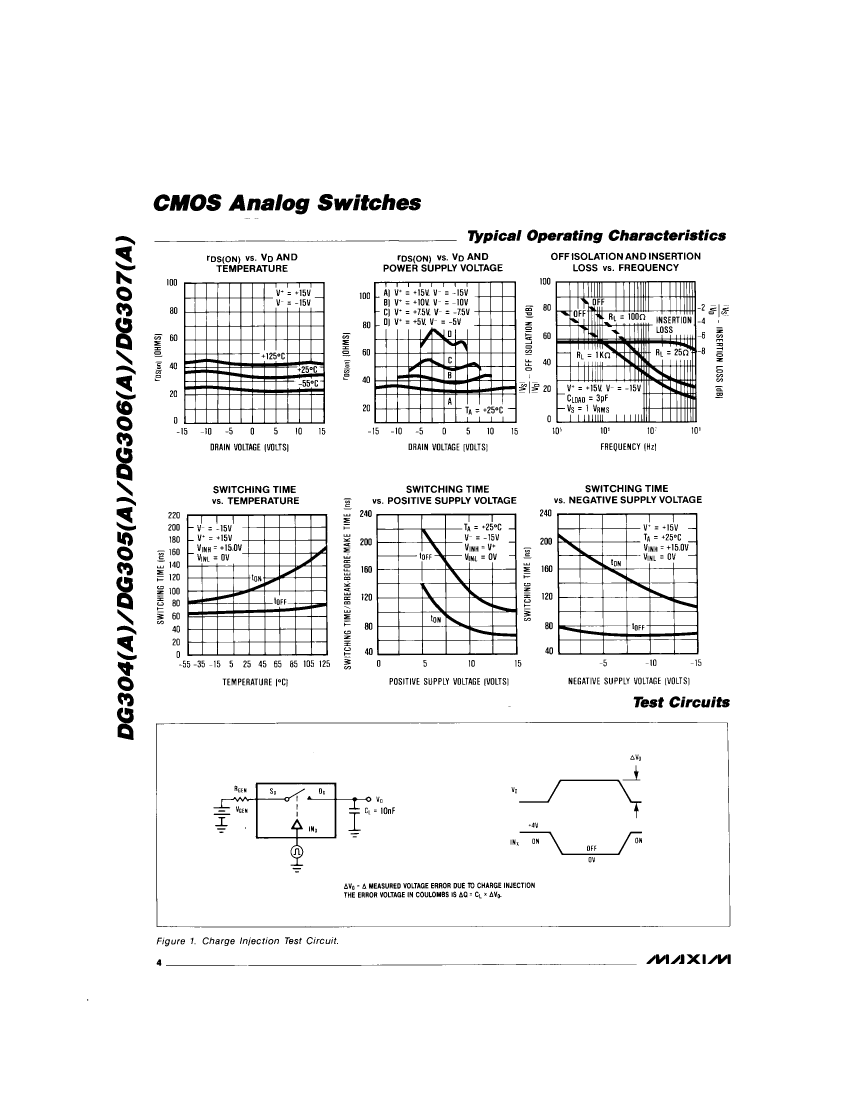

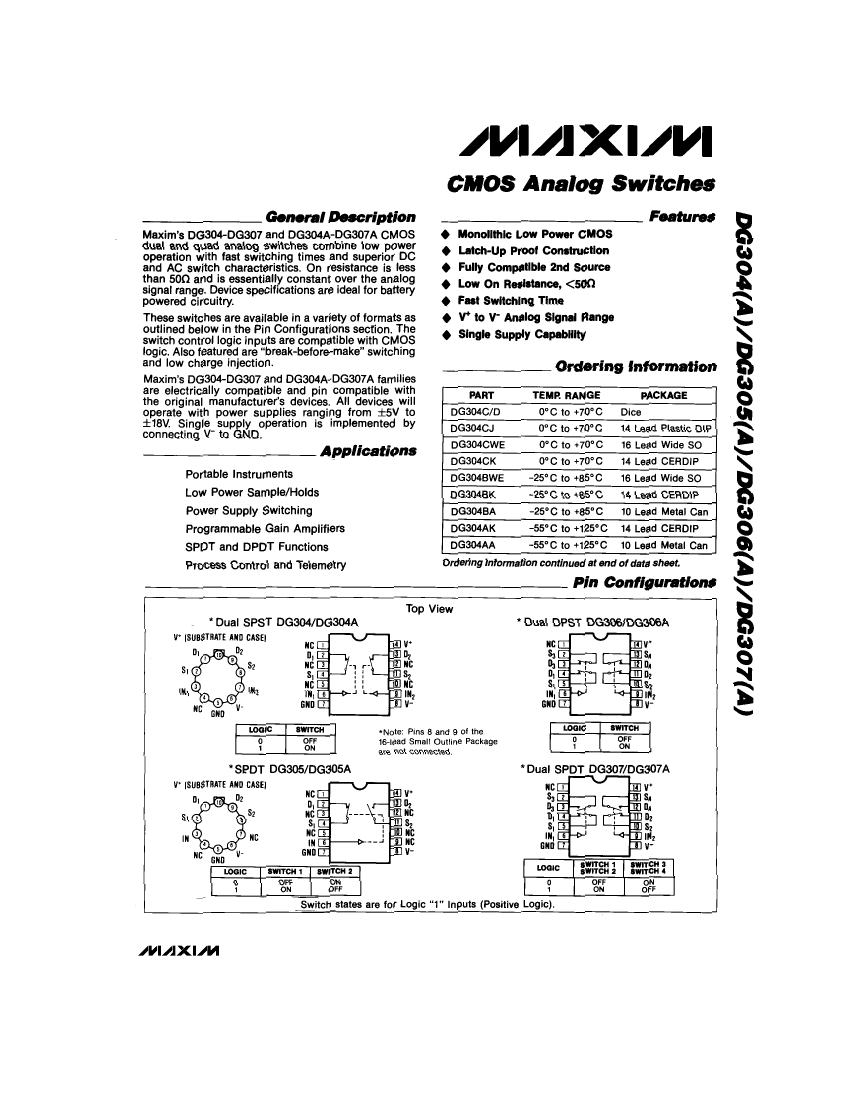

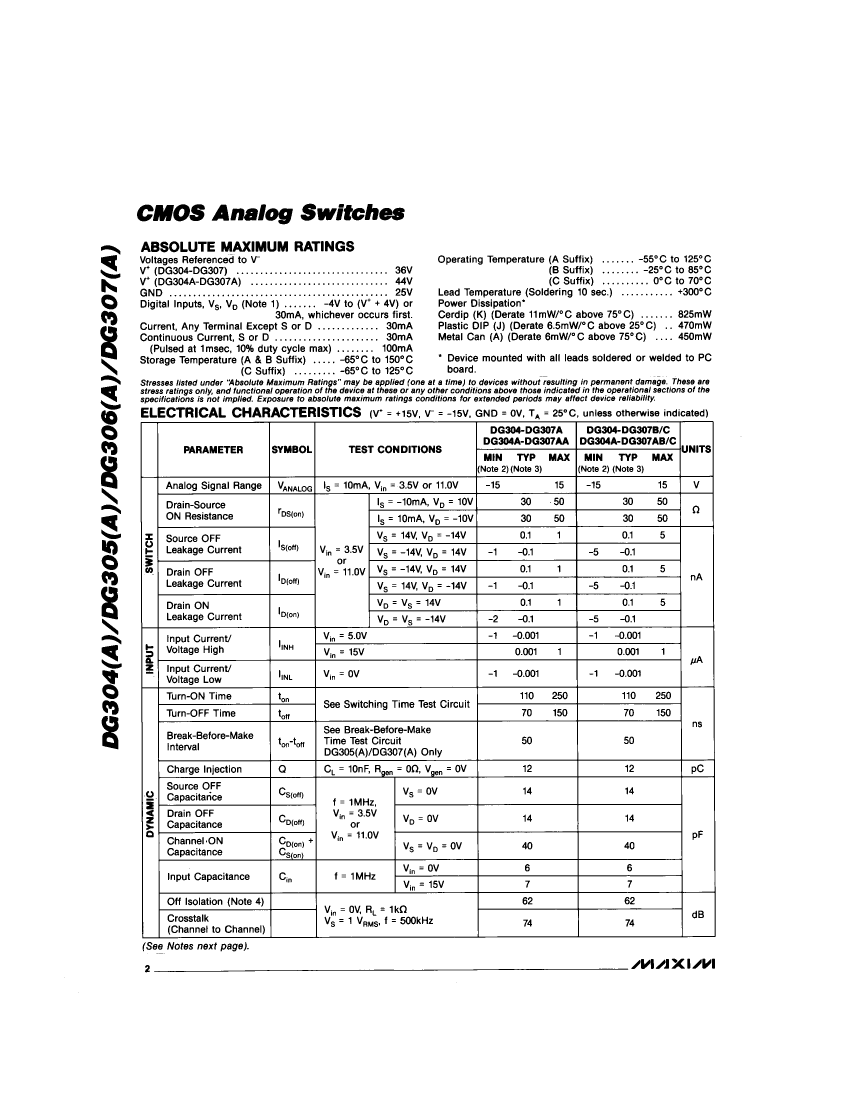

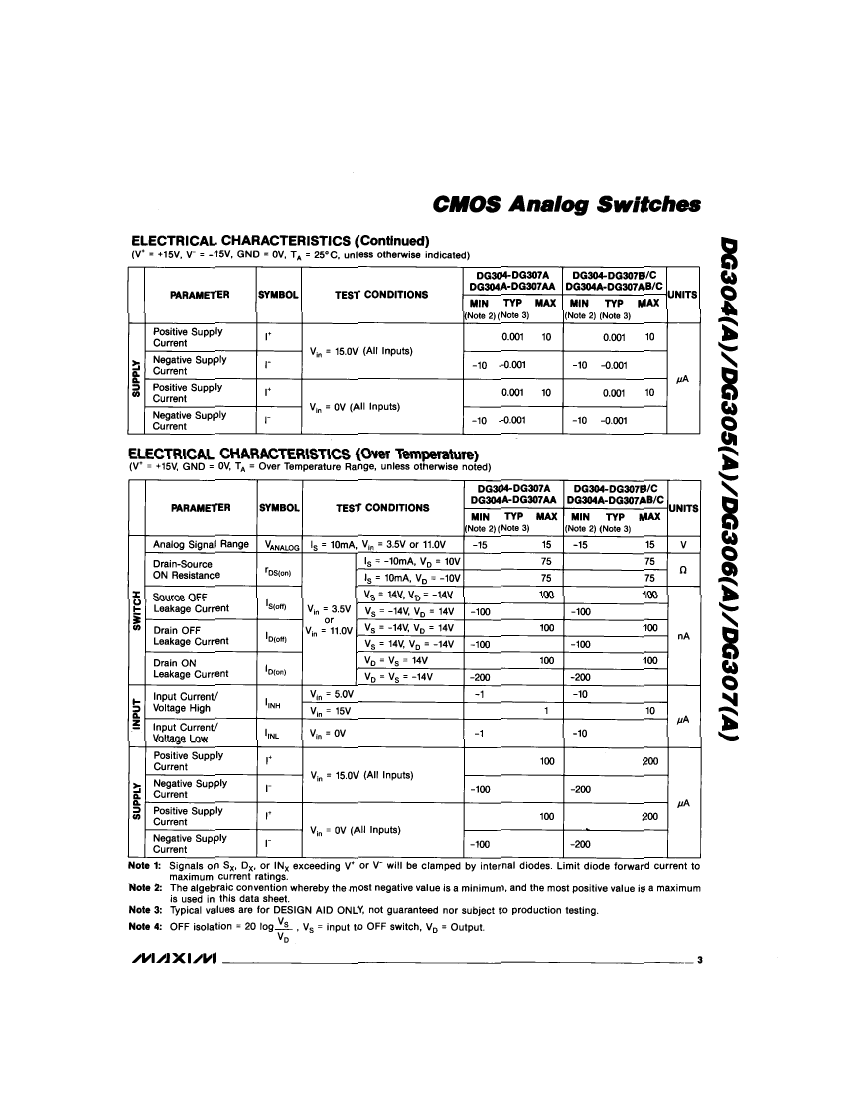

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

DG305ACJ Related Products

	DG305ACJ	391160075000	DG305ACWE
Description	1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PDIP14, 0.300 INCH, PLASTIC, DIP-14	16 AWG stranded (26x30) tinned copper conductor, PPO insulation	1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PDSO16, 0.300 INCH, SOP-16
Is it lead-free?	Contains lead	-	Contains lead
Is it Rohs certified?	incompatible	-	incompatible
Maker	Rochester Electronics	-	Rochester Electronics
Parts packaging code	DIP	-	SOIC
package instruction	DIP,	-	SOP,
Contacts	14	-	16
Reach Compliance Code	unknown	-	unknown
Analog Integrated Circuits - Other Types	SPDT	-	SPDT
JESD-30 code	R-PDIP-T14	-	R-PDSO-G16
JESD-609 code	e0	-	e0
length	19.05 mm	-	10.3 mm
Humidity sensitivity level	1	-	1
Maximum negative supply voltage (Vsup)	-18 V	-	-18 V
Negative supply voltage minimum (Vsup)	-5 V	-	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-	-15 V
Number of channels	1	-	1
Number of functions	1	-	1
Number of terminals	14	-	16
Nominal off-state isolation	62 dB	-	62 dB
Maximum on-state resistance (Ron)	50 Ω	-	50 Ω
Maximum operating temperature	70 °C	-	70 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	DIP	-	SOP
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	-	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	-	240
Maximum seat height	4.572 mm	-	2.65 mm
Maximum supply voltage (Vsup)	18 V	-	18 V
Minimum supply voltage (Vsup)	5 V	-	5 V
Nominal supply voltage (Vsup)	15 V	-	15 V
surface mount	NO	-	YES
Maximum disconnect time	150 ns	-	150 ns
Maximum connection time	250 ns	-	250 ns
technology	CMOS	-	CMOS
Temperature level	COMMERCIAL	-	COMMERCIAL
Terminal surface	TIN LEAD	-	TIN LEAD
Terminal form	THROUGH-HOLE	-	GULL WING
Terminal pitch	2.54 mm	-	1.27 mm
Terminal location	DUAL	-	DUAL
Maximum time at peak reflow temperature	20	-	20
width	7.62 mm	-	7.5 mm
