B044-0301-027-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B044-0301-027-Z

B044-0301-027-Z: DescriptionCard Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size280KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

B044-0301-027-Z Overview

Card Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

B044-0301-027-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.35 inch
subject depth	0.61 inch
body length	0.99 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
maximum insertion force	2.224 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	B044
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

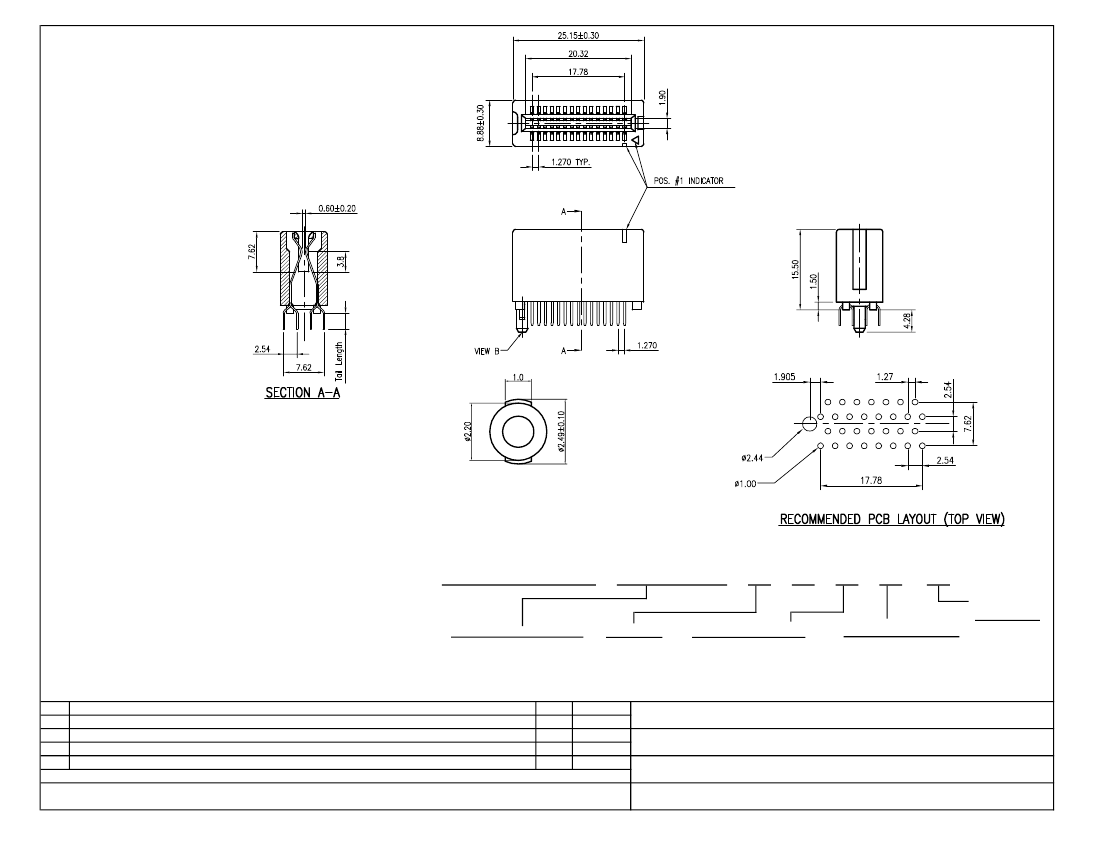

ELECTRICAL:

CURRENT RATING: 1A

VOLTAGE RATING: 250VAC RMS

CONTACT RESISTANCE: < 30m

INSULATOR RESISTANCE: > 1000M

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -55° C TO +85° C

VIEW B

MECHANICAL:

INSERTION FORCE: 230 GRAMS PER CONTACT PAIR

WITHDRAWAL FORCE: 15 GRAMS PER CONTACT PAIR

RETENTION FORCE: 460 GRAMS MIN. PER CONTACT PAIR

MATING DURABILITY: 100 CYCLES

HOW TO ORDER:

RoHS

COMPLIANT

MATERIAL:

INSULATOR: HIGH TEMPERATURE THERMOPLASTIC UL94V-0

CONTACT: COPPER ALLOY

STANDARD PLATING: GOLD PLATING OVER NICKEL ON CONTACT AREA

MATTE TIN PLATING OVER NICKEL ON PC TAILS

Rev

Issued

A Revised for Contact Point Dimension ( 3.8 )

SCALE

TOL. DEC.

N/A

NUMBER OF CONTACTS:

2x30 (060)

PEG TYPE:

1 - PLASTIC

INSULATOR COLOR:

2 - BLACK

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Apv.

WHS

FINISH

.XXX +/-

ANGLE +/-

Date

3/10/06

4/24/06

SMP TECHNOLOGY, INC.

MAT'L

.X +/- 0.35

.XX +/- 0.25

Micro Channel Slot Connector, 1 Bay, 1.27mm (0.50") Pitch, 30 Position

UNIT: mm

P/N: B044-0301-02X-Z

Pg: 1

B044-0301-027-Z Related Products

	B044-0301-027-Z	B044-0301-029-Z	B044-0301-028-Z	B044-0301-026-Z
Description	Card Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle	Card Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle	Card Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle	Card Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle
Maker	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.
Reach Compliance Code	unknown	unknown	unknown	unknown
Board mount options	PEG	PEG	PEG	PEG
body width	0.35 inch	0.35 inch	0.35 inch	0.35 inch
subject depth	0.61 inch	0.61 inch	0.61 inch	0.61 inch
body length	0.99 inch	0.99 inch	0.99 inch	0.99 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles
maximum insertion force	2.224 N	2.224 N	2.224 N	2.224 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	B044	B044	B044	B044
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	4	4	4	4
Number of rows loaded	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	10u inch	30u inch	15u inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	30	30	30	30
Evacuation force-minimum value	.139 N	.139 N	.139 N	.139 N
Base Number Matches	1	1	1	1
