BR5105 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BR5105

BR5105: DescriptionWide Band Low Power Amplifier, 5MHz Min, 300MHz Max, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size200KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BR5105 Overview

Wide Band Low Power Amplifier, 5MHz Min, 300MHz Max, H2, TO-8B

BR5105 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	11 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

Cross Reference Guide

BR5105 / SBR5105*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

5.0 - 300.0 MHz

12.0 dB Typical

11.0 dB Min

2.8 dB Typical

4.0 dB Max

7.0 dBm Typical

5.5 dBm Min

21.0 dBm Typical

29.0 dBm Typical

1.5/2.0 Input Typ/Max

1.6/2.0 Output Typ/Max

-18.5 dB Typical

-16.0 dB Min

15.0 Volts

17.0 mA

-55.0 - 85.0 °C

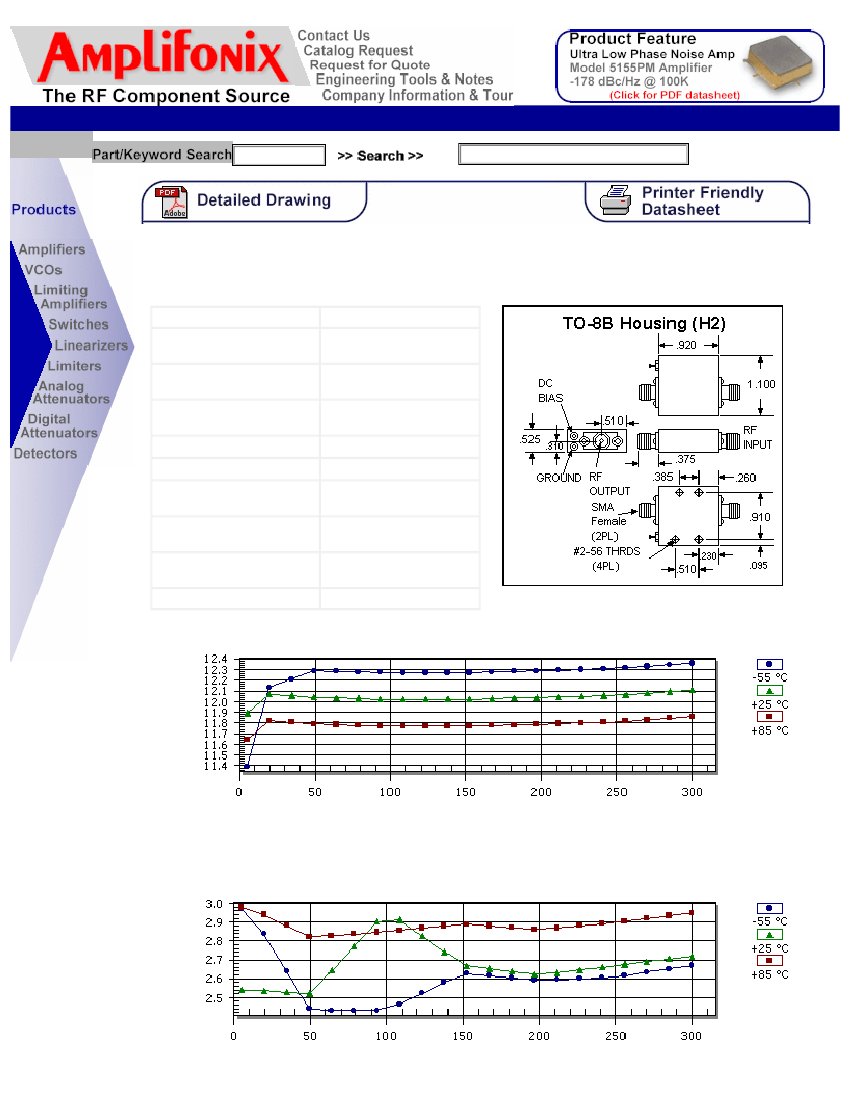

Package Drawing

Gain

Frequency (MHz)

Noise Figure

BR5105 Related Products

	BR5105	SBR5105
Description	Wide Band Low Power Amplifier, 5MHz Min, 300MHz Max, H2, TO-8B	Wide Band Low Power Amplifier, 5MHz Min, 300MHz Max, H2, TO-8B
Maker	API Technologies	API Technologies
Reach Compliance Code	compliant	compliant
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COAXIAL
Gain	11 dB	11 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	300 MHz	300 MHz
Minimum operating frequency	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
Base Number Matches	1	1
