Part Number

Search

5962-9207301HXX

Description
ADC, Successive Approximation, 8-Bit, 1 Func, 2 Channel, Serial, Parallel, 8 Bits Access, Hybrid, DIP-24
CategoryAnalog mixed-signal IC    converter
File Size310KB,6 Pages
ManufacturerSpectrum Microwave
Download Datasheet Parametric Compare View All

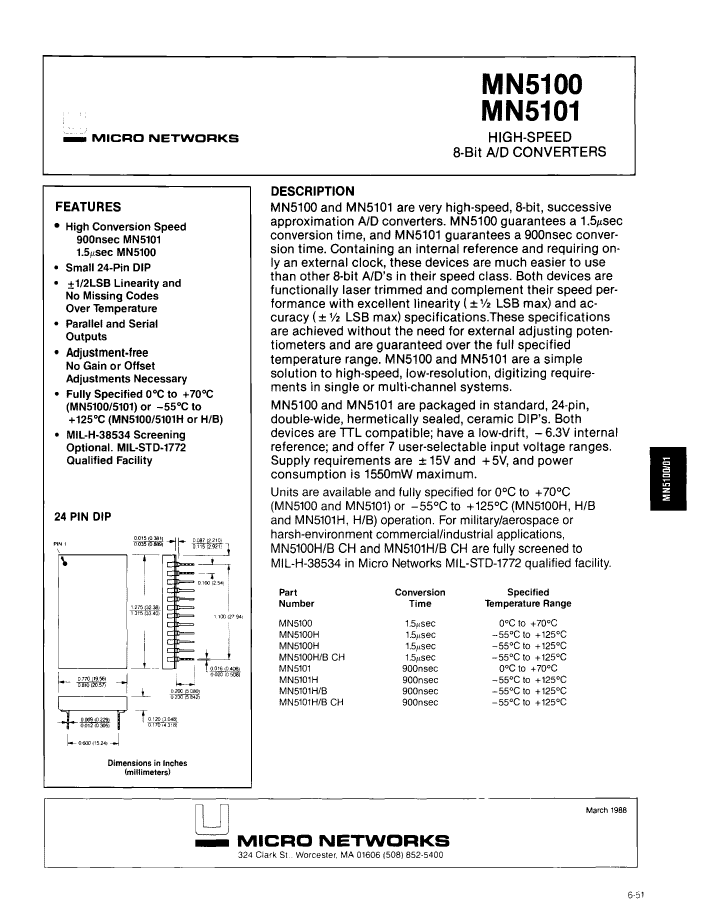

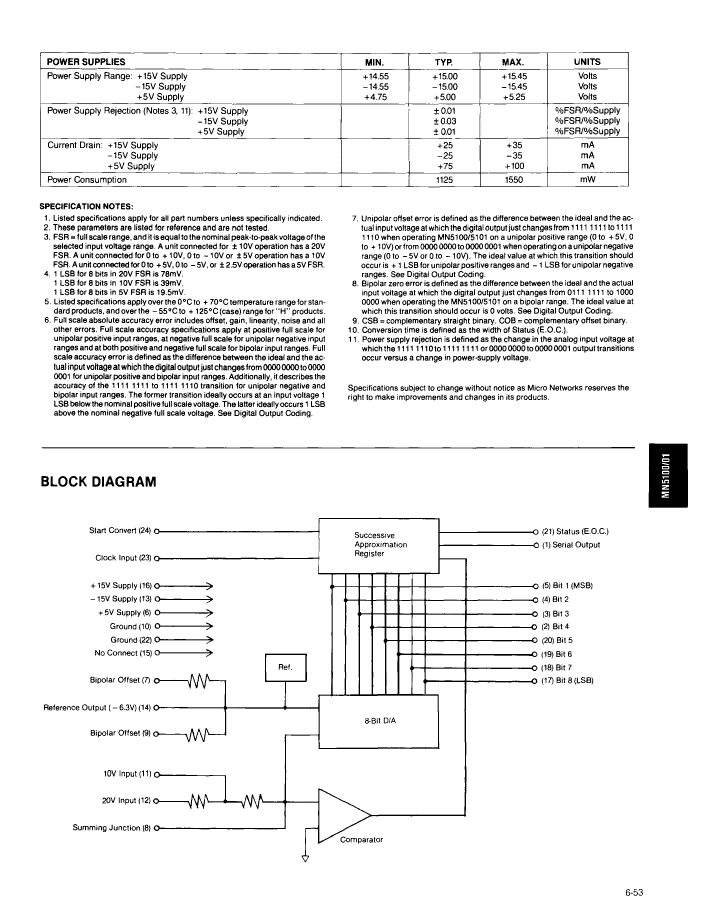

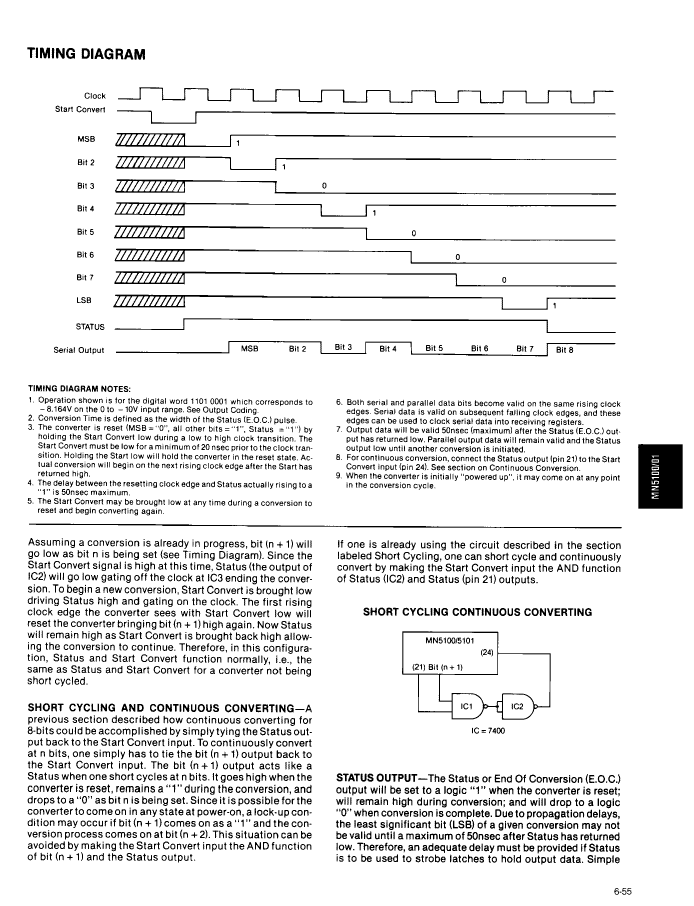

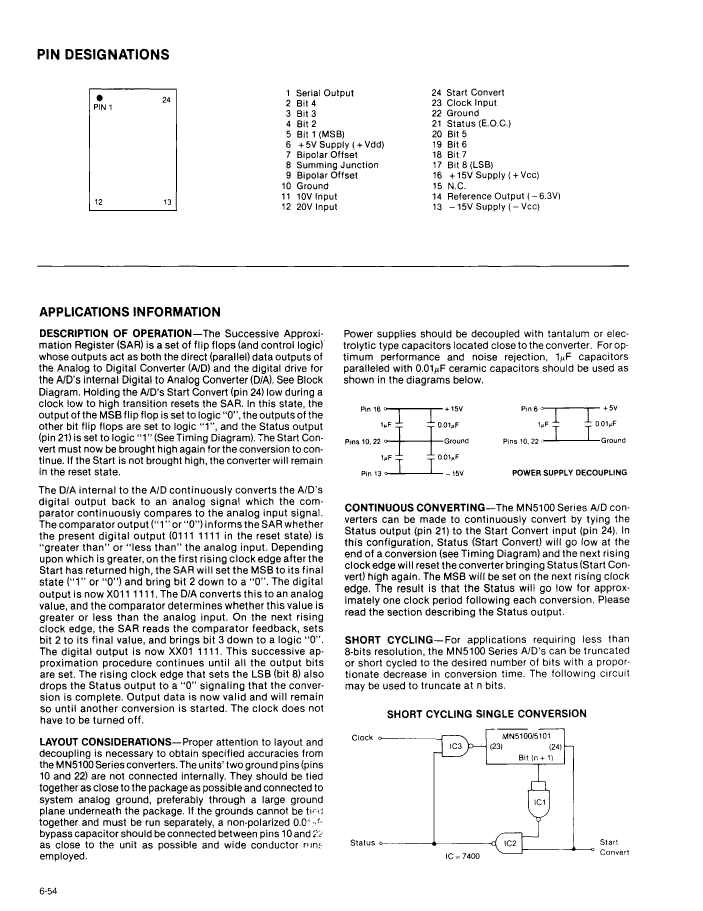

5962-9207301HXX Overview

ADC, Successive Approximation, 8-Bit, 1 Func, 2 Channel, Serial, Parallel, 8 Bits Access, Hybrid, DIP-24

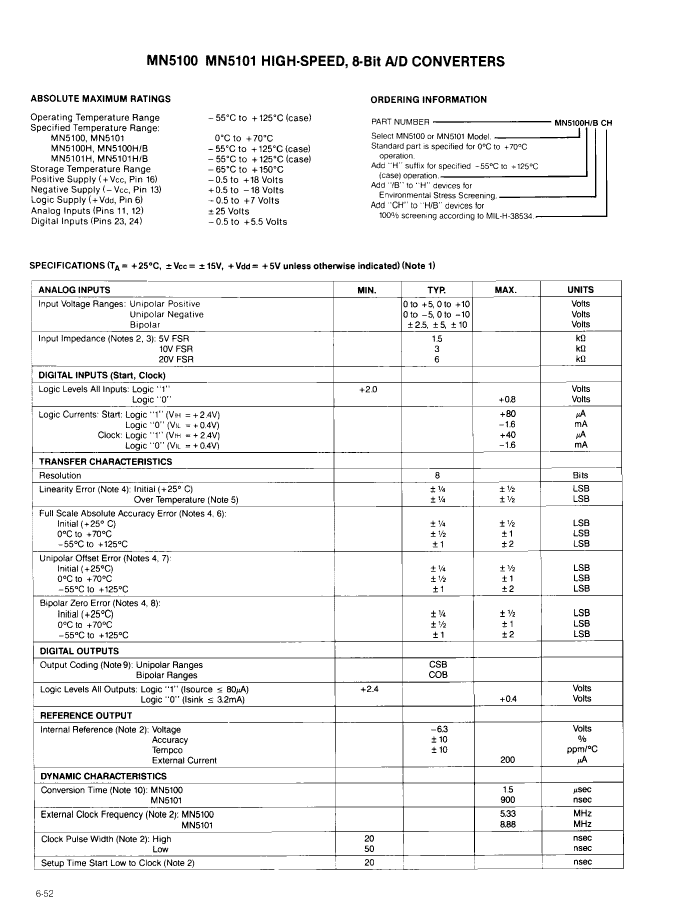

5962-9207301HXX Parametric

Parameter NameAttribute value
MakerSpectrum Microwave
Parts packaging codeDIP
package instructionDIP,
Contacts24
Reach Compliance Codeunknown
ECCN code3A001.A.2.C
Maximum analog input voltage10 V
Minimum analog input voltage-10 V
Maximum conversion time1.5 µs
Converter typeADC, SUCCESSIVE APPROXIMATION
JESD-30 codeR-XDIP-T24
length32.89 mm
Maximum linear error (EL)0.0195%
Nominal negative supply voltage-15 V
Number of analog input channels2
Number of digits8
Number of functions1
Number of terminals24
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output bit codeCOMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Output formatSERIAL, PARALLEL, 8 BITS
Package body materialUNSPECIFIED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
Filter levelMIL-PRF-38534 Class H
Maximum seat height5.207 mm
Nominal supply voltage15 V
surface mountNO
technologyHYBRID
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
width15.24 mm
Base Number Matches1

5962-9207301HXX Related Products

5962-9207301HXX 5962-9207302HXX
Description ADC, Successive Approximation, 8-Bit, 1 Func, 2 Channel, Serial, Parallel, 8 Bits Access, Hybrid, DIP-24 ADC, Successive Approximation, 8-Bit, 1 Func, 2 Channel, Serial, Parallel, 8 Bits Access, Hybrid, DIP-24
Maker Spectrum Microwave Spectrum Microwave
Parts packaging code DIP DIP
package instruction DIP, DIP,
Contacts 24 24
Reach Compliance Code unknown unknown
ECCN code 3A001.A.2.C 3A001.A.2.C
Maximum analog input voltage 10 V 10 V
Minimum analog input voltage -10 V -10 V
Maximum conversion time 1.5 µs 0.9 µs
Converter type ADC, SUCCESSIVE APPROXIMATION ADC, SUCCESSIVE APPROXIMATION
JESD-30 code R-XDIP-T24 R-XDIP-T24
length 32.89 mm 32.89 mm
Maximum linear error (EL) 0.0195% 0.0195%
Nominal negative supply voltage -15 V -15 V
Number of analog input channels 2 2
Number of digits 8 8
Number of functions 1 1
Number of terminals 24 24
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Output bit code COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Output format SERIAL, PARALLEL, 8 BITS SERIAL, PARALLEL, 8 BITS
Package body material UNSPECIFIED UNSPECIFIED
encapsulated code DIP DIP
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE
Certification status Not Qualified Not Qualified
Filter level MIL-PRF-38534 Class H MIL-PRF-38534 Class H
Maximum seat height 5.207 mm 5.207 mm
Nominal supply voltage 15 V 15 V
surface mount NO NO
technology HYBRID HYBRID
Temperature level MILITARY MILITARY
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm
Terminal location DUAL DUAL
width 15.24 mm 15.24 mm
Base Number Matches 1 1
