DP3ED32MS72RW5-60CT datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> DP3ED32MS72RW5-60CT

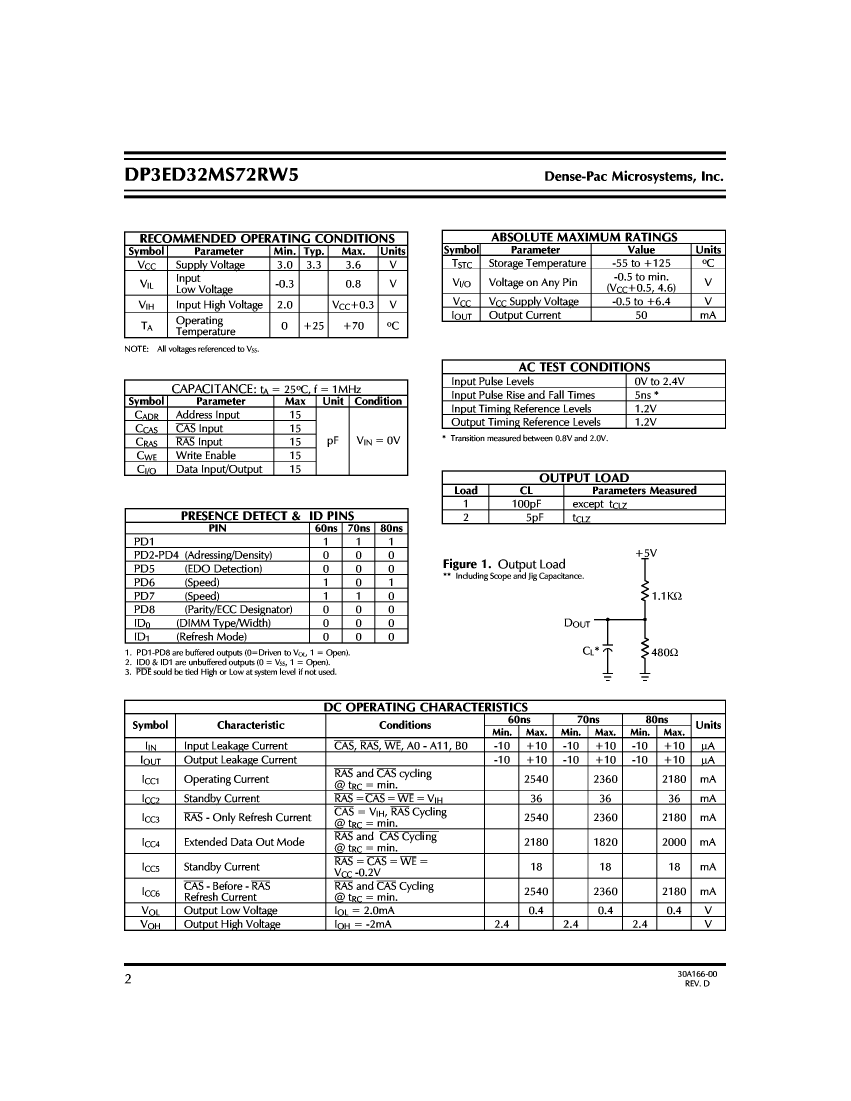

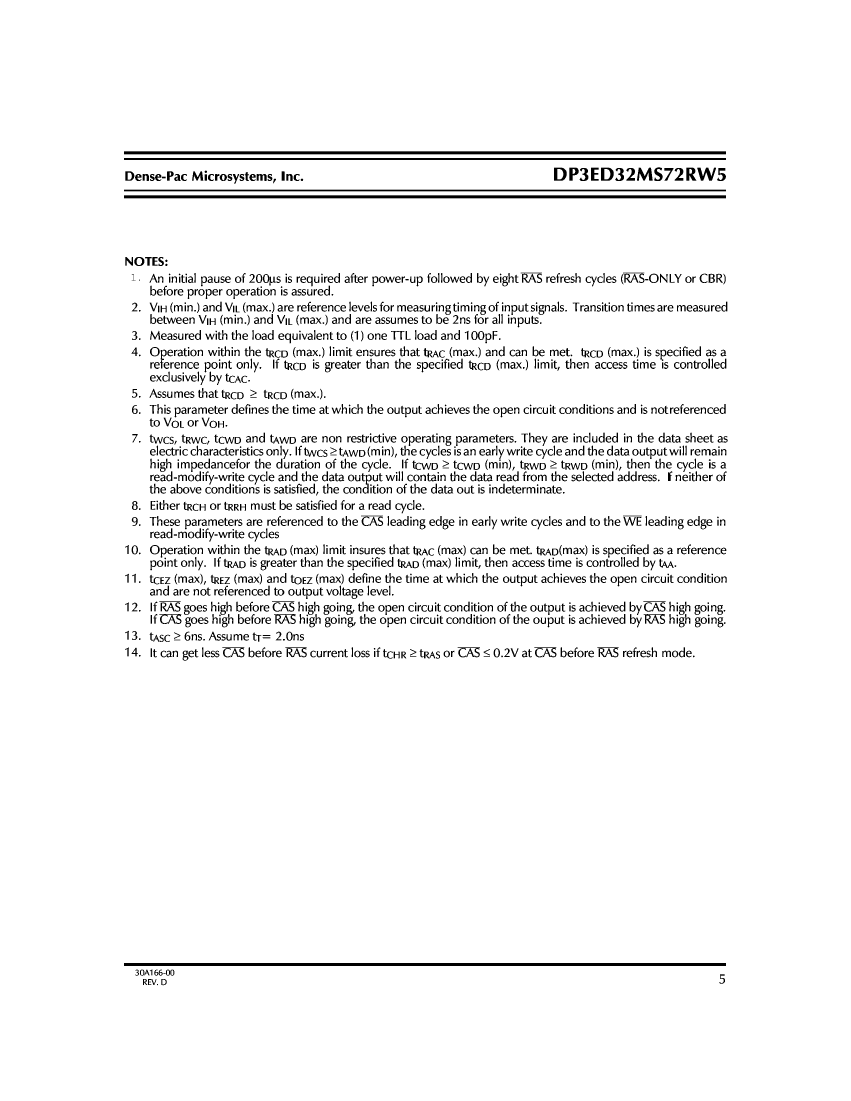

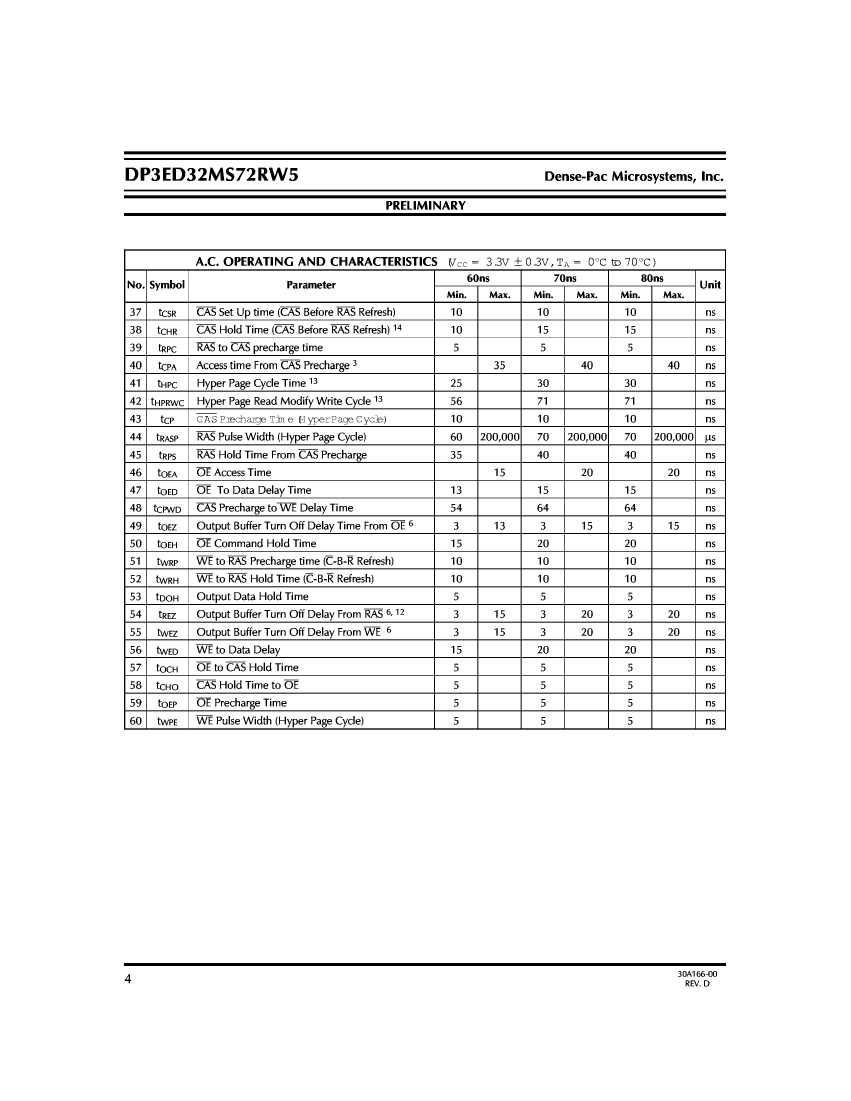

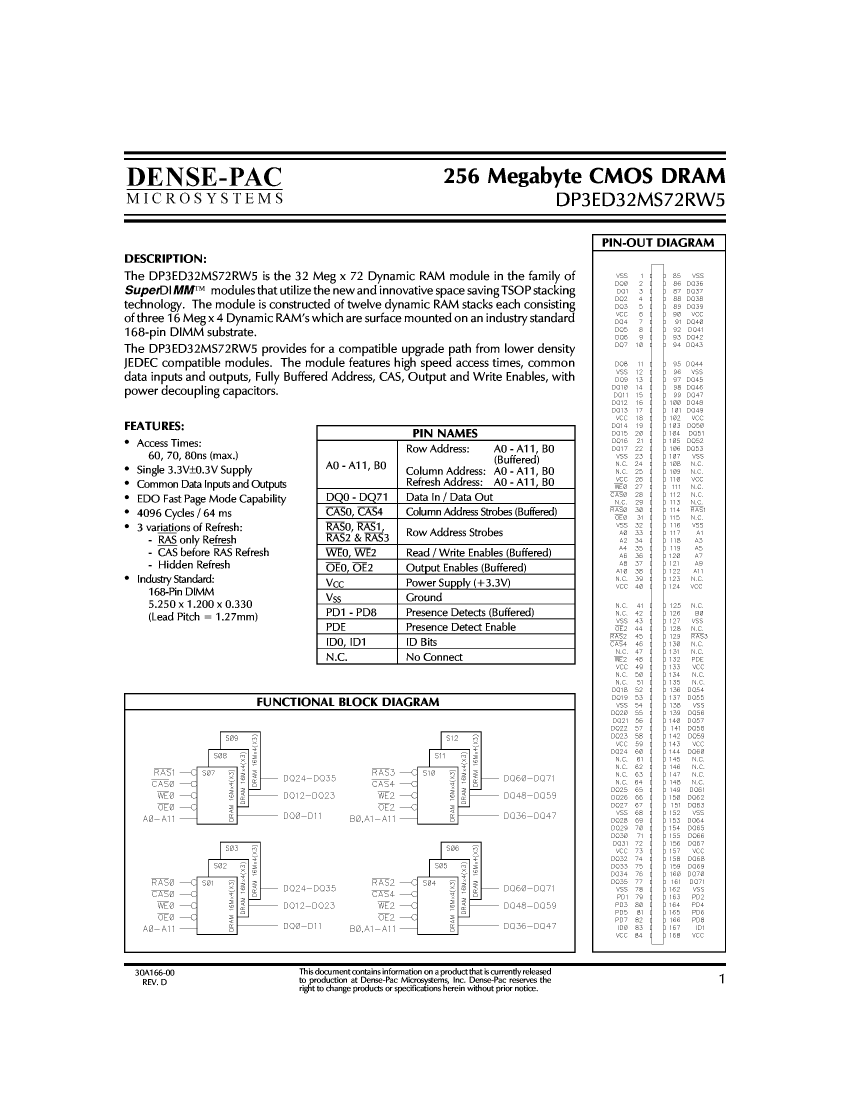

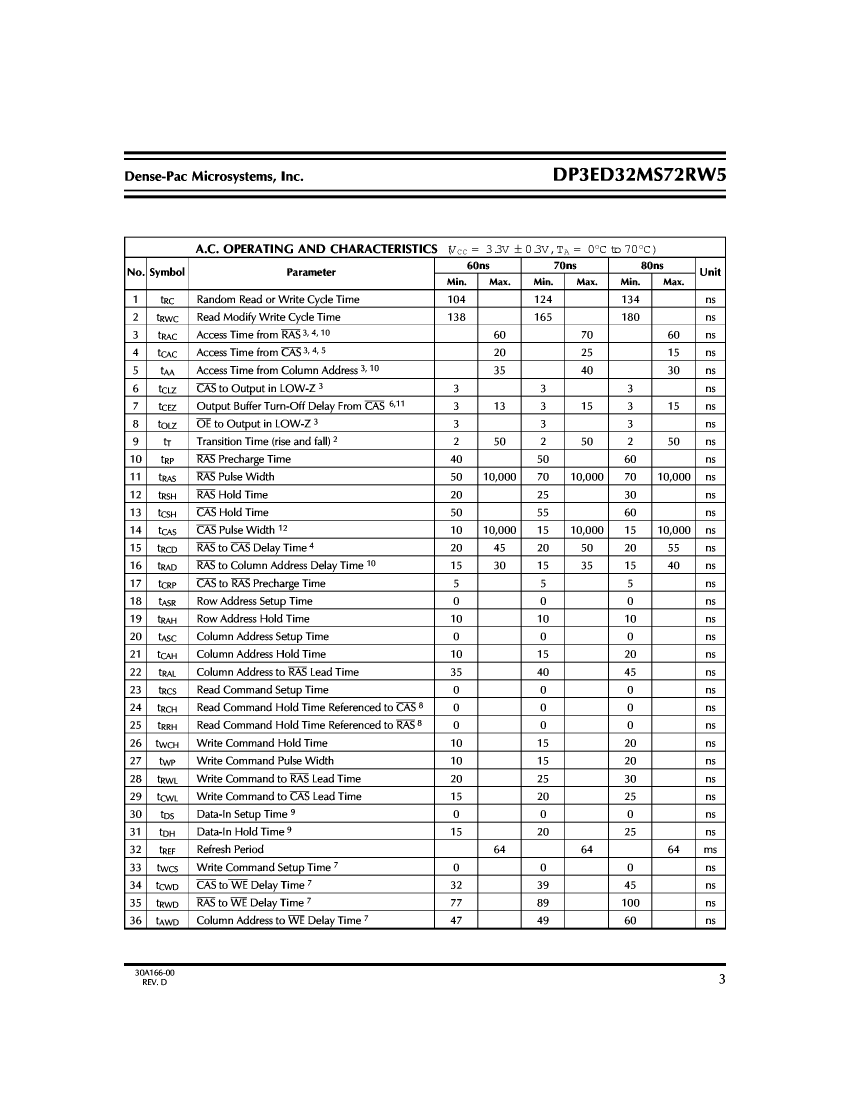

Preview

DP3ED32MS72RW5-60CT: DescriptionEDO DRAM Module, 32MX72, 60ns, CMOS, DIMM-168; Categorystorage storage; File Size443KB，16 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric Compare View All

DP3ED32MS72RW5-60CT Overview

EDO DRAM Module, 32MX72, 60ns, CMOS, DIMM-168

DP3ED32MS72RW5-60CT Parametric

Parameter Name	Attribute value
Maker	B&B Electronics Manufacturing Company
Parts packaging code	DIMM
package instruction	,
Contacts	168
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XDMA-N168
memory density	2415919104 bit
Memory IC Type	EDO DRAM MODULE
memory width	72
Number of functions	1
Number of ports	1
Number of terminals	168
word count	33554432 words
character code	32000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32MX72
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

DP3ED32MS72RW5-60CT Related Products

	DP3ED32MS72RW5-60CT	DP3ED32MS72RW5-60C	DP3ED32MS72RW5-80CT	DP3ED32MS72RW5-80C	DP3ED32MS72RW5-70C	DP3ED32MS72RW5-70CT
Description	EDO DRAM Module, 32MX72, 60ns, CMOS, DIMM-168	EDO DRAM Module, 32MX72, 60ns, CMOS, DIMM-168	EDO DRAM Module, 32MX72, 80ns, CMOS, DIMM-168	EDO DRAM Module, 32MX72, 80ns, CMOS, DIMM-168	EDO DRAM Module, 32MX72, 70ns, CMOS, DIMM-168	EDO DRAM Module, 32MX72, 70ns, CMOS, DIMM-168
Parts packaging code	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM
Contacts	168	168	168	168	168	168
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	60 ns	60 ns	80 ns	80 ns	70 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168
memory density	2415919104 bit	2415919104 bit	2415919104 bit	2415919104 bit	2415919104 bit	2415919104 bit
Memory IC Type	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE
memory width	72	72	72	72	72	72
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	168	168	168	168	168	168
word count	33554432 words	33554432 words	33554432 words	33554432 words	33554432 words	33554432 words
character code	32000000	32000000	32000000	32000000	32000000	32000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	32MX72	32MX72	32MX72	32MX72	32MX72	32MX72
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	-	-	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company
Base Number Matches	1	1	1	1	-	-
