1350-2-19-1: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size101KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1350-2-19-1 Overview

Board Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle

1350-2-19-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body width	0.087 inch
subject depth	0.039 inch
body length	0.95 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1350
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	19
Base Number Matches	1

Preview

Download Datasheet

View All

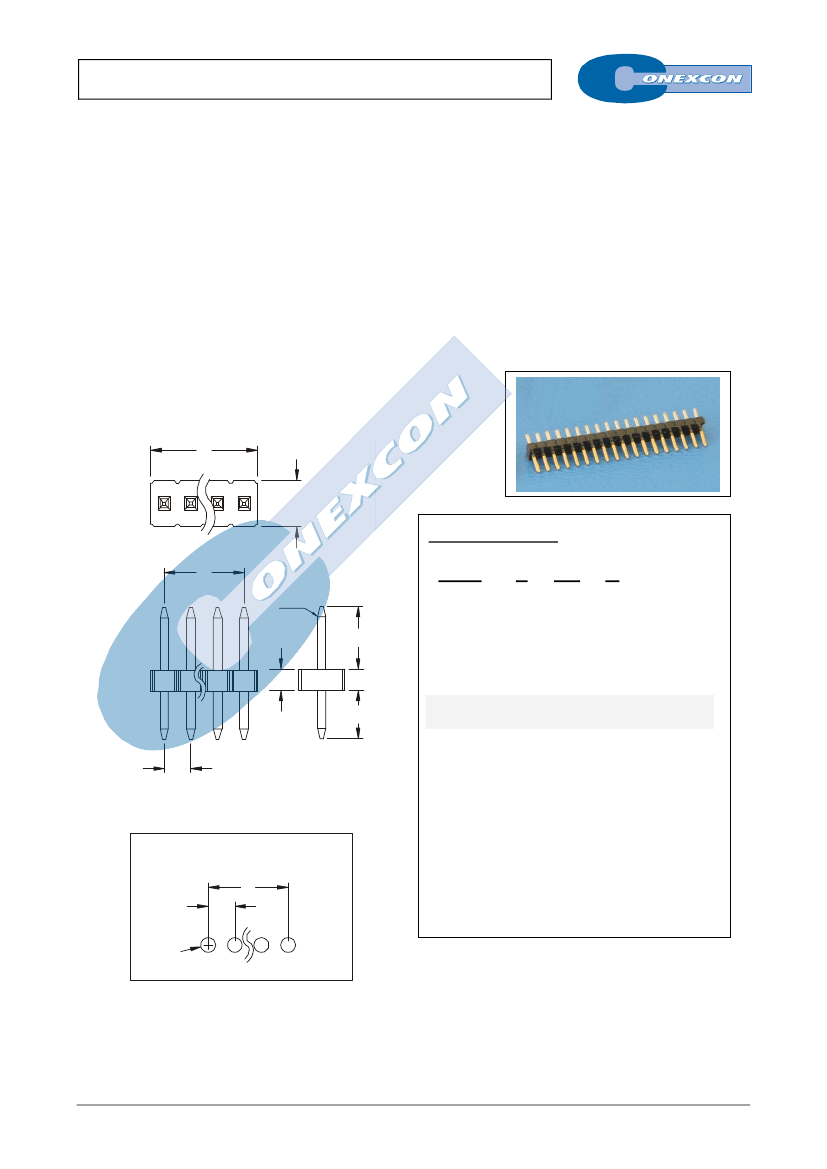

SINGLE ROW VERTICAL PIN HEADER

1350 SERIES.

1.27 mm (0.050”) pitch.

General Features

Electrical Features



Available in 2 through 33 circuits

Mates with sockets 1.27 mm. pitch 1376, 1377 and

1378 series

0,40 mm square pin with different plating

Available with different pin length

Contact sales office



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding Voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Insulator: Polyester LCP UL 94 V-0

Contact: Brass

Operating temperature: -40ºC to +105ºC

RoHS compliant

Mechanical features

Pin retention force to insulator: > 0,15 Kgf

Durability: 50 cycles

Dimension Information

B

2.20

Ordering Information:

A

0.40

H

1350 -

1

T-

2

XX- C-

3

4

1. Connector Series

2. (T) Contact Plating

1.00

D



T =

2.

Tin plated

T =

3.

Gold flash over nickel

Recommended Finish

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

1.27

3. (XX) Number of circuits



RECOMMENDED HOLE PATTERN

A

1.27

Available in 2 through 33 circuits

4. (C) Pin Dimensions



C =

1. D

= 2.30mm ;

H

= 3.00mm

C =

2. D

= 3.30mm ;

H

= 3.00mm

C =

3. D

= 4.20mm ;

H

= 3.00mm

C =

4. D

= 1.80mm ;

H

= 3.50mm

ø0.70

Dimensions:

(In mm.)

A

= 1.27 x (XX*-1)

B

= 1.27 x (XX*)

* XX

(Number of circuits)

A-XX

FULL LINE CATALOGUE
