54F538/BRA datasheet, PDF - EEWORLD Datasheet

54F538/BRA: DescriptionDecoder/Driver, F/FAST Series, Configurable Output, TTL, CDIP20; Categorylogic logic; File Size181KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

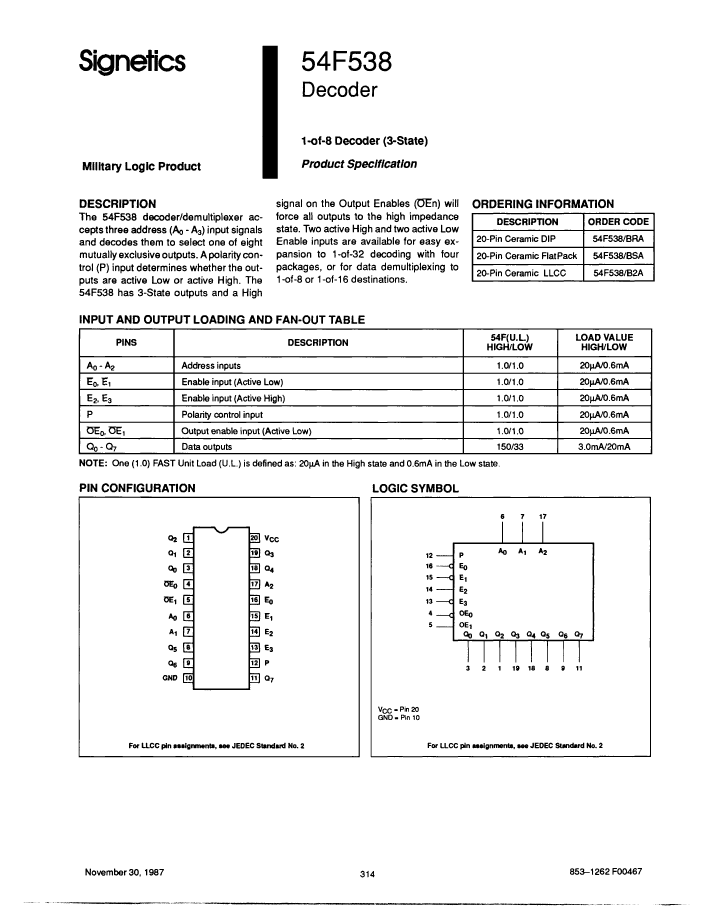

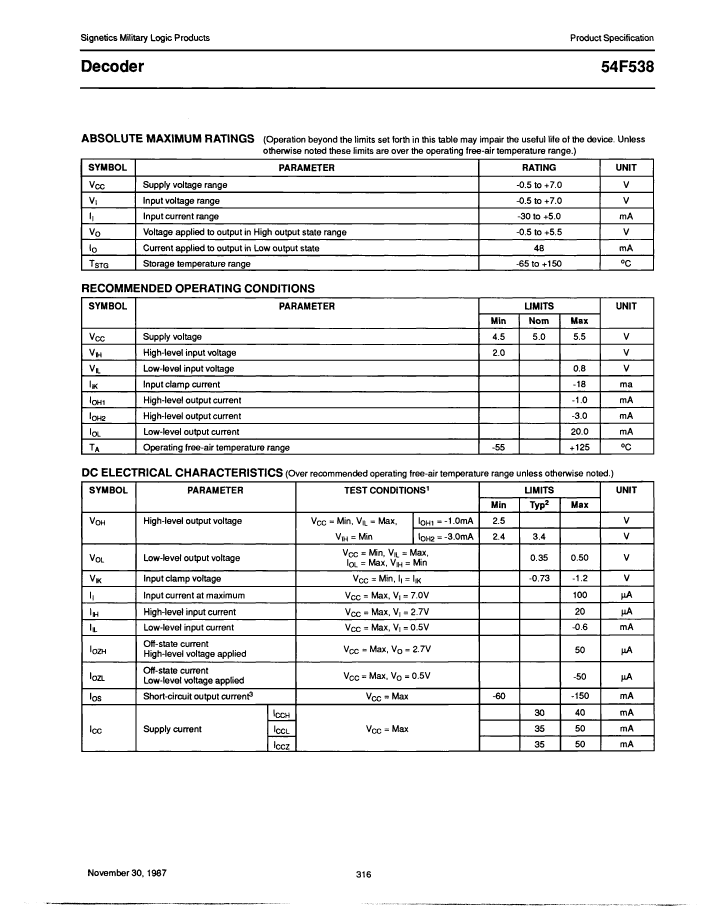

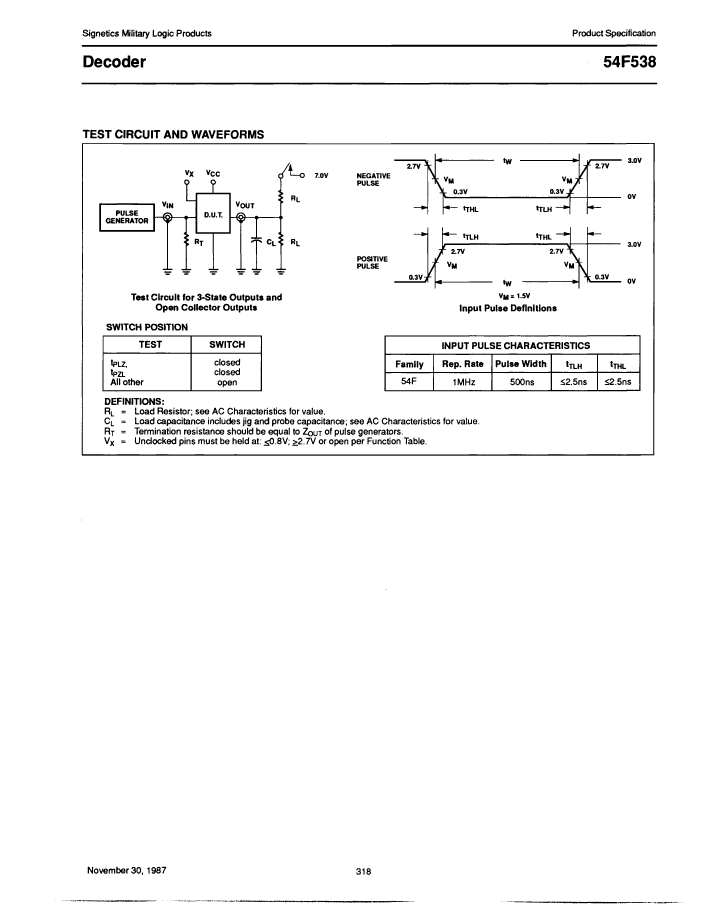

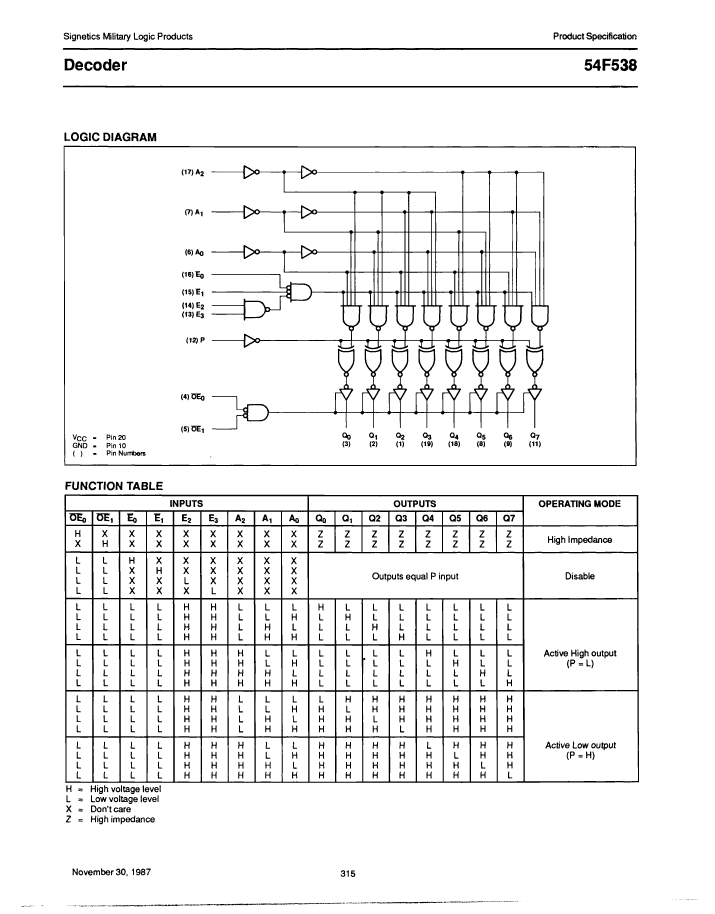

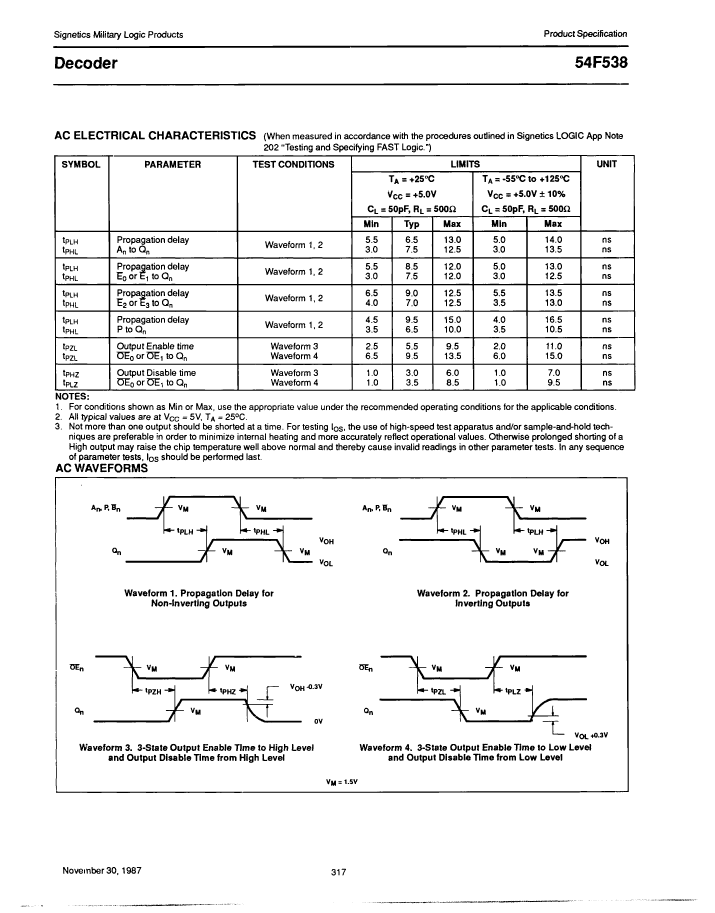

54F538/BRA Overview

Decoder/Driver, F/FAST Series, Configurable Output, TTL, CDIP20

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
series	F/FAST
JESD-30 code	R-CDIP-T20
Load capacitance (CL)	50 pF
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	CONFIGURABLE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	50 mA
propagation delay (tpd)	13.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	54F538/BRA	54F538/BSA	54F538/B2A
Description	Decoder/Driver, F/FAST Series, Configurable Output, TTL, CDIP20	Decoder/Driver, F/FAST Series, Configurable Output, TTL, CDFP20	Decoder/Driver, F/FAST Series, Configurable Output, TTL, CQCC20
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDIP-T20	R-CDFP-F20	S-CQCC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF
Number of functions	1	1	1
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	CONFIGURABLE	CONFIGURABLE	CONFIGURABLE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK	CHIP CARRIER
Maximum supply current (ICC)	50 mA	50 mA	50 mA
propagation delay (tpd)	13.5 ns	13.5 ns	13.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	NO LEAD
Terminal location	DUAL	DUAL	QUAD
Base Number Matches	1	1	1
Maker	-	YAGEO	YAGEO
