Part Number

Search

5-530825-2

Description
EDGE CONNECTOR,PCB MNT,RECEPT,50 CONTACTS,0.125 PITCH,WRAP POST TERMINAL
CategoryThe connector    The connector
File Size116KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

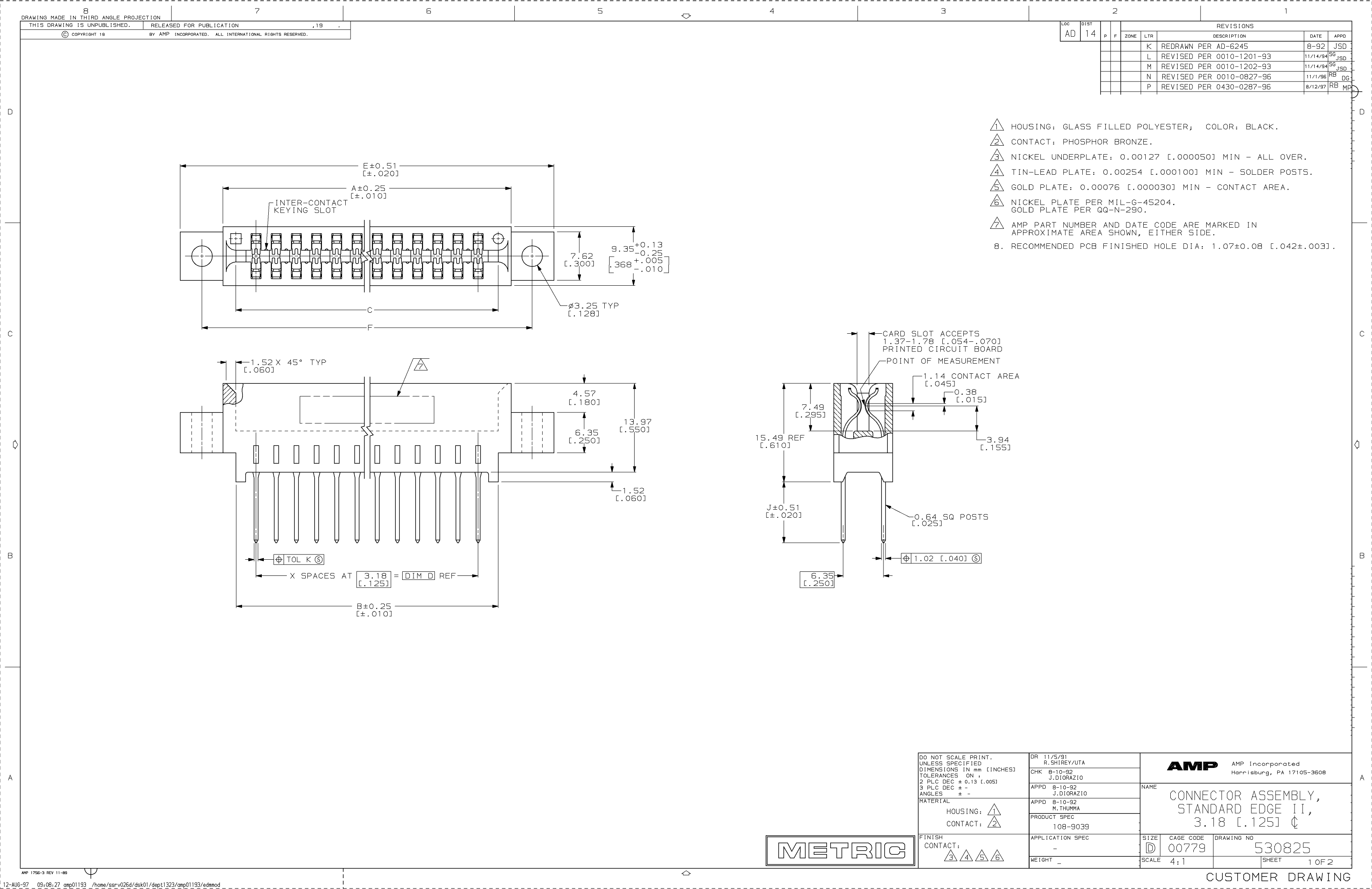

5-530825-2 Overview

EDGE CONNECTOR,PCB MNT,RECEPT,50 CONTACTS,0.125 PITCH,WRAP POST TERMINAL

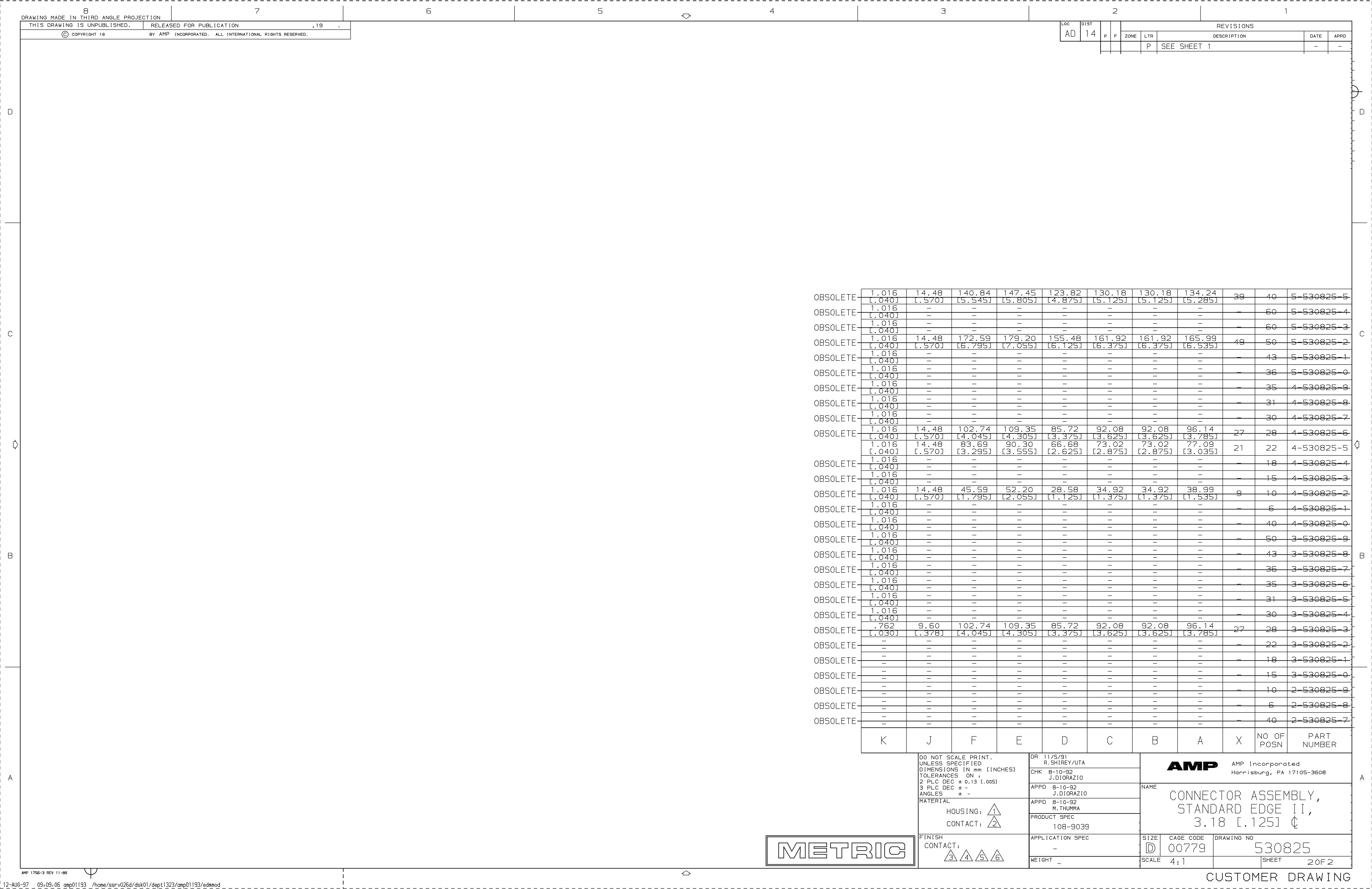

5-530825-2 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresNONE
Board mount optionsMOUNTING FLANGE
body width0.368 inch
subject depth0.61 inch
body length7.055 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage1500VAC V
maximum insertion force3.336 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Plug contact pitch0.125 inch
Match contact row spacing0.25 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing6.35 mm
Plating thickness30u inch
Rated current (signal)2.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.57 inch
Terminal pitch3.175 mm
Termination typeWIRE WRAP
Total number of contacts50
Evacuation force-minimum value.556 N
Base Number Matches1
