5962F9563003V9A datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 5962F9563003V9A

5962F9563003V9A: Description16-CHANNEL, SGL ENDED MULTIPLEXER, UUC26, DIE-26; CategoryAnalog mixed-signal IC The signal circuit; File Size410KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9563003V9A Overview

16-CHANNEL, SGL ENDED MULTIPLEXER, UUC26, DIE-26

5962F9563003V9A Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIE
package instruction	DIE, DIE OR CHIP
Contacts	26
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-XUUC-N26
Maximum negative supply voltage (Vsup)	-16 V
Negative supply voltage minimum (Vsup)	-15 V
Nominal Negative Supply Voltage (Vsup)	-15.5 V
Number of channels	16
Number of functions	1
Number of terminals	26
Nominal off-state isolation	45 dB
Maximum on-state resistance (Ron)	3000 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Package shape	RECTANGULAR
Package form	UNCASED CHIP
power supply	+-12 V
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum supply current (Isup)	0.5 mA
Maximum supply voltage (Vsup)	16 V
Minimum supply voltage (Vsup)	15 V
Nominal supply voltage (Vsup)	15.5 V
surface mount	YES
Maximum disconnect time	1500 ns
Maximum connection time	1500 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER
total dose	300k Rad(Si) V
Base Number Matches	1

Preview

Download Datasheet

View All

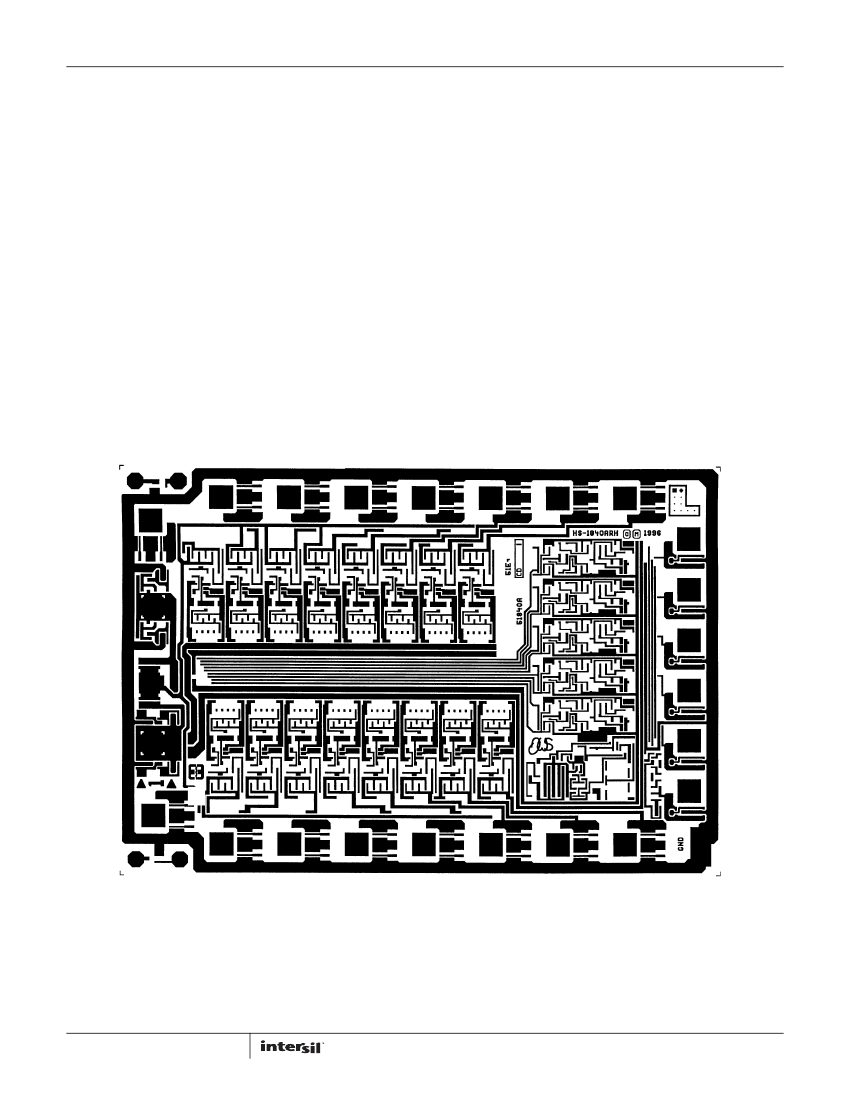

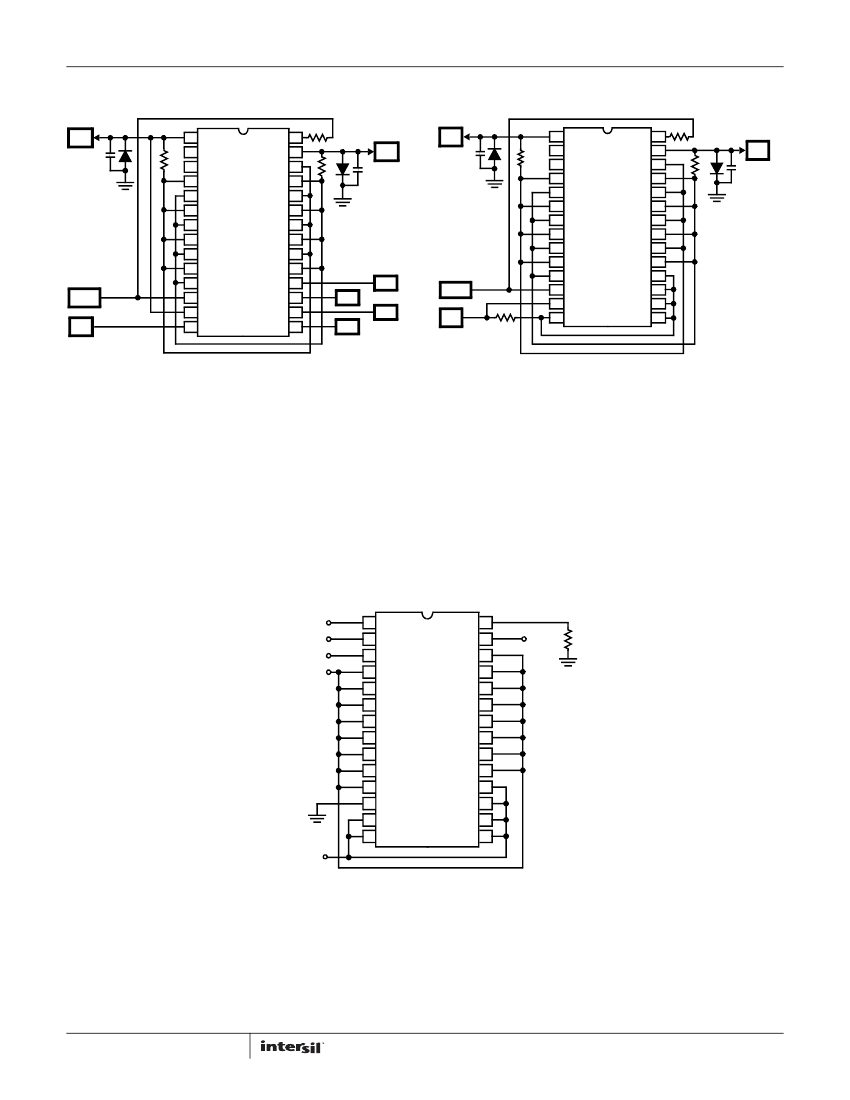

Rad-Hard 16 Channel BiCMOS Analog Multiplexer with

High-Z Analog Input Protection

HS-1840ARH, HS-1840AEH,

HS-1840BRH, HS-1840BEH

The HS-1840ARH, HS-1840AEH, HS-1840BRH and HS-1840BEH are

radiation hardened, monolithic 16 channel multiplexers constructed

with the Intersil Rad-Hard Silicon Gate, bonded wafer, Dielectric

Isolation process. They are designed to provide a high input impedance

to the analog source if device power fails (open), or the analog signal

voltage inadvertently exceeds the supply by up to

±35V,

regardless of

whether the device is powered on or off. Excellent for use in redundant

applications, since the secondary device can be operated in a standby

unpowered mode affording no additional power drain. More

significantly, a very high impedance exists between the active and

inactive devices preventing any interaction. One of sixteen channel

selections is controlled by a 4-bit binary address plus an Enable-Inhibit

input which conveniently controls the ON/OFF operation of several

multiplexers in a system. All inputs have electrostatic discharge

protection. The HS-1840ARH, HS-1840AEH, HS-1840BRH and

HS-1840BEH are processed and screened in full compliance with

MIL-PRF-38535 and QML standards. The devices are available in a

28 Ld SBDIP and a 28 Ld Ceramic Flatpack.

Specifications for Rad Hard QML devices are controlled by the

Defense Logistics Agency Land and Maritime (DLA). The SMD

numbers listed here must be used when ordering.

Detailed Electrical Specifications for these devices are contained in

SMD 5962-95630. A “hot-link” is provided on our homepage for

downloading:

http://www.landandmaritime.dla.mil/Downloads/MilSpec/Smd/956

30.pdf

Features

• Electrically Screened to SMD # 5962-95630

• QML Qualified per MIL-PRF-38535 Requirements

• Pin-to-Pin for Intersil’s HS-1840RH and HS-1840/883S

• Improved Radiation Performance

- Gamma Dose (γ) 3x10

RAD(Si)

• Improved r

DS(ON)

Linearity

• Improved Access Time 1.5µs (Max) Over Temp and Post Rad

• High Analog Input Impedance 500MΩ During Power Loss (Open)

•

±35V

Input Overvoltage Protection (Power On or Off)

• Dielectrically Isolated Device Islands

• Excellent in Hi-Rel Redundant Systems

• Break-Before-Make Switching

• No Latch-Up

April 6, 2012

FN4355.5

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries.

All other trademarks mentioned are the property of their respective owners.

5962F9563003V9A Related Products

	5962F9563003V9A	5962F9563003VYC	5962F9563003QYC	5962F9563004V9A	5962F9563004VXC	5962F9563004VYC	5962F9563003VXC	5962F9563003QXC	HS0-1840BRH-Q	5962F9563005VXC
Description	16-CHANNEL, SGL ENDED MULTIPLEXER, UUC26, DIE-26	16-CHANNEL, SGL ENDED MULTIPLEXER, CDFP28, CERAMIC, FLATPACK-28	16-CHANNEL, SGL ENDED MULTIPLEXER, CDFP28, CERAMIC, FLATPACK-28	16-CHANNEL, SGL ENDED MULTIPLEXER, UUC26, DIE-26	16-CHANNEL, SGL ENDED MULTIPLEXER, CDIP28, CERAMIC, SIDE BRAZED, DIP-28	16-CHANNEL, SGL ENDED MULTIPLEXER, CDFP28, CERAMIC, FLATPACK-28	16-CHANNEL, SGL ENDED MULTIPLEXER, CDIP28, CERAMIC, SIDE BRAZED, DIP-28	16-CHANNEL, SGL ENDED MULTIPLEXER, CDIP28, CERAMIC, SIDE BRAZED, DIP-28	16-CHANNEL, SGL ENDED MULTIPLEXER, UUC26, DIE-26	SGL ENDED MULTIPLEXER
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	DIE, DIE OR CHIP	DFP, FL28,.5	DFP, FL28,.5	DIE, DIE OR CHIP	DIP, DIP28,.6	DFP, FL28,.5	DIP, DIP28,.6	DIP, DIP28,.6	DIE,	DIP,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-XUUC-N26	R-CDFP-F28	R-CDFP-F28	R-XUUC-N26	R-CDIP-T28	R-CDFP-F28	R-CDIP-T28	R-CDIP-T28	R-XUUC-N26	R-CDIP-T28
Number of channels	16	16	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	26	28	28	26	28	28	28	28	26	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIE	DFP	DFP	DIE	DIP	DFP	DIP	DIP	DIE	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	FLATPACK	FLATPACK	UNCASED CHIP	IN-LINE	FLATPACK	IN-LINE	IN-LINE	UNCASED CHIP	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	NO	YES	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	BICMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT	FLAT	NO LEAD	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal location	UPPER	DUAL	DUAL	UPPER	DUAL	DUAL	DUAL	DUAL	UPPER	DUAL
Parts packaging code	DIE	DFP	DFP	DIE	DIP	DFP	DIP	DIP	DIE	-
Contacts	26	28	28	26	28	28	28	28	26	-
Maximum negative supply voltage (Vsup)	-16 V	-16 V	-16 V	-16 V	-16 V	-16 V	-16 V	-16 V	-16 V	-
Negative supply voltage minimum (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-
Nominal Negative Supply Voltage (Vsup)	-15.5 V	-15.5 V	-15.5 V	-15.5 V	-15.5 V	-15.5 V	-15.5 V	-15.5 V	-15.5 V	-
Maximum on-state resistance (Ron)	3000 Ω	3000 Ω	3000 Ω	3000 Ω	3000 Ω	3000 Ω	3000 Ω	3000 Ω	-	-
Encapsulate equivalent code	DIE OR CHIP	FL28,.5	FL28,.5	DIE OR CHIP	DIP28,.6	FL28,.5	DIP28,.6	DIP28,.6	-	-
power supply	+-12 V	+-12 V	+-12 V	+-15 V	+-15 V	+-15 V	+-12 V	+-12 V	-	-
Filter level	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	-	MIL-PRF-38535 Class V
Maximum supply current (Isup)	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	-	-
Maximum supply voltage (Vsup)	16 V	16 V	16 V	16 V	16 V	16 V	16 V	16 V	16 V	-
Minimum supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	-
Nominal supply voltage (Vsup)	15.5 V	15.5 V	15.5 V	15.5 V	15.5 V	15.5 V	15.5 V	15.5 V	15.5 V	-
Maximum connection time	1500 ns	1500 ns	1500 ns	1500 ns	1500 ns	1500 ns	1500 ns	1500 ns	-	-
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	-	-
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	-	300k Rad(Si) V
Base Number Matches	1	1	1	1	1	1	1	1	-	-
Is it Rohs certified?	-	conform to	conform to	-	conform to	conform to	conform to	conform to	conform to	-
Maximum seat height	-	2.92 mm	2.92 mm	-	5.92 mm	2.92 mm	5.92 mm	5.92 mm	-	5.92 mm
Terminal pitch	-	1.27 mm	1.27 mm	-	2.54 mm	1.27 mm	2.54 mm	2.54 mm	-	2.54 mm
width	-	12.445 mm	12.445 mm	-	15.24 mm	-	15.24 mm	15.24 mm	-	15.24 mm
