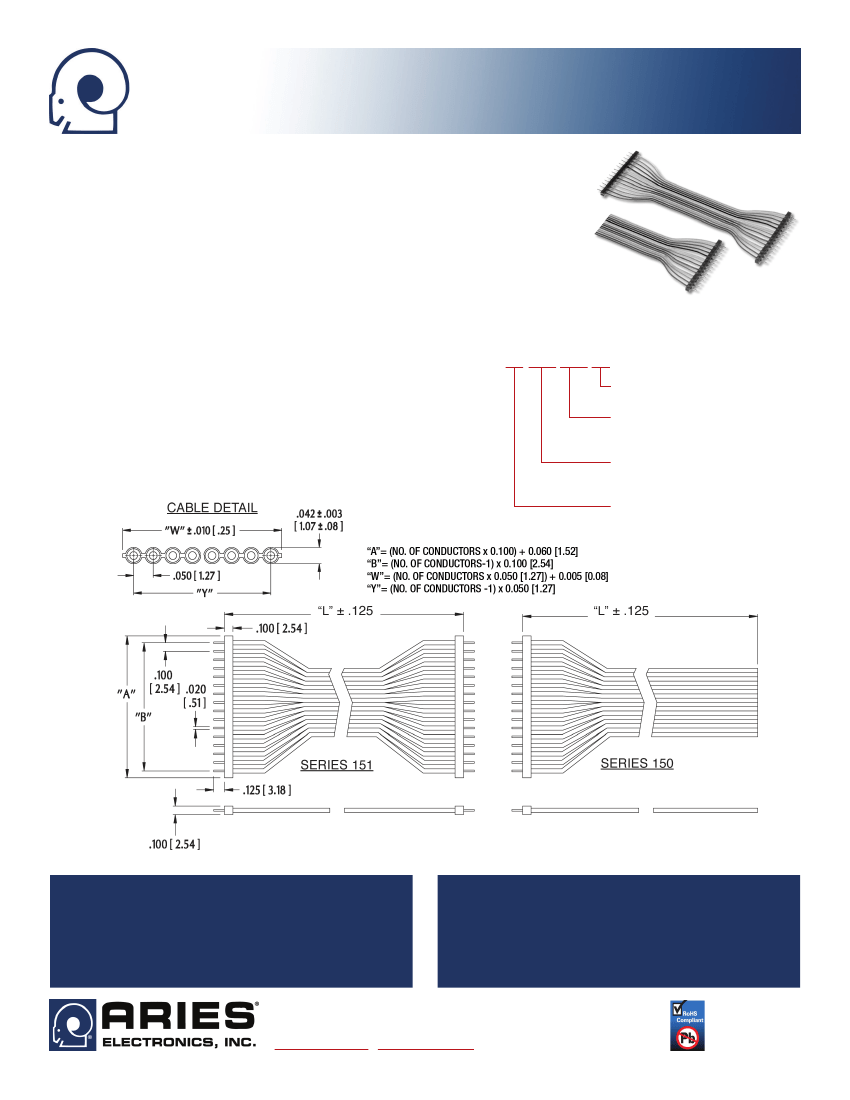

Series 150/151
Deci-Center
™
Jumpers
FEATURES
• Wide Array of DIP Jumper Configurations and Wiring Possibilities
• Pitch Bars Maintain 0.100 [2.54] Conductor Spacing
• Easy Identification and Tracing with 10-color Cable
GENERAL SPECIFICATIONS
•
PITCH BAR: black UL 94V-0 glass-filled 4/6 Nylon
•
CABLE INSULATION: UL Style 2697 Polyvinyl Chloride (PVC)
•
CABLE LAMINATE: self-extinguishing clear PVC
•
CONDUCTORS: 28-AWG, 7/36-strand, Tinned Cu per ASTM B 33
•
CONTACT CURRENT RATING: 1 amp at 10°C [50°F] above ambient
•
CABLE VOLTAGE RATING: 300V
ORDERING INFORMATION
•
CABLE TEMPERATURE RATING: -176°F [80°C]
XX-XXX XXX XX
•
CABLE CAPACITANCE: 13.0pF/ft. [42.7pF/meter] nominal at 1MHz
•
CROSSTALK: 10’ sample, 5ns Rise Time with 2 lines driven; Near end 4.7%; Far
Optional Ends
end 4.3% nominal
ST = Stripped & Tinned (Series 150)
•
INSULATION RESISTANCE:
1010Ω (10 ft. [3 meters] min.)
Series
150 = Single-ended
151 = Double-ended
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE: 0.033 ±0.002 [0.86 ±0.05] dia.
Length “L” (inches)
Series 150 = 0.300 [7.62] (min)
Series 151 = 0.600 [15.24] (min)
No. of Conductors
(up to 24)
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
11010
Rev. 5.1
1 of 1
