1145-2-12-1: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

1145-2-12-1 Overview

Board Connector, 12 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking

1145-2-12-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.091 inch
subject depth	0.228 inch
body length	0.667 inch
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Durability	25 Cycles
Insulation resistance	100000000 Ω
insulator material	NYLON
Manufacturer's serial number	1145
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

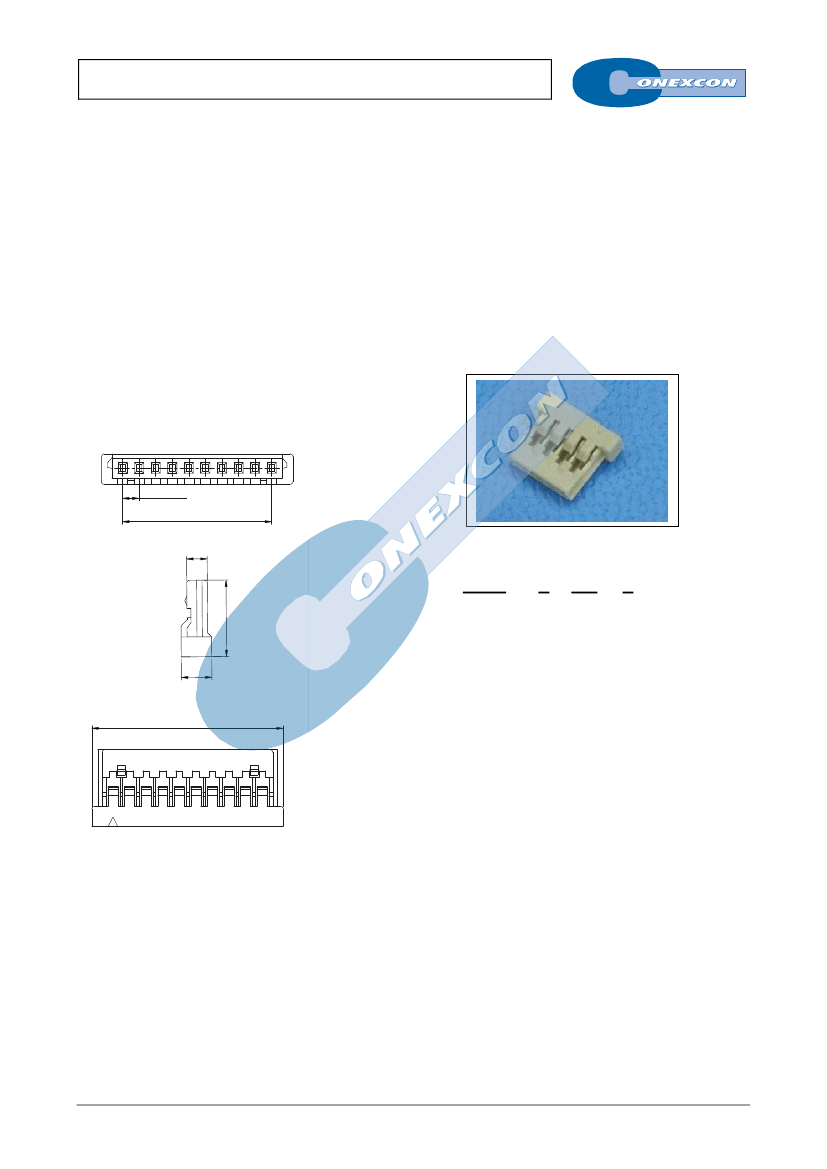

SINGLE ROW CRIMP CONNECTOR HOUSING

1145 SERIES.

1.25 mm. (0.049”) Pitch.

General Features

Electrical Features







Available in 2 through 15 circuits

Mates 1.25 mm pitch header 1147 series

Latch housing secure terminal in housing and provide

extra terminal retention

Use crimp terminal 1146



Voltage rating: < 100 V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 250 V AC/minute

Insulation resistance: >100 MΩ

Materials

Mechanical Features

Durability: 25 cycles



Insulator:

Nylon 6/6 UL 94 V-0

Operating temperature. -25ºC to +85ºC

RoHS compliant

Dimension Information

1.25±0.10

A±0.20

1.55±0.25

1145 -

5.80±0.25

2.30±0.25

2- XX- 1

1. Connector Serie

3. (XX) Number Of Contacts



Available in

2 through 15 circuits

B±0.20



Dimensions:

= 1.00 x (XX-1)

= 1.00 x (XX)+1.95

B±0 20

A-6

FULL LINE CATALOGUE

1145-2-12-1 Related Products

	1145-2-12-1	1145-2071	1145-2061	1145-2051
Description	Board Connector, 12 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking	Board Connector, 7 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking	Board Connector, 6 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking	Board Connector, 5 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknow
body width	0.091 inch	0.091 inch	0.091 inch	0.091 inch
subject depth	0.228 inch	0.228 inch	0.228 inch	0.228 inch
body length	0.667 inch	0.421 inch	0.372 inch	0.323 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	1145	1145	1145	1145
Plug contact pitch	0.049 inch	0.049 inch	0.049 inch	0.049 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	12	7	6	5
Maker	Conexcon Group	Conexcon Group	-	Conexcon Group
Base Number Matches	1	1	1	-
