74F273SDCQR datasheet, PDF - EEWORLD Datasheet

74F273SDCQR: DescriptionD Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CDIP20, SLIM, CERAMIC, DIP-20; Categorylogic logic; File Size65KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

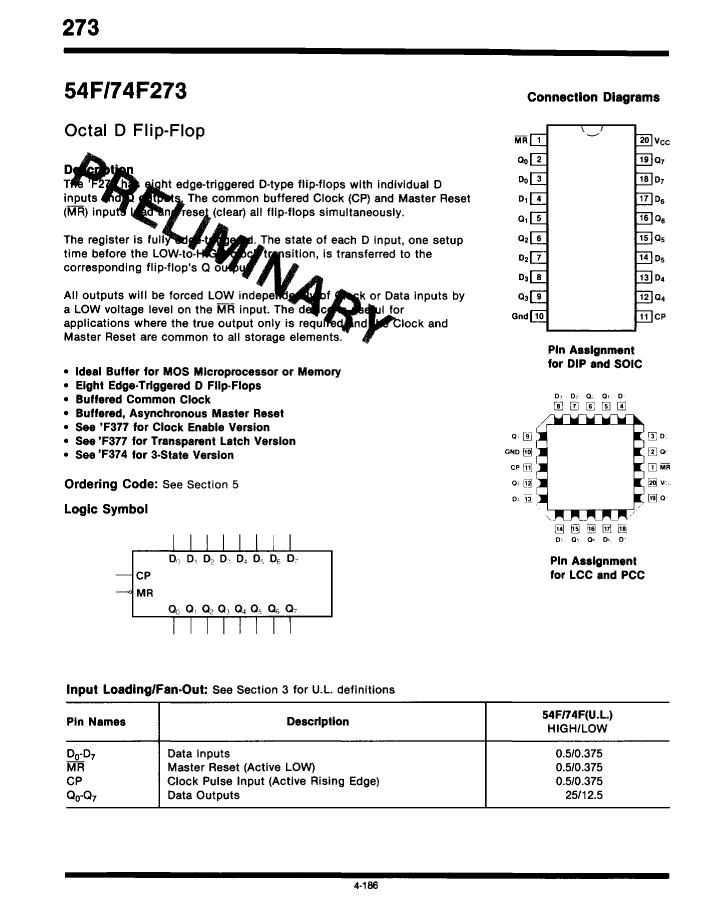

74F273SDCQR Overview

D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CDIP20, SLIM, CERAMIC, DIP-20

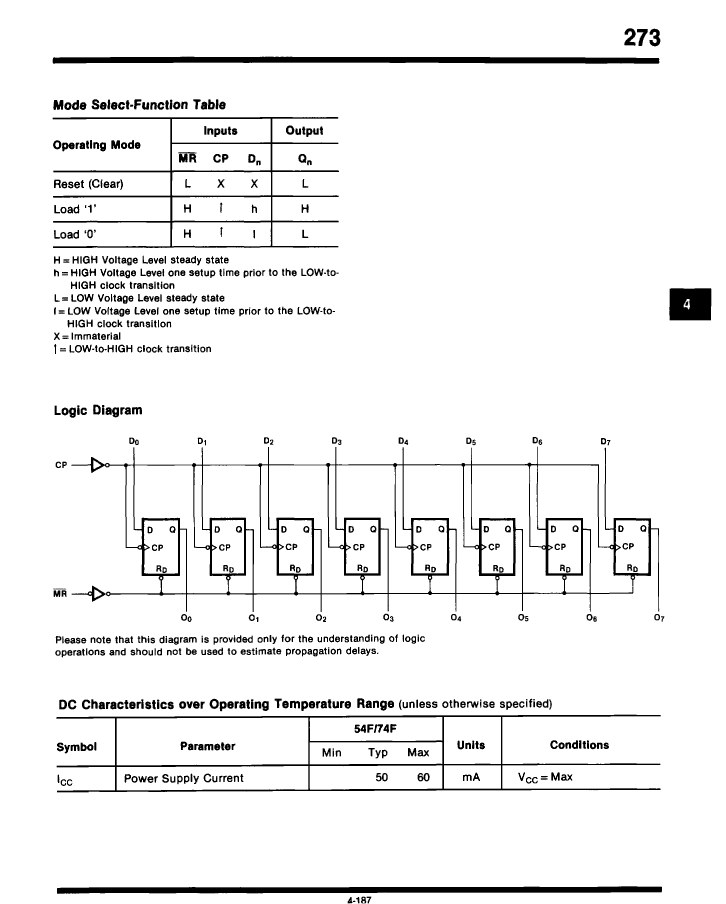

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	SLIM, CERAMIC, DIP-20
Contacts	20
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-CDIP-T20
Logic integrated circuit type	D FLIP-FLOP
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

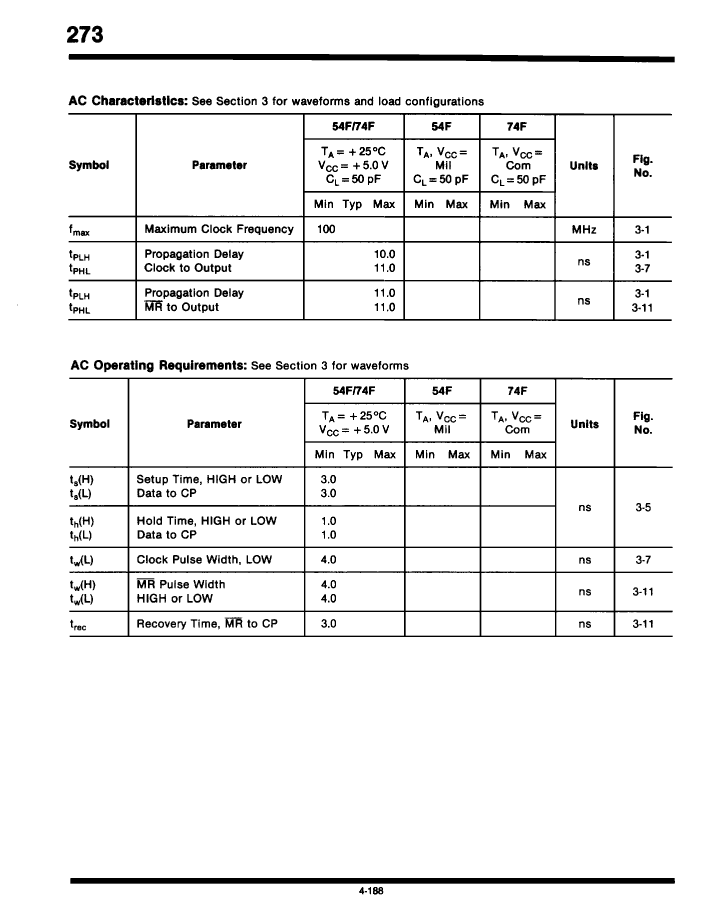

propagation delay (tpd)	11 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	100 MHz
Base Number Matches	1
