92812-008LF datasheet, PDF - EEWORLD Datasheet

92812-008LF: DescriptionBoard Stacking Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Beige Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size207KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

92812-008LF Overview

Board Stacking Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Beige Insulator, Receptacle, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1037743322
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.5
Other features	ROHS COMPLIANT, TUBE PKG
body width	0.157 inch
subject depth	0.197 inch
body length	0.315 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	GLASS FILLED POLYCARBONATE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	15u inch
Rated current (signal)	2 A
Guideline	UL, CSA
Terminal length	0.102 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

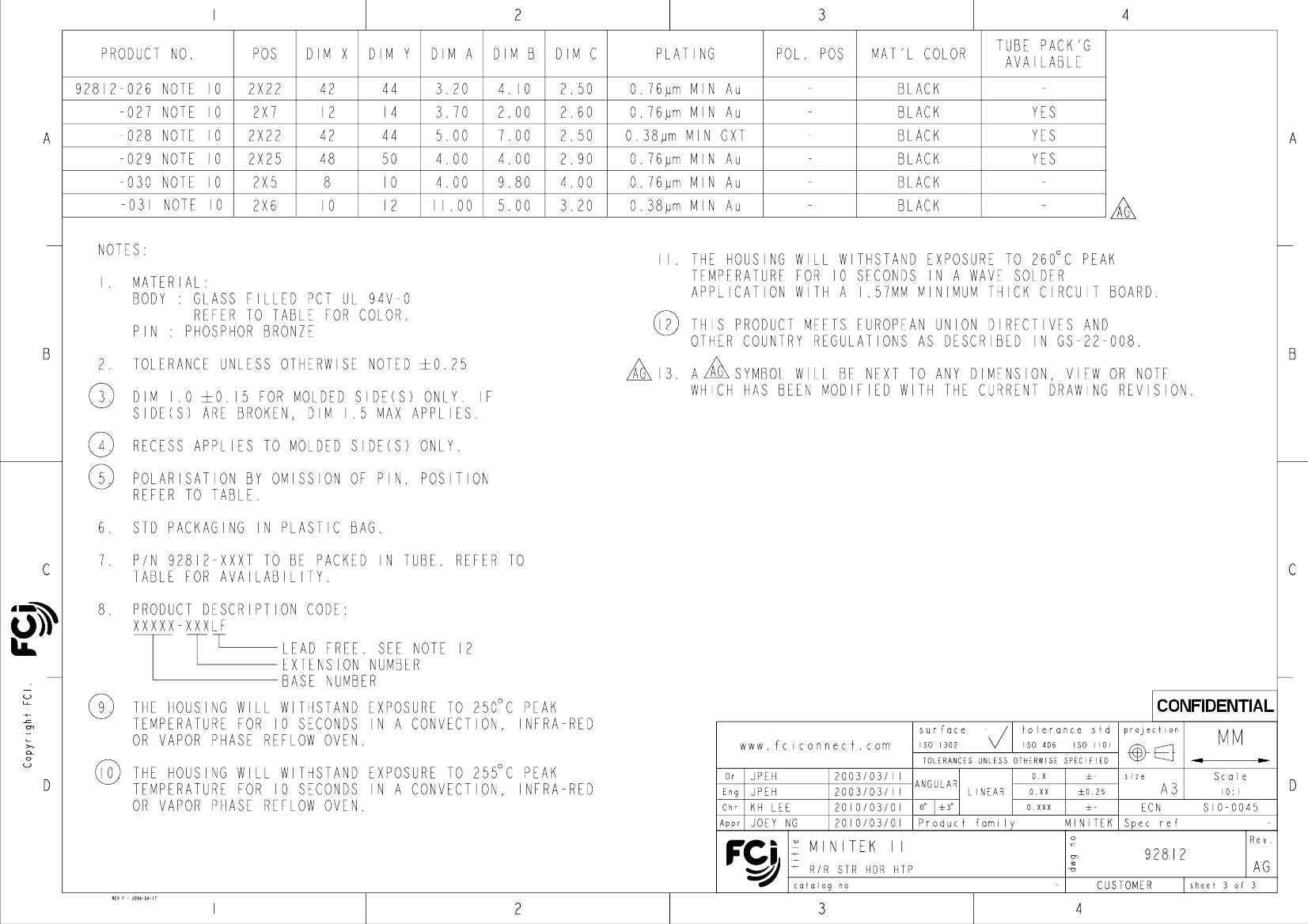

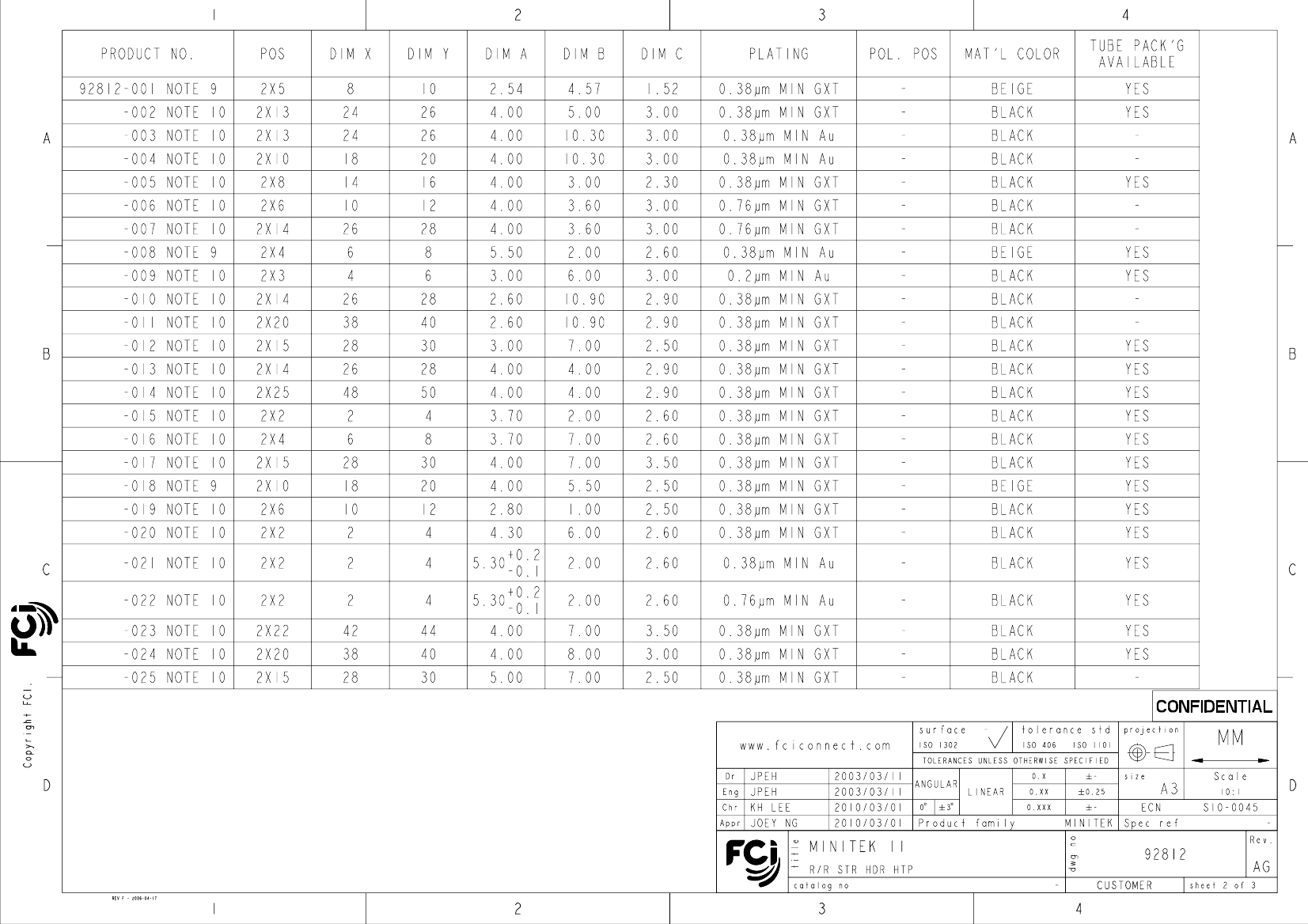

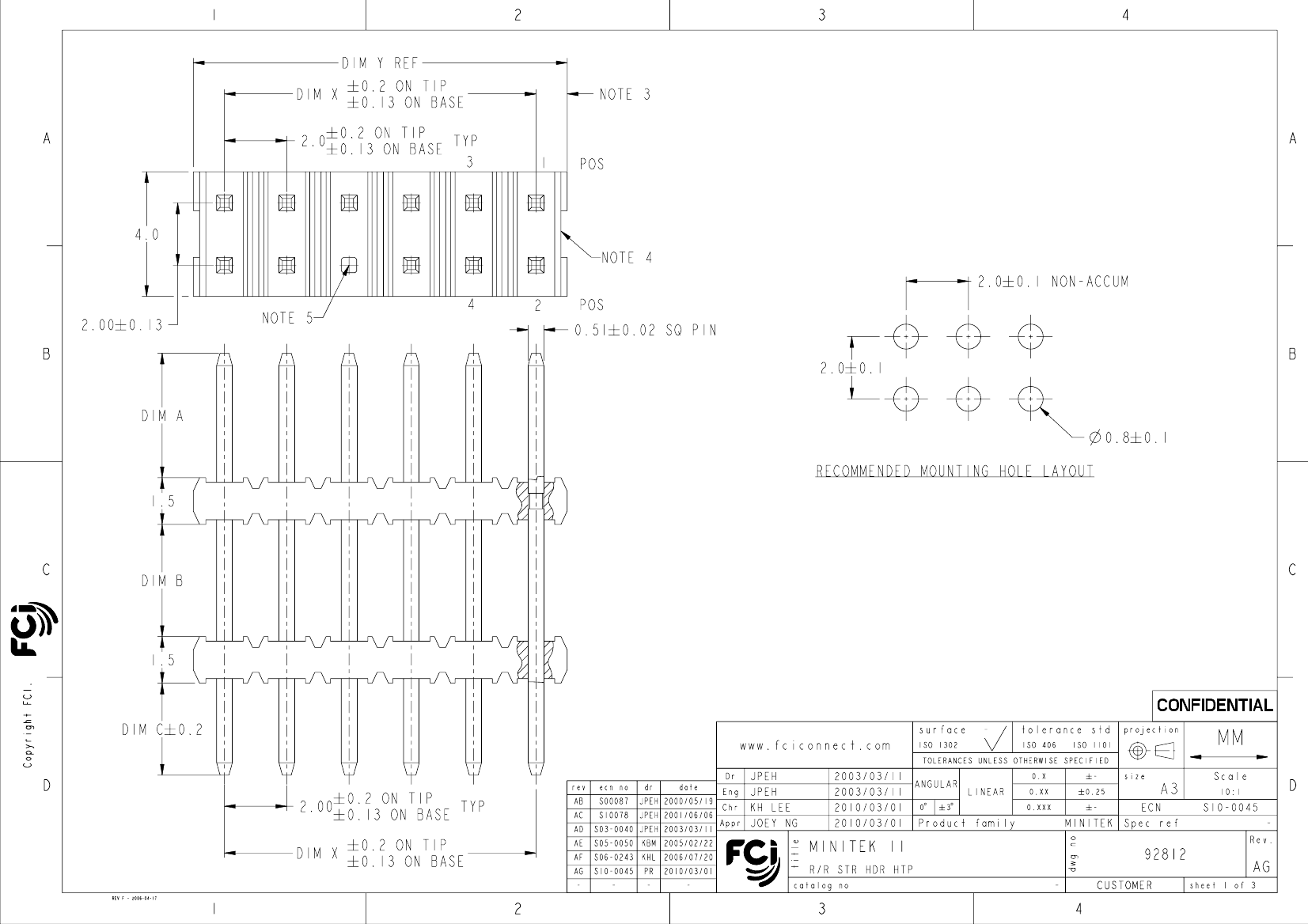

PDM: Rev:AG

STATUS:

Released

Printed: Mar 04, 2010
