DATASHEET
ISL5120, ISL5121, ISL5122, ISL5123
Low Voltage, Single Supply, Dual SPST, SPDT Analog Switches
The Intersil
ISL5120, ISL5121, ISL5122, ISL5123
devices are
precision, bidirectional, dual analog switches designed to
operate from a single +2.7V to +12V supply. Targeted
applications include battery powered equipment that benefit
from the devices’ low power consumption (5µW), low leakage
currents (100pA max), and fast switching speeds (t
ON
= 28ns,
t
OFF
= 20ns). Cell phones, for example, often face ASIC
functionality limitations. The number of analog input or GPIO
pins may be limited and digital geometries are not well suited to
analog switch performance. This family of parts may be used to
“mux-in” additional functionality while reducing ASIC design
risk. Some of the smallest packages are available, alleviating
board space limitations and making Intersil’s newest line of
low-voltage switches an ideal solution.
The ISL5120, ISL5121, ISL5122 are dual
single-pole/single-throw (SPST) devices. The ISL5120 has two
normally open (NO) switches; the ISL5121 has two normally
closed (NC) switches; the ISL5122 has one NO and one NC
switch and can be used as an SPDT. The ISL5123 is a
committed SPDT, which is perfect for use in 2-to-1 multiplexer
applications.
TABLE 1. FEATURES AT A GLANCE
ISL5120
Number of
Switches
SW 1/SW 2
3.3V R
ON
3.3V t
ON
/t
OFF
5V R
ON
5V t
ON
/t
OFF
12V R
ON
12V t
ON
/t
OFF
Packages
2
NO/NO
32Ω
40ns /20ns
19Ω
ISL5121
2
NC/NC
32Ω
40ns
/20ns
19Ω
ISL5122
2
NO/NC
32Ω
40ns
/20ns
19Ω
ISL5123
1
SPDT
32Ω
40ns /20ns
19Ω
FN6022
Rev 8.00
August 12, 2015
Features
• Improved (lower r
ON
, faster switching), pin compatible
replacements for ISL84541, ISL84542, ISL84543,
ISL84544
• Fully specified at 3.3V, 5V, and 12V supplies
• ON resistance (r
ON
) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Ω
• r
ON
matching between channels . . . . . . . . . . . . . . . . . . . . . . .
≤1Ω
• Low charge injection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5pC (Max)
• Single supply operation . . . . . . . . . . . . . . . . . . . . . . +2.7V to +12V
• Low power consumption (P
D
) . . . . . . . . . . . . . . . . . . . . . . . . <5µW
• Low leakage current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10nA
• Fast switching action
- t
ON
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28ns
- t
OFF
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20ns
• Guaranteed break-before-make (ISL5122/ISL5123 only)
• Minimum 2000V ESD protection per method 3015.7
• TTL, CMOS compatible
• Available in SOT-23 packaging
• Pb-free (RoHS compliant)
Applications
• Battery powered, handheld and portable equipment
- Cellular/mobile phones
- Pagers
- Laptops, notebooks, palmtops
• Communications systems
- Military radios
- PBX, PABX
• Test equipment
- Ultrasound
- Electrocardiograph
• Heads-up displays
• Audio and video switching
• Various circuits
- +3V/+5V DACs and ADCs
- Sample and hold circuits
- Digital filters
- Operational amplifier gain switching networks
- High frequency analog switching
- High speed multiplexing
- Integrator reset circuits
28ns/2y0ns 28ns/20ns 28ns/20ns 28ns/20ns
11Ω
25ns/17ns
8 Ld SOIC,
8 Ld SOT-23
11Ω
11Ω
11Ω
25ns/17ns 25ns/17ns 25ns/17ns
8 Ld SOIC,
8 Ld SOT-23
8 Ld SOIC,
6 Ld SOT-23
Related Literature
•
TB363
, “Guidelines for Handling and Processing Moisture
Sensitive Surface Mount Devices (SMDs)”
FN6022 Rev 8.00
August 12, 2015
Page 1 of 16
ISL5120, ISL5121, ISL5122, ISL5123

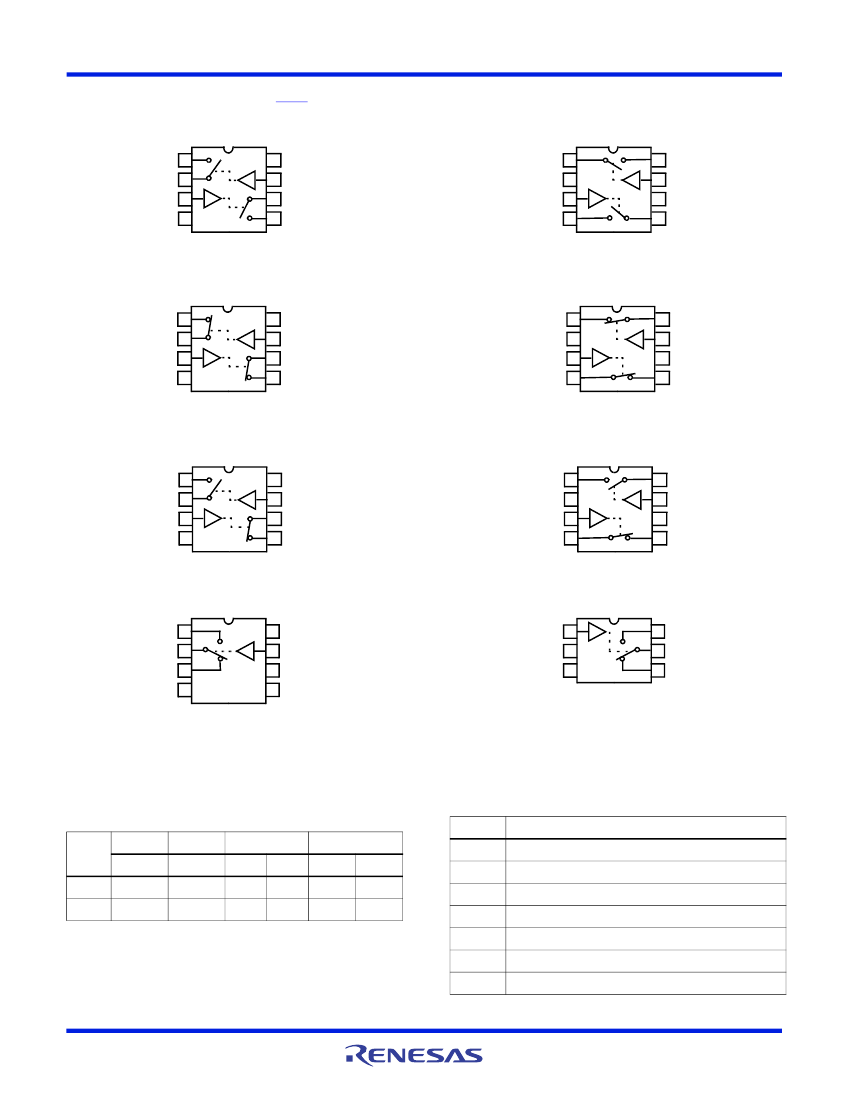

Pin Configurations
ISL5120 (SOIC)
TOP VIEW
NO
1
1
COM
1
2
IN
2
3
GND
4
(Note
1)
ISL5120 (SOT-23)
TOP VIEW
NO
1
1
V+
2
IN
2
3
COM
2
4
8
COM
1
7
IN
1
6
GND
5
NO
2
8
V+
7
IN
1
6
COM
2
5
NO
2
ISL5121 (SOIC)
TOP VIEW
NC
1
1
COM
1
2
IN
2
3
GND
4
8
V+
7
IN
1
6
COM
2
5
NC
2
ISL5121 (SOT-23)
TOP VIEW
NC
1
1
V+
2
IN
2
3
COM
2
4
8
COM
1
7
IN
1
6
GND
5
NC
2
ISL5122 (SOIC)
TOP VIEW
NO
1
1
COM
1
2
IN
2
3
GND
4
8
V+
7
IN
1
6
COM
2
5
NC
2
ISL5122 (SOT-23)
TOP VIEW
NO
1
1
V+
2
IN
2
3
COM
2
4
8
COM
1
7
IN
1
6
GND
5
NC
2
ISL5123 (SOIC)
TOP VIEW
NO
1
COM
2
NC
3
GND
4
8
V+
7
IN
6
N.C.
5
N.C.
ISL5123 (SOT-23)
TOP VIEW
IN
1
V+
2
GND
3
6
NO
5
COM
4
NC
NOTE:
1. Switches Shown for Logic “0” Input.
Truth Table
ISL5120
LOGIC
0
1
SW 1,2
OFF
ON
ISL5121
SW 1,2
ON
OFF
ISL5122
SW 1
OFF
ON
SW 2
ON
OFF
ISL5123
PIN NC
ON
OFF
PIN NO
OFF
ON
Pin Descriptions
PIN
V+
GND
IN
COM
NO
NC
N.C.
FUNCTION
System Power Supply Input (+2.7V to +12V)
Ground Connection
Digital Control Input
Analog Switch Common Pin
Analog Switch Normally Open Pin
Analog Switch Normally Closed Pin
No Internal Connection
NOTE: Logic “0”
0.8V.
Logic “1”
2.4V.
FN6022 Rev 8.00
August 12, 2015
Page 2 of 16
ISL5120, ISL5121, ISL5122, ISL5123
Ordering Information
PART NUMBER
(Notes
3, 4)
ISL5120IHZ-T (Note
2)
ISL5121CBZ (No longer available, recommended replacement: ISL5120IHZ-T)
ISL5121CBZ-T (Note
2)
(No longer available, recommended replacement: ISL5120IHZ-T)
ISL5121IBZ (No longer available, recommended replacement: ISL5120IHZ-T)
ISL5121IBZ-T(Note
2)
(No longer available, recommended replacement: ISL5120IHZ-T)
ISL5121IHZ-T (Note
2)
(No longer available, recommended replacement: ISL5120IHZ-T)
ISL5122CBZ (No longer available, recommended replacement: ISL5120IHZ-T)
ISL5122CBZ-T (Note
2)
(No longer available, recommended replacement: ISL5120IHZ-T)
ISL5122IBZ (No longer available, recommended replacement: ISL5120IHZ-T)
ISL5122IBZ-T (Note
2)
(No longer available, recommended replacement: ISL5120IHZ-T)
ISL5122IHZ-T (Note
2)
(No longer available, recommended replacement: ISL5120IHZ-T)
ISL5123CBZ (No longer available, recommended replacement: ISL5120IHZ-T)
ISL5123CBZ-T (Note
2)
(No longer available, recommended replacement: ISL5120IHZ-T)
ISL5123IBZ (No longer available, recommended replacement: ISL5120IHZ-T)
ISL5123IBZ-T (Note
2)
(No longer available, recommended replacement: ISL5120IHZ-T)
ISL5123IHZ-T (Note
2)
(No longer available, recommended replacement: ISL5120IHZ-T)
NOTES:
2. Please refer to
TB347
for details on reel specifications.
3. These Intersil Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte
tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Intersil
Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
4. For Moisture Sensitivity Level (MSL), please see product information page for
ISL5120, ISL5121, ISL5122, ISL5123.
For more information on MSL,
please see tech brief
TB363.
5. The part marking is located on the bottom of the part.
PART
MARKING
I20Z (Note
5)
5121 CBZ
5121 CBZ
5121 IBZ
5121 IBZ
121Z (Note
5)
5122 CBZ
5122 CBZ
5122 IBZ
5122 IBZ
122Z (Note
5)
5123 CBZ
5123 CBZ
5123 IBZ
5123 IBZ
123Z (Note
5)
TEMP RANGE
PACKAGE
PKG.
(°C)
(RoHS Compliant) DWG. #
-40 to +85
0 to +70
0 to +70
-40 to +85
-40 to +85
-40 to +85
0 to +70
0 to +70
-40 to +85
-40 to +85
-40 to +85
0 to +70
0 to +70
-40 to +85
-40 to +85
-40 to +85
8 Ld SOT-23
8 Ld SOIC
8 Ld SOIC
8 Ld SOIC
8 Ld SOIC
8 Ld SOT-23
8 Ld SOIC
8 Ld SOIC
8 Ld SOIC
8 Ld SOIC
8 Ld SOT-23
8 Ld SOIC
8 Ld SOIC
8 Ld SOIC
8 Ld SOIC
6 Ld SOT-23
P8.064
M8.15
M8.15
M8.15
M8.15
P8.064
M8.15
M8.15
M8.15
M8.15
P8.064
M8.15
M8.15
M8.15
M8.15
P6.064
FN6022 Rev 8.00
August 12, 2015
Page 3 of 16
ISL5120, ISL5121, ISL5122, ISL5123
Absolute Maximum Ratings
V+ to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to15V
Input Voltages
IN (Note
6)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to ((V+) + 0.3V)
NO, NC (Note
6)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to ((V+) + 0.3V)
Output Voltages
COM (Note
6)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to ((V+) + 0.3V)
Continuous Current (Any Terminal) . . . . . . . . . . . . . . . . . . . . . . . . . . .
30mA
Peak Current NO, NC, or COM
(Pulsed 1ms, 10% Duty Cycle, Max) . . . . . . . . . . . . . . . . . . . . . . . . .
40mA
ESD Rating (Per MIL-STD-883 Method 3015) . . . . . . . . . . . . . . . . . . . . >2kV
Thermal Information
Thermal Resistance (Typical,
Note 7)
JA
(°C/W)
6 Ld SOT-23 Package. . . . . . . . . . . . . . . . . . . . . . . . . . . .
230
8 Ld SOT-23 Package. . . . . . . . . . . . . . . . . . . . . . . . . . . .
215
8 Ld SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
170
Maximum Junction Temperature (Plastic Package) . . . . . . . . . . . . 150°C
Moisture Sensitivity (see Technical Brief
TB363)
All Other Packages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Level 1
8 Ld SOT-23 Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Level 2
Maximum Storage Temperature Range. . . . . . . . . . . . . . . . . . -65°C to 150°C
Pb-free Reflow Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see
TB493
Recommended Operating Conditions
Temperature Range
ISL512xCx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
ISL512xIx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°C to 85°C
CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions may adversely impact product
reliability and result in failures not covered by warranty.
NOTES:
6. Signals on NC, NO, COM, or IN exceeding V+ or GND are clamped by internal diodes. Limit forward diode current to maximum current ratings.
7.
JA
is measured with the component mounted on a low effective thermal conductivity test board in free air. See Tech Brief
TB379
for details.
Test Conditions: V+ = +4.5V to +5.5V, GND = 0V, V
INH
= 2.4V, V
INL
= 0.8V (Note
8),
unless
otherwise specified.Boldface limits apply across the operating temperature range, -40°C to +85°C (ISL512xIx) or
0°C to +70°C. (ISL512xCx)
PARAMETER
ANALOG SWITCH CHARACTERISTICS
Analog Signal Range, V
ANALOG
ON-resistance, r
ON
V+ = 4.5V, I
COM
= 1.0mA, V
NO
or V
NC
= 3.5V,
(See
Figure 5)
V+ = 5V, I
COM
= 1.0mA, V
NO
or V
NC
= 3.5V
Full
25
Full
25
Full
V+ = 5V, I
COM
= 1.0mA, V
NO
or V
NC
= 1V, 2V, 3V
V+ = 5.5V, V
COM
= 1V, 4.5V, V
NO
or V
NC
= 4.5V, 1V,
(Note
10)
Full
25
Full
25
Full
25
Full
0
-
-
-
-
-
-0.1
-5
-0.1
-5
-0.2
-10
-
19
23
0.8
1
7
0.01
-
-
-
-
-
V+
30
40
2
4
8
0.1
5
0.1
5
0.2
10
V
Ω
Ω
Ω
Ω
Ω
nA
nA
nA
nA
nA
nA
TEST CONDITIONS
TEMP
(°C)
MIN
(Note
9)
TYP
MAX
(Note
9)
UNIT
Electrical Specifications - 5V Supply
r
ON
Matching Between Channels,
r
ON
r
ON
Flatness, r
FLAT(ON)
NO or NC OFF Leakage Current,
I
NO(OFF)
or I
NC(OFF)
COM OFF Leakage Current, I
COM(OFF)
V+ = 5.5V, V
COM
= 4.5V, 1V, V
NO
or V
NC
= 1V, 4.5V,
(Note
10)
COM ON Leakage Current, I
COM(ON)
V = 5.5V, V
COM
= 1V, 4.5V, or V
NO
or V
NC
= 1V, 4.5V, or
Floating, (Note
10)
DYNAMIC CHARACTERISTICS
Turn-ON Time, t
ON
V
NO
or V
NC
= 3V, R
L
=1kΩ, C
L
= 35pF, V
IN
= 0 to 3V,
(See
Figure 1)
V
NO
or V
NC
= 3V, R
L
=1kΩ, C
L
= 35pF, V
IN
= 0 to 3V,
(See
Figure 1)
R
L
= 300Ω, C
L
= 35pF, V
NO
= V
NC
= 3V, V
IN
= 0 to 3V,
(See
Figure 3)
C
L
= 1.0nF, V
G
= 0V, R
G
= 0Ω, (See
Figure 2)
R
L
= 50Ω, C
L
= 5pF, f = 1MHz, (See
Figure 4)
25
Full
25
Full
Full
25
25
-
-
-
-
3
-
-
28
40
20
30
10
3
76
75
150
50
100
-
5
-
ns
ns
ns
ns
ns
pC
dB
Turn-OFF Time, t
OFF
Break-before-make Time Delay
(ISL5122, ISL5123), t
D
Charge Injection, Q
Off Isolation
FN6022 Rev 8.00
August 12, 2015
Page 4 of 16
ISL5120, ISL5121, ISL5122, ISL5123
Test Conditions: V+ = +4.5V to +5.5V, GND = 0V, V
INH
= 2.4V, V
INL
= 0.8V (Note
8),
unless
otherwise specified.Boldface limits apply across the operating temperature range, -40°C to +85°C (ISL512xIx) or
0°C to +70°C. (ISL512xCx)
(Continued)
PARAMETER
Crosstalk (Channel-to-channel)
Power Supply Rejection Ratio
NO or NC OFF Capacitance, C
OFF
COM OFF Capacitance, C
COM(OFF)
COM ON Capacitance, C
COM(ON)
TEST CONDITIONS
R
L
= 50Ω, C
L
= 5pF, f = 1MHz, (See
Figure 6)
R
L
= 50Ω, C
L
= 5pF, f = 1MHz
f = 1MHz, V
NO
or V
NC
= V
COM
= 0V, (See
Figure 7)
f = 1MHz, V
NO
or V
NC
= V
COM
= 0V, (See
Figure 7)
f = 1MHz, V
NO
or V
NC
= V
COM
= 0V, (See
Figure 7),
ISL5120/1/2
f = 1MHz, V
NO
or V
NC
= V
COM
= 0V, (See
Figure 7),
ISL5123
POWER SUPPLY CHARACTERISTICS
Power Supply Range
Positive Supply Current, I+
DIGITAL INPUT CHARACTERISTICS
Input Voltage Low, V
INL
Input Voltage High, V
INH
Input Current, I
INH
, I
INL
V+ = 5.5V, V
IN
= 0V or V+
Full
Full
Full
-
2.4
-1
-
-
-
0.8
-
1
V
V
µA
V+ = 5.5V, V
IN
= 0V or V+, all channels on or off
Full
Full
2.7
-1
0.0001
12
1
V
µA
TEMP
(°C)
25
25
25
25
25
25
MIN
(Note
9)
-
-
-
-
-
-
TYP
-105
60
8
8
21
28
MAX
(Note
9)
-
-
-
-
-
-
UNIT
dB
dB
pF
pF
pF
pF
Electrical Specifications - 5V Supply
Electrical Specifications - 3.3V Supply
Test Conditions: V+ = +3.0V to +3.6V, GND = 0V, V
INH
= 2.4V, V
INL
= 0.8V (Note
8),
unless otherwise specified. Boldface limits apply across the operating temperature range, -40°C to +85°C (ISL512xIx) or
0°C to +70°C. (ISL512xCx)
PARAMETER
ANALOG SWITCH CHARACTERISTICS
Analog Signal Range, V
ANALOG
ON-resistance, r
ON
V+ = 3V, I
COM
= 1.0mA, V
NO
or V
NC
= 1.5V
Full
25
Full
r
ON
Matching Between Channels,
r
ON
r
ON
Flatness, r
FLAT(ON)
V+ = 3.3V, I
COM
= 1.0mA, V
NO
or V
NC
= 1.5V
25
Full
V+ = 3.3V, I
COM
= 1.0mA, V
NO
or V
NC
= 0.5V, 1V, 1.5V
25
Full
NO or NC OFF Leakage Current,
I
NO(OFF)
or I
NC(OFF)
V+ = 3.6V, V
COM
= 1V, 3V, V
NO
or V
NC
= 3V, 1V, (Note
10)
25
Full
25
Full
COM ON Leakage Current, I
COM(ON)
V = 3.6V, V
COM
= 1V, 3V, or V
NO
or V
NC
= 1V, 3V, or
floating, (Note
10)
25
Full
0
-
-
-
-
-
-
-0.1
-5
-0.1
-5
-0.2
-10
-
32
40
0.8
1
6
7
0.01
-
0.01
-
-
-
V+
50
60
2
4
8
12
0.1
5
0.1
5
0.2
10
V
Ω
Ω
Ω
Ω
Ω
Ω
nA
nA
nA
nA
nA
nA
TEST CONDITIONS
TEMP
(°C)
MIN
(Note
9)
TYP
MAX
(Note
9)
UNIT
COM OFF Leakage Current, I
COM(OFF)
V+ = 3.6V, V
COM
= 3V, 1V, V
NO
or V
NC
= 1V, 3V, (Note
10)
DYNAMIC CHARACTERISTICS
Turn-ON Time, t
ON
V
NO
or V
NC
= 1.5V, R
L
=1kΩ, C
L
= 35pF, V
IN
= 0 to 3V
25
Full
Turn-OFF Time, t
OFF
V
NO
or V
NC
= 1.5V, R
L
=1kΩ, C
L
= 35pF, V
IN
= 0 to 3V
25
Full
-
-
-
-
40
60
20
30
120
200
50
120
ns
ns
ns
ns
FN6022 Rev 8.00
August 12, 2015
Page 5 of 16
京公网安备 11010802033920号
EEWORLD
