30MFG50R datasheet, PDF - EEWORLD Datasheet

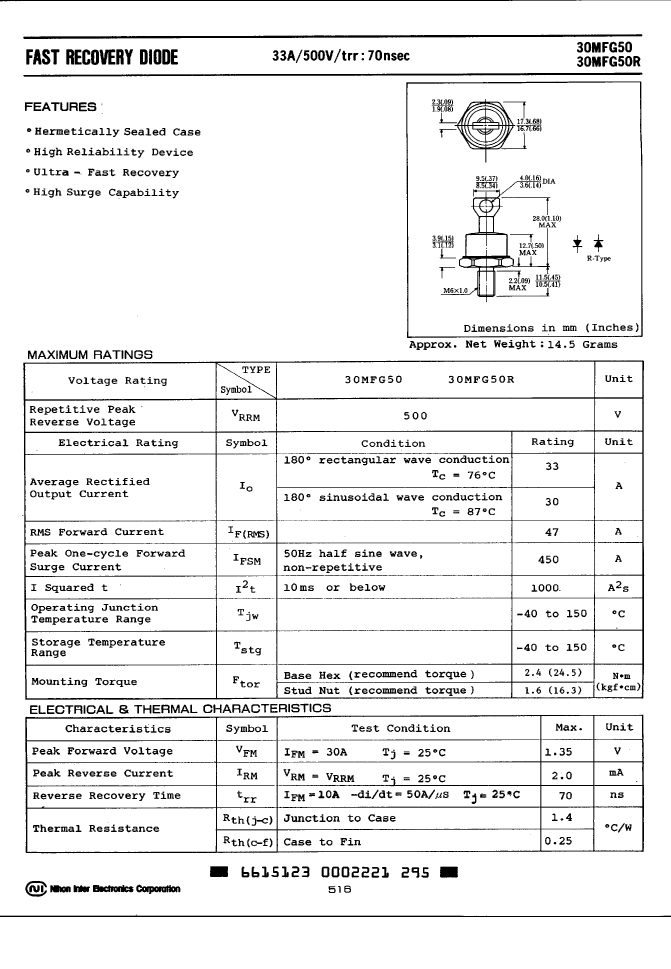

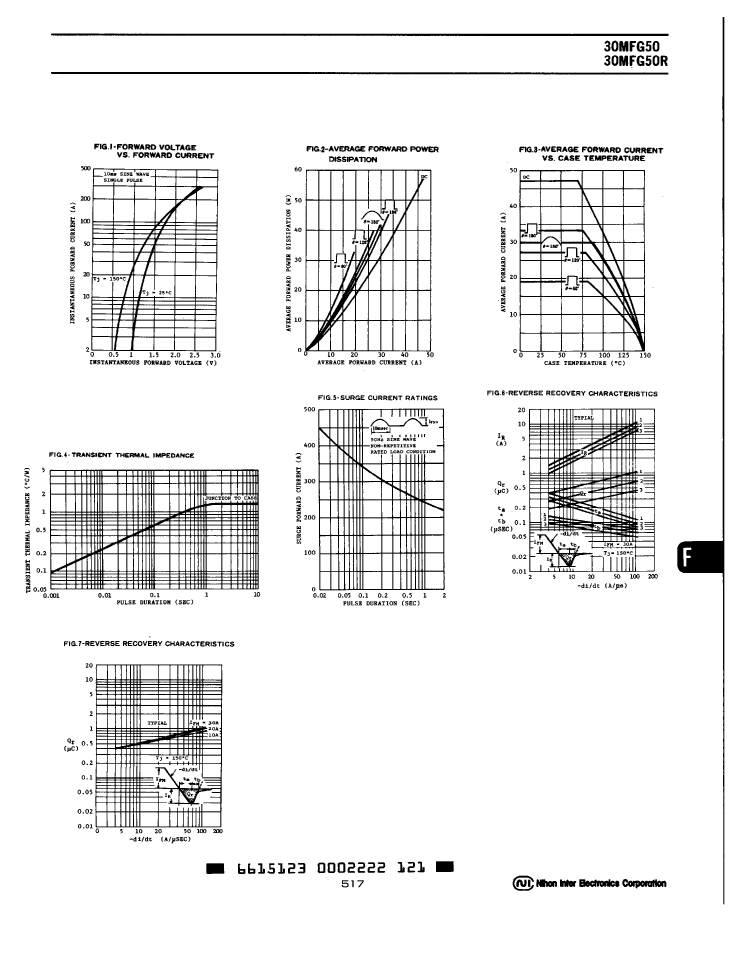

30MFG50R: DescriptionRectifier Diode, 1 Phase, 1 Element, 30A, 500V V(RRM), Silicon, HERMETIC SEALED PACKAGE-1; CategoryDiscrete semiconductor diode; File Size76KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

30MFG50R Overview

Rectifier Diode, 1 Phase, 1 Element, 30A, 500V V(RRM), Silicon, HERMETIC SEALED PACKAGE-1

Parameter Name	Attribute value
package instruction	O-MUPM-D1
Contacts	1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	ULTRA FAST RECOVERY
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.35 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	450 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	30 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	500 V
Maximum reverse current	2000 µA
Maximum reverse recovery time	0.07 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	30MFG50R	30MFG50
Description	Rectifier Diode, 1 Phase, 1 Element, 30A, 500V V(RRM), Silicon, HERMETIC SEALED PACKAGE-1	Rectifier Diode, 1 Phase, 1 Element, 30A, 500V V(RRM), Silicon, HERMETIC SEALED PACKAGE-1
package instruction	O-MUPM-D1	O-MUPM-D1
Contacts	1	1
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	ANODE	CATHODE
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.35 V	1.35 V
JESD-30 code	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	450 A	450 A
Number of components	1	1
Phase	1	1
Number of terminals	1	1
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	30 A	30 A
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	500 V	500 V
Maximum reverse current	2000 µA	2000 µA
Maximum reverse recovery time	0.07 µs	0.07 µs
surface mount	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER
Base Number Matches	1	1
