HS9-26C31RH-Q: DescriptionLINE DRIVER, CDFP16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size183KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HS9-26C31RH-Q Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HS9-26C31RH-Q	-	-	View	Buy Now

HS9-26C31RH-Q Overview

LINE DRIVER, CDFP16

HS9-26C31RH-Q Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Differential output	YES
Number of drives	4
High level input current maximum value	0.000001 A
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	EIA-422
JESD-30 code	R-CDFP-F16
JESD-609 code	e0
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum output swing	2 V
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
power supply	5 V
Certification status	Not Qualified
Maximum receive delay
Filter level	MIL-PRF-38535 Class V
Maximum seat height	2.92 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT APPLICABLE
total dose	300k Rad(Si) V
maximum transmission delay	22 ns
width	6.73 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DATASHEET

HS-26C31RH, HS-26C31EH

Radiation Hardened Quad Differential Line Driver

The Intersil HS-26C31RH, HS-26C31EH are quad differential

line drivers designed for digital data transmission over

balanced lines and meets the requirements of EIA standard

RS-422. Radiation hardened CMOS processing assures low

power consumption, high speed, and reliable operation in the

most severe radiation environments.

The HS-26C31RH, HS-26C31EH accept CMOS levels and converts

them to RS-422 compatible outputs. These circuits uses special

outputs that enable the drivers to power-down without loading

down the bus. Enable and disable pins allow several devices to be

connected to the same data source and addressed

independently.

Specifications for Rad Hard QML devices are controlled by the

Defense Logistics Agency Land and Maritime (DLA). The SMD

numbers listed here must be used when ordering.

Detailed Electrical Specifications for these devices are

contained in SMD

5962-96663.

A “hot-link” is provided on our

homepage for downloading.

FN3401

Rev 7.00

May 23, 2013

Features

• Electrically screened to SMD #5962-96663

• QML qualified per MIL-PRF-38535 requirements

• 1.2 Micron radiation hardened CMOS

- Total dose up to . . . . . . . . . . . . . . . . . . . . . . . . 300kRAD(Si)

• Latchup free

• EIA RS-422 compatible outputs (except for IOS)

• CMOS inputs

• High impedance outputs when disabled or powered down

• Low power dissipation . . . . . . . . . . . . 2.75mW standby (max)

• Single 5V supply

• Low output impedance . . . . . . . . . . . . . . . . . . . . . .10or less

• Full -55°C to +125°C military temperature range

Applications

• Line transmitter for MIL-STD-1553 serial data bus

Ordering Information

ORDERING NUMBER

(Note 1)

5962F9666301QEC

5962F9666301QXC

5962F9666301VEC

5962F9666301VXC

HS1-26C31RH/PROTO

HS0-26C31RH/SAMPLE

HS9-26C31RH/PROTO

5962F9666301V9A

5962F9666303VEC

5962F9666303VXC

5962F9666303V9A

5962F9666301VYC

HS9G-26C31RH/PROTO

NOTES:

1. These Intersil Pb-free Hermetic packaged products employ 100% Au plate - e4 termination finish, which is RoHS compliant and compatible with both

SnPb and Pb-free soldering operations.

2. The lid of these packages are connected to the ground pin of the device.

INTERNAL

MKT. NUMBER

HS1-26C31RH-8

HS9-26C31RH-8

HS1-26C31RH-Q

HS9-26C31RH-Q

HS1-26C31RH/PROTO

HS0-26C31RH/SAMPLE

HS9-26C31RH/PROTO

HS0-26C31RH-Q

HS1-26C31EH-Q

HS9-26C31EH-Q

HS0-26C31EH-Q

HS9G-26C31RH-Q (Note 2)

Q 5962F96 66301VYC

Q 5962F96 66303VEC

Q 5962F96 66303VXC

HS9- 26C31RH/PROTO

PART

MARKING

Q 5962F96 6630QEC

Q 5962F96 66301QXC

Q 5962F96 66301VEC

Q 5962F96 66301VXC

HS1- 26C31RH/PROTO

TEMP. RANGE

(°C)

-55 to +125

PACKAGE

(Pb-Free)

16 LD SBDIP

16 LD FLATPACK

16 LD SBDIP

16 LD FLATPACK

16 LD SBDIP

Die

16 LD FLATPACK

Die

16 LD SBDIP

16 LD FLATPACK

Die

16 LD FLATPACK

K16.A

D16.3

K16.A

PKG.

DWG. #

D16.3

K16.A

D16.3

K16.A

D16.3

HS9G-26C31RH/PROTO (Note 2) HS9G-26C31RH/PROTO

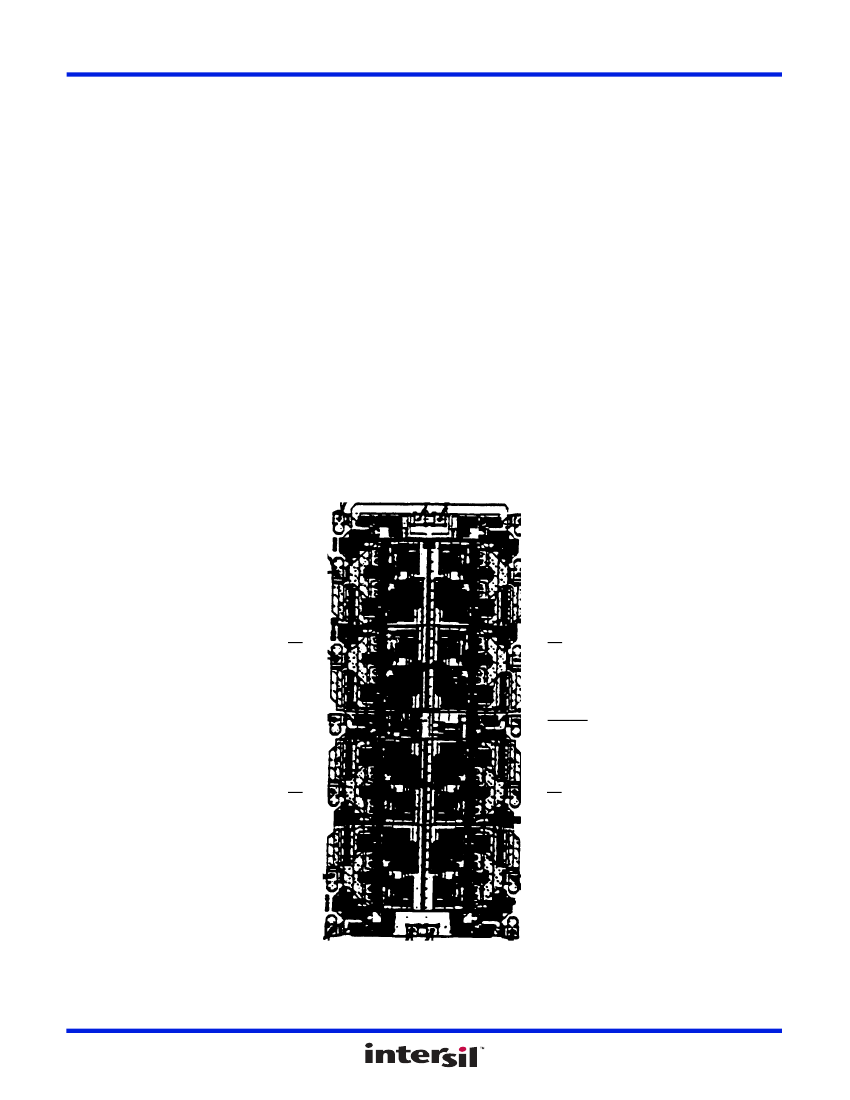

FN3401 Rev 7.00

May 23, 2013

Page 1 of 3

HS9-26C31RH-Q Related Products

	HS9-26C31RH-Q	HS1-26C31RH-Q	HS1-26C31RH-8	HS1-26C31EH-Q	HS1-26C31RH/PROTO	HS9-26C31RH/PROTO
Description	LINE DRIVER, CDFP16	QUAD LINE DRIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	QUAD LINE DRIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	LINE DRIVER	QUAD LINE DRIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	Radiation Hardened Quad Differential Line Driver
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP,	QFF,
Reach Compliance Code	not_compliant	not_compliant	not_compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	USML XV(E)
Differential output	YES	YES	YES	YES	YES	YES
Number of drives	4	4	4	4	4	4
Input properties	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER
Interface standards	EIA-422	EIA-422	EIA-422	EIA-422	EIA-422	EIA-422
JESD-30 code	R-CDFP-F16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDFP-F16
Number of functions	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DIP	DIP	DIP	QFF
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	-
Is it Rohs certified?	incompatible	incompatible	incompatible	conform to	conform to	-
Parts packaging code	DFP	DIP	DIP	-	DIP	CFP
Contacts	16	16	16	-	16	16
High level input current maximum value	0.000001 A	0.000001 A	0.000001 A	0.000001 A	-	-
JESD-609 code	e0	e0	e0	e4	e3	-
Minimum output swing	2 V	2 V	2 V	2 V	-	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	-	-
Encapsulate equivalent code	FL16,.3	DIP16,.3	DIP16,.3	DIP16,.3	-	-
power supply	5 V	5 V	5 V	5 V	-	-
Maximum seat height	2.92 mm	5.08 mm	5.08 mm	-	5.08 mm	2.92 mm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Gold (Au)	Matte Tin (Sn)	-
maximum transmission delay	22 ns	22 ns	22 ns	22 ns	-	-
width	6.73 mm	7.62 mm	7.62 mm	-	7.62 mm	6.73 mm
