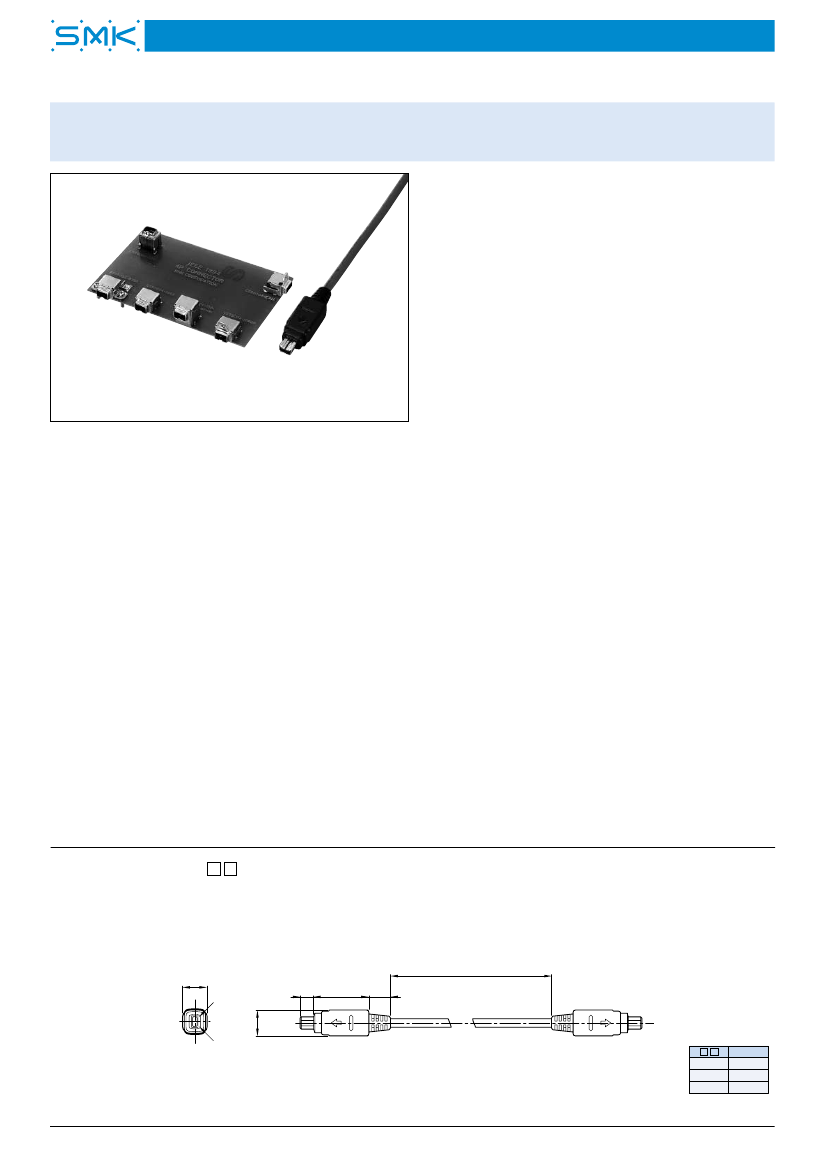

I/O Connector
IEEE1394 4P
Connector
s
Outline
A connector applicable for the IEEE 1394 standards for a
serial bus and interface. Peripherals of audio-visual
equipment and personal computers which are increasingly
digitalized can be connected through the same interface
meeting IEEE 1394 requirements.
s
Features
1. Most suitable for multimedia operations such as MPEG
system image transfer through the isochronous transfer
mode.
2. Use-friendly with a fine and flexible cable measuring only
φ
4mm with 4 signal wires.
3. Smaller than a 6P IEEE 1394 connector yet sufficiently
strong enough to help design smaller equipment.
s
Specifications
1. Contact Resistance : 20mΩ max.
2. Insulation Resistance : 1000MΩ min. at 100V DC
3. Withstanding Voltage : 100V AC for one minute
4. Insertion/Extraction Life : 1,000 cycles min.
s
Material and Plating
Socket
Housing : Polyphenylene Sulfide or PA94 (Black) 94V-0
Terminal : Phosphor Bronze Selective Gold Plating
Shield Case : Brass Nickel and Tin-lead Plating
q
Plug
Housing : Liquid Crystal Polymer (Black) 94V-0
Contact : Brass Selective Gold Plating
Cover : Polybutylene Terephthalate (Black) 94V-0
q
q
Plug CSC 1004-12
L
9.3
Pin No.1
12
6
25
10
Pin No.4
50
51
52
L
2000
3000
1000
