295078100500861 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 295078100500861

295078100500861: DescriptionD Type Connector, 100 Contact(s), Female, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size664KB，21 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

295078100500861 Overview

D Type Connector, 100 Contact(s), Female, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug

295078100500861 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	40 PCS/TRAY PACKAGE
body width	0.197 inch
subject depth	0.256 inch
body length	2.48 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	5078
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
Base Number Matches	1

Preview

Download Datasheet

View All

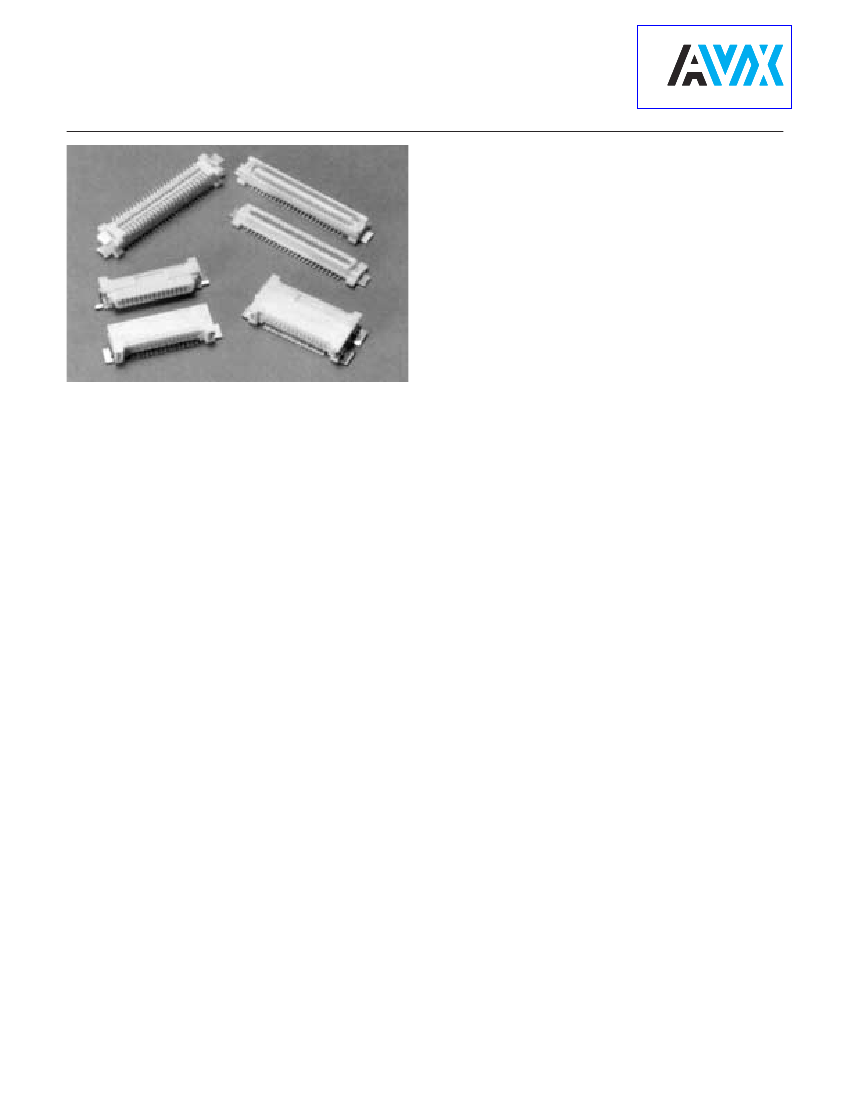

Fine Pitch SMT

Board to Board Connectors

Series 5078

Series 5078 is the board to board, fine pitch and low-profile

connector designed for the demand of high density circuitry in

the market.

FEATURES

1.0mm pitch, 2 pieces board to board, SMT type connector.

Right Angle (Plug & Receptacle) 30, 40, 50, 60, 80, 100 and

120 positions.

Straight (Plug & Receptacle) 30, 40, 50, 60, 80, 100 and 120

positions.

Lead Reflow Right Angle type is also available for such exter-

nal I/O which requires a high board-retention force. The

board to board mated height is 5.0mm.

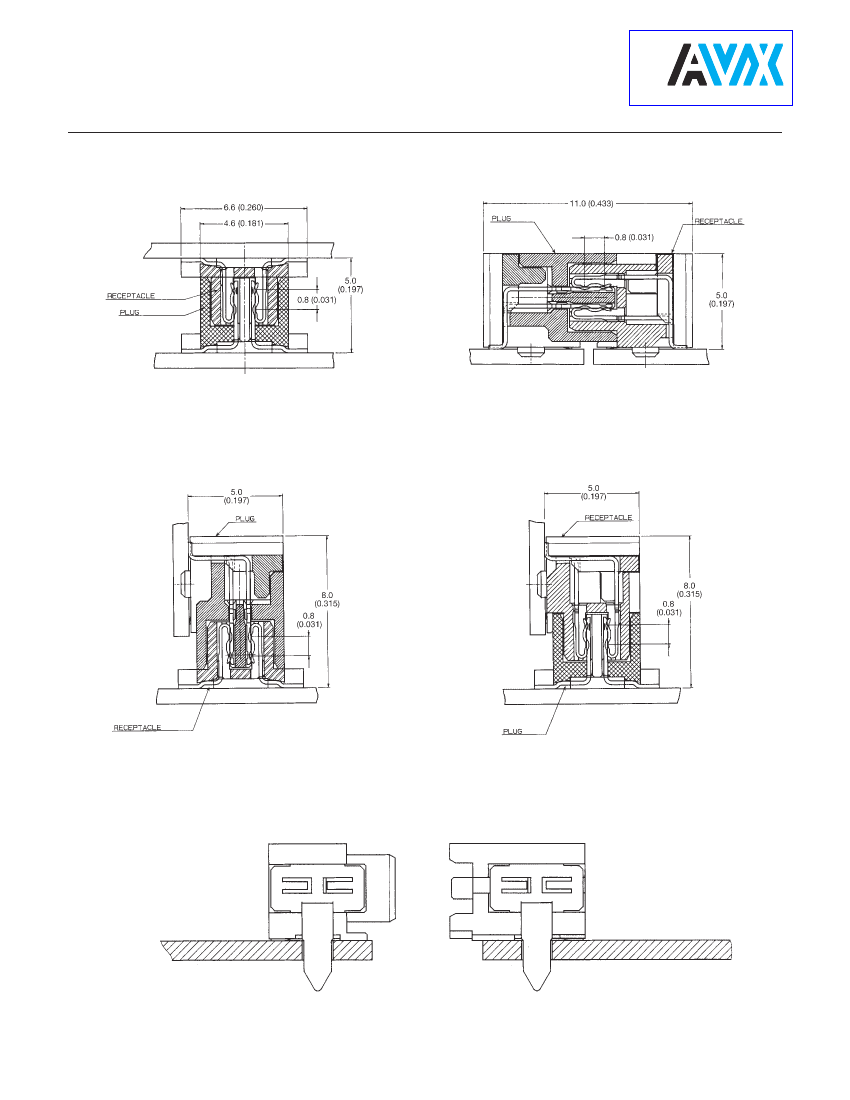

SPECIFICATIONS

Series

Number of Contacts

5078

30, 40, 50, 60, 80, 100, 120

(Straight)

30, 40, 50, 60, 80, 100, 120

(Right Angle)

1.0mm

0.5A Max

100V Max

500V rms/min

PPS (UL94V-0)

Phosphor bronze, gold plating

(contact area), solder plating (tail)

Phosphor bronze, solder plating

100

Contact Spacing

Current Rating

Voltage Rating

D.W. Voltage

Insulator Material

Contact Material

Metal Tab

Mating Cycles

ELCO

295078100500861 Related Products

	295078100500861	295078080501861
Description	D Type Connector, 100 Contact(s), Female, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug	D Type Connector, 80 Contact(s), Female, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	40 PCS/TRAY PACKAGE	40 PCS/TRAY PACKAGE
body width	0.197 inch	0.197 inch
subject depth	0.256 inch	0.256 inch
body length	2.48 inch	1.949 inch
Body/casing type	PLUG	PLUG
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	500VAC V	500VAC V
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	5078	5078
Plug contact pitch	0.039 inch	0.039 inch
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
PCB row number	1	1
Number of rows loaded	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
Plating thickness	10u inch	10u inch
Rated current (signal)	0.5 A	0.5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	0.508 mm	0.508 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	100	80
Base Number Matches	1	1
