Network cable - NBC-MSD/ 4,0-93K/MSD SCO - 1424754
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

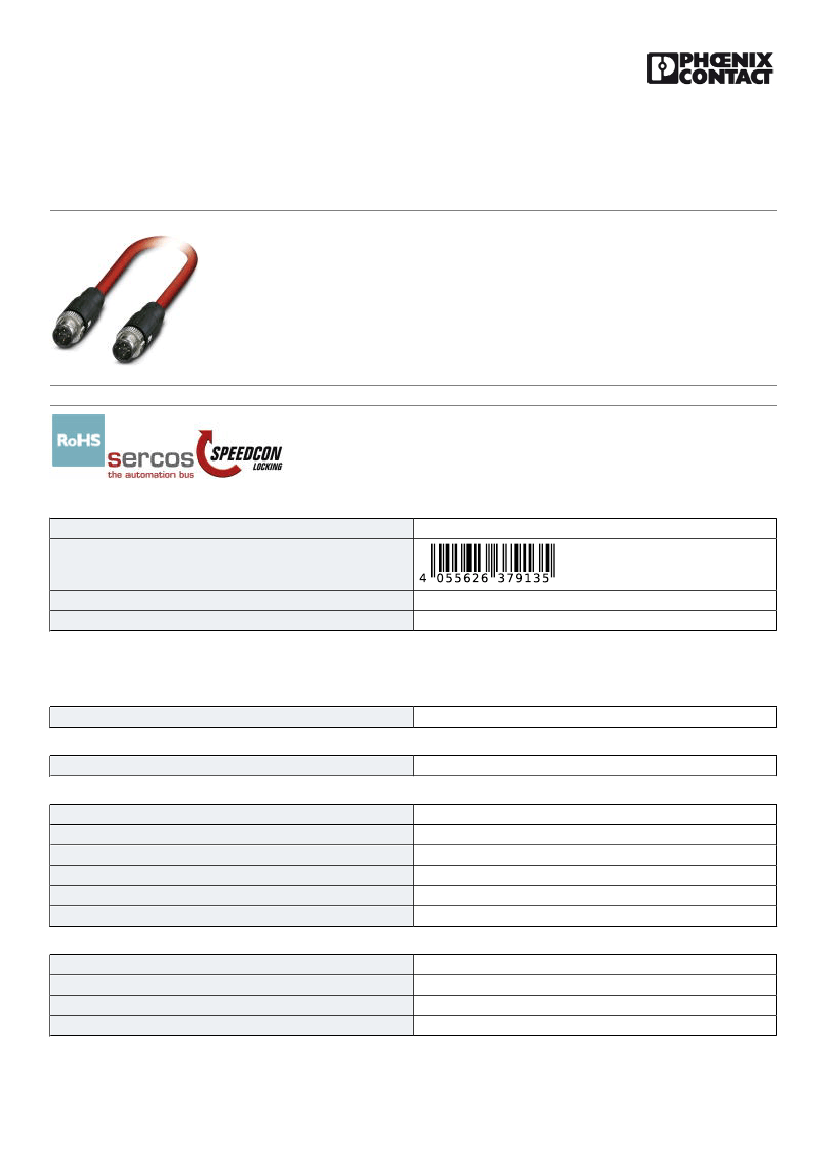

Network cable, Sercos CAT5 (100 Mbps), 4-position, PVC/PVC, signal red RAL 3020, shielded, Plug straight
M12 SPEEDCON / IP67, on Plug straight M12 SPEEDCON, cable length: 4 m
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626379135
85444290
1
Technical data
Dimensions
Length of cable
4m
Ambient conditions
Ambient temperature (operation)
-25 °C ... 90 °C (M12 connector)
General data
Rated current at 40°C
Rated voltage
Number of positions
Signal type/category
Standards/regulations
4A
48 V AC
60 V DC
4
Sercos CAT5 (IEC 11801), 100 Mbps
M12 connector IEC 61076-2-101
Characteristics head 1
Head type
No. of positions (pin connector pattern)
Color
Material (component)
Plug straight M12 SPEEDCON / IP67
4
black
CuSn (Contact)
01/06/2019 Page 1 / 5
https://www.phoenixcontact.com/in/products/1424754
Network cable - NBC-MSD/ 4,0-93K/MSD SCO - 1424754
Technical data
Characteristics head 1
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Insulation resistance
Insertion/withdrawal cycles
≥ 100 MΩ
≥ 100
Characteristics head 2
Head type
No. of positions (pin connector pattern)
Plug straight M12 SPEEDCON
4
Standards and Regulations
Standard designation
Standards/regulations
M12 connector
IEC 61076-2-101
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Signal type/category
Cable structure
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Type of pair shielding
Overall twist
Shielding
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Cable weight
Outer sheath, material
Material, inner sheath
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Wave impedance
Signal runtime
Sercos III
93K
21694 (60°C / 600 V)
Sercos CAT5 (IEC 11801), 100 Mbps
1x4xAWG22/7; SF/TQ
4x 0.34 mm²
22
7x 0.25 mm
approx. 1.55 mm
White, yellow, blue, orange
Aluminum-lined polyester foil
Star quad
Tinned copper braided shield
signal red RAL 3020
approx. 0.9 mm
6.5 mm ±0.2 mm
3xD
7xD
68 kg/km
PVC
PVC
PE
Tin-plated Cu litz wires
≥ 0.5 GΩ*km
≤ 120 Ω/km
100 Ω ±15 Ω (at 100 MHz)
5.3 ns/m
01/06/2019 Page 2 / 5
https://www.phoenixcontact.com/in/products/1424754
Network cable - NBC-MSD/ 4,0-93K/MSD SCO - 1424754
Technical data
Cable
Coupling resistance
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Flame resistance
Resistance to oil
Other resistance
Ambient temperature (operation)
Ambient temperature (installation)
Ambient temperature (storage/transport)
≤ 20.00 mΩ/m (at 10 Hz)
600 V
2000 V (50 Hz, 1 min.)
2000 V (50 Hz, 1 min.)
According to UL 1685 (CSA FT 4)
Resistant to oil to a limited extent
UV resistant According to UL 1581, Section 1200
-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
-20 °C ... 60 °C
-50 °C ... 70 °C
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

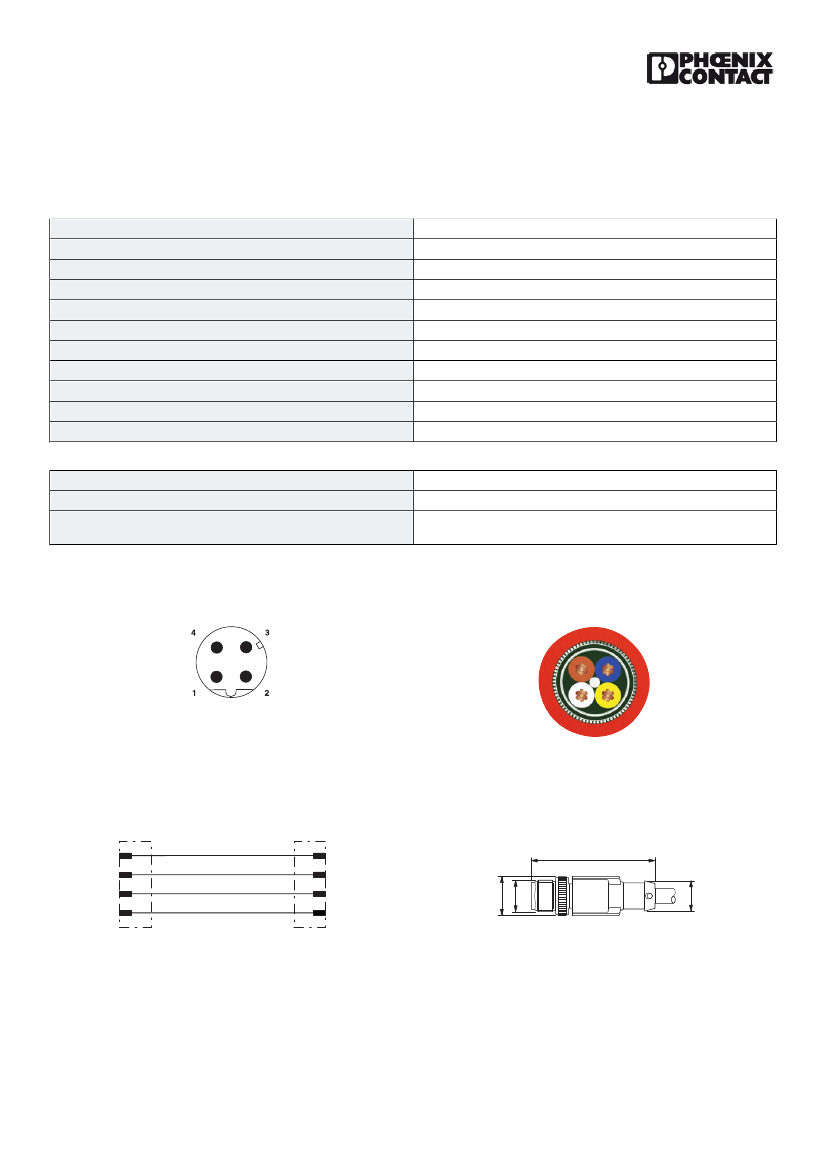

Drawings
Schematic diagram
Cable cross section
Pin assignment M12 male connector, 4-pos., D-coded, male side
Sercos III [93K]
Circuit diagram
Dimensional drawing
1
2
3
4
1 YE
2 WH
47,3
Ø14,8
M12
3 OG
4 BU
Contact assignment of the M12 plugs
Plug, M12 x 1, straight, shielded
01/06/2019 Page 3 / 5
Ø12
https://www.phoenixcontact.com/in/products/1424754
Network cable - NBC-MSD/ 4,0-93K/MSD SCO - 1424754
Classifications
eCl@ss
eCl@ss 7.0
eCl@ss 9.0
27060308
27060308
Accessories
Accessories

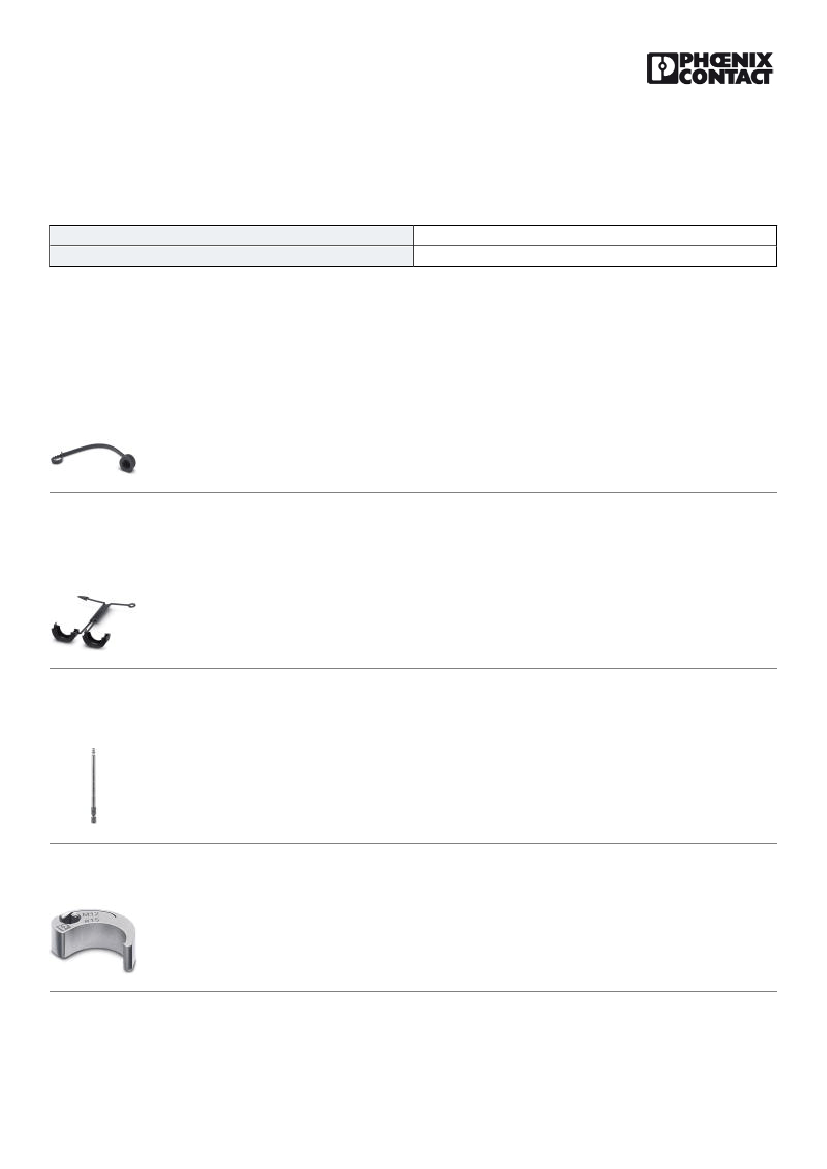

Protective cap
Sealing cap - PROT-M12 FS-PA-CHAIN - 1430873
M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 plugs
Safety locking
Locking clip - SAC-M12-EXCLIP-M - 1558988
Locking clip for the pin side of sensor/actuator cables with M12 connector and M12 connectors for assembly, for knurl
diameter: 15 mm or for Allen key with a wrench size of 14 mm, prevents the disconnection of plug-in connections
without tools
Screwdriver tools
Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600
Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
Tool - SAC BIT M12-D15 - 1208432
Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a knurl
diameter of 15 mm, for 4 mm hexagonal drive
Torque tool
01/06/2019 Page 4 / 5
https://www.phoenixcontact.com/in/products/1424754
Network cable - NBC-MSD/ 4,0-93K/MSD SCO - 1424754
Accessories
Torque screwdriver - TSD 04 SAC - 1208429
Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
Torque screwdriver - TSD-M 1,2NM - 1212224
Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
01/06/2019 Page 5 / 5
