830003119B: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size1MB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric View All

830003119B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	830003119B	-	-	View	Buy Now

830003119B Overview

Parallel - Fundamental Quartz Crystal,

830003119B Parametric

Parameter Name	Attribute value
Maker	Wurth Elektronik
package instruction	HC49/4H, 2 PIN
Reach Compliance Code	compliant
Other features	BULK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	30 pF
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	5 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L11.05XB4.7XH4.1 (mm)/L0.435XB0.185XH0.161 (inch)
Series resistance	130 Ω
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

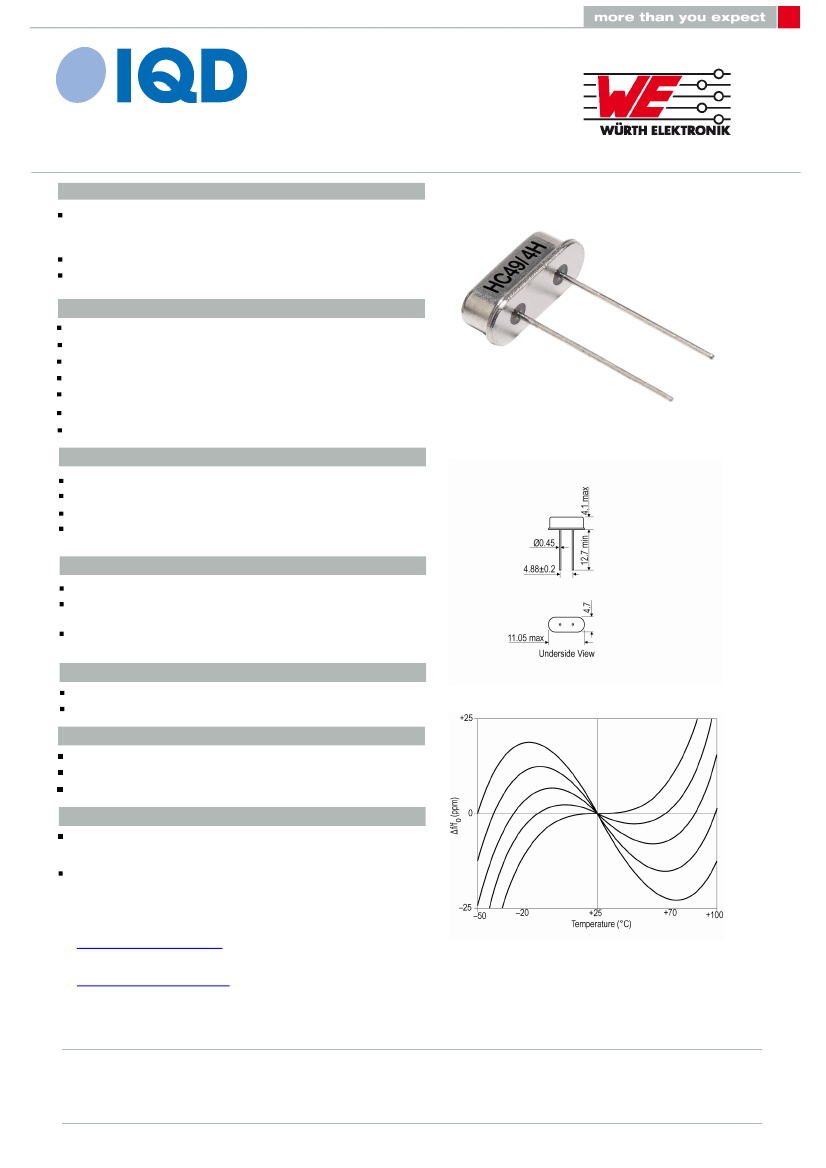

Quartz Crystal Specification

IQD Part No. + Packaging: LFXTAL003119Bulk

Wurth Part No.

830003119B

Description

Industry standard leaded package

Resistance welded, hermetically sealed in an inert atmosphere,

glass to metal seals on leads

Model

HC49/4H

Model Issue number

15

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

5.0MHz

±30.00ppm

@ 25°C

±

50.00ppm

-10.00 to 60.00°C

Fundamental

±5ppm typical per year at 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

30.00pF

7pF max

500µW max

130.00Ω max

Storage Temperature Range: -55 to 125°C

Shock: 981m/s², 6ms, 3 times in each of 3 mutually

perpendicular planes

Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz,

98.1m/s², 30mins in 3 mutually perpendicular planes

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

SnAgCu or Sn

260degC 10s

Typical Frequency vs Temperature Curves

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in Bulk pack

Alternative packing option available

USEFUL LINKS

Toolbox:

www.we-online.com/toolbox

Product Catalog:

www.we-online.com/products

CONTACT INFORMATION:

Würth Elektronik eiSos GmbH & Co. KG

Max-Eyth-Str. 1, 74638 Waldenburg, Germany

Tel: +49(0) 7942 945-0

Printed on 9 Nov 18 8:52 using WE Part Data Sheet V1.00018

Email: eiSos@we-online.de

Web: www.we-online.com

Page 1 of 1
