5P6J-Z-E2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> 5P6J-Z-E2

Preview

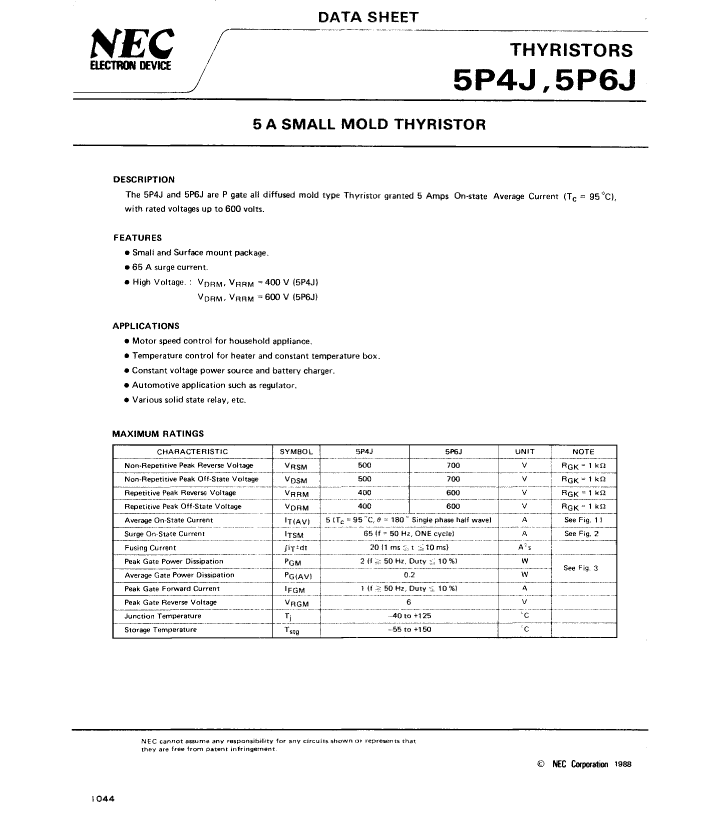

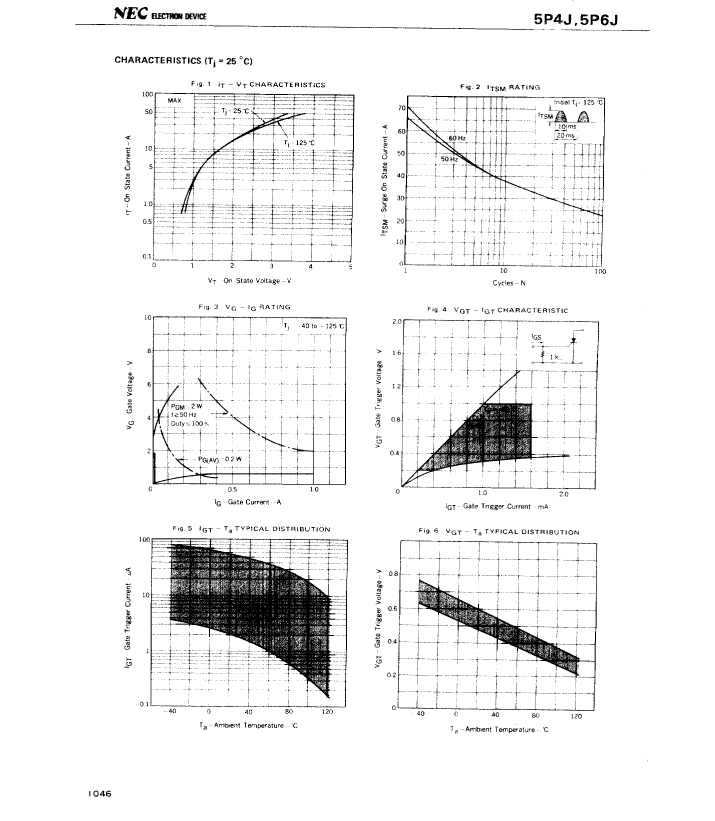

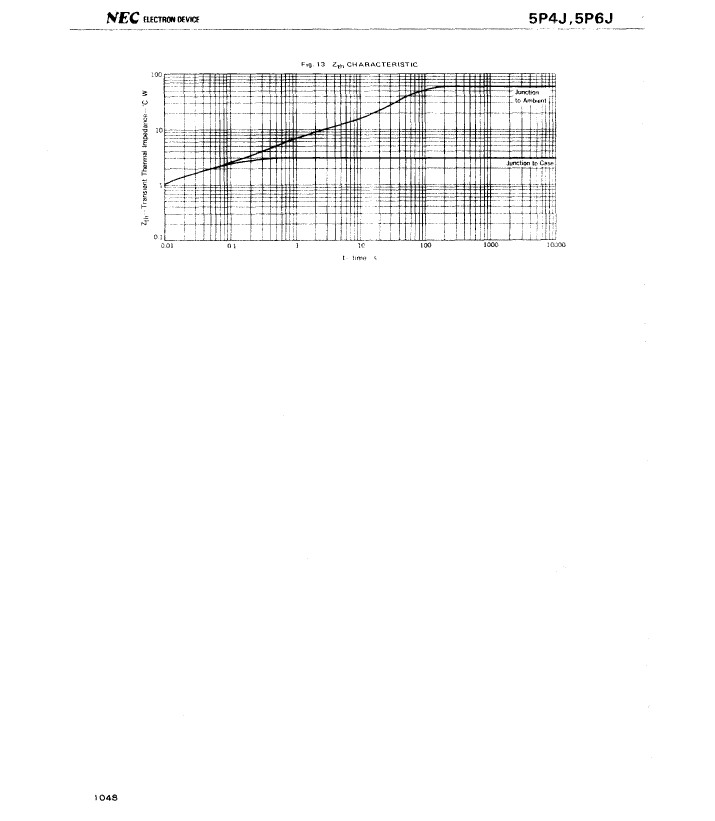

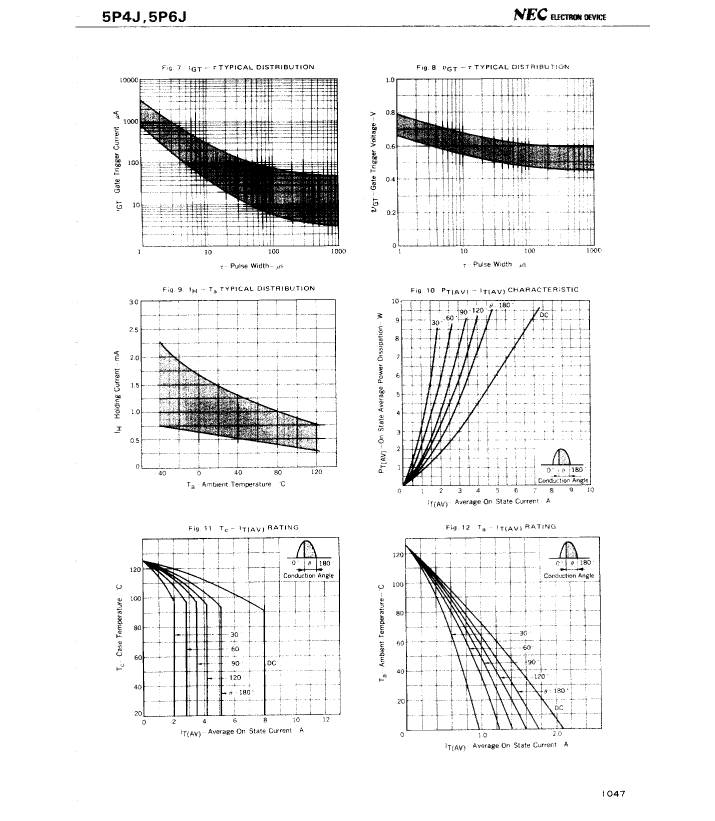

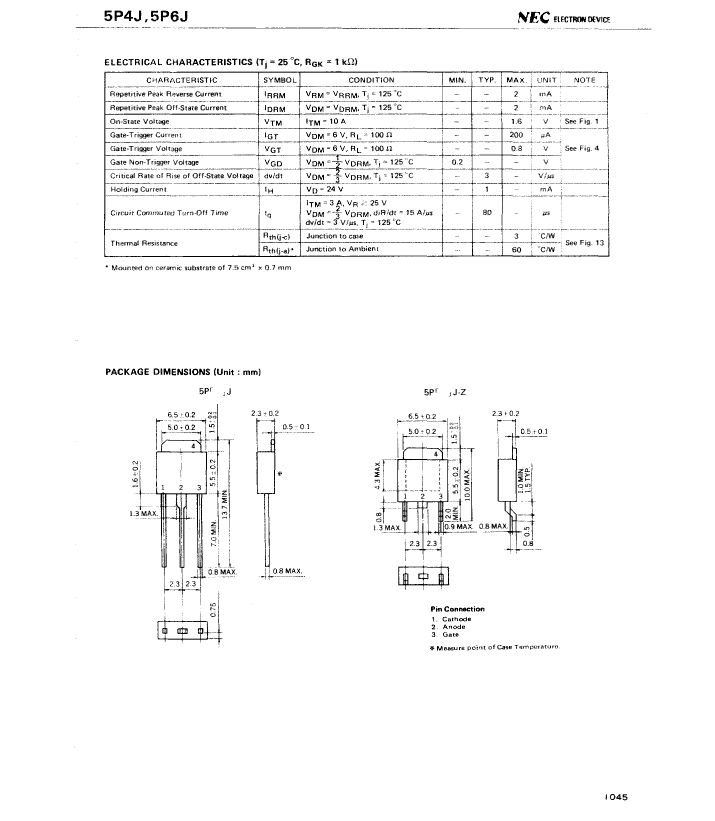

5P6J-Z-E2: DescriptionSilicon Controlled Rectifier, 7.85A I(T)RMS, 600V V(DRM), 600V V(RRM), 1 Element, PLASTIC PACKAGE-4; CategoryAnalog mixed-signal IC Trigger device; File Size257KB，5 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

5P6J-Z-E2 Overview

Silicon Controlled Rectifier, 7.85A I(T)RMS, 600V V(DRM), 600V V(RRM), 1 Element, PLASTIC PACKAGE-4

5P6J-Z-E2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	NEC Electronics
package instruction	SMALL OUTLINE, R-PSSO-G2
Contacts	4
Reach Compliance Code	compliant
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	0.2 mA
JESD-30 code	R-PSSO-G2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	7.85 A
Off-state repetitive peak voltage	600 V
Repeated peak reverse voltage	600 V
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

5P6J-Z-E2 Related Products

	5P6J-Z-E2	5P6J-Z-E1	5P4J-Z-E1	5P4J-Z-E2
Description	Silicon Controlled Rectifier, 7.85A I(T)RMS, 600V V(DRM), 600V V(RRM), 1 Element, PLASTIC PACKAGE-4	Silicon Controlled Rectifier, 7.85A I(T)RMS, 600V V(DRM), 600V V(RRM), 1 Element, PLASTIC PACKAGE-4	Silicon Controlled Rectifier, 7.85A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC PACKAGE-4	Silicon Controlled Rectifier, 7.85A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC PACKAGE-4
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2
Contacts	4	4	4	4
Reach Compliance Code	compliant	compliant	compliant	compliant
Shell connection	ANODE	ANODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	0.2 mA	0.2 mA	0.2 mA	0.2 mA
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
JESD-609 code	e0	e0	e0	e0
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	7.85 A	7.85 A	7.85 A	7.85 A
Off-state repetitive peak voltage	600 V	600 V	400 V	400 V
Repeated peak reverse voltage	600 V	600 V	400 V	400 V
surface mount	YES	YES	YES	YES
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	-
