350644-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 350644-2

350644-2: DescriptionCONNECTOR, 15 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR, SOLDER; CategoryThe connector The connector; File Size682KB，15 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

350644-2 Overview

CONNECTOR, 15 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR, SOLDER

350644-2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	MATE-N-LOK
Connector type	COMBINATION LINE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	350644
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Shell material	NYLON
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-2
Base Number Matches	1

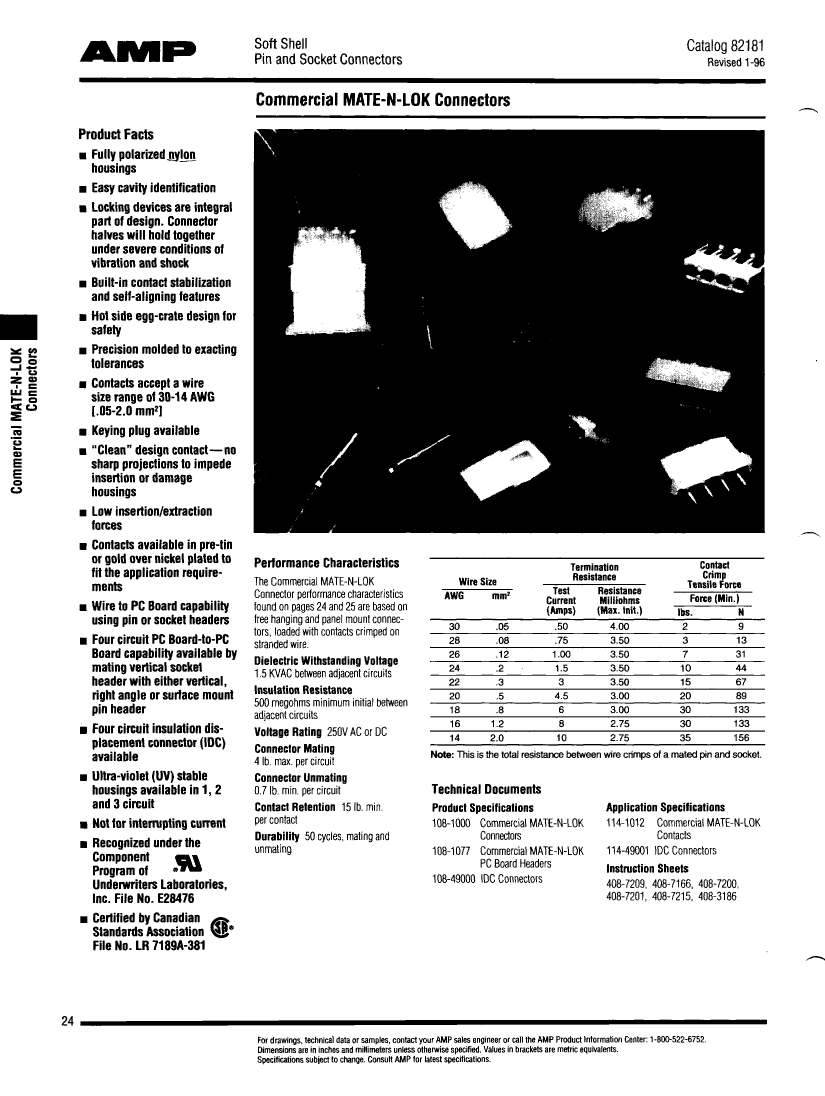

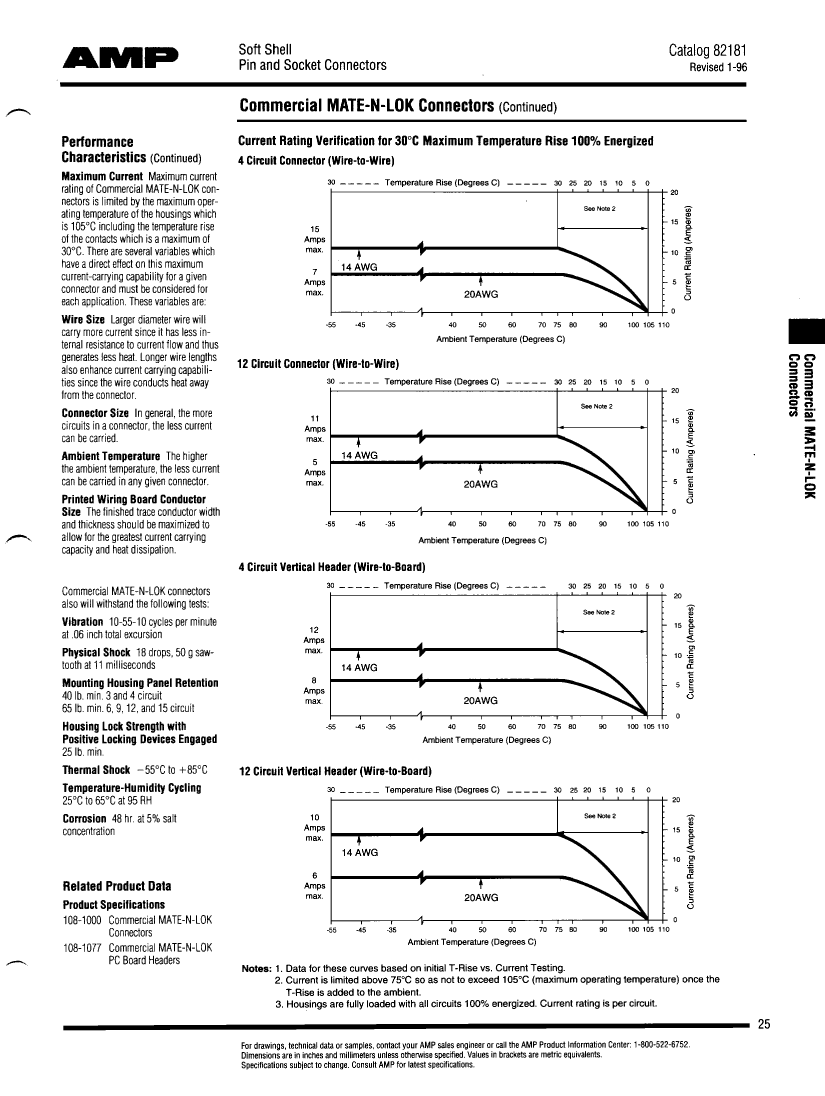

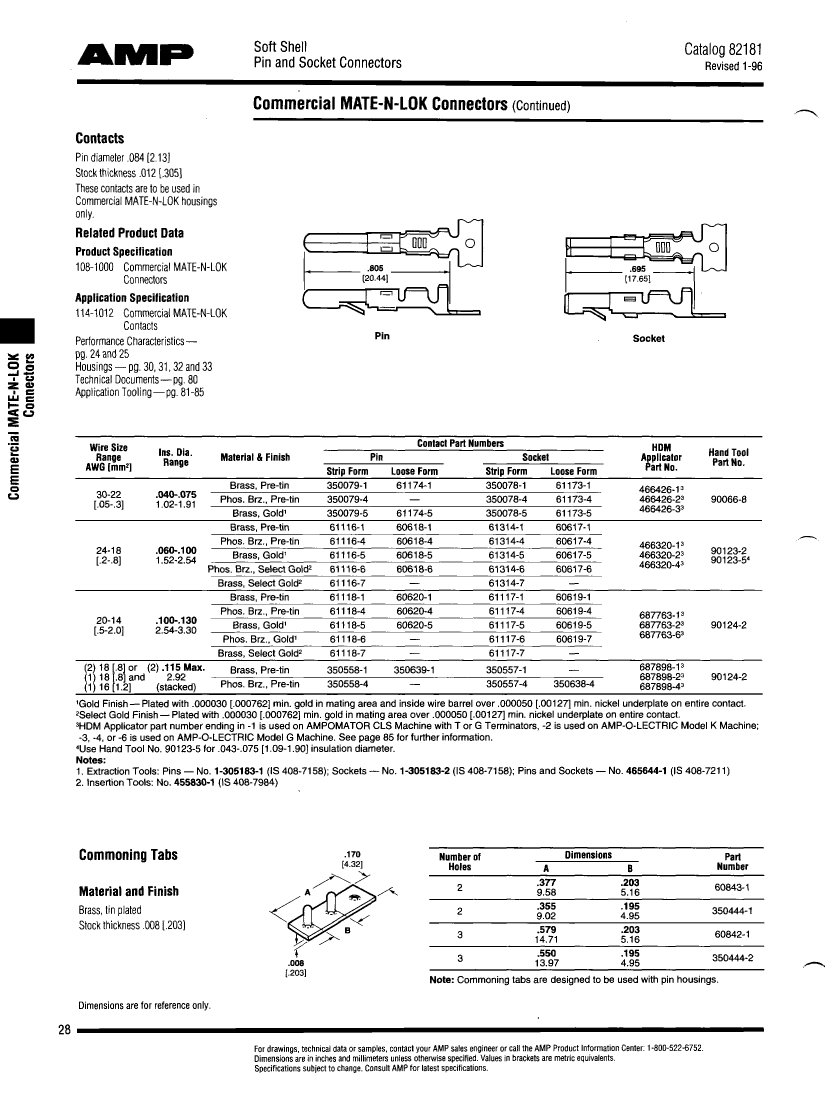

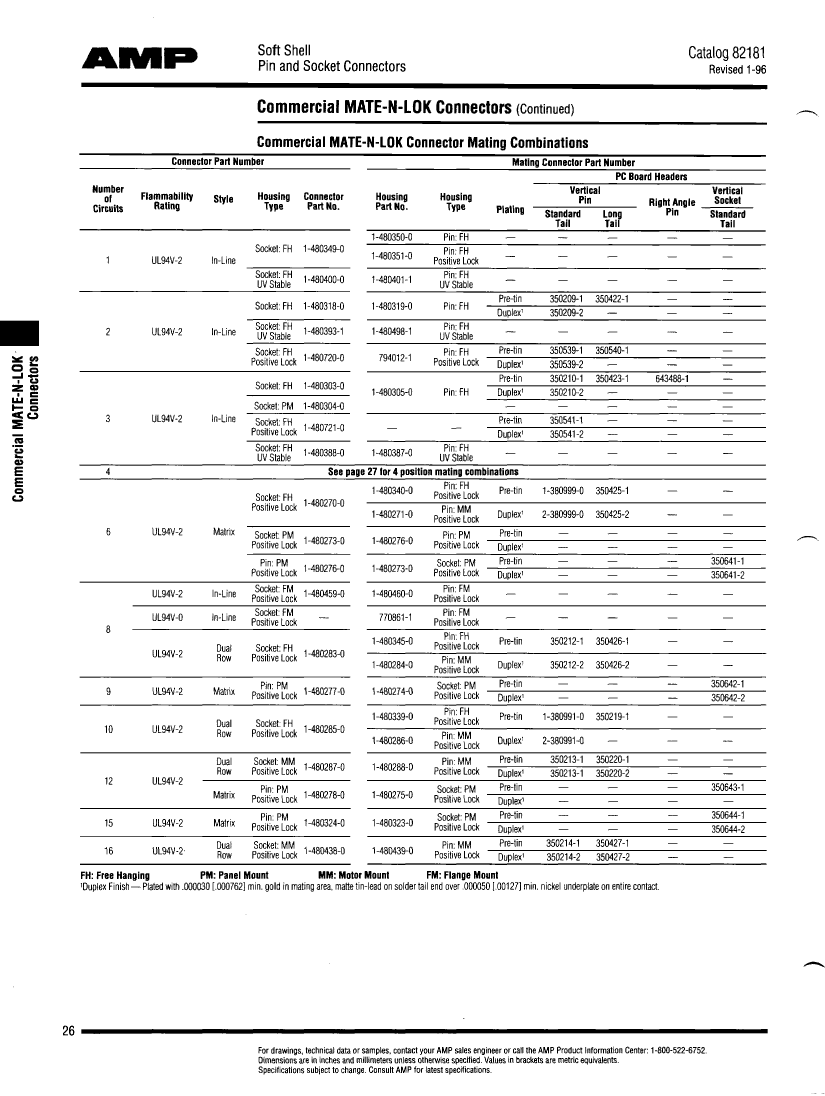

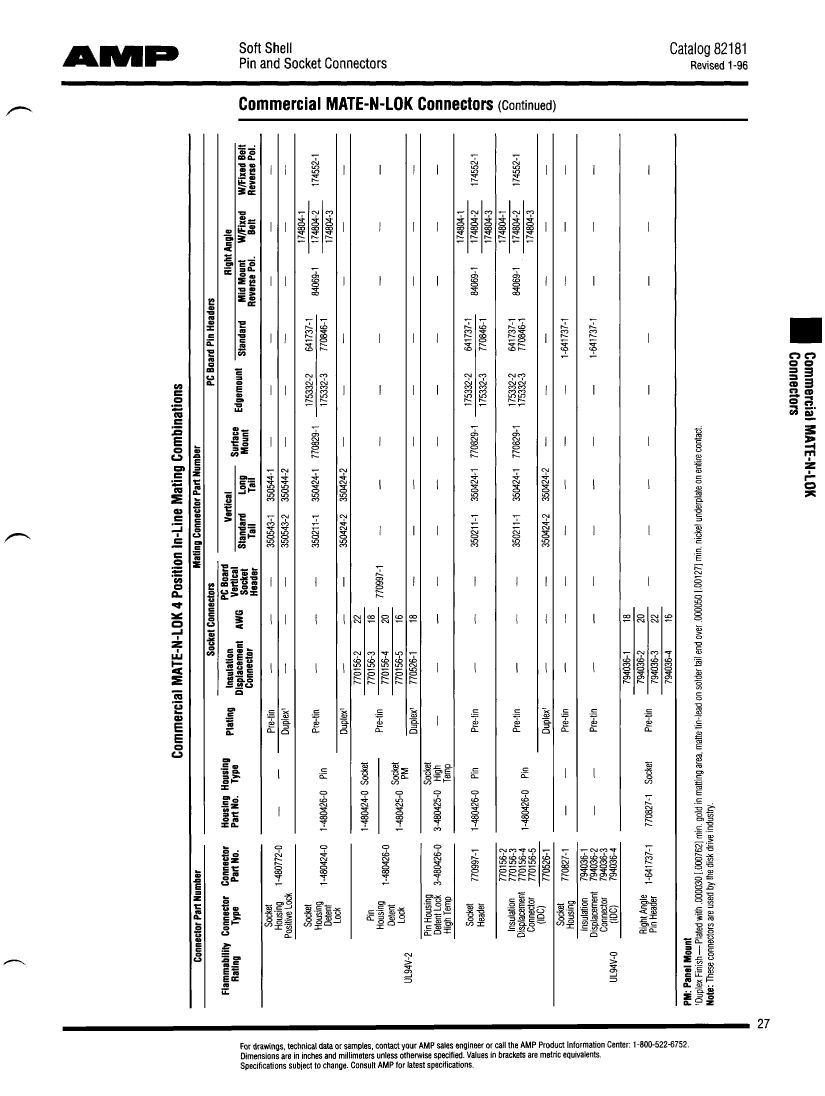

Preview

Download Datasheet

View All

350644-2 Related Products

	350644-2	1-480459-0	1-480460-0	770861-1	1206SW8F205JT3E	1206SW8F2151C2	1206SW8F2153CAE	RM422-086-752-9735	1-480305-0C
Description	CONNECTOR, 15 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR, SOLDER	CONNECTOR, 8 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR	CONNECTOR, 8 CONTACT(S), MALE, COMBINATION LINE CONNECTOR	CONNECTOR, 8 CONTACT(S), MALE, COMBINATION LINE CONNECTOR	Fixed Resistor, Metal Glaze/thick Film, 0.125W, 20.5ohm, 200V, 1% +/-Tol, -200,200ppm/Cel, 1206,	Fixed Resistor, Metal Glaze/thick Film, 0.125W, 2150ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206,	Fixed Resistor, Metal Glaze/thick Film, 0.125W, 215000ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206,	Board Connector, 86 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle,	CONNECTOR, 3 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR
Reach Compliance Code	unknown	unknow	unknow	unknown	compliant	compliant	compliant	compliant	unknown
Other features	MATE-N-LOK	MATE-N-LOK, COMPATIBLE CONTACTS: 350078-1; 61173-1; 61314-1; 60617-6; 61117-1	MATE-N-LOK, COMPATIBLE CONTACTS: 350079-1; 61174-1; 61116-1; 60618-6; 350558-1	MATE-N-LOK, COMPATIBLE CONTACTS: 350079-1; 61174-1; 61116-1; 60618-6; 350558-1	-	-	-	POLARIZED	MATE-N-LOK, COMPATIBLE CONTACTS: 350079-1; 61174-1; 61116-1; 60618-6; 350558-1
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	-	-	-	BOARD CONNECTOR	COMBINATION LINE CONNECTOR
Contact point gender	FEMALE	FEMALE	MALE	MALE	-	-	-	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	-	-	-	NO	NO
empty shell	NO	YES	YES	YES	-	-	-	-	YES
Filter function	NO	NO	NO	NO	-	-	-	NO	NO
IEC compliance	NO	NO	NO	NO	-	-	-	NO	NO
MIL compliance	NO	NO	NO	NO	-	-	-	NO	NO
Manufacturer's serial number	350644	480459	480460	770861	-	-	-	-	480305
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	-	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	-	-	-	NO	NO
Installation type	BOARD	PANEL	PANEL	PANEL	-	-	-	BOARD	CABLE
Shell material	NYLON	NYLON	NYLON	NYLON	-	-	-	-	NYLON
Total number of contacts	15	8	8	8	-	-	-	86	3
UL Flammability Code	94V-2	94V-2	94V-2	94V-0	-	-	-	-	94V-2
Base Number Matches	1	1	1	1	-	-	-	-	1
