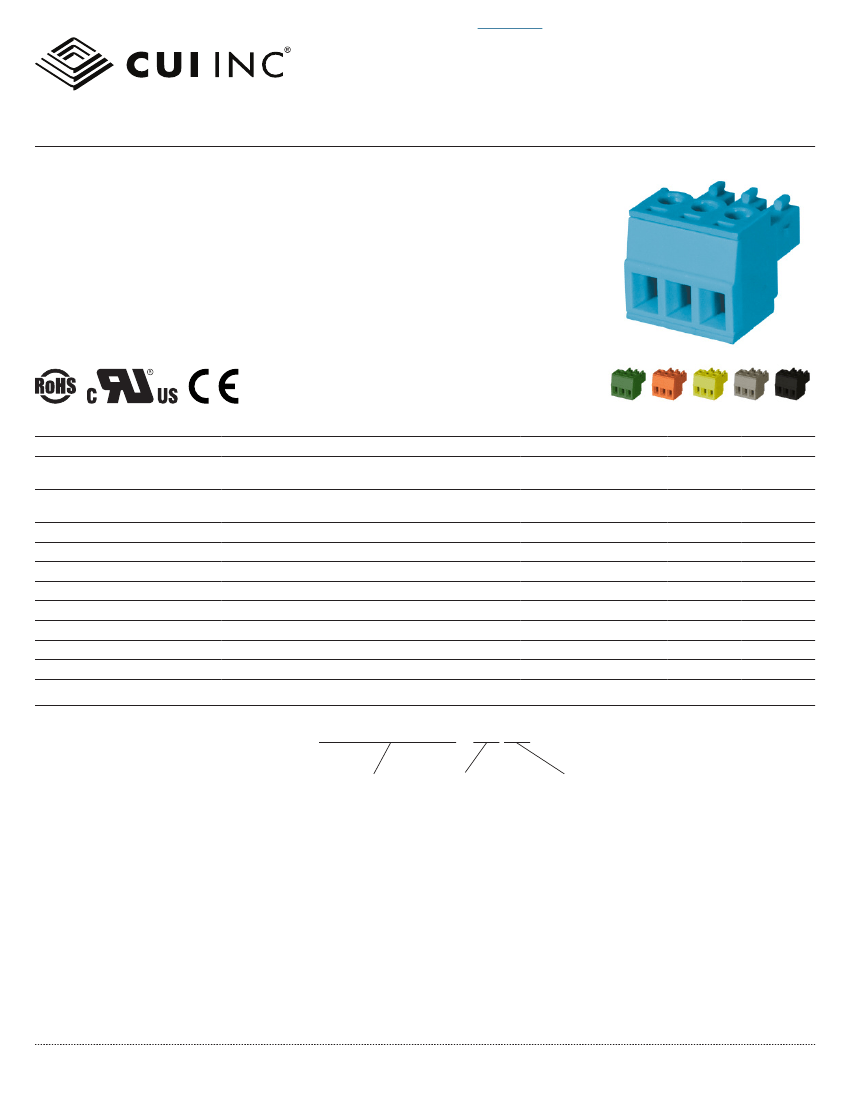

SERIES:
TBP02P1-381
│
DESCRIPTION:
TERMINAL BLOCK
FEATURES
• 2~24 poles
• 180° insertion entry
• 2~6 poles groove guide
• 3.81 mm pitch
• UL and CE safety approvals
SPECIFICATIONS
parameter
rated voltage (per contact)
rated current (per contact)
withstanding voltage
surge voltage
contact resistance
insulation resistance
operating temperature
safety approvals
flammability rating
RoHS
UL 1059, EN 60998-1:2004, EN 60998-2-1:2004
UL94V-0
yes
at 500 Vdc
500
-40
105
conditions/description
UL
IEC
UL
IEC
2000
4000
20
min
typ
max
300
250
8
7
units
V
V
A
A
Vac
V
mΩ
MΩ
°C
PART NUMBER KEY
TBP02P1-381 -
XX XX
Base Number
No. of Poles:
02
14
03
15
04
16
05
17
06
18
07
19
08
20
09
21
10
22
11
23
12
24
13
Color:
BE = blue
GR = green
OR = orange
YL = yellow
GY = gray
BK = black
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
TBP02P1-381
│
DESCRIPTION:
TERMINAL BLOCK
date
03/27/2019│
page
2 of 3

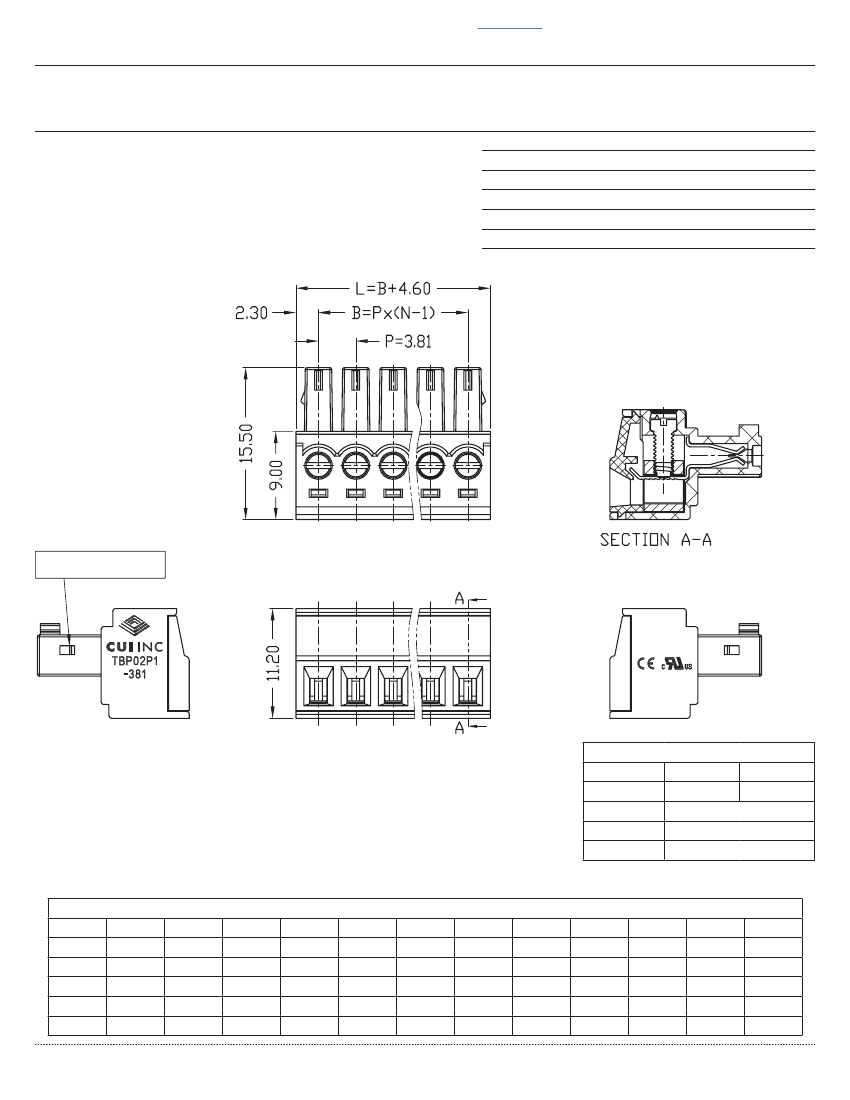

MECHANICAL DRAWING
units: mm
tolerance (per module):
X≤6.00: ±0.25 mm
6.00<X≤30.00: ±0.40 mm
30.00<X≤60.00: ±0.60 mm
60.00<X≤150.00: ±1.00 mm
unless otherwise noted
DESCRIPTION
housing
contacts
wire screws
block
MATERIAL
PA66 (UL94V-0)
copper alloy
steel
copper alloy
nickel
zinc
nickel
PLATING/COLOR
Locking Tab Only Present
on 2~6 Pole Modules
WIRE ASSEMBLY
UL
Wire Range
Strip Length
Screw Size
Screw Torque
28~16 AWG
M2
0.2 N·m
7 mm
IEC
1.5 mm
2
This series is constructed of single piece modules where L is the total length, P is the pitch, and N is the number of poles.
N
L
B
N
L
B
02
8.41
3.81
14
54.13
49.53
03
12.22
7.62
15
57.94
53.34
04
16.03
11.43
16
61.75
57.15
05
19.84
15.24
17
65.56
60.96
06
23.65
19.05
18
69.37
64.77
07
27.46
22.86
19
73.18
68.58
cui.com
08
31.27
26.67
20
76.99
72.39
09
35.08
30.48
21
80.80
76.20
10
38.89
34.29
22
84.61
80.01
11
42.70
38.10
23
88.42
83.82
12
46.51
41.91
24
92.23
87.63
13
50.32
45.72
--
--
--
For more information, please visit the
product page.
CUI Inc
│
SERIES:
TBP02P1-381
│
DESCRIPTION:
TERMINAL BLOCK
date
03/27/2019│
page
3 of 3
REVISION HISTORY
rev.
1.0
description
initial release
The revision history provided is for informational purposes only and is believed to be accurate.
date
03/27/2019
