5961-01-344-8846 datasheet, PDF

5961-01-344-8846: DescriptionSilicon Controlled Rectifier, 25000mA I(T), 200V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size256KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

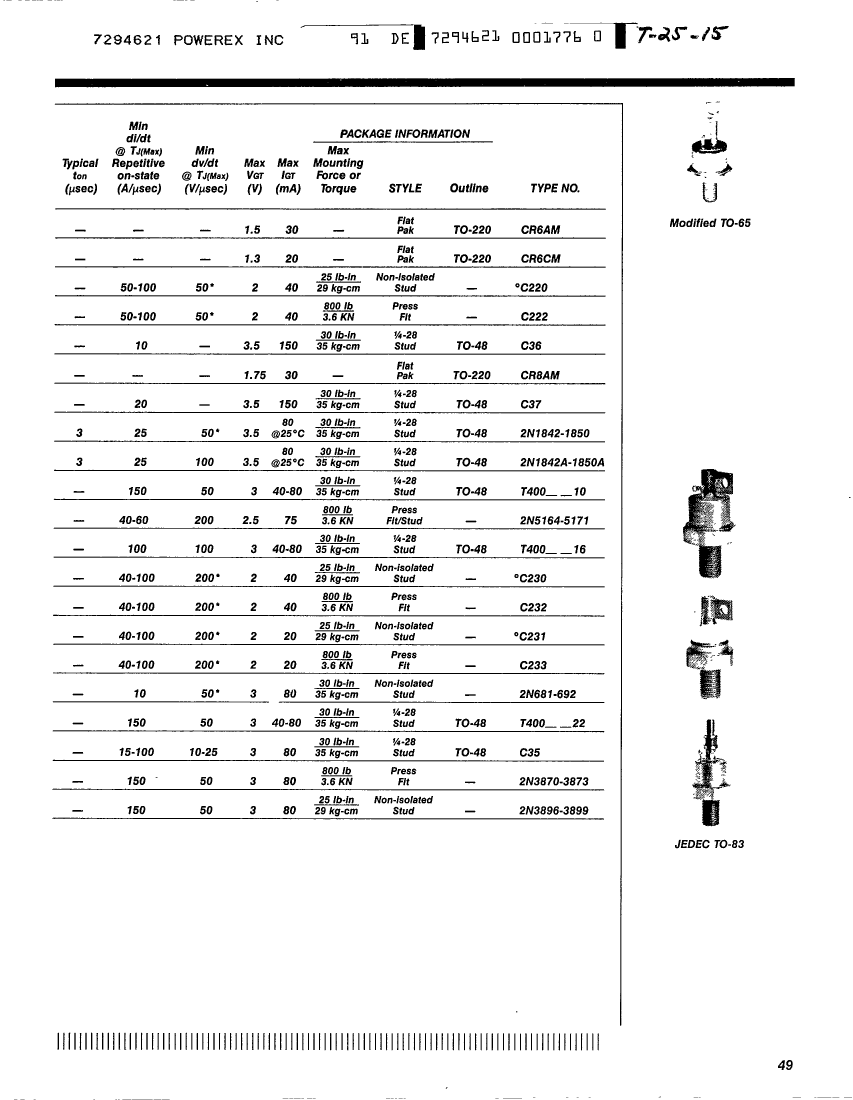

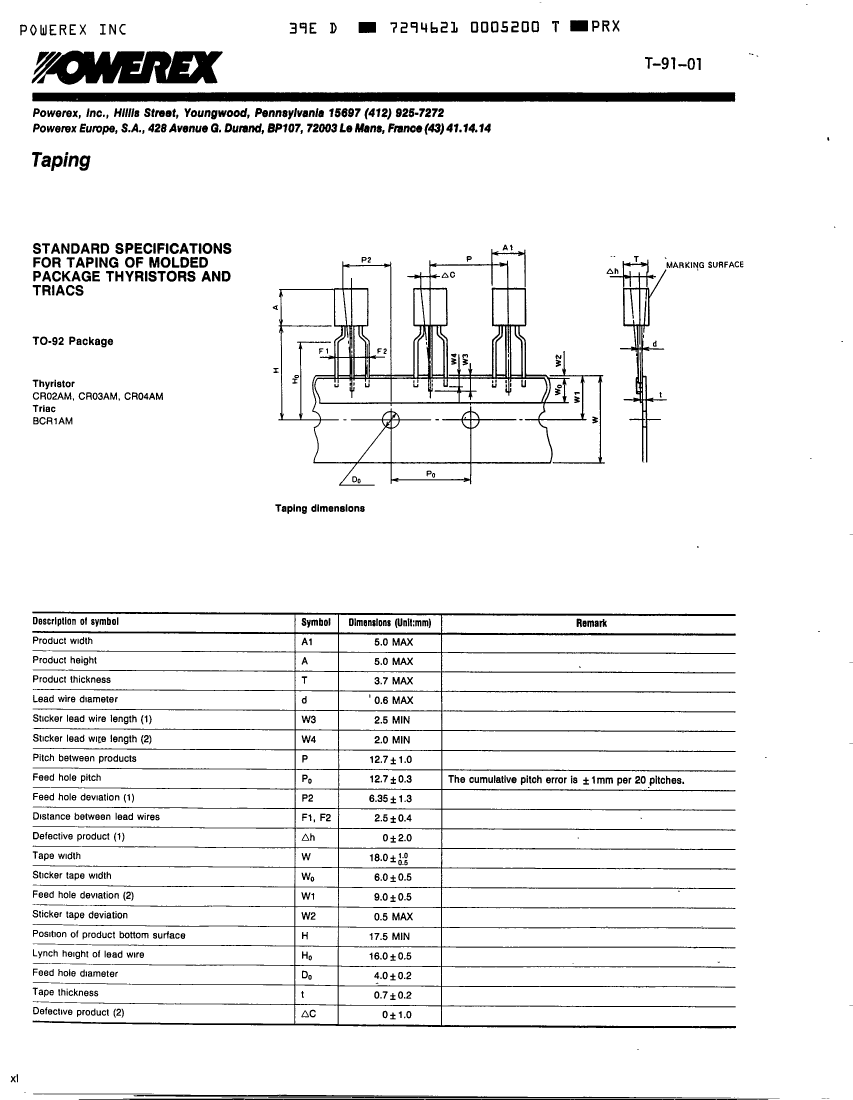

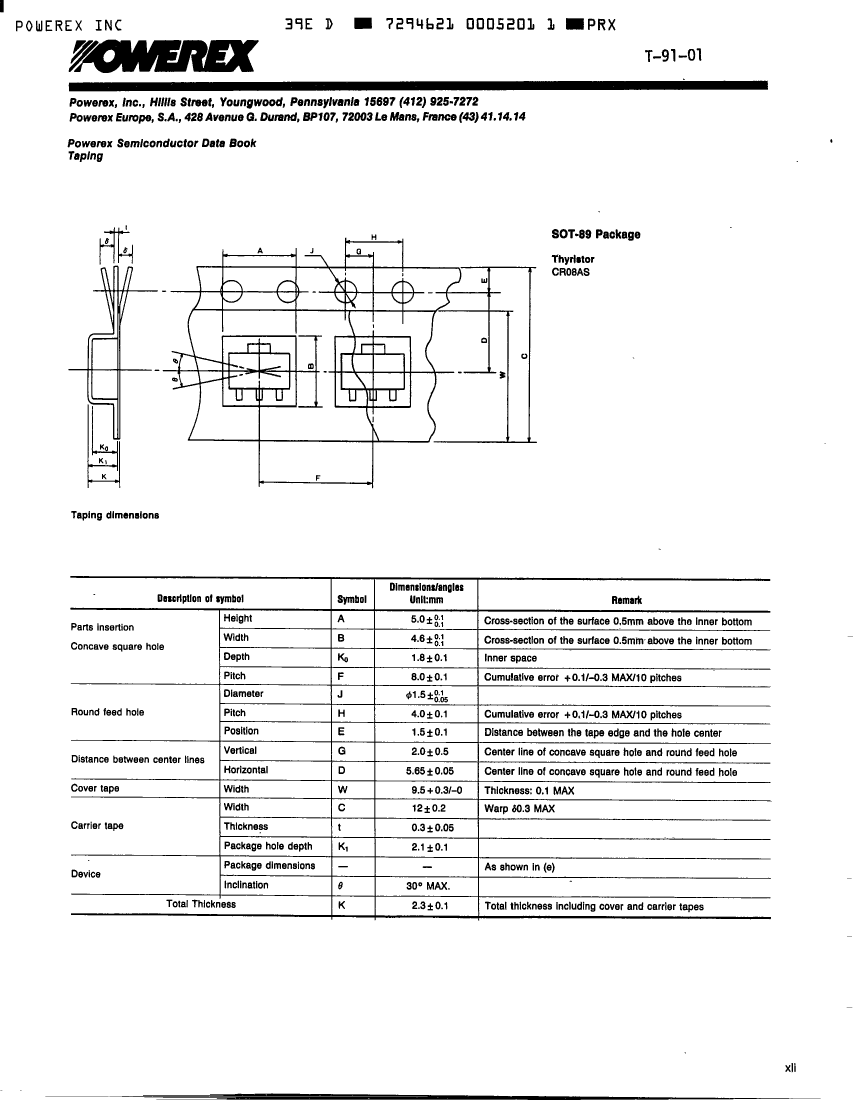

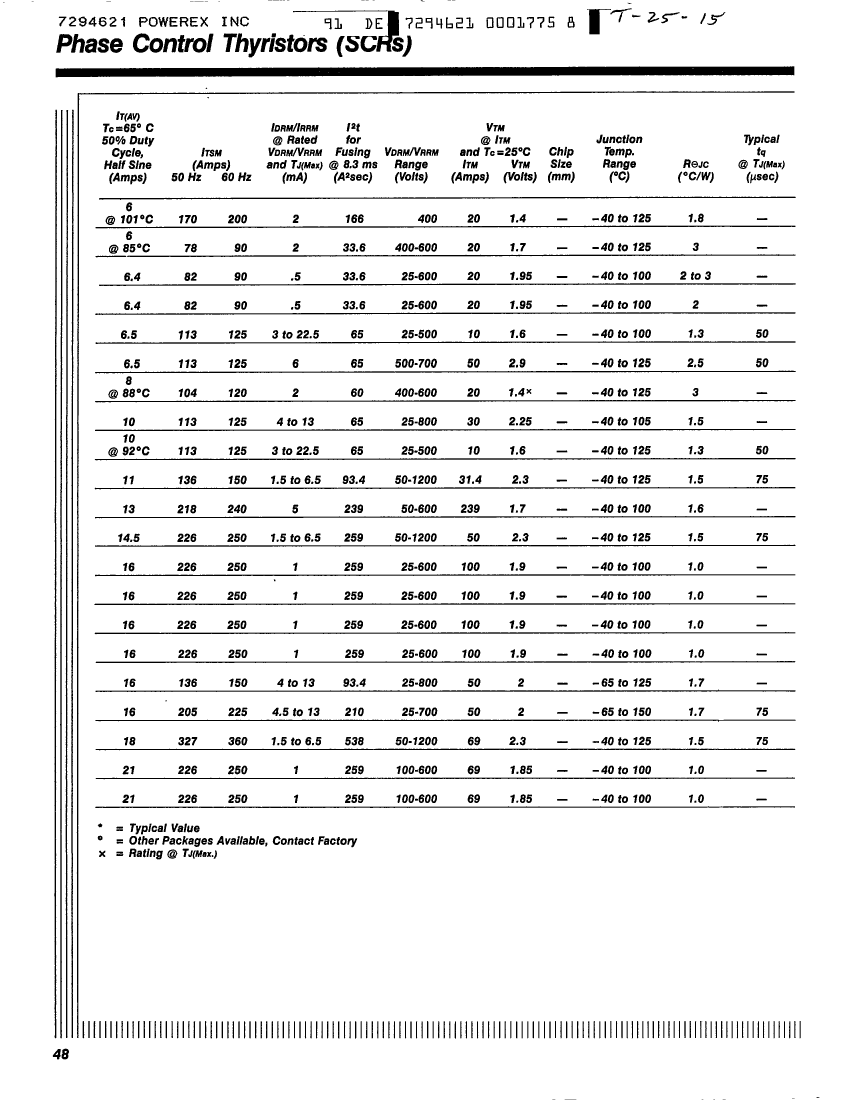

5961-01-344-8846 Overview

Silicon Controlled Rectifier, 25000mA I(T), 200V V(DRM)

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	25 µs
Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	9 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	50 mA
Maximum leakage current	1 mA
On-state non-repetitive peak current	250 A
Maximum on-state current	25000 A
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	200 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1
