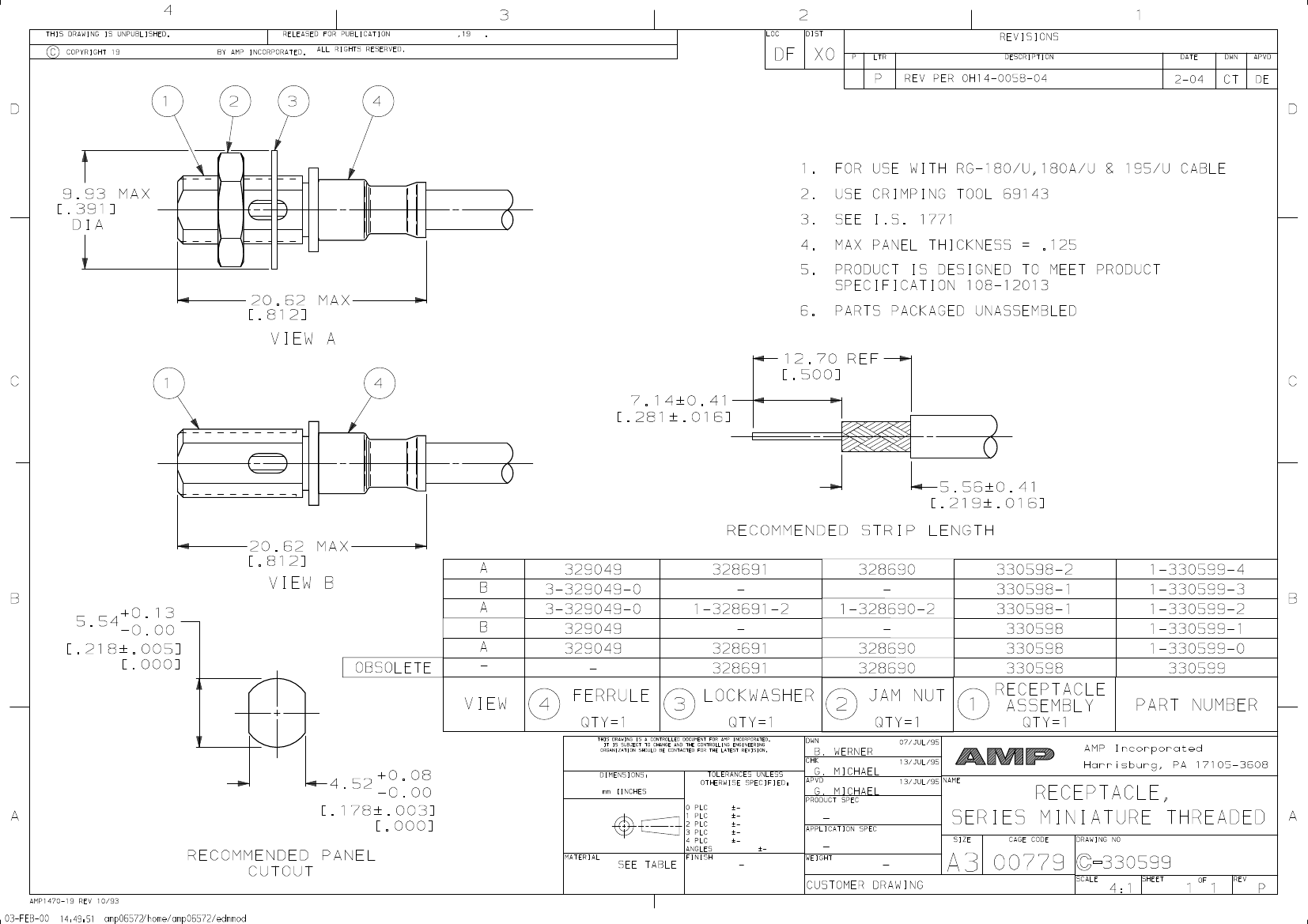

CONNECTOR, RF, CABLE MOUNT,RECEPT,1 CONTACTS,SKT,CRIMP TERMINAL,LOCKING
| Parameter Name | Attribute value |
| Maker | TE Connectivity |
| Reach Compliance Code | unknown |
| subject depth | 0.812 inch |
| Body/casing type | RECEPTACLE |
| Cable type | RG-180/U |
| Characteristic impedance | 50 Ω |
| Contact point gender | FEMALE |
| Contact resistance | 3 mΩ |
| Contact style | COAX |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 200 Cycles |
| Insulation resistance | 5000000000 Ω |
| Manufacturer's serial number | 330599 |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | CABLE |
| Number of ports | 1 |
| Maximum operating frequency | 1 GHz |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 2 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Termination type | CRIMP |
| Total number of contacts | 1 |
| voltage standing wave ratio | 1.3 |
| Base Number Matches | 1 |
| 330599 | ER20-82GKLRZF | ER20-82WOJTRF | ER20-83KKLTMF | |
|---|---|---|---|---|
| Description | CONNECTOR, RF, CABLE MOUNT,RECEPT,1 CONTACTS,SKT,CRIMP TERMINAL,LOCKING | Analog Circuit | Analog Circuit | Analog Circuit |
| Reach Compliance Code | unknown | compliant | compliant | compliant |
| Contact resistance | 3 mΩ | 0.02 mΩ | 0.02 mΩ | 0.02 mΩ |
| Dielectric withstand voltage | 1000VAC V | 3000VAC V | 3000VAC V | 3000VAC V |
| Insulation resistance | 5000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Termination type | CRIMP | SOLDER | QUICK CONNECT | QUICK CONNECT |
| Objectid | - | 400146835 | 400146424 | 400147802 |
| Actuator color | - | BLACK | ORANGE | BLACK |
| Actuator length | - | 0.297 inch | 0.297 inch | 0.297 inch |
| Actuator material | - | POLYCARBONATE | POLYCARBONATE | POLYCARBONATE |
| Actuator type | - | ROCKER | ROCKER | ROCKER |
| Other features | - | UL, CSA & VDE APPROVED | UL, CSA & VDE APPROVED | UL, CSA & VDE APPROVED |
| body width | - | 14.8 mm | 14.8 mm | 14.8 mm |
| body height | - | 16 mm | 14 mm | 14 mm |
| Body length or diameter | - | 20.8 mm | 20.8 mm | 20.8 mm |
| Contact (AC) maximum rated R load | - | 6A@250VAC | 6A@250VAC | 15A@125VAC |
| Maximum contact current (AC) | - | 6 A | 6 A | 15 A |
| Contact function | - | ON-OFF-(ON) | ON-OFF-(ON) | ON-OFF-(ON) |
| Maximum contact voltage (AC) | - | 250 V | 250 V | 125 V |
| Electrical life | - | 10000 Cycle(s) | 10000 Cycle(s) | 10000 Cycle(s) |
| Shell material | - | GLASS FILLED NYLON 6/6 | GLASS FILLED NYLON 6/6 | GLASS FILLED NYLON 6/6 |
| Installation features | - | THROUGH HOLE-RIGHT ANGLE | PANEL MOUNT | PANEL MOUNT |
| surface mount | - | NO | NO | NO |
| Switch action | - | LATCHED | LATCHED | LATCHED |
| switch function | - | SPDT | SPDT | SPDT |
| Switch type | - | ROCKER SWITCH | ROCKER SWITCH | ROCKER SWITCH |
| Terminal material | - | BRASS | BRASS | BRASS |
