Part Number

Search

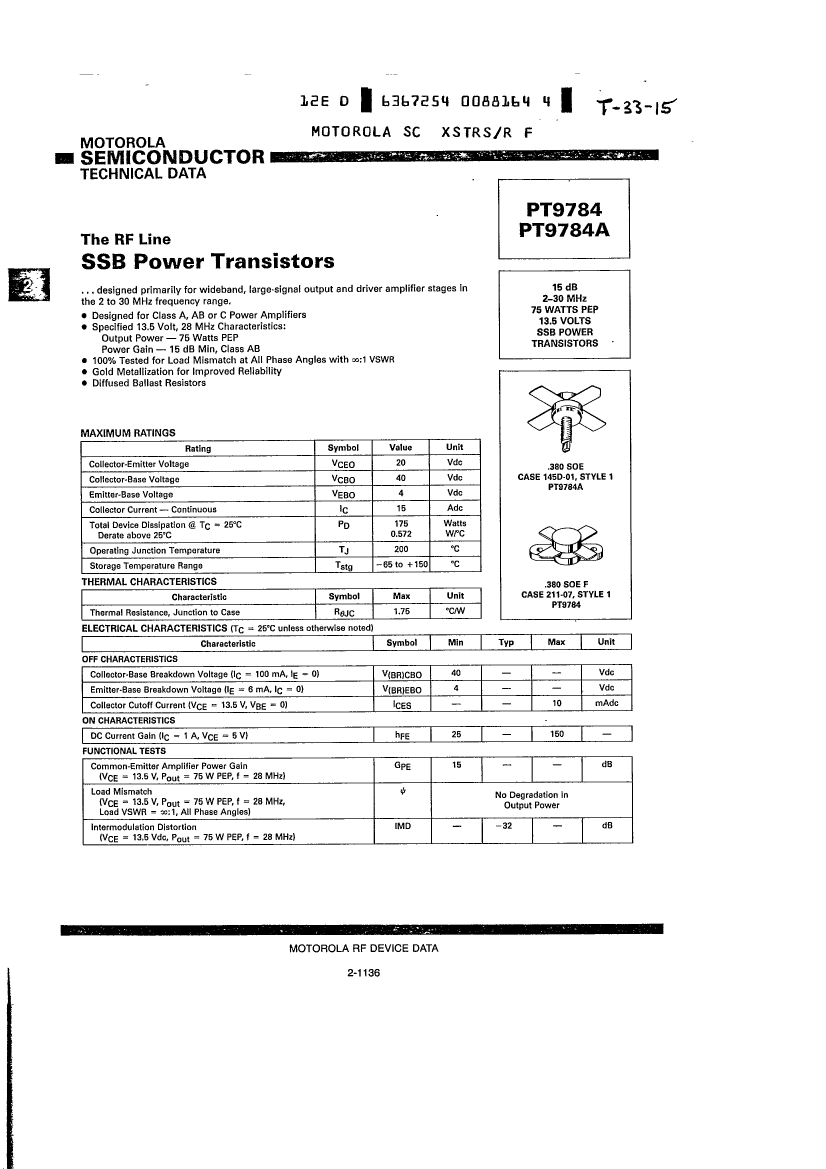

PT9784

Description
SSB POWER TRANSISTORS
CategoryDiscrete semiconductor    The transistor
File Size137KB,2 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

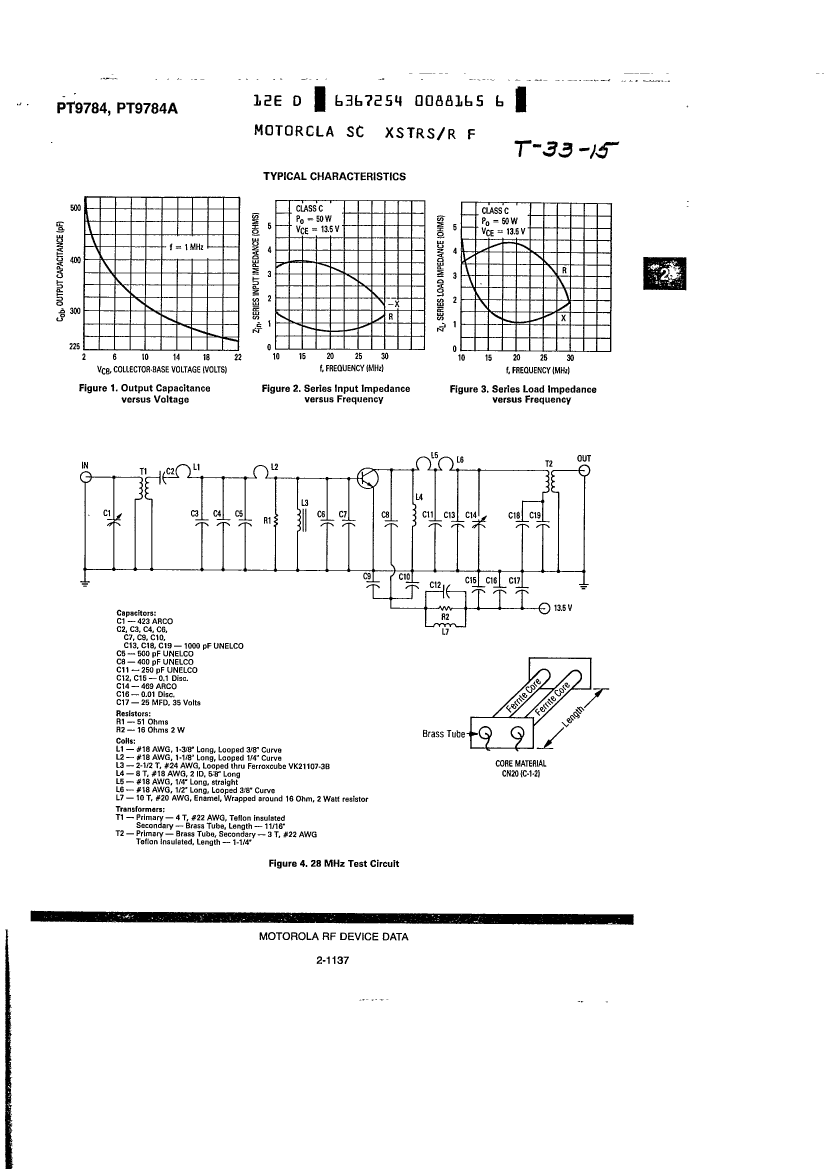

PT9784 Overview

SSB POWER TRANSISTORS

PT9784 Parametric

Parameter NameAttribute value
MakerMotorola ( NXP )
package instruction,
Reach Compliance Codeunknow
Maximum collector current (IC)15 A
ConfigurationSingle
Minimum DC current gain (hFE)25
Maximum operating temperature140 °C
Polarity/channel typeNPN
Maximum power dissipation(Abs)200 W
Nominal transition frequency (fT)30 MHz

PT9784 Related Products

PT9784 PT9784A
Description SSB POWER TRANSISTORS SSB POWER TRANSISTORS
Maker Motorola ( NXP ) Motorola ( NXP )
Reach Compliance Code unknow unknow
Maximum collector current (IC) 15 A 15 A
Configuration Single Single
Minimum DC current gain (hFE) 25 25
Maximum operating temperature 140 °C 140 °C
Polarity/channel type NPN NPN
Maximum power dissipation(Abs) 200 W 175 W
Nominal transition frequency (fT) 30 MHz 30 MHz
