MC10H115L

Description
QUAD LINE RECEIVER, PDIP16
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size65KB,3 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Related ProductsFound11parts with similar functions to MC10H115L
Download Datasheet Parametric Compare View All

MC10H115L Online Shopping

Suppliers Part Number Price MOQ In stock
MC10H115L - - View Buy Now

MC10H115L Overview

QUAD LINE RECEIVER, PDIP16

MC10H115L Parametric

Parameter NameAttribute value
MakerMotorola ( NXP )
Parts packaging codeDIP
package instructionDIP, DIP16,.3
Contacts16
Reach Compliance Codeunknow
ECCN codeEAR99
Input propertiesDIFFERENTIAL
Interface integrated circuit typeLINE RECEIVER
Interface standardsGENERAL PURPOSE
JESD-30 codeR-GDIP-T16
JESD-609 codee0
length19.495 mm
Nominal negative supply voltage-5.2 V
Number of functions1
Number of terminals16
Maximum operating temperature75 °C
Minimum operating temperature
Output characteristicsOPEN-EMITTER
Output polarityTRUE
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply-5.2 V
Certification statusNot Qualified
Maximum receive delay1.45 ns
Number of receiver bits4
Maximum seat height5.08 mm
Maximum slew rate29 mA
surface mountNO
technologyECL
Temperature levelCOMMERCIAL EXTENDED
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
width7.62 mm
MOTOROLA
SEMICONDUCTOR TECHNICAL DATA

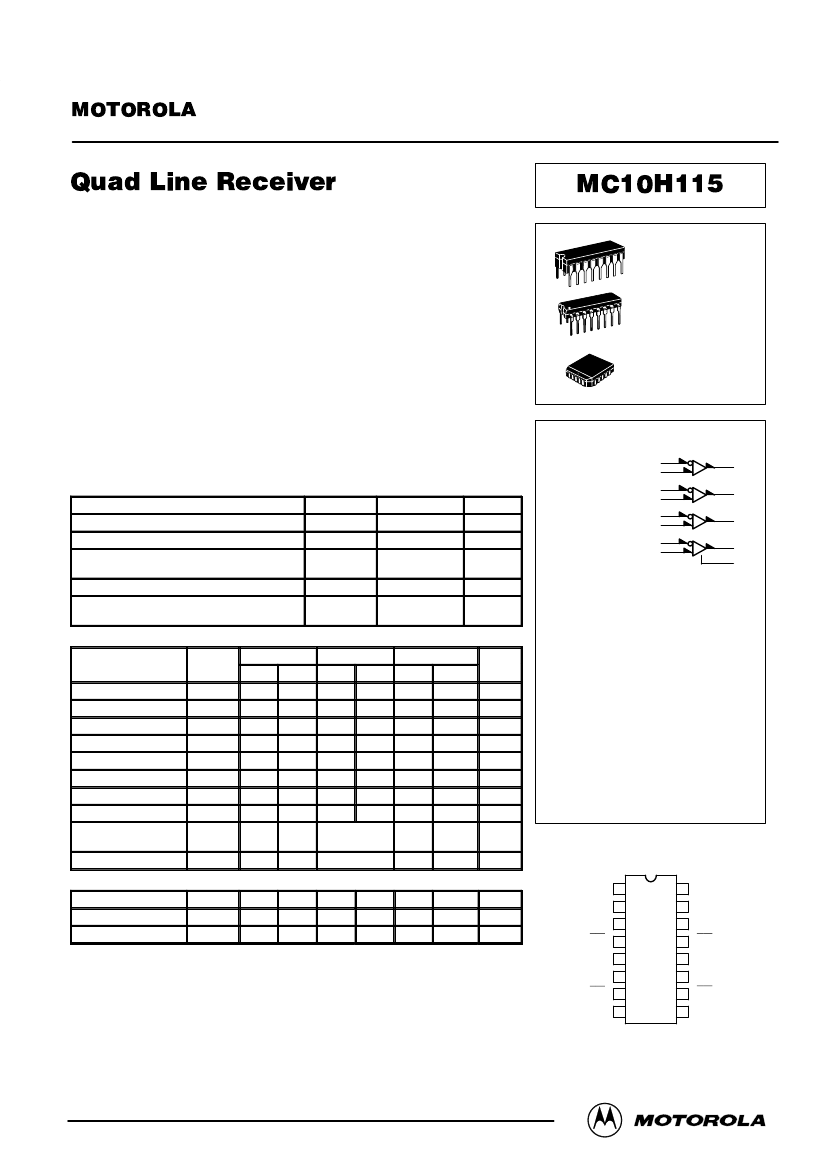

Quad Line Receiver
The MC10H115 is a quad differential amplifier designed for use in sensing
differential signals over long lines. This 10H part is a functional/ pinout
duplication of the standard MECL 10K family part, with 100% improvement in
counting frequency and no increase in power–supply current.
The base bias supply (VBB) is made available at Pin 9 to make the device
useful as a Schmitt trigger, or in other applications where a stable reference
voltage is necessary. Active current sources provide the MC10H115 with
excellent common mode rejection. If any amplifier in a package is not used, one
input of that amplifier must be connected to VBB (Pin 9) to prevent upsetting the
current source bias network.
Propagation Delay, 1.0 ns Typical
Power Dissipation 110 mW Typ/Pkg (No Load)
Improved Noise Margin 150 mV (Over Operating Voltage and
Temperature Range)
Voltage Compensated
MECL 10K–Compatible
MAXIMUM RATINGS
Characteristic
Power Supply (VCC = 0)
Input Voltage (VCC = 0)
Output Current — Continuous
— Surge
Operating Temperature Range
Storage Temperature Range — Plastic
— Ceramic
Symbol
VEE
VI
Iout
TA
Tstg
Rating
–8.0 to 0
0 to VEE
50
100
0 to +75
–55 to +150
–55 to +165
Unit
Vdc
Vdc
mA
°C
°C
°C
MC10H115

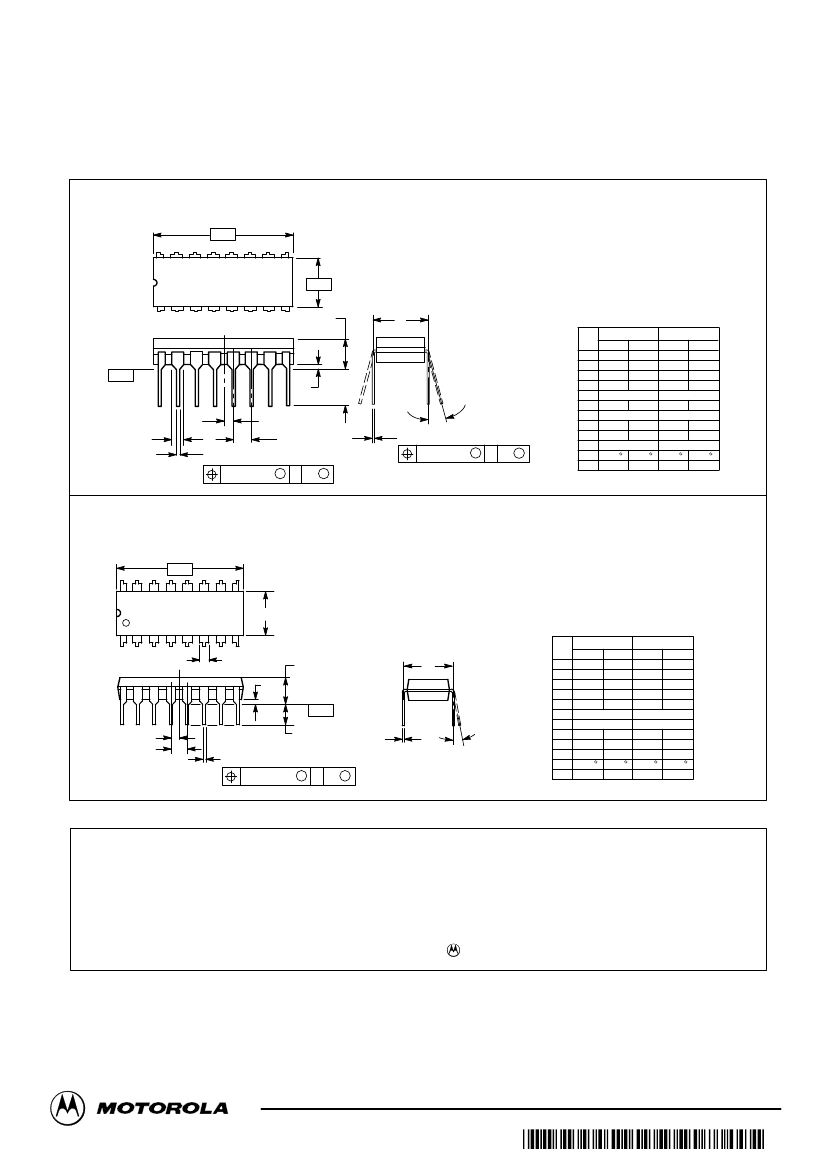

L SUFFIX
CERAMIC PACKAGE

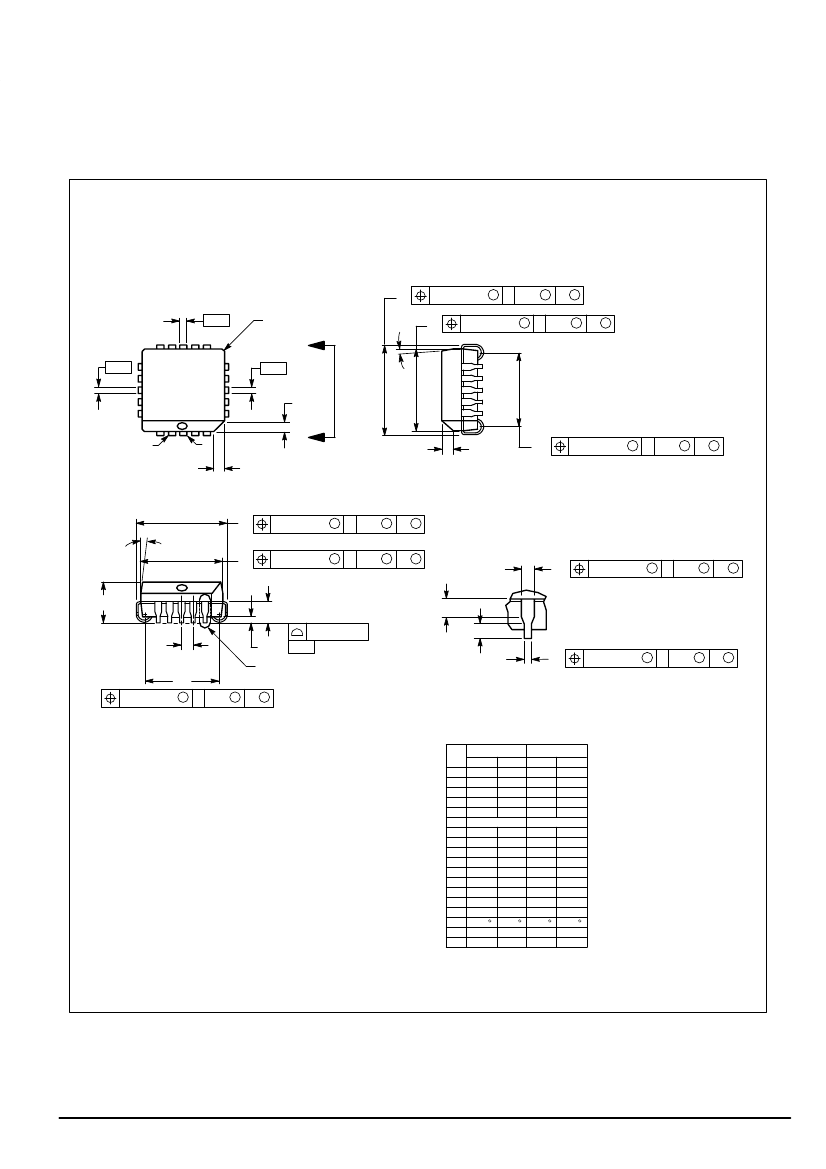

CASE 620–10
P SUFFIX
PLASTIC PACKAGE
CASE 648–08
FN SUFFIX
PLCC
CASE 775–02
LOGIC DIAGRAM
4
5
7
6
10
11
13
12
VBB*
2
3
14
15
9
VCC1 = Pin 1
VCC2 = Pin 16
VEE = Pin 8
When input pin with
bubble goes positive
its respective output
pin with bubble goes
positive.
ELECTRICAL CHARACTERISTICS
(VEE = –5.2 V
±5%)
(2)
Characteristic
Power Supply Current
Input Current High
Input Leakage Current
Reference Voltage
High Output Voltage
Low Output Voltage
High Input Voltage (1)
Low Input Voltage (1)
Common Mode
Range (3)
Input Sensitivity (4)
Symbol
IE
IinH
ICBO
VBB
VOH
VOL
VIH
VIL
VCMR
VPP
Min
–1.38
–1.02
–1.95
–1.17
–1.95
Max
29
150
1.5
–1.27
–0.84
–1.63
–0.84
–1.48
Min
–1.35
–0.98
–1.95
–1.13
–1.95
25°
Max
26
95
1.0
–1.25
–0.81
–1.63
–0.81
–1.48
Min
–1.31
–0.92
–1.95
–1.07
–1.95
75°
Max
29
95
1.0
–1.19
–0.735
–1.60
–0.735
–1.45
Unit
mA
µA
µA
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
mVPP
*VBB to be used to supply bias to the MC10H115 only
and bypassed (when used) with 0.01
µF
to 0.1
µF
capacitor to ground (0 V). VBB can source < 1.0 mA.
The MC10H115 is designed to be used in sensing
differential signals over long lines. The bias supply
(VBB) is made available to make the device useful as a
Schmitt trigger, or in other applications where a stable
reference voltage is necessary.
Active current sources provide these receivers with
excellent common–mode noise rejection. If any
amplifier in a package is not used, one input of that
amplifier must be connected to VBB to prevent
unbalancing the current–source bias network.
The MC10H115 does not have internal–input pull–
down resistors. This provides high impedance to the
amplifier input and facilitates differential connections.
Applications:
Low Level Receiver
Voltage Level
Schmitt Trigger
Interface
–2.85 to –0.8
150 typ
DIP
PIN ASSIGNMENT
VCC1
AOUT
BOUT
AIN
AIN
BIN
BIN
VEE
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VCC2
DOUT
COUT
DIN
DIN
CIN
CIN
VBB
AC PARAMETERS
Propagation Delay
Rise Time
Fall Time
tpd
tr
tf
0.4
0.5
0.5
1.3
1.4
1.4
0.4
0.5
0.5
1.3
1.5
1.5
0.45
0.5
0.5
1.45
1.6
1.6
ns
ns
ns
NOTES:
1. When VBB is used as the reference voltage.
2. Each MECL 10H series circuit has been designed to meet the specifications shown in the test table, after thermal
equilibrium has been established. The circuit is in a test socket or mounted on a printed circuit board and transverse
air flow greater than 500 linear fpm is maintained. Outputs are terminated through a 50–ohm resistor to –2.0 volts.
3. Differential input not to exceed 1.0 Vdc.
4. 150 mVp–p differential input required to obtain full logic swing on output.
Pin assignment is for Dual–in–Line Package.
For PLCC pin assignment, see the Pin Conversion
Tables on page 6–11 of the Motorola MECL Data
Book (DL122/D).
3/93
©
Motorola, Inc. 1996
2–216
REV 5

MC10H115L Related Products

MC10H115L MC10H115P MC10H115FN
Description QUAD LINE RECEIVER, PDIP16 QUAD LINE RECEIVER, PDIP16 QUAD LINE RECEIVER, PQCC20
Maker Motorola ( NXP ) Motorola ( NXP ) Motorola ( NXP )
package instruction DIP, DIP16,.3 PLASTIC, DIP-16 PLASTIC, LCC-20
Reach Compliance Code unknow unknow unknow
ECCN code EAR99 EAR99 EAR99
Input properties DIFFERENTIAL DIFFERENTIAL DIFFERENTIAL
Interface integrated circuit type LINE RECEIVER LINE RECEIVER LINE RECEIVER
Interface standards GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
JESD-30 code R-GDIP-T16 R-PDIP-T16 S-PQCC-J20
JESD-609 code e0 e0 e0
length 19.495 mm 19.175 mm 8.965 mm
Nominal negative supply voltage -5.2 V -5.2 V -5.2 V
Number of functions 1 1 1
Number of terminals 16 16 20
Maximum operating temperature 75 °C 75 °C 75 °C
Output characteristics OPEN-EMITTER OPEN-EMITTER OPEN-EMITTER
Output polarity TRUE TRUE TRUE
Package body material CERAMIC, GLASS-SEALED PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIP DIP QCCJ
Package shape RECTANGULAR RECTANGULAR SQUARE
Package form IN-LINE IN-LINE CHIP CARRIER
Certification status Not Qualified Not Qualified Not Qualified
Maximum receive delay 1.45 ns 1.45 ns 1.45 ns
Number of receiver bits 4 4 4
Maximum seat height 5.08 mm 4.44 mm 4.57 mm
surface mount NO NO YES
technology ECL ECL ECL
Temperature level COMMERCIAL EXTENDED COMMERCIAL EXTENDED COMMERCIAL EXTENDED
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE J BEND
Terminal pitch 2.54 mm 2.54 mm 1.27 mm
Terminal location DUAL DUAL QUAD
width 7.62 mm 7.62 mm 8.965 mm
Encapsulate equivalent code DIP16,.3 - LDCC20,.4SQ
power supply -5.2 V - -5.2 V
Maximum slew rate 29 mA - 29 mA
Is it Rohs certified? - incompatible incompatible

MC10H115L Similar Products

Part Number Manufacturer Description
10115PC Fairchild Line Receiver, 4 Func, 1 Rcvr, ECL, PDIP16, PLASTIC, DIP-16
MC10115P Motorola ( NXP ) Quad Line Receiver
MC10H115P Motorola ( NXP ) QUAD LINE RECEIVER, PDIP16
10115DC Fairchild Line Receiver, 4 Func, 1 Rcvr, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16
10H515/BEAJC Motorola ( NXP ) LINE RECEIVER, CDIP16, CERDIP-16
10515/BEAJC Motorola ( NXP ) Line Receiver, 1 Func, 4 Rcvr, ECL, CDIP16, CERDIP-16
MC10115L ON Semiconductor(安森美) Quad Line Receiver
MC10H115MELG Rochester Electronics QUAD LINE RECEIVER, PDSO16, LEAD FREE, SOEIAJ-16
MC10H115MG Rochester Electronics QUAD LINE RECEIVER, PDSO16, LEAD FREE, SOEIAJ-16
MC10H115MEL ON Semiconductor(安森美) Bus Receivers Quad Diff Amplifier
MC10H115M Motorola ( NXP ) Line Receiver, 4 Func, 4 Rcvr, ECL, PDSO16
