Solid State Relays
System Monitoring Relay (SOLITRON)
Type RN1S ....... (Sense Relay)
•
•
•
•
•
•
•
•
System (line and load) monitoring relay
Rated operational current: 30 A and 50 AACrms
Zero switching for heating and motor applications
Rated operational voltage: 230, 400 and 480 VACrms
Transient overvoltage protection built-in
Alarm output signal
LED-indication for alarm and supply/relay ON
DIN-rail mountable
Product Description
The system monitoring
Solid State Relay (Sense
Relay) provides an alarm
output in the event of a cir-
cuit failure. Internal circuits
monitor:
- line voltage
- load current
- correct functioning of the SSR
- SSR input status
The relay is designed for
applications where immedi-
ate fault detection is required.
A red LED indicates an
alarm, a green LED indicates
DC control supply OK (half
LED light intensity) resp.
relay switched ON (full LED
light intensity).
Ordering Key
Solid State Relay
Number of poles
Rated operational voltage
Control input
Rated operational current
Alarm output type
RN 1S 23 H 30 NO
Type Selection
Rated operational
voltage
23: 230 VACrms
40: 400 VACrms
48: 480 VACrms
Control input
H: Active high
L: Active low
Rated operational
current
30: 30 AACrms
50: 50 AACrms
Alarm output
type
NO: NPN, NO
NC: NPN, NC
PO: PNP, NO
PC: PNP, NC
Selection Guide
Rated
operational
voltage
230 VACrms
Alarm
output
type
NPN, NO
NPN, NC
PNP, NO
PNP, NC
NPN, NO
NPN, NC
PNP, NO
PNP, NC
NPN, NO
NPN, NC
PNP, NO
PNP, NC
Rated operational current
30 AACrms
30 AACrms
Active high
Active low
RN
RN
RN
RN
RN
RN
RN
RN
RN
RN
RN
RN
1S23H30NO
1S23H30NC
1S23H30PO
1S23H30PC
1S40H30NO
1S40H30NC
1S40H30PO
1S40H30PC
1S48H30NO
1S48H30NC
1S48H30PO
1S48H30PC
RN
RN
RN
RN
RN
RN
RN
RN
RN
RN
RN
RN
1S23L30NO
1S23L30NC
1S23L30PO
1S23L30PC
1S40L30NO
1S40L30NC
1S40L30PO
1S40L30PC
1S48L30NO
1S48L30NC
1S48L30PO
1S48L30PC
50 AACrms
Active high
RN
RN
RN
RN
RN
RN
RN
RN
RN
RN
RN
RN
1S23H50NO
1S23H50NC
1S23H50PO
1S23H50PC
1S40H50NO
1S40H50NC
1S40H50PO
1S40H50PC
1S48H50NO
1S48H50NC
1S48H50PO
1S48H50PC
50 AACrms
Active low
RN
RN
RN
RN
RN
RN
RN
RN
RN
RN
RN
RN
1S23L50NO
1S23L50NC
1S23L50PO
1S23L50PC
1S40L50NO
1S40L50NC
1S40L50PO
1S40L50PC
1S48L50NO
1S48L50NC
1S48L50PO
1S48L50PC
400 VACrms
480 VACrms
Specifications are subject to change without notice (21.11.2003)
1
RN1S .......
General Specifications
RN1S23.....
Operational voltage range
Non-rep. peak voltage
Varistor voltage
Zero voltage turn-on
Operational frequency range
Power factor
Approvals
CE-marking
Norms fulfilled
120 to 265 VAC
800 V
p
275 VAC
≤
15 V
45 to 65 Hz
≥
0.5 @ 230 VAC
UL, cUL, CSA
Yes
RN1S40.....
150 to 440 VAC
1000 V
p
420 VAC
≤
15 V
45 to 65 Hz
≥
0.5 @ 400 VAC
UL, cUL, CSA
Yes
RN1S48.....
180 to 530 VAC
1200 V
p
510 VAC
≤
25 V
45 to 65 Hz
≥
0.5 @ 480 VAC
UL, cUL, CSA
Yes
EN 60947-1
EN 61000-6-2
Low-voltage switchgear and control gear. Part 1- General Rules.
Generic Immunity Standard. Industrial Environment
Control Specifications
Supply voltage range
Supply current
Response time pick-up @ 50 Hz
Response time drop-out @ 50 Hz
Active high control input
Pick-up voltage
Drop-out voltage
Input current (Vc = 32 V)
Active low control input
Pick-up voltage
Drop-out voltage
Input current (Vcc = 32 V)
20 to 32 V
≤
40 mA
≤
10 ms
≤
10 ms
Typ. 7 VDC
Typ. 6.8 VDC
≤
4 mA
Typ. Vcc - 10 VDC
Typ. Vcc - 10 VDC
≤
4 mA
PNP alarm output
Alarm output voltage open
Alarm output voltage @ 100 mA
Alarm output current
NPN alarm output
Alarm output voltage open
Alarm output voltage @ 100 mA
Alarm output current
≤
0 VDC
Vcc - 2 VDC
≤
100 mA
≤
32 VDC
2 VDC
≤
100 mA
Output Specifications
RN1S...30..
Rated operational load current
AC 51
@T
a
= 30°C
@T
a
= 40°C
@T
a
= 50°C
@T
a
= 60°C
AC 53a
@T
a
= 40°C
Zero crossing detection
Min. operational current
Non-rep. surge current t = 10 ms
(Tj init. = 25°C)
Off-state leakage current @ rated voltage and frequency
(Tj. = 125°C, max.)
I
2
t for fusing t = 1 to 10 ms
Critical dV/dt off-state
30 Arms
30 Arms
23 Arms
20 Arms
6 Arms
Yes
200 mA
≤
250 A
p
< 6 mA
310 A
2
s
500 V/µs
RN1S...50..
50 Arms
50 Arms
38 Arms
30 Arms
12 Arms
Yes
200 mA
≤
600 A
p
< 6 mA
1800 A
2
s
500 V/µs
Sense Specifications
RN1S23.....
Current
Sensed load current
Non-sensed leakage current
Voltage
Sensed line voltage
Non-sensed line voltage
Timing
Response time from fault
to alarm output
Short-circuit of semiconductor
≥
50 mA
≤
20 mA
≥
120 Vrms
≤
50 Vrms
≤
100 ms
Will be sensed
RN1S40.....
≥
50 mA
≤
20 mA
≥
150 Vrms
≤
80 Vrms
≤
100 ms
Will be sensed
RN1S48.....
≥
50 mA
≤
20 mA
≥
180 Vrms
≤
100 Vrms
≤
100 ms
Will be sensed
2
Specifications are subject to change without notice (21.11.2003)
RN1S .......
Thermal Specifications
Operating temperature
Storage temperature
- 20° to +70°C (-4° to +158°F)
- 40° to +100°C (-40° to +212°F)
Insulation
Rated impulse withstand voltage
Input to output
4000 V
imp
Rated impulse withstand voltage
Output to case
4000 V
imp
Housing Specifications
Mounting
Weight with RHN1
Weight with RHN2
Housing material
LED window material
Base plate
Potting compound
Terminals
Control terminals nominal
Min. cable dimenssion
Mounting torque max.
Power terminals nominal
Min. cable dimension
Mounting torque max.
Heatsink compound used
DIN-rail 35 mm
470 g
780 g
Noryl SEI, GFN1, Black
PC Lexan 141R
Aluminium, nickel plated
Polyurethane, Casco Nobel
Screw with captive wire
clamp
4 mm
2
or 2 x 2.5 mm
2
AWG 12 or 2 x AWG 14
0.5 mm
2
, AWG 20
0.6 Nm
10 mm
2
or 2 x 6 mm
2
AWG 6 or 2 x AWG 10
1 mm
2
, AWG 16
2.0 Nm
Electrolube HTS
Environment Specifications
Humidity max.
95%, no condensation
Dimensions
Dimensions
RN..30
RN..50
(H x W x D)
120 x 45 x 110 mm
120 x 90 x 110 mm
Operation Diagram
Normal
Relay
OFF
Line Voltage
Line Current
Control
Green LED
DC Supply
Red LED
Alarm output
(normally open type)
= Half LED light intensity
Operation
Relay
ON
Line
Voltage
Loss
Load
Open
Circuit
DC
Supply
Loss
Relay
Remains
OFF
Shorted
Relay
Specifications are subject to change without notice (21.11.2003)
3
RN1S .......

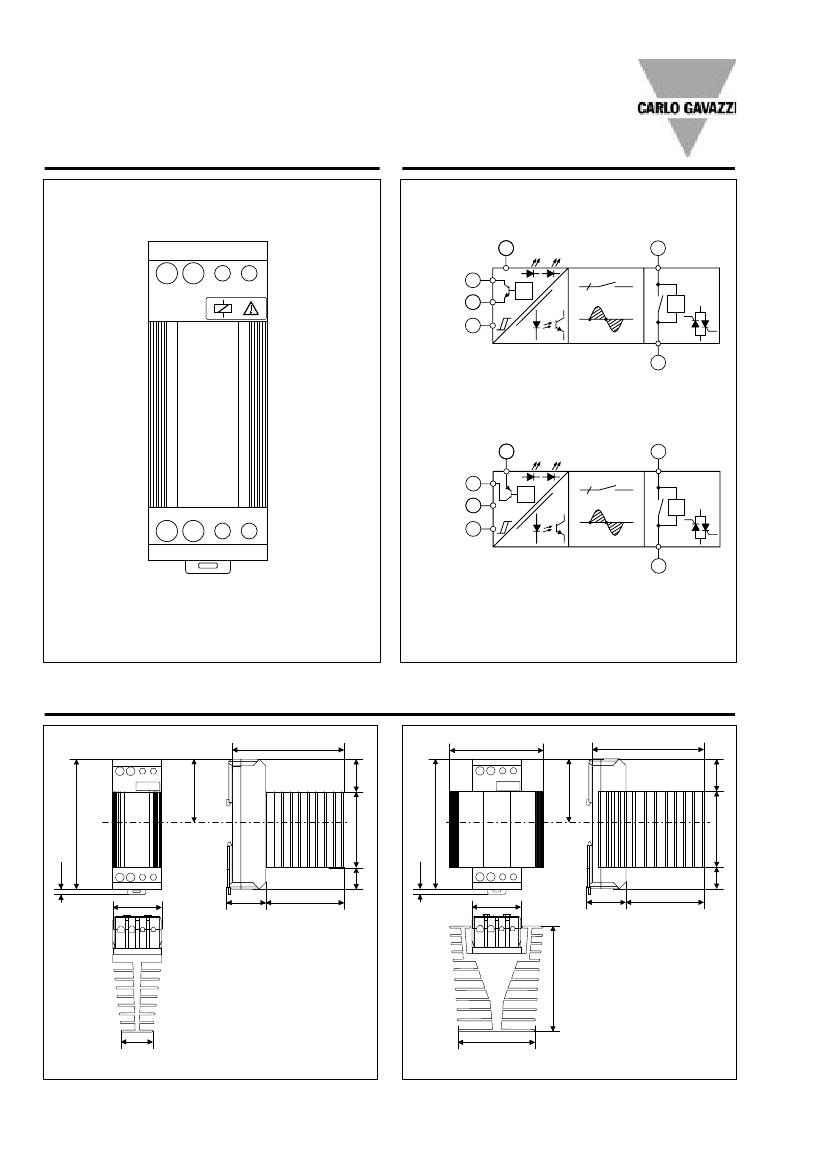

Terminal Layout
Functional Diagrams
RN1S .....N.
VCC
A
1
L
1
L
1
B
1
A
1
Alarm output X
1
C/V
Com
A
2
C/V
Control input B
1
T
1
RN1S .....P.
VCC
A
1
Alarm output X
1
C/V
Com
T
1
A
2
X
1
A
2
C/V
Control input B
1
L
1
T
1
Dimensions
103
30
89
103
30
120
60
4
45
37
71,6
72
93
120
60
70
45
37
71,6
33,7
RN..30
Note: all dimensions in mm
20
RN..50
Note: all dimensions in mm
4
Specifications are subject to change without notice (21.11.2003)
20
4
70
