SPECIFICATIONS
Housing Material: Polyamide 66 UL94V-0, Black
Terminals:
Tin Plated Brass
A
B
C
D
E
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Dimensions
Item
A
B
2
10.30
5.00
3
15.30
10.00
4
20.30
15.00
5
25.30
20.00
6
30.30
25.00
7
35.30
30.00
8
40.30
35.00
9
45.30
40.00
10 50.30
45.00
11 55.30
50.00
12 60.30
55.00
13 65.30
60.00
14 70.30
65.00
15 75.30
70.00
16 80.30
75.00
17 85.30
80.00
18 90.30
85.00
19 95.30
90.00
20 100.30
95.00
21 105.30
100.00
22 110.30
105.00
23 115.30
110.00
24 120.30
115.00
25 125.30
120.00
Date
08/14/06
08/14/06
08/14/06 Part No.:
B
C
D
E
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G

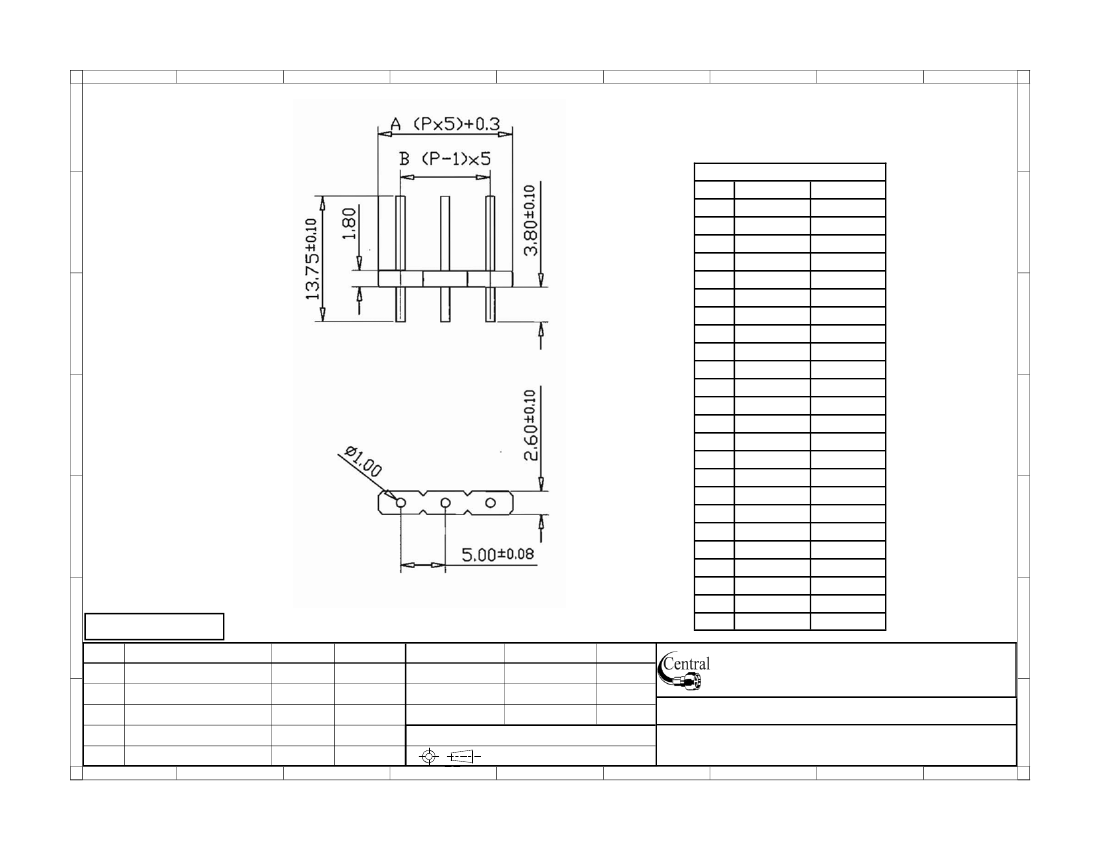

CMTB-HD90VN-500-XX-BK
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: PCB Type Terminal Block
